Summarize:

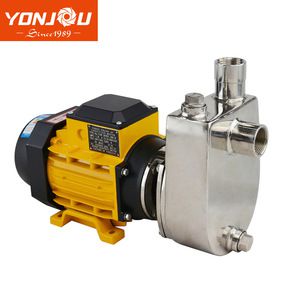

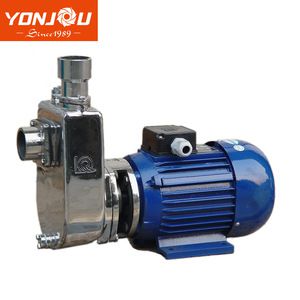

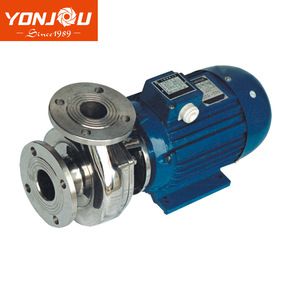

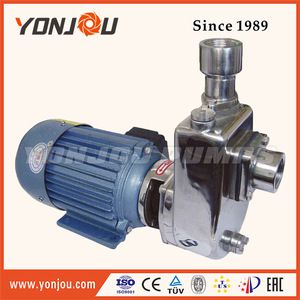

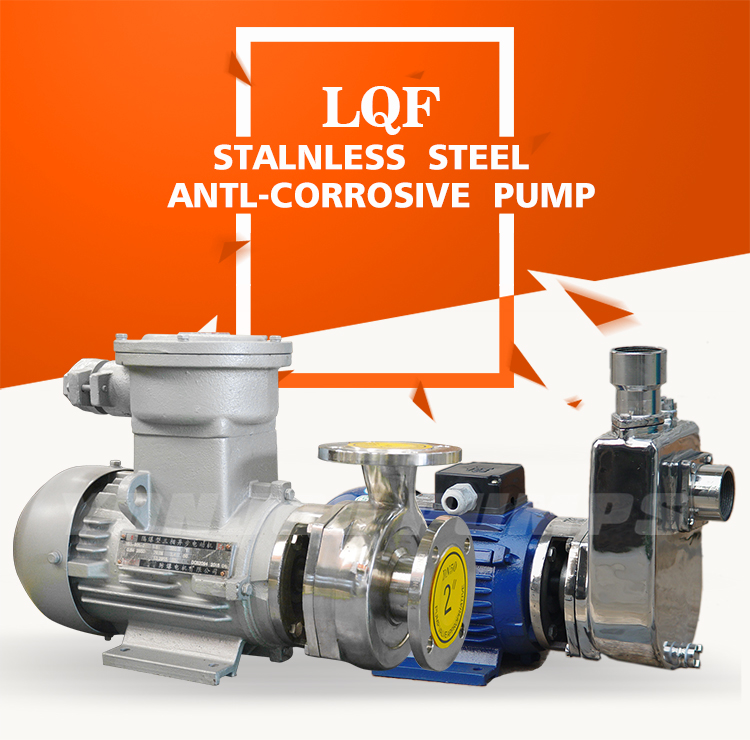

1. LQF High Pressure Chemical Pump,Peristaltic Dosing Pump, Peristaltic Pump is water and chemical pump made in stainless steel with the fuction of self-priming. It's light and can be convenient to handle.
2. To the different mediums, we have:
Two kind of structure: half-open type structure and closing type structure.
Two joint type of motor: straight joint type and bearing split joint type.

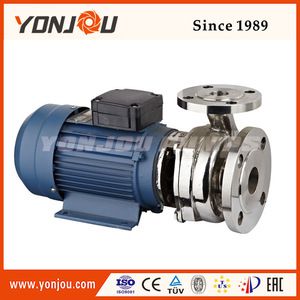

End Connections: Threaded, Flanged type.
Application:
1. It's widely used for industries in medicine, daily chemical industry, light industry, food, environment protection, blanch, galvanization and water treatment.
2. Translate medium which is under 90 degree or under 105 degree and small soft particals or fiber, can transport all kinds of corrosive liquid and sanitary liquid.
Performance Data:
| Model | Po(kw) | Diam(mm) | Eff (%) | Head H(m) Capacity Q(m3/h) | NPSH (m) | |||||||||||
| 380V/50Hz | 220V/50Hz | IN | OUT | |||||||||||||
| 25LQF-8 | 25LQF-8B | 0.25 | 25 | 20 | 43 | H | 11 | 10 | 8 | 6 | 4 | 3 | 4.5 | |||
| Q | 0.8 | 2.5 | 4 | 5.2 | 6.8 | 7.5 | ||||||||||
| 40LQF-13 | 40LQF-13B | 0.55 | 40 | 25 | 45 | H | 15 | 14 | 13 | 12 | 10 | 8 | 6 | 5 | 3.5 | |
| Q | 3.5 | 5 | 6 | 7.5 | 9.5 | 11 | 12.5 | 13 | ||||||||
| 50LQF-18 | 50LQF-18B | 1.5 | 50 | 40 | 52 | H | 22 | 21 | 20 | 18 | 16 | 14 | 12 | 10 | 3.5 | |
| Q | 3 | 5.5 | 9 | 13 | 16 | 18 | 20 | 21 | ||||||||
| 50LQF-22 | 50LQF-22B | 2.2 | 50 | 40 | 55 | H | 27 | 26 | 24 | 22 | 20 | 18 | 16 | 14 | 12 | 3.5 |
| Q | 7 | 10.5 | 16 | 19 | 22 | 23.8 | 26 | 27 | 28.5 | |||||||
| 50LQF-25 | 3 | 50 | 40 | 56 | H | 30 | 28 | 26 | 25 | 24 | 22 | 20 | 18 | 16 | 3.5 | |
| Q | 12.5 | 18.5 | 22 | 23 | 24.5 | 26 | 27.5 | 29.5 | 31 |
| Model | MP(kw) | Diam(mm) | Eff(%) | Head H(m) Capacity Q(m3/h) | NPSH(m) | |||||||||||
| 380V/50Hz | 220V/50Hz | IN | OUT | |||||||||||||
| 25LQFZ-8 | 25LQFZ-8B | 0.25 | 25 | 25 | 40 | H | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 4 | ||
| Q | 2.3 | 3 | 3.5 | 4.3 | 4.8 | 5.2 | 5.5 | |||||||||
| 25LQFZ-13 | 25LQFZ-13B | 0.55 | 25 | 25 | 40 | H | 16 | 15 | 14 | 13 | 12 | 10 | 8 | 6 | 4 | 5 |
| Q | 3 | 4 | 4.8 | 6 | 6.5 | 7.5 | 8.5 | 9.5 | 10 | |||||||
| 40LQFZ-18 | 40LQFZ-18B | 1.5 | 40 | 49 | 49 | H | 21 | 20 | 19 | 18 | 16 | 14 | 12 | 10 | 8 | 5 |
| Q | 6 | 7 | 8.5 | 10 | 12 | 14 | 15.5 | 17.3 | 18.5 | |||||||
| 50LQFZ-22 | 3 | 50 | 50 | 50 | H | 28 | 26 | 25 | 24 | 22 | 20 | 18 | 16 | 14 | 5 | |
| Q | 8.5 | 11.5 | 13.5 | 14.5 | 16.5 | 19 | 20.5 | 22 | 23.8 |
Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump etc.
