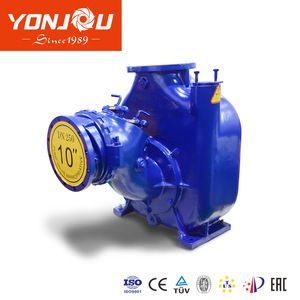

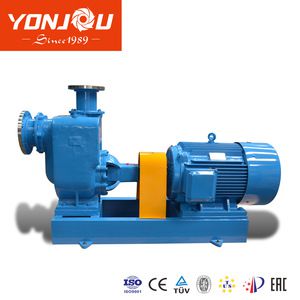

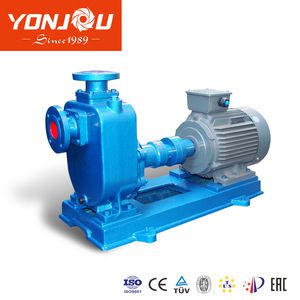

Max 76mm Grain Size Sewage Water Self Priming Pump is our latest generation product base on US technology and craftwork. It is designed for economical & trouble-free operation in handling solid-laden liquids and slurries.
Specification:
1.Inlet/Outlet | 2''(50mm), 3''(80mm), 4''(100mm), 6''(150mm), 8''(200mm), 10''(250mm), 12''(300mm) | |
2.Impeller Diameter | 158.74mm-457.2mm | |
3.Rotary Speed | 550RPM-2150 RPM | |
4.Flow Rates | 8m3/h-1275m3/h | 20GPM-5500GPM |
5.Head | 6m-63m | |
6.Horsepower | 1HP-125HP | |
7.N.W | 92KG-998KG | |
8.G.W | 114KG-1066KG | |
9.Solid Passing | 20.63mm-76.2mm | |
10.Material | cast iron, ductile iron, stainless steel, cast steel,aluminum,bronze | |

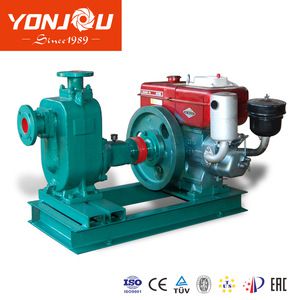

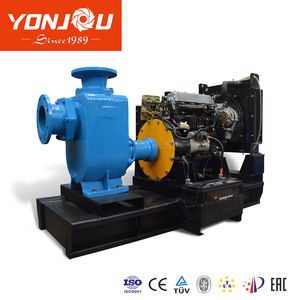

11.Diesel Driving | Water cooled or air cooled | |
12.Method of Connection | Self-priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted. | |

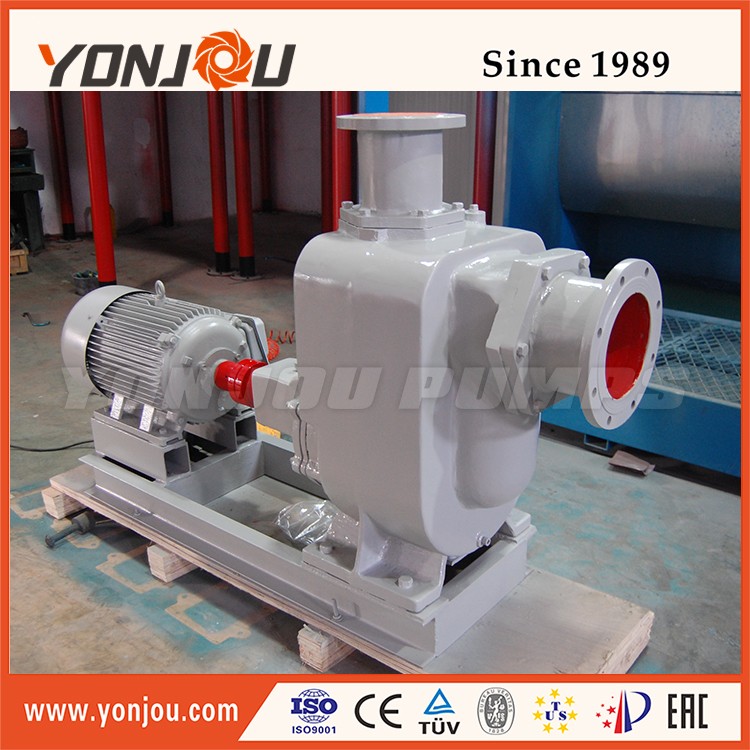

13.Drive Variation | Cummins, Deutz, Ricardo, Perkins or Chinese Diesel, Electric Motor | |
14.Skid Mounted on Trailer | 2 wheels or 4 wheels Trailer/Trailor | |
15.Package | Exporting plywood case | |
16.Certification | CE,ISO9001:2000 |
Model
Size (inch) | R.P.M. (r/min) | Max. Flow (m3/h) | Max. Head (m) | Suction Lift (m) | Power (hp) | Max. Solids (mm) | Net Weight (kg) | Gross Weight (kg) | |
SP-2 | 2 | 1150-2900 | 46 | 36 | 7.6 | 1-10 | 44.45 | 92 | 114 |
3 | 650-2150 | 107 | 35 | 7.6 | 1-20 | 63.5 | 183 | 205 | |
6 | 650-1550 | 330 | 33 | 7.6 | 2-40 | 76.2 | 364 | 391 | |
8 | 650-1350 | 600 | 34 | 7 | 7.5-75 | 76.2 | 581 | 634 | |
10 | 650-1450 | 775 | 40 | 6.7 | 10-100 | 76.2 | 635 | 663 | |
12 | 650-1250 | 1275 | 42 | 4.9 | 20-125 | 50 | 998 | 1066 |

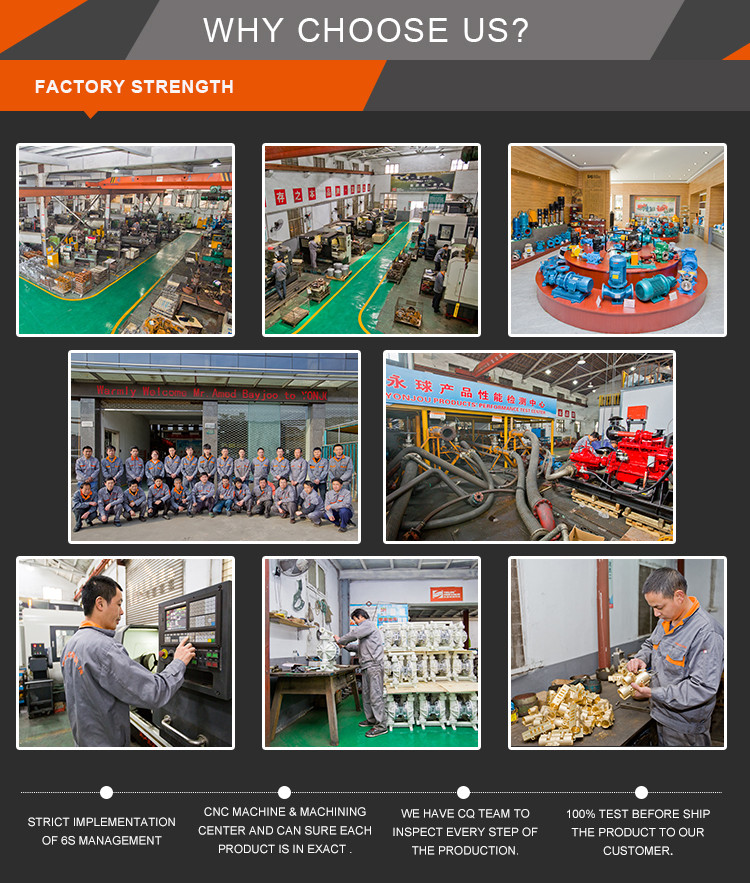

Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump et
