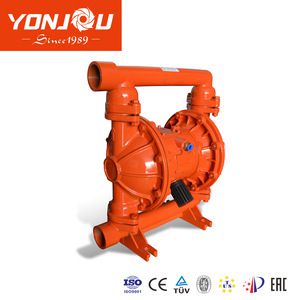

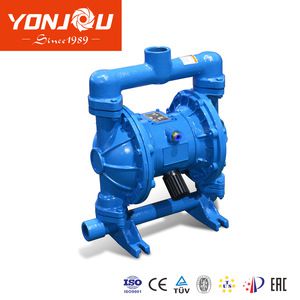

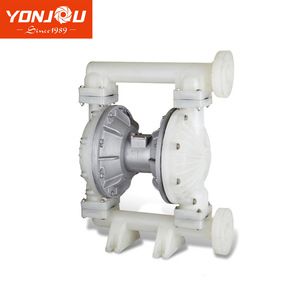

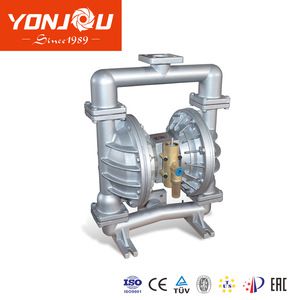

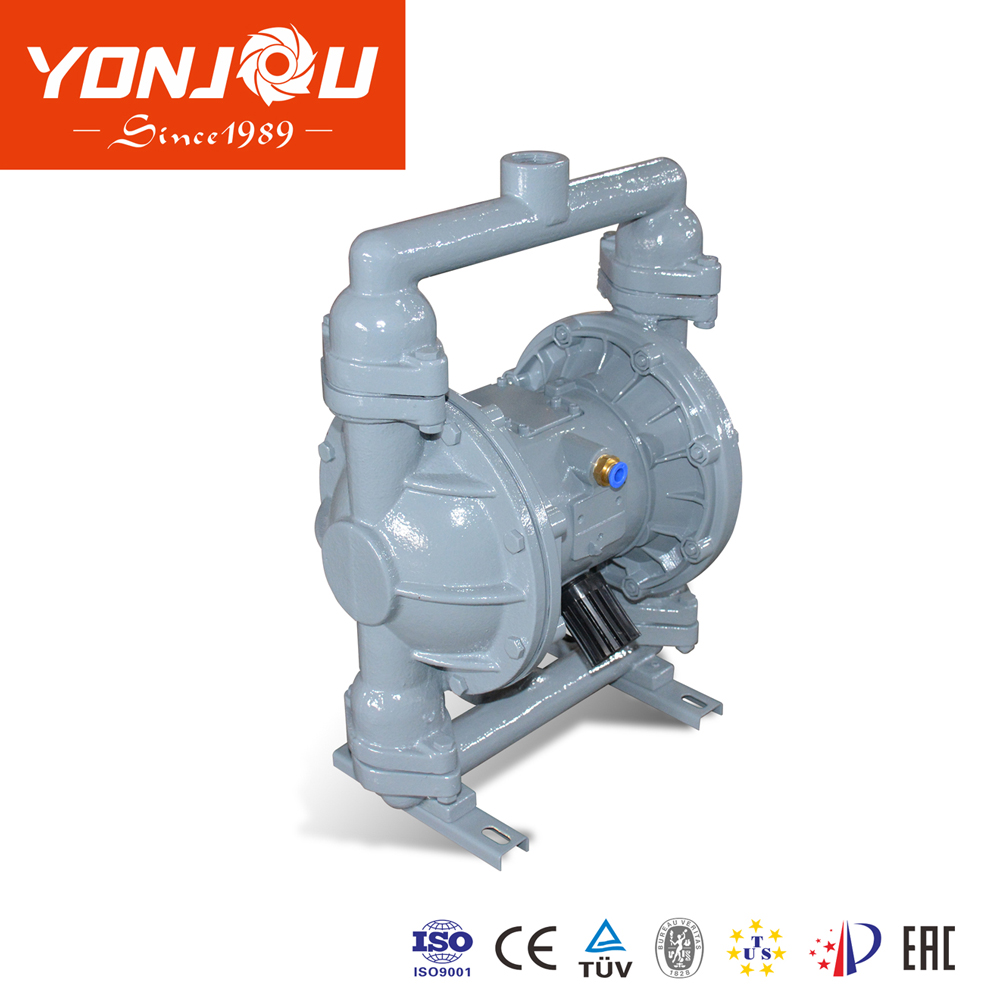

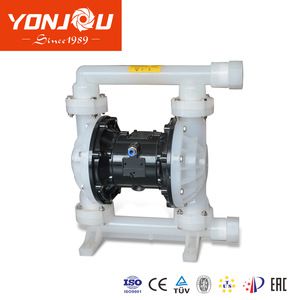

1.Glue and starch pumping with Air operated diaphragm pumps for solvent for Food& Chemical, Chemical Resistant Diaphragm Pump is the new kind of transportation machine, adopting compress air, smoke and industry exhaust gas as power source.

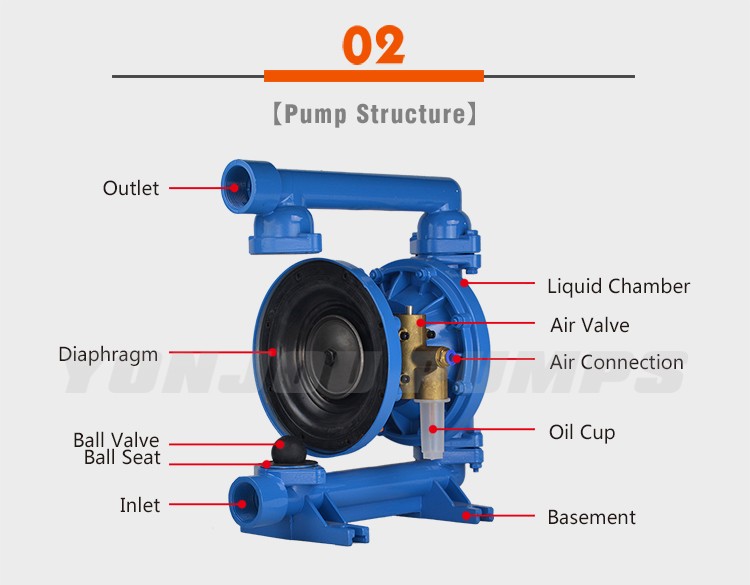

2. It has two diaphragms, the compressed air come to the pump body to drive the pump in the constant action of sucking and releasing, so it can pump the liquids easily by this principle. Also it is very safe in dangerous environment since it has no electric motor.
3. QBY air operated double diaphragm pumps not only can transfer the flow liquid, but also can transfer some uneasy flowed medium, with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc.
Products details:
| Working Principle: | Double diaphragms, pneumatic |
| Main applications: | Oil, water, chemical, etc. |
| Driver: | Air operated |
| Max.permissible fluid temperature: | 150°C(302°F) |
| Type of connection: | Flange, thread, quick coupled |
| Installation position: | Connect to compressor |

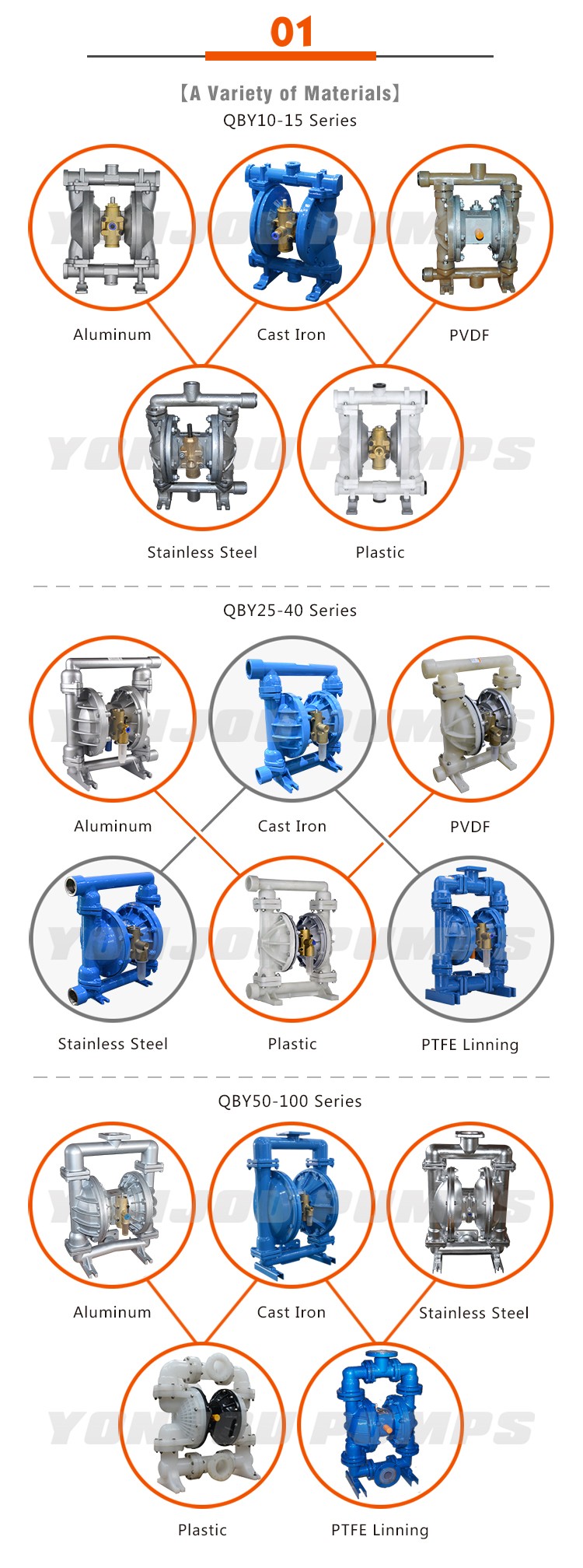

| Casing parts material: | C.I, S.S, PP, Aluminium |
| Maximum grain diameter: | 10mm(3/8inch) |
| Maximum drive rating: | 7kgf/cm2 |
| Maximum caliber: | 100mm(4inch) |
| Maximum discharge-side pressure: | 6kgf/cm2 |
| Maximum head: | 50m(164ft) |
| Flow rate range: | 0.8-30m3/h(3.5-132US.GPM) |
Performance Data:
| Model | Size (") | Capactiy (m3/h) | Head (m) | Suction Head (m) | Max Grain Dia. (mm) | Air Pressure (Kgf/cm2) |
| QBY-10 | 3/8" | 0~0.8 | 0~60 | 5 | 1 | 7 |
| QBY-15 | 1/2" | 0~1 | 5 | 1 | ||
| QBY-25 | 1" | 0~2.4 | 7 | 2.5 | ||
| QBY-40 | 1-1/2" | 0~8 | 7 | 4.5 | ||
| QBY-50 | 2" | 0~12 | 7 | 8 | ||
| QBY-65 | 2-1/2" | 0~16 | 7 | 8 | ||
| QBY-80 | 3" | 0~24 | 7 | 10 | ||
| QBY-100 | 4" | 0~30 | 7 | 10 |

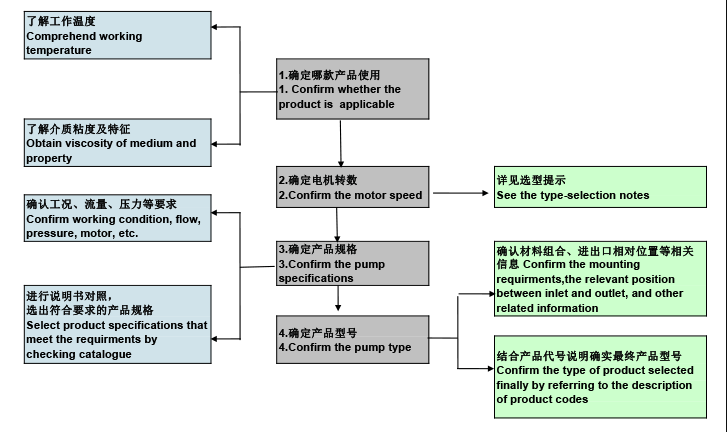

| 1 | Procedures for type selection | |
 | ||
| 2 | OEM | OK |
| 3 | MOQ | 1 set |
| 4 | Package | Standard expert plywood case or styrofoam with carton |
| 5 | Shipping ways | By sea, By air, By express |
| 6 | Lead time | 3-15 days |
| 7 | Ternms of payment | 100%T/T,Aliexpress,L/C,Western Union |
| 8 | Warranty Period | One year,except spare parts |
| 9 | Why choose us | Twenty seven-year-experience High quality with competitive price ISO2009:8001,CE certificate Professional after-sales service |
