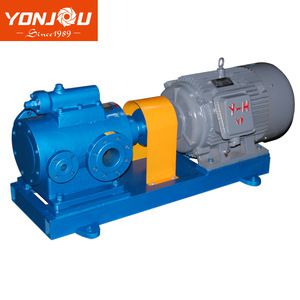

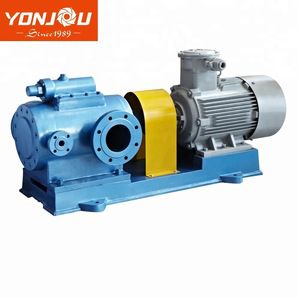

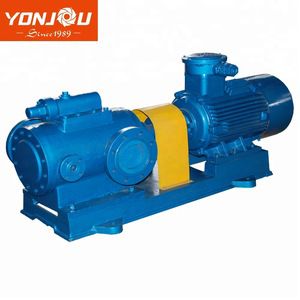

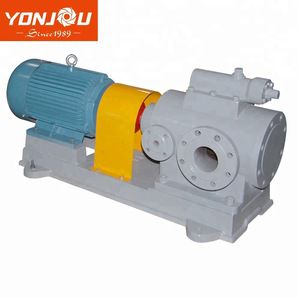

1. high viscosity triple screw asphalt bitumen screw pump price with unique design of double jacket casing, can transmit heavy oil without particle, non-corrosive oil.small plusation, stable capacity, low noise, high efficiency.
2. The viscosity can be 3.0~760 mm2/s (1.2-100 °E). High viscosity medium can be pumped after overheating.
3. Operating Principle: It can be used as rubricating pump, hydraulic pump, boost pump, petrol pump and dispensing pump.
4. Pump fuel oil, rubricate oil, hydraulic oil, crude oil, heavy oil, asphalt, bitumen, rubber, resin such various types of lubrication oil-type liquid in industries of petroleum, steel making, chemical fiber, food, metallurgy, road construction, electrify, mining, shipbuilding, glass, rubber.
Product details:

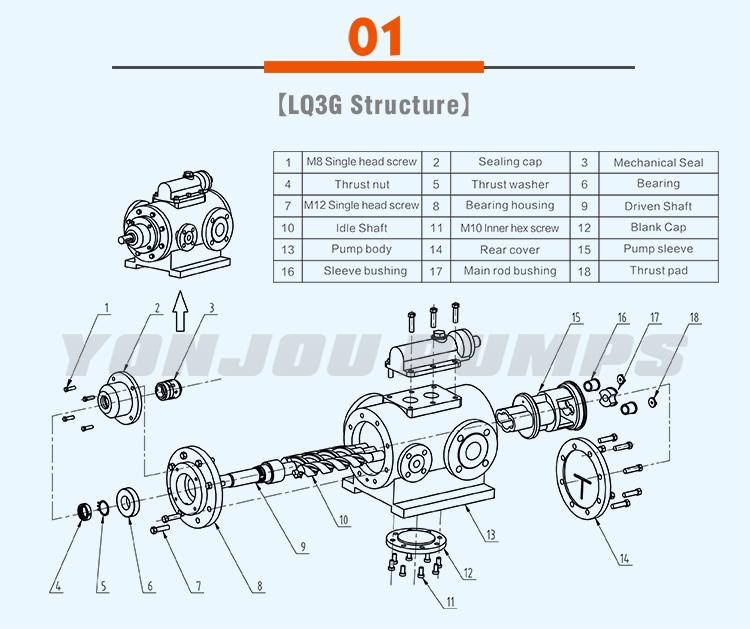

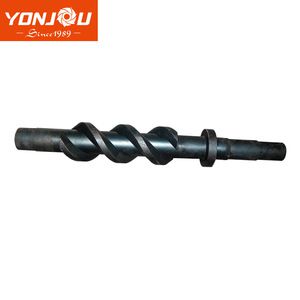

| Working Principle: | Three Screw Heavy Duty Pump (One main, two driven screws) |
| Main applications: | Heavy Oil, bitumen, high viscosity liquid |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 220V, 240V, 380V, 400V, 415V, 440V, 460V, 50hz/60hz |
| Max. permissible fluid temperature: | 350°C |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel |

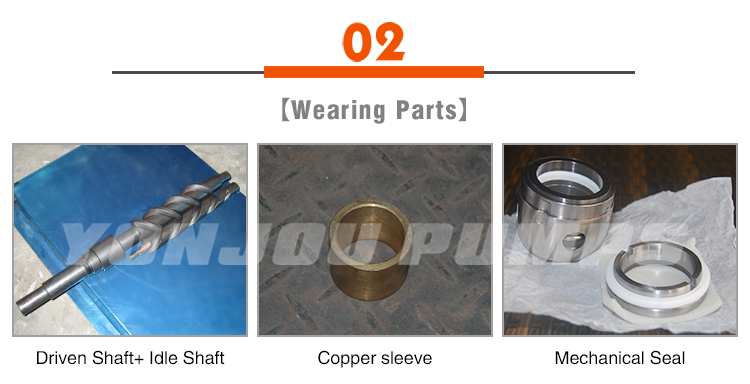

| Shaft seal type: | Mechanical seal |
| Maximum drive rating(motor Power): | 132 kW (177hp) |
| Maximum caliber: | 6inch (150mm) |
| Outlet Pressue: | 0.6Mpa, 0.8 Mpa, 1Mpa |
| Flow rate range: | 0.6-200m³/h (10-3333 L/min) |
| Model | Capacity | Pressure | Speed | KW | Suction head | ||
| m3/h | L/min | MPa | r/min | Shaft power | motor power | m | |
| 45× 2-46 | 4.2 | 70 | 0.6 | 950 | 1 | 1.5 | 5 |
| 14 | 233 | 1 | 1450 | 4.3 | 5.5 | 5 | |
| 62× 2-43 | 8.58 | 143.4 | 0.6 | 950 | 2.06 | 3 | 5 |
| 13.1 | 218.9 | 0.6 | 1450 | 3.15 | 4 | ||
| 62× 2-46 | 9.8 | 163 | 0.8 | 950 | 2.9 | 4 | 5 |
| 25 | 417 | 1 | 1450 | 8.5 | 11 | ||
| 80× 2-45 | 23.1 | 386.3 | 1 | 950 | 8.6 | 11 | 5 |
| 35.7 | 594.5 | 1 | 1450 | 13.1 | 15 | ||
| 80× 2-51 | 26.9 | 448.3 | 1 | 950 | 10.5 | 15 | 5 |
| 41 | 684.1 | 1 | 1450 | 16 | 18.5 | ||
| 90× 2-36 | 24.2 | 403.5 | 0.6 | 950 | 5.52 | 7.5 | 5.5 |
| 36.1 | 602.4 | 1 | 1450 | 13 | 15 | ||
| 90× 2-36 | 27.5 | 457.6 | 1 | 950 | 10.2 | 15 | 5.5 |
| 41.9 | 698.5 | 1 | 1450 | 15.5 | 18.5 | ||
| 90× 2-46 | 34 | 566.7 | 0.8 | 950 | 9.7 | 11 | 5.5 |
| 51.4 | 856.1 | 1 | 1450 | 18.6 | 22 | ||
| 100× 2-46 | 72.7 | 1212 | 0.6 | 950 | 16.5 | 18.5 | 5.5 |
| 71.2 | 1187 | 1 | 1450 | 25.5 | 30 | ||
| 100× 2-51 | 55.7 | 928.6 | 1 | 950 | 20.8 | 30 | 5.5 |
| 85 | 1417.2 | 1 | 1450 | 31.8 | 37 | ||
| 110× 2-46 | 58.9 | 951.7 | 1 | 950 | 21.8 | 30 | 5.5 |
| 94.6 | 1577 | 1 | 1450 | 33.9 | 45 | ||
| 120× 2-42 | 65.4 | 1090 | 1 | 950 | 24.5 | 30 | 5.5 |
| 105 | 1760 | 1 | 1450 | 38.2 | 45 | ||
| 120× 2-46 | 79.6 | 1327 | 0.6 | 950 | 17.8 | 22 | 5.5 |
| 123 | 2059 | 1 | 1450 | 44.1 | 55 | ||
| 150× 2-46 | 154 | 2582 | 1 | 950 | 54.5 | 75 | 5.5 |
236.5 | 3942.2 | 1 | 1450 | 82.2 | 90 |
