Product Description
Summarize:

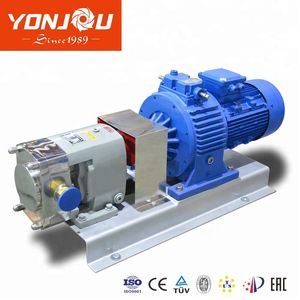

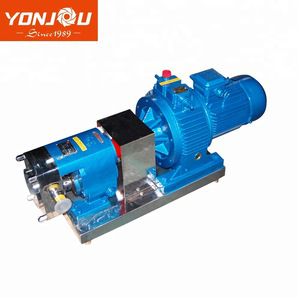

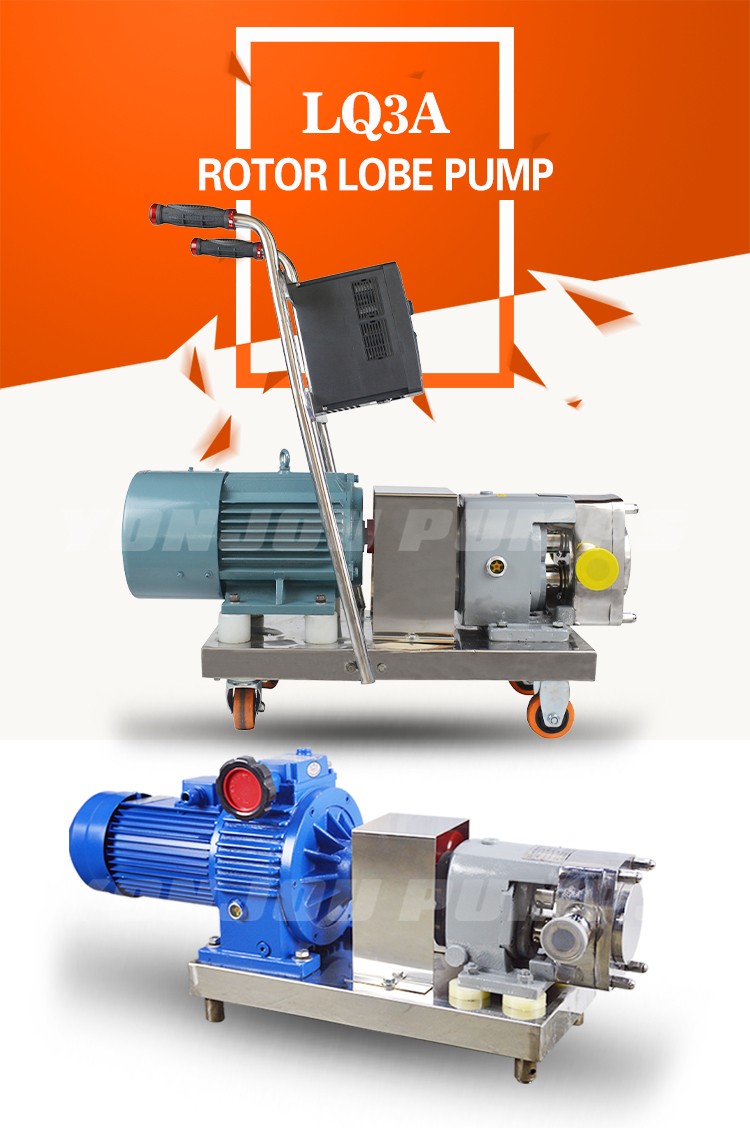

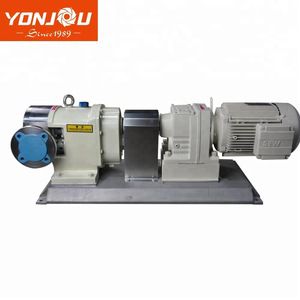

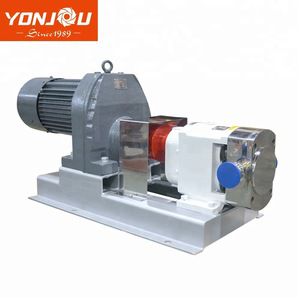

- LQ3A Stainless Steel Rotor Lobe Pump, Pumps For Food Liquid, High Viscous Fluid Pumps , food grade sanitary stainless steel pump pulp and paper, chemical, food, beverage,pharmaceutical, and biotechnology.
- They are popular in these diverse industries because they offer superb sanitary qualities, high efficiency, reliability, corrosion resistance, and good clean-in-place and sterilize-in-place (CIP/SIP) characteristics.

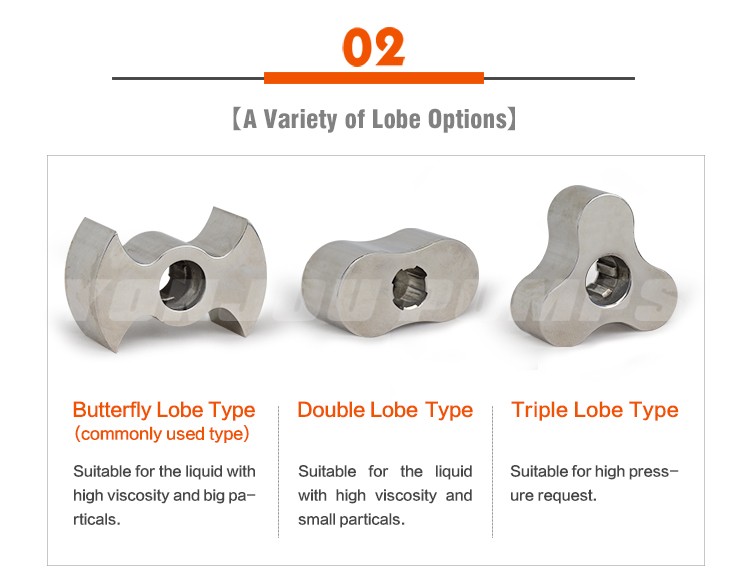

- These pumps offer a variety of lobe options including butterfly lobe, double lobe, triple lobe.

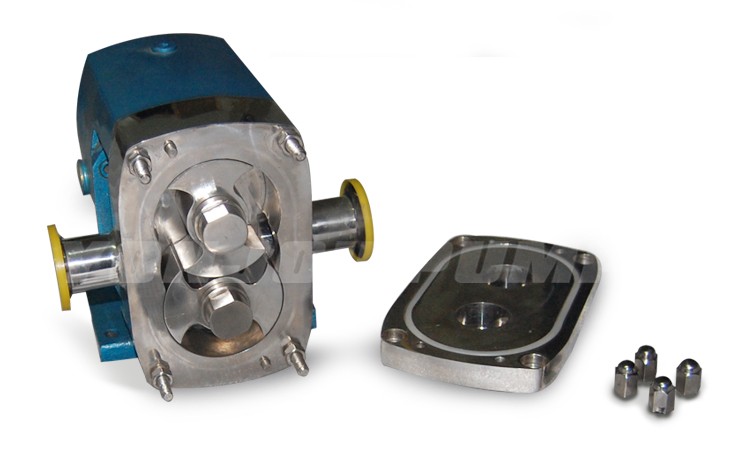

- Rotary lobe pumps are non-contacting and have large pumping chambers, allowing them to handle solids such as cherries or olives without damage. They are also used to handle slurries, pastes, and a wide variety of other liquids.
Product details:
| Working Principle: | Double rotors |
| Main Applications: | Food applications, Polymers, Paper coatings, Soaps and surfactants, Paints and dyes Rubber and adhesives, Pharmaceuticals |

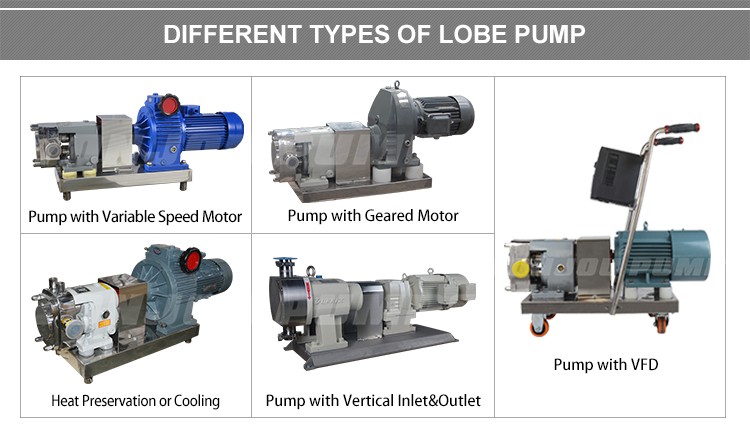

| Driver: | Variable Speed Motor, Geared Motor, Variable Frequency Motor |
| Power Specs: | 220V, 240V, 380V, 400V, 415V, 440V, 460V, 50hz/60hz |
| Max.permissible fluid temperature: | 150°C (302°F) / 250°C (482°F)-water cool type |
| Type of connection: | Quick couple, Thread, Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Stainless Steel |
| Shaft seal type: | Mechanical seal |
| Maximum viscosity: | 1x106 C.S.T |
| Maximum drive rating: | 22kW(30HP) |
| Maximum caliber: | 125mm(5inch) |
| Maximum discharge-side pressure: | 5bar |
| Suction pressure: | 0.08Mpa(0.8bar) |
Performance data:
| Type | Size (mm) | Discharge Capacity per 100r (L) | Speed Range (rpm) | Flow (L/H) | Motor Power (kW) |
| LQ3A-6 | 25 | 6 | 200-500 | 650-1600 | 0.75 |
| LQ3A-8 | 32 | 8 | 200-500 | 850-2160 | 1.5 |
| LQ3A-12 | 38 | 12 | 200-500 | 1300-3200 | 2.2 |
| LQ3A-20 | 38 | 20 | 200-500 | 2100-5400 | 3 |
| LQ3A-30 | 42 | 30 | 200-400 | 3200-6400 | 4 |
| LQ3A-36 | 42 | 36 | 200-400 | 3800-7600 | 5.5 |
| LQ3A-52 | 50 | 52 | 200-400 | 5600-11000 | 5.5 |
| LQ3A-66 | 62 | 66 | 200-400 | 7100-14000 | 7.5 |
| LQ3A-78 | 75 | 78 | 200-400 | 9000-18000 | 7.5 |
| LQ3A-100 | 75 | 100 | 200-400 | 11000-22000 | 11 |
| LQ3A-135 | 100 | 135 | 200-400 | 15000-30000 | 15 |
| LQ3A-160 | 100 | 160 | 200-400 | 17000-34000 | 18.5 |
| LQ3A-200 | 125 | 200 | 200-400 | 21600-43000 | 22 |
