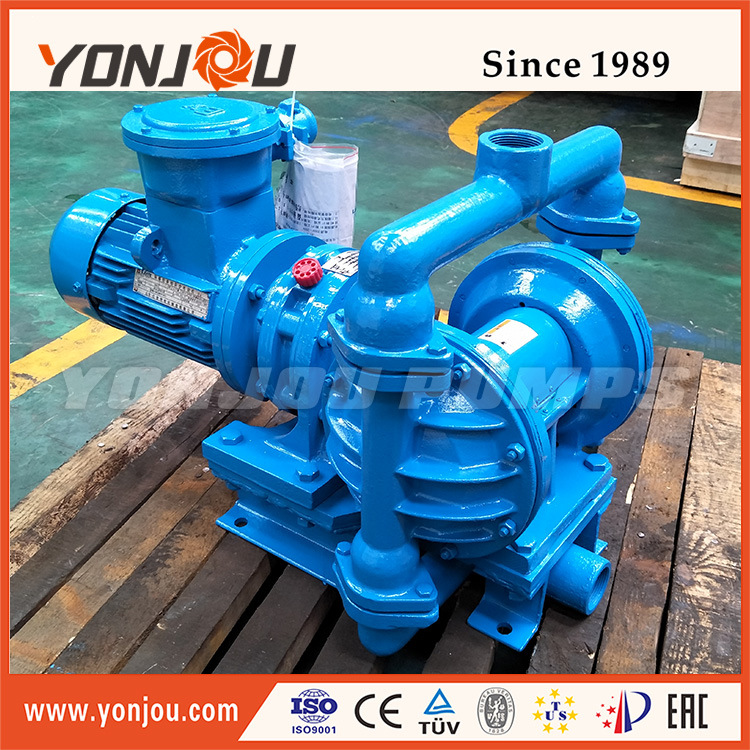

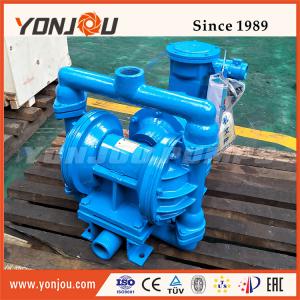

Electric Pneumatic Diaphragm Pump for Water, Milk, Beer and Food Grade

Summarize: It can be build with material of stainless steel, aluminium alloy, engineering plastic, cast iron with diaphragm of Buna-N, Viton, EPDM, F46, Neoprene.This pump in nowdays is very poplular because of it's new technology. So many industrie

Technical Feature

  • 1 Piece
  • Shanghai, China
  • 200/Week
  • L/C, T/T, Western Union
  • ISO9001:2008, CE
  • Cast Iron, Alu, Ss, PP, PTFE
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
DBY
Performance
Corrosion
Color
Any
Warranty
1 Year Do Not Include Wearing Parts
Trademark
YONJOU
Transport Package
Plywood Cases
Specification
CE, ISO9001
Origin
China
HS Code
841311000

DETAIL DESCRIPTION

Electric Pneumatic Diaphragm Pump for Water, Milk, Beer and Food Grade

Summarize:

It can be build with material of stainless steel, aluminium alloy, engineering plastic, cast iron with diaphragm of Buna-N, Viton, EPDM, F46, Neoprene.

This pump in nowdays is very poplular because of it's new technology. So many industries now are using this DBY pump instead of other chemical pumps. Because it is very safe and it is in good simple structure.
We degsin and manufacture this pump according to the America company ABEL.
This pump is poplular and now it is mainly used in the satuation of the pressre equials or bellow 3bar(0.3mpa).

Also this pump can pump all chemicals with all charactrists only changing different diahragms. It can pump slurry with very big viscosity, like chocalate, and ruuber liquids, aslo can pump oils.
PLS note that recently we are using now technology in the connecting way of the motor and the pump body. Now we are using directly aix connecting way, not the
Flanges connecting way.


Product Information:

Capacity: From 0.5 to 16m3/h, head: 30meters. (special demand can be negotiated)
modelcapacity
(m3/h)
head
(m)
suction
(m)
particle
φ (mm)
power
(KW)
DBY-100.530310.37
DBY-15130310.5
DBY-253.53072.51.5
DBY-3243073.51.5
DBY-405.53074.51.5
DBY-508.5530782.2
DBY-651030782.2
DBY-8014307104
DBY-10016307104


Company information:

Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump etc.
