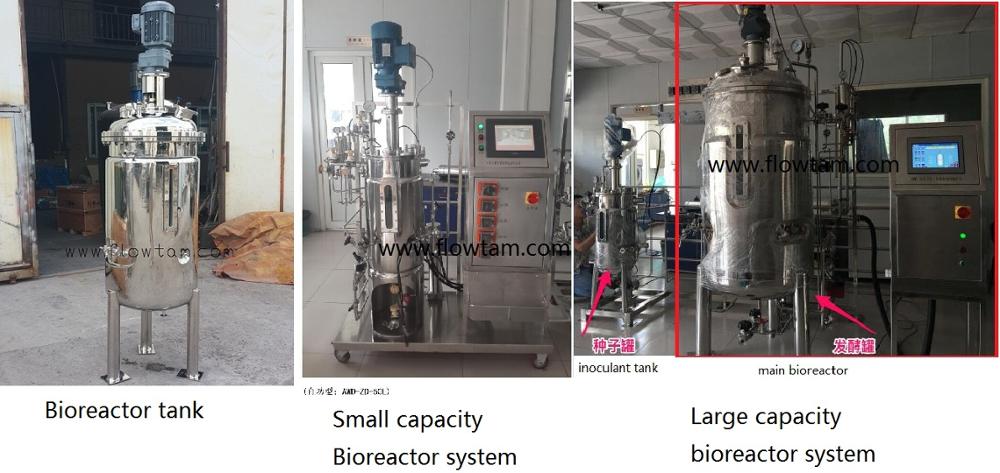

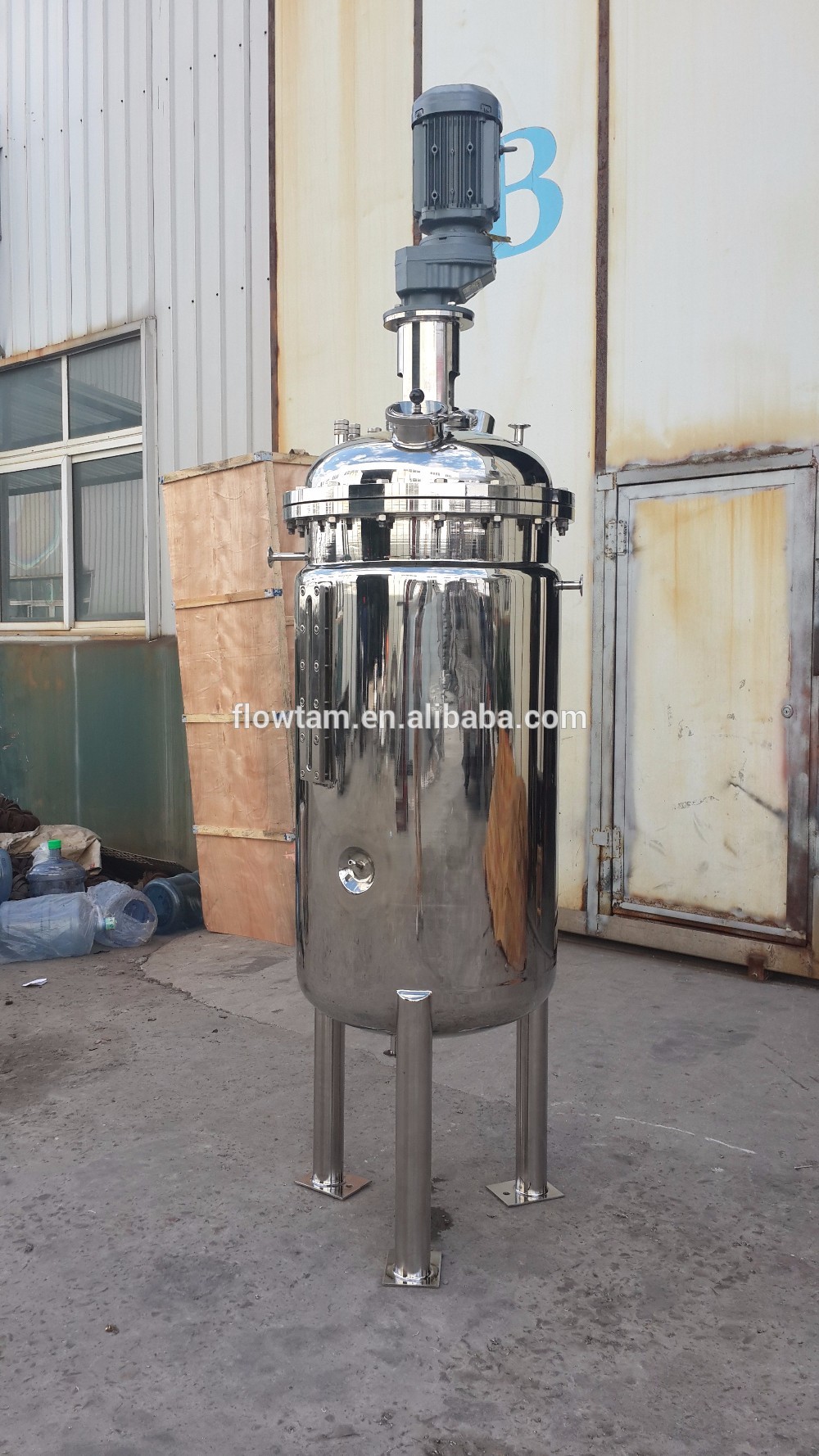

Stainless steel fermentation tank,bioreactor tank
Details
| Product Name | stainless steel biofermenter, bio-fermentation |
| Description | Designed according to 3A standard,widely used for transfer viscous media in food-processing,beverage,chemical,cosemtics and pharmaceutical industries |
| Construction | Horizontal and vertical; Open lid, flat,disc,conical,shell cover; |
| Material | SS304/SS316L/1.4301/1.4404 |
| Seal Ring | Fluorine Rubber,EPDM,PTFE,Silicone(Standard, FDA approval) |
| Mechnical Seal | SIC,Hard alloy,graphite |
| Volume | 50-50000L |
| Pressure | 0-20 bar |
| Working temperature | 300 C / 572 F |
| Jacket | Coil,dimple jacket,hollow jacket |
| Cooling | water,coolant, compressor |
| Heating | electric(water,oil), steam |

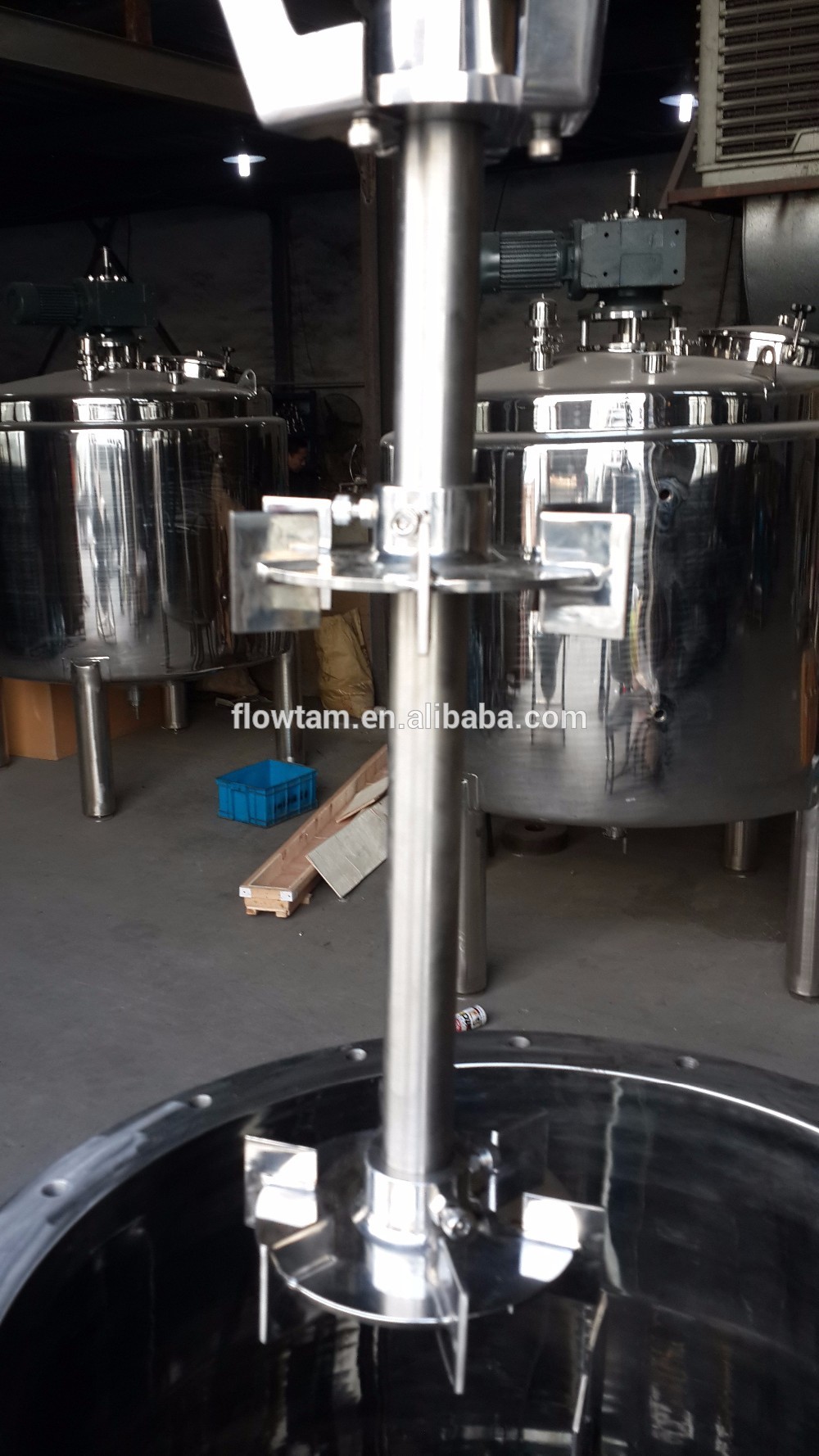

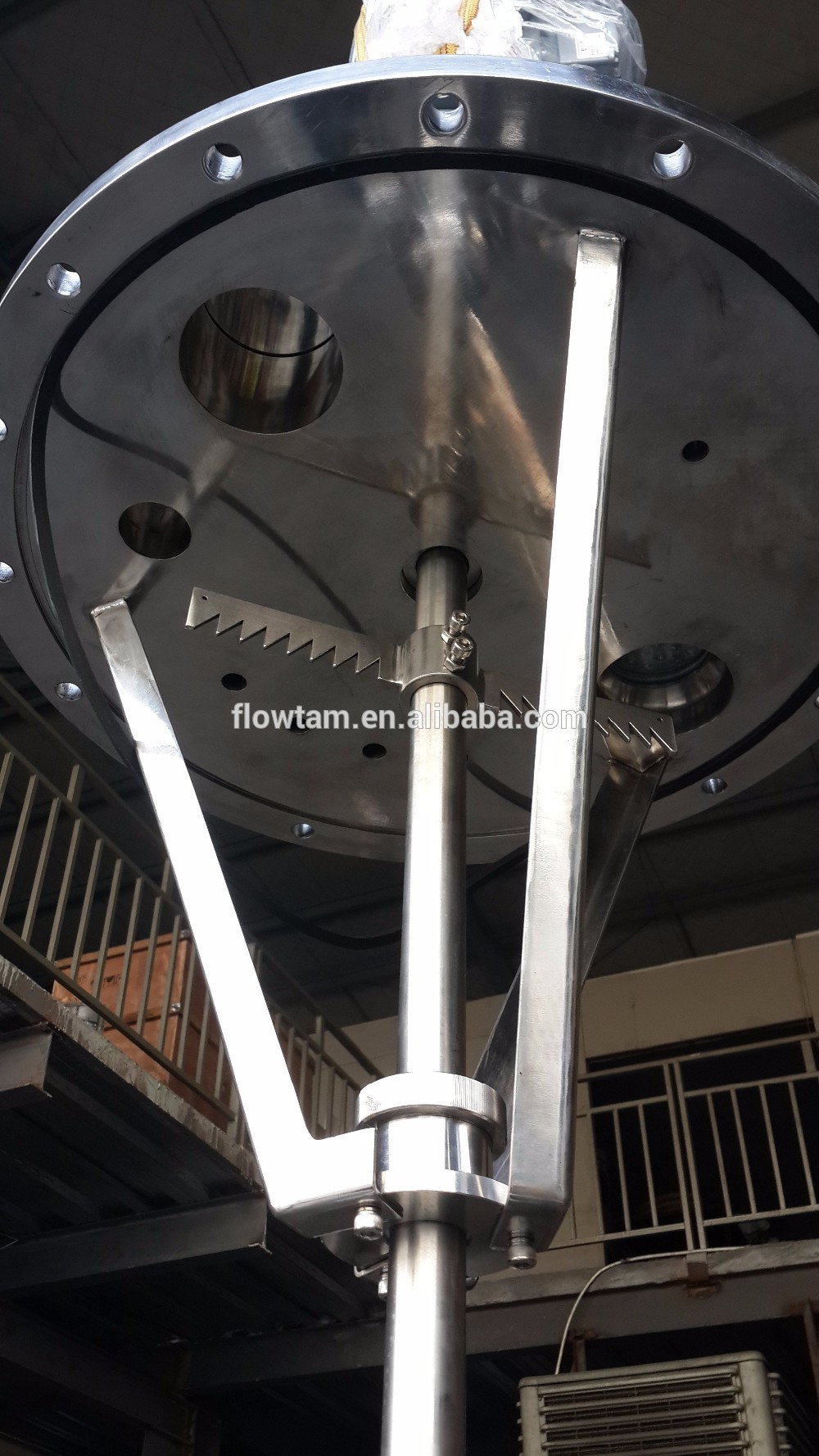

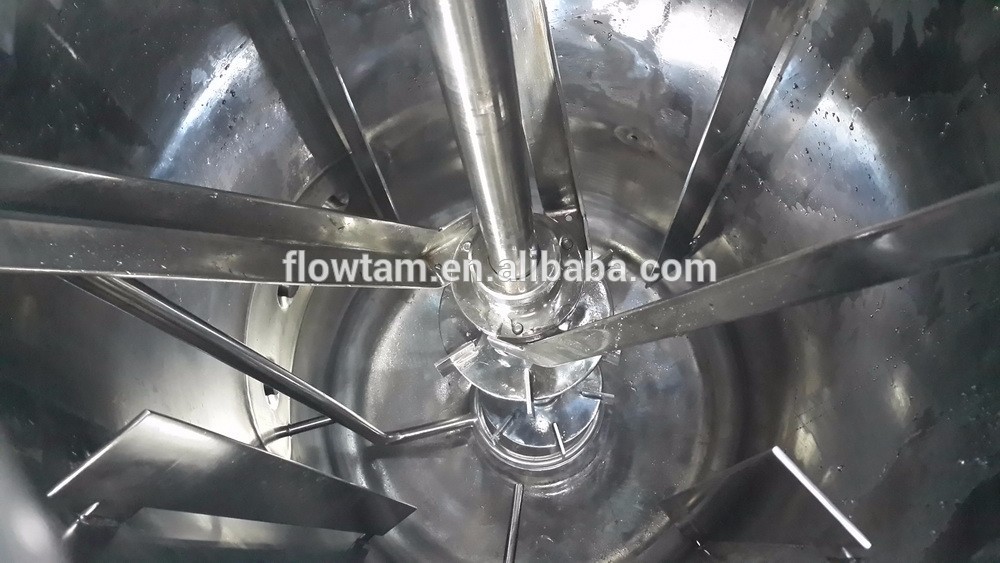

| Agitator | stirrer,high shear homogenizer,scrap mixer |
| Agitator Speed | Constand speed and variable speed; Range: 0-4000rpm |
| Motor power | 0.37kw-100kw |
| Voltage | 110v/220v/240v/380v/415v/460v (50/60hz) |
| Motor | SIEMENS,ABB,Domestic |
| Automitac | PLC/HMI control,display,store,transfer |
| Surface treatment | Inner and externel polished and brushed,good weldings and joints; |
| Accessories | Customizable support |
| Availably connection | Clamp, Thread, Butt weld, Flange |
| Availably standard | DIN, SMS, 3A, RJT, ISO/IDF |
| Application scope | Dairy, food, beverage, chemical,pharmacy, cosmetic, etc |
| Packaging Details | Plywood case or customerized. Or as per the request of customers |
| Delivery details | Usually within 25 days after receiving T/T down payment,special customized need negotiation. |
Technical parameters
| Effective volume | Dimension of tank | Total height | Diameter of inlet&outlet | Heat preservation layer |
| (L) | (mm) | (mm) | (mm) | (mm) |
| 500 | 840*1000 | 2250 | 38 | 60 |
| 600 | 920*1000 | 2300 | 38 | 60 |
| 700 | 990*1000 | 2300 | 38 | 60 |
| 800 | 950*1220 | 2500 | 38 | 60 |
| 900 | 1010*1220 | 2500 | 38 | 60 |
| 1000 | 1060*1500 | 2850 | 51 | 60 |
| 1500 | 1160*1500 | 2850 | 51 | 60 |
| 2000 | 1340*1500 | 2900 | 51 | 60 |
| 3000 | 1410*2000 | 3400 | 51 | 60 |
| 4000 | 1620*2000 | 3450 | 51 | 60 |
| 5000 | 1810*2000 | 3500 | 51 | 60 |
| 6000 | 1980*2000 | 3550 | 51 | 60 |
| 7000 | 1930*2440 | 4000 | 51 | 60 |
| 8000 | 2060*2440 | 4000 | 51 | 60 |
| 9000 | 2180*2440 | 4050 | 51 | 60 |
| 10000 | 2300*2440 | 4050 | 51 | 60 |
| 12000 | 2270*3000 | 4600 | 51 | 60 |
| 15000 | 2530*3000 | 4700 | 51 | 60 |
| 20000 | 2640*3660 | 5400 | 51 | 60 |
