Homogenizer Pump
Specifications:
Inline high shear mixer for sanitary and industrial use

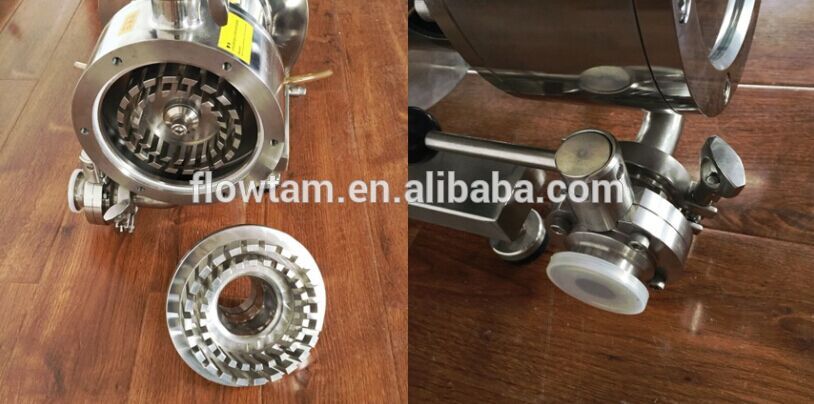

Various Mixing pump teeth available
Work method: Mixing pump work in high speed
Product Name:
Inline high shear mixer
Working Method:
Inline high shear mixer has similar work theory with high shear batch emulsifier, which the rotor and stator work together to generate strong shearing power during speedy running to realize mixing, smashing and emulsion. Inline mixer could also be fixed on pipeline to do continuous work. The standard components are pump chamber, rotor and stator.
Inline mixer is applied to emulsify and disperse kinds of liquids continuously, transmits low viscosity material and mix powder and liquid. It is widely used in the field of Daily, Beverage, food, Pharmacy, Chemical industry etc.
Features of the Inline high shear mixer
• All wetted parts are grade 304 or 316L Stainless steel
• Mechanical Seal for Sanitary Operation
•Quick opening for easy cleaning
•Hygienic Design.
•Explosion-proof ABB Motor 3 Phase
•Two Machine in one, an emulsifier and a centrifugal pump

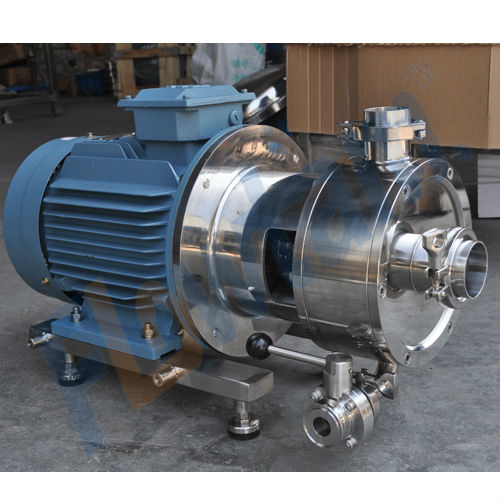

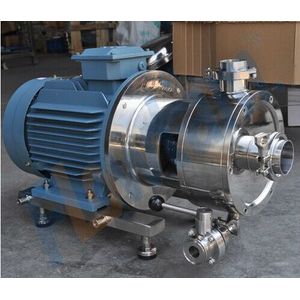

Single stage Inline mixer/mixing pump (one set of rotor&stator)
Model for single stage
| Model | Power(kw) | Speed(RPM) | Capacity (1000L/Hour) |
| BRL1-60 | 1.5 | 2800 | 0-1.5 |
| BRL1-100 | 2.2 | 2800 | 0-3 |
| BRL1-130 | 4 | 2800 | 0-4 |
| BRL1-140 | 5.5 | 2800 | 0-5 |
| BRL1-165 | 7.5 | 2800 | 0-8 |
| BRL1-180 | 11 | 2800 | 0-12 |
| BRL1-185 | 15 | 2800 | 0-18 |
| BRL1-200 | 22 | 2800 | 0-25 |
| BRL1-210 | 30 | 2800 | 0-35 |
| BRL1-230 | 45 | 2800 | 0-50 |
| BRL1-245 | 55 | 2800 | 0-75 |
| BRL1-260 | 75 | 2800 | 0-90 |
| BRL1-275 | 90 | 2800 | 0-110 |
| BRL1-280 | 132 | 2800 | 0-130 |

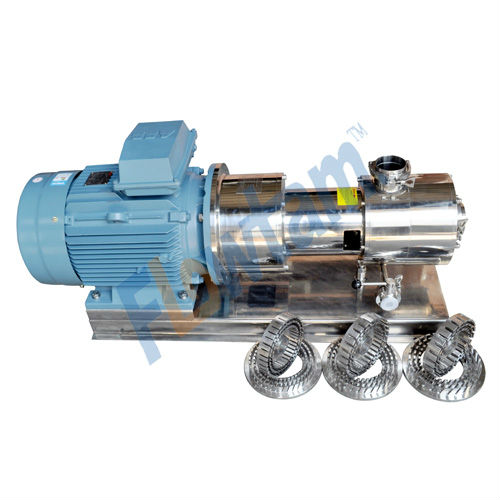

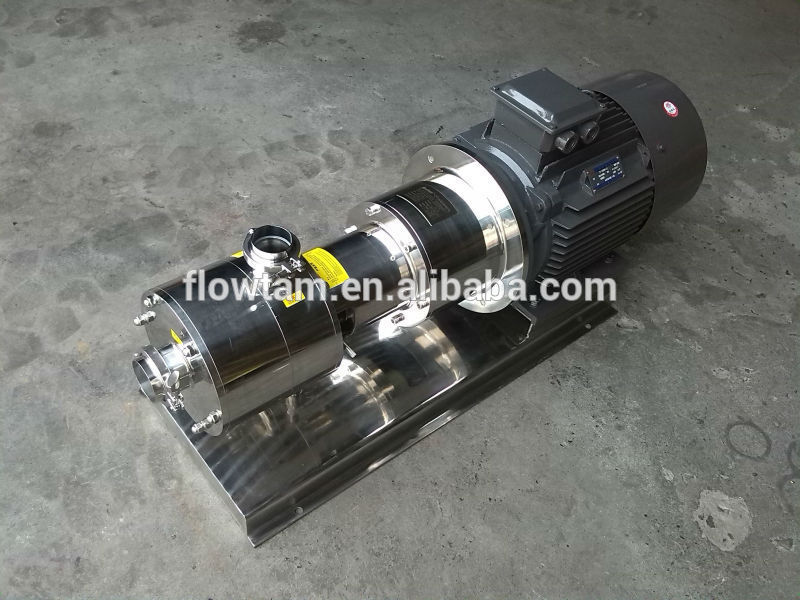

Three stage Inline mixer/mixing pump (three sets of rotor&stator)
Model for three stage
| Model | Power(kw) | Speed(RPM) | Capacity (1000L/Hour) |
| BRL3-60 | 4 | 2800 | 0-4 |
| BRL3-100 | 7.5 | 2800 | 0-8 |
| BRL3-120 | 11 | 2800 | 0-12 |
| BRL3-140 | 15 | 2800 | 0-18 |
| BRL3-165 | 22 | 2800 | 0-22 |
| BRL3-200 | 37 | 2800 | 0-30 |
| BRL3-220 | 55 | 2800 | 0-40 |
| BRL3-240 | 75 | 2800 | 0-55 |
| BRL3-260 | 90 | 1480 | 0-65 |
| BRL3-300 | 110 | 1480 | 0-80 |
| BRL3-360 | 132 | 1480 | 0-100 |
| BRL3-380 | 160 | 1480 | 0-120 |
| BRL3-400 | 185 | 1480 | 0-140 |

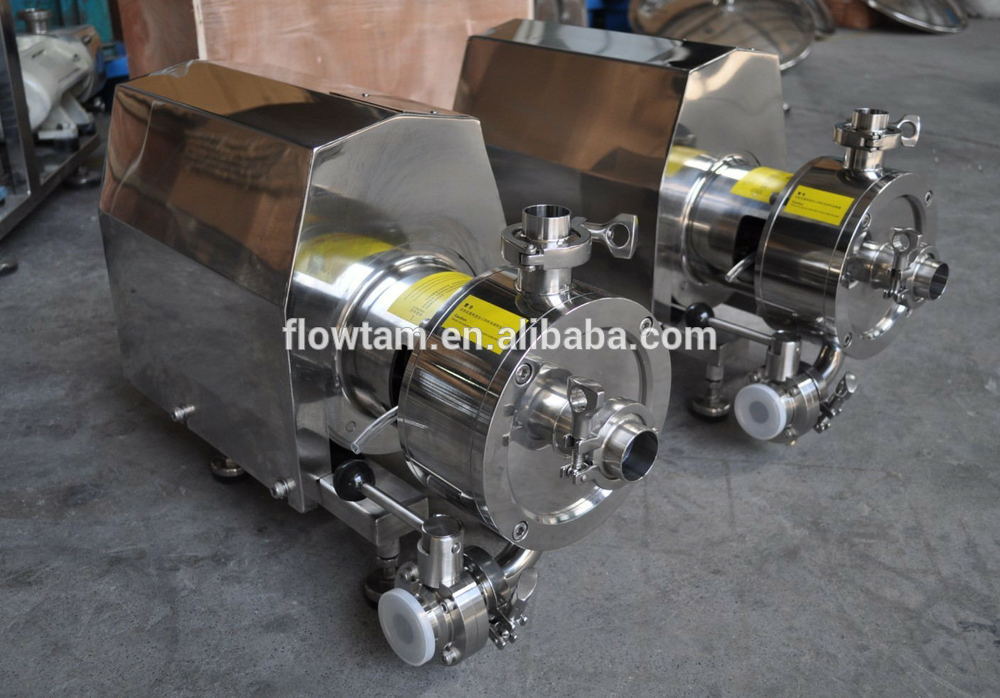

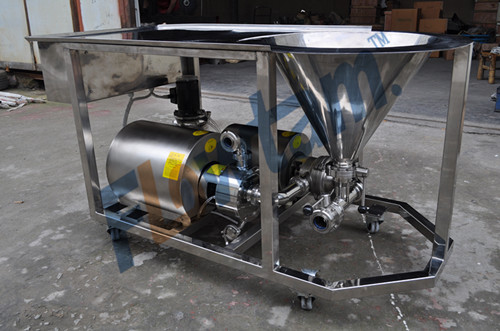

Could equiped with trolley and hopper
High efficiency mixing unit, with self-priming pump

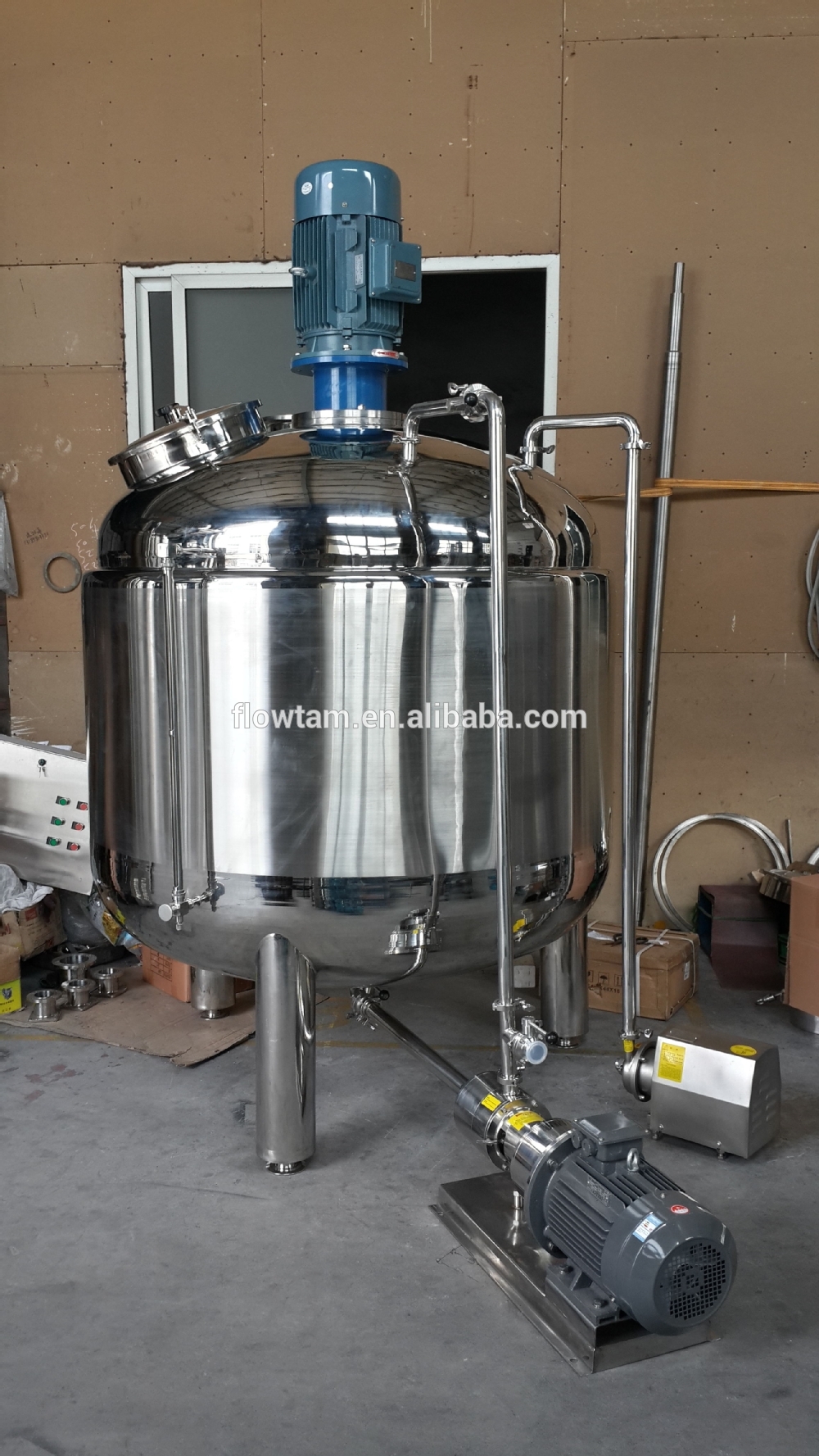

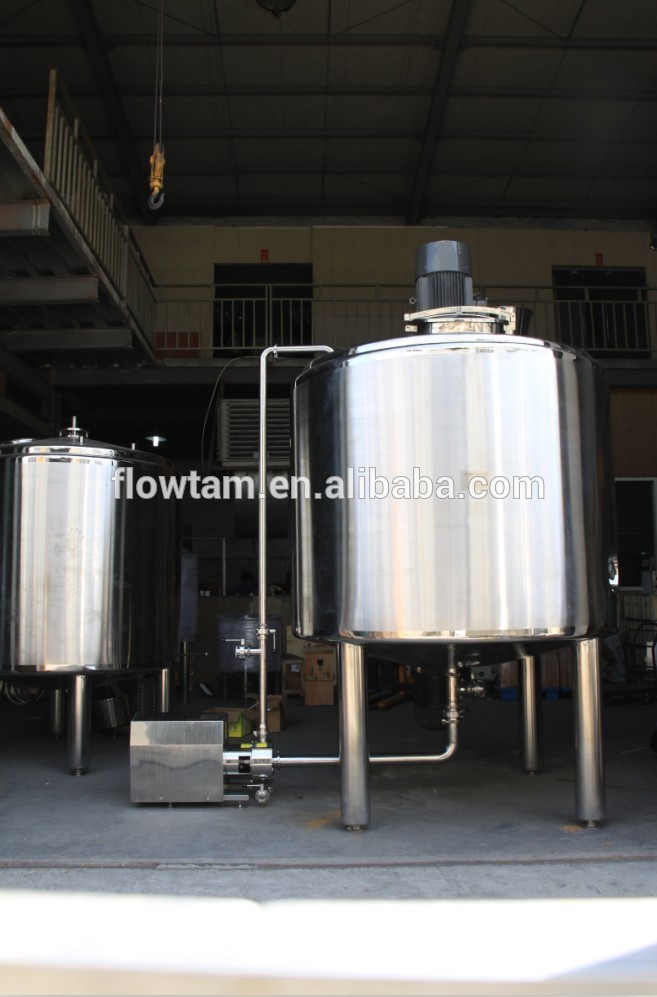

Emulsifying tank(top high shear homogenizer with togother with inline high shear mixer)
