Energy Saving Cassava Starch Slag Rotary Dryer for Thailand

heat source, heat exchangers, feeding machine , rotary drum , discharging machine , circulating fan, residue cleaning systems , and power distribution cabinets.

Technical Feature

  • New
  • Rotary Drying Equipment
  • Henan, China (Mainland)
  • DINGLI
  • DLZG2912/3
  • 380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~30

PRIMARY PARAMETERS

Condition
New
Type
Rotary Drying Equipment
Place of Origin
Henan, China (Mainland)
Brand Name
DINGLI
Model Number
DLZG2912/3
Voltage
380V
Power(W)
300KW
Dimension(L*W*H)
Customized
Weight
80T
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Name
Cassava Starch Slag Rotary Dryer
Material
Steel
Color
Blue or Customized
Input Capacity(t/d)
317.6
Output Capacity(t/d)
186.8
Early Moisture(%)
80u00b15%
Final Moisture(%)
12% (adjustable)
Drying Temperature (u2103)
400u00b150u2103
Raw material
Cassava Dregs, Tapioca Residue, Potato Slag, Starch Pulp
Application
Animal Feeds

DETAIL DESCRIPTION

Product Description

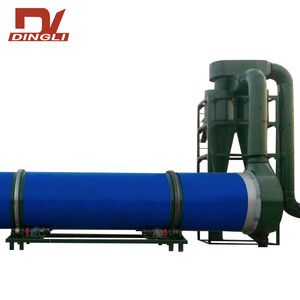

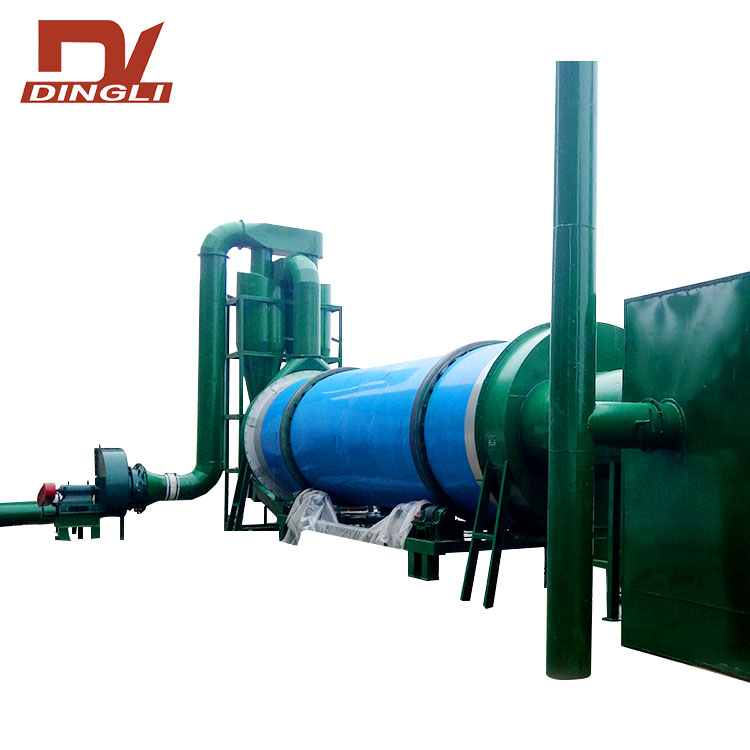

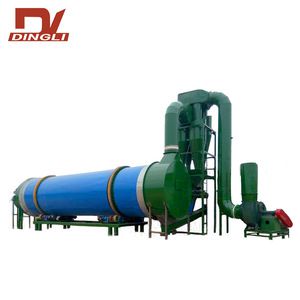

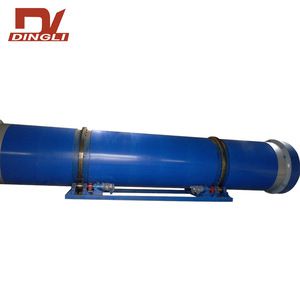

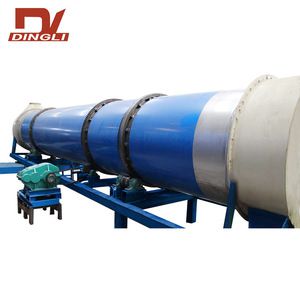

Dingli Cassava Starch Slag Rotary Dryer Introduction:

Product Name
Cassava Starch Slag Rotary Dryer
Producer
Zhengzhou Dingli New Energy Technology Co., Ltd
Model No.
DLZG2912/3
Input Capacity(t/d)
317.6
Output Capacity(t/d)
186.8
Vaporization (t/h)
5.45
Early Moisture (%)
80±5%(Mechanical dehydration to around 68%, and then dried)
Final Moisture (%)
12% (adjustable)
Temperature (℃)
400±50℃
Total Power(KW)
300
Total Weight(T)
80
Plant Area(m)
10m*30m
Matching Products
heat source, heat exchangers, feeding machine , rotary drum , discharging machine , circulating fan, residue cleaning systems , and power distribution cabinets.
Raw Material
Cassava Pulp, Tapioca Dregs, Manihot Slag, Yuca Residue, Manioc Dregs,  Potato Slag, Sweet Potato Dregs, Purple Potato Residue, Starch Residue, Cassava Starch Pulp, Potato Starch Residue, Tapioca Starch Dregs
Application
animal feeds

Dingli Cassava Starch Slag Rotary Dryer Application:

Starch residue is the main by-product of cassava, potato, sweet potato and other agricultural products after the production of starch, moisture content is about 80%, as for high moisture content, heavy viscosity, with the traditional drying process equipment, drying temperature is high, slag starch Gelatinization chemical reaction, dextrin clogging material particles pores, water evaporation does not come out, the particles surface turned yellowish black, "outside the coke within the soft", a serious impact on the sale of dry residue; drying temperature is low, t the moisture cannot drying below 15 % at all, dryer sticky wall, gelatinization, agglomeration, drying equipment can not do normal production,this will lead to the impaired interest of the customers.Dingli brand starch slag dryer is based on the research and development for characteristics of raw material such as cassava, potato slag, and after a few sets of dryer producing experience, which can drying all kinds of potato residue below 12% in one time. The equipment used by the company's "mechanical dehydration + drum drying + pulse air drying " special chinese patent technology, an effective solution to the traditional dryer which can not dry cassava, potato residue problems, drying material with perfect color, good quality, production line of energy saving and environmental protection ,with safe and stable operation,which praised by many new and old customers.

Dingli Cassava Starch Slag Rotary Dryer Features:

1) Can achieve intelligent control, one-button operation, automatic adjustment of operating parameters, the dryer is always in the best condition to run, to ensure that the drying of the material moisture uniform and stable, bright colors, nutrients remain unchanged.
2) Built-in mixing blade device will be fully stirred and broken material, material and hot temperament heat exchange fully, the equipment unit capacity increased by 50% , fuel energy consumption reduced by 30% ;
3) Equipment with less malfunction, low maintenance costs, low energy consumption;
4) Drying products are powder, water evenly, bright color, drying process does not lose the material nutrients;
5) Starch residue drying production line using a special scattering and crushing device to ensure good dryer drying effect.
6) Adopts a unique sealed insulation device, effectively reducing the heat loss of the drying system;
7) The system sealing performance is good, and with a complete dust removal device, no dust spill, the operating environment is good;
8) The entire drying system using electrical centralized control, hot air temperature with automatic adjustment, a high degree of automation, easy to operate;
9) After the drying process, it can be equipped with crushing, mixing, granulation, packing and other follow-up section to produce potato residue pellet feed products.

Process & Principle

Below is Cassava Starch Slag Rotary Dryer Drying Process:

Below is Cassava Starch Slag Rotary Dryer Working Principle:

Specifications

Other Related Cassava Starch Slag Rotary Dryer Specification:

We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.

Model(DLZG)

1208

1408

1610

2010/3

2210/3

2510/3

2512/3

2912/3

Input Capacity(t/d)

43.7

52.5

75.8

169

186.5

215.5

262.2

317.6

Output Capacity(t/d)

25.7

30.9

44.6

99.4

109.7

126.7

154.2

186.8

Vaporization(t/h)

0.75

0.9

1.3

2.9

3.2

3.7

4.5

5.45

Early Moisture(%)

85±5% (Mechanical dehydration to around 68%, and then dried)

Final Moisture(%)

12%(adjustable)

Drying Temperature(°C)

400±50℃

Total Power(KW)

55

75

95

140

170

210

260

300

Total Weight(T)

22

27

28.5

33.5

38.5

45

60

80

Plant Area(M)

5*20

5*20

6*22

8*25

8*25

10*28

10*30

10*30

Except above models, we also can supply special model according to your requirements.

Our Service

Below is Dingli Group Packaging & Shipping:

Your device will be packed well in container and suit for long ocean shipping.

Below is Dingli Group Service Items:

Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.

Company Information
DingLi Main Products

Biomass Rotary Dryer

Coconut Fiber Coir Rotary Dryer

Biomass Carbonization Stove

Brewer Yeast Drum Dryer

Organic Fertilizer Production Line

Biomass Wood Pellet Production Line

DingLi Group Advantage:

1. Over 200 employees, 98% professional technical personnel;
2. Factory size over 3,000 square meters;
3. 305 Inventions & Patents
4. Exported over 80 countries,300 global partners;
5. Rank 3rd in China Drying Industry;
6. Customize Drying Production Line.

Below are DingLi Dryer Factory & Sales Team & Production Line Pictures:

Below are Dingli Group Honors & Certificates & Patents:

Buyer & Project Case

Below are DingLi Customers Visiting:

Dingli Dryer Production Line has exported to over 80 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.

Below are Installation Sites of Our Customers:

After reach deals, Dingli Engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.
