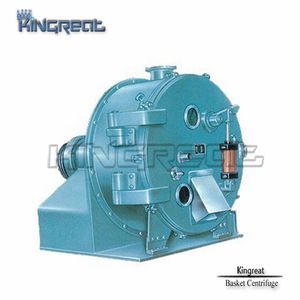

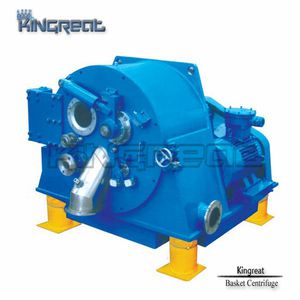

Model PPC Peeler Wheat Starch Dewatering Centrifuge
Model PPC/PPCS centrifuge is the filter equipment characterized with continuous running, scraper discharging and intermittent operation, applicable to the separation of the suspension liquid containing medium-sized granules or fine granules (0.01mm~5mm). It can also be used for the separating of the suspension liquid containing short fibers (with the fiber length less than 4mm), with the concentration of the suspension liquid being 10%~60%. With hydraulic and electric joint control mode adopted, this series of centrifuges are capable of high degree of automation, with such working processes as feeding, dehydrating, washing, discharging, etc. being operated manually or by means of PLC for full automatic control.
The horizontal scraper discharging centrifuge has good adaptability to the material to be processed and thus can be widely used in such industrial fields as chemical, light industry, food, pharmacy, etc. for the separating of over 100 kinds of substances including ammonia sulphate, sodium sulphate, anthracene, boric acid, starch, pesticide, synthetic resin, sodium cyanide, potassium chloride, sodium bicarbonate etc.
| Model | Diameter (mm) | Height (mm) | Power (kw) | Weight (kg) | Max feeding (kg/hr) |
| PPC-135 | 800 | 400 | 30 | 5000 | 135 |
| PPC-135-GMP | 800 | 400 | 37 | 6500 | 130 |
| PPC-312 | 1000 | 550 | 45 | 6500 | 312 |
| PPC-288 | 1200 | 500 | 45 | 8000 | 288 |
| PPC-555 | 1250 | 630 | 55 | 9000 | 555 |
| PPC-960 | 1600 | 800 | 75 | 13500 | 960 |
China
