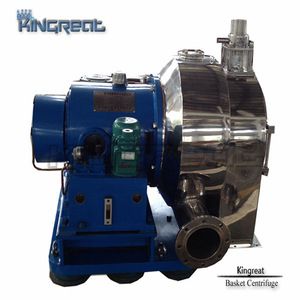

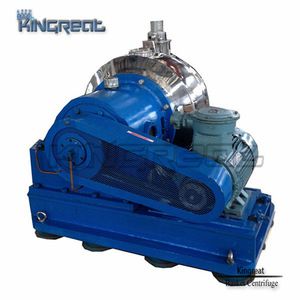

Automatic horizontal 2-phase dewatering sieve basket centrifuge
Model PWC dewatering sieve basket centrifuge is a type of horizontal, spiral discharging filtrating equipment with continuous operation. With the drum and the helix rotating in the same direction at high speed difference, the material is continuously led, via the feeding pipe, into the inner cylinder of the spiral feeder and, after acceleration, enters the drum. Under the action of the centrifugal force field, the liquid phase passes through the filtrating medium and is discharging out of the machine, while the solid-phase material is retained inside the drum and forms the filter residue. Under the combined action of the conic surface component force of the centrifugal force and the spiral feeder, the filter residue continuously moves towards the big end of the drum and is discharged out of the machine through the discharging trough. This machine is capable of continuous feeding, separating, washing and discharging during the full-speed running. It has such features as compact structure, small space occupancy, continuous operation, smooth running, strong adaptation, large handing capacity, low moisture content in the filter cake, etc.
It is applicable to the separating of suspension liquid containing the solid-phase material with the granule size greater than 0.1 mm and concentration being 25-75% or the separating of short fibers. It has found wide applications in such industries as chemical, salt making, alkali making, environmental protection, etc.
| Model | Basket | Power (kw) | Weight (kg) | Dimension (L*W*H) (mm) | |||||
Diameter (mm) | Length (mm) | Filter area (m2) | Testing water (m3/h) | Speed (rpm) | G-force | ||||
| PWC-12 | 300 | 265 | 0.215 | 7.5 | 3000 | 1764 | 7.5 | 1250 | 910*1050*800 |
| PWC-14 | 350 | 315 | 0.28 | 10 | 3000 | 1764 | 11 | 1400 | 1135*1590*1160 |
| PWC-18 | 450 | 360 | 0.44 | 15 | 2400 | 1452 | 22 | 2200 | 1340*1820*1320 |
| PWC-22 | 560 | 345 | 0.55 | 20 | 2000 | 1255 | 30 | 3380 | 1535*1820*1455 |
| PWC-25 | 630 | 400 | 0.71 | 25 | 1800 | 1143 | 37 | 3800 | 1690*2000*1470 |
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
1. How can we visit your factory?
If you come from abroad, air to Shanghai airport, then take bullet train, about 1 hour from Shanghai to Nanjing South Station; if you come from our domestic city, air or train directly to Nanjing, we will pick you up both in the airport and railway station.
2. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list, you can go there or contact for more info.
3. How do you protect the quality?
Our factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission & electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
5. What is your advantages compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world famous brands.
6. Is your price competitive?
Our price is not the lowest in China as for high quality, but we promise, for the same quality and collocation, our price is the most favourite, for the same price, our quality is definately superior to other brand.
7. Do you have OEM serive? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.
8. Do you supply second hand centrifuge?
No, we only provide brand new machine.
9. Do you have agent or service center in my country?
We have some partnership in several countries as Indonesia, Brazil, USA, etc. Your are warmly welcomed to work as our agent. At this moment, we have no service center abroad, but we can provide overseas spot and online technical service in time.
10. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
11. What payment mode you accept?
TT and LC at sight.
