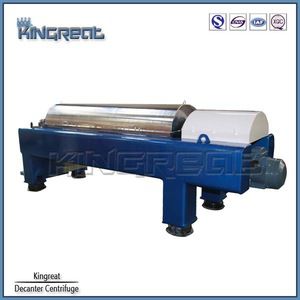

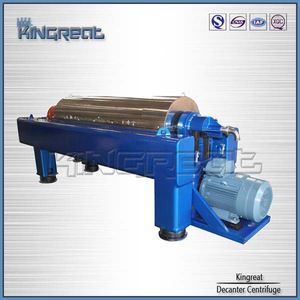

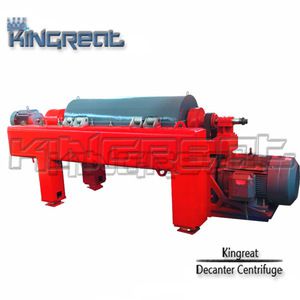

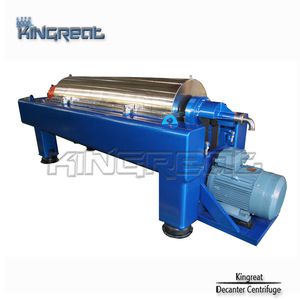

4000 rpm Horizontal Continuous Centrifuge

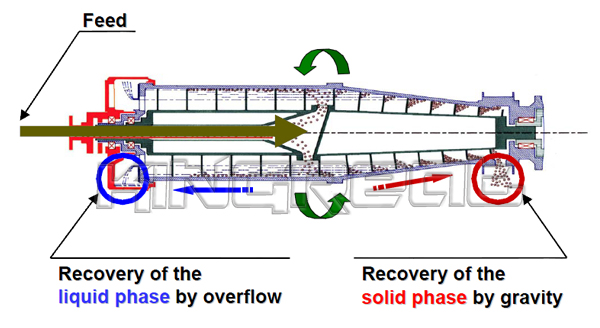

For the continuous horizontal centrifuge sprial discharge decanter centrifuge, the continuous feeding, separating and discharging can be realized as it rotates at its full speed. It is characterized by compact structure, easy obturation, smooth running, low noises, large handling capacity, low energy consumption, high automation, small working strength, simple operation and easy maintenance, and wide applications.

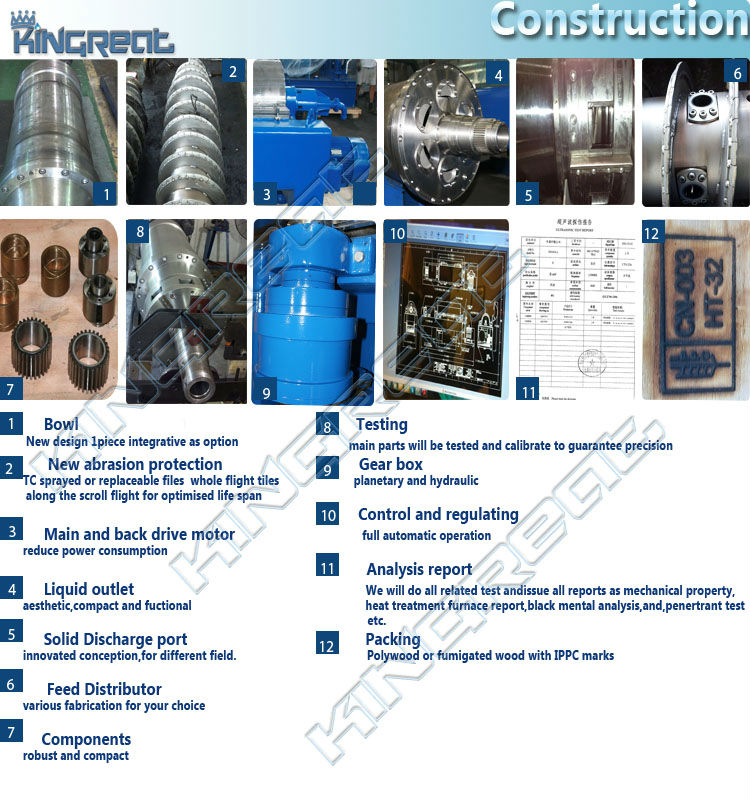

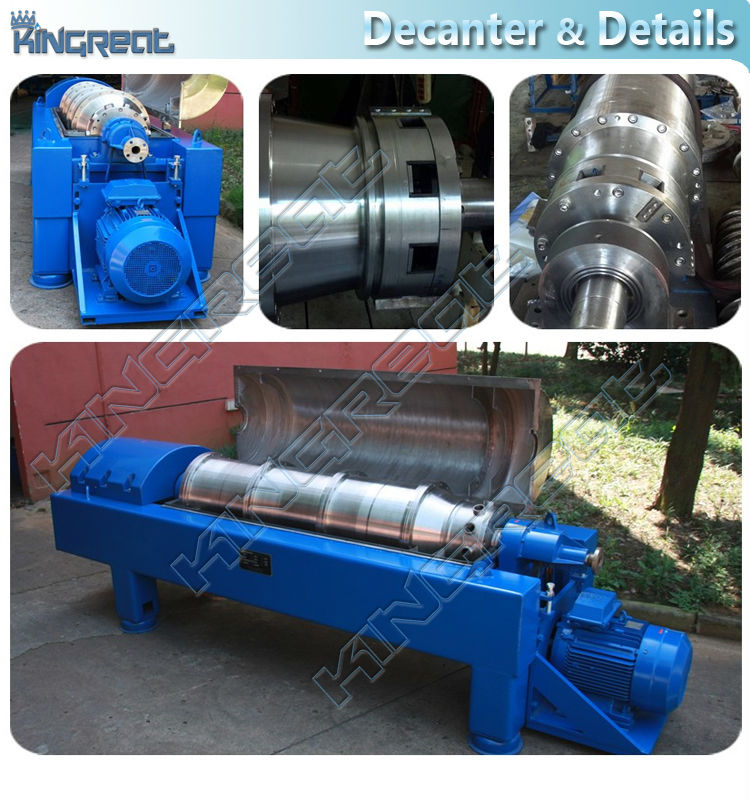

Decanter design
Type: 2-phase separation
Material: high quality stainless steel for all wet parts
Bearing: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability

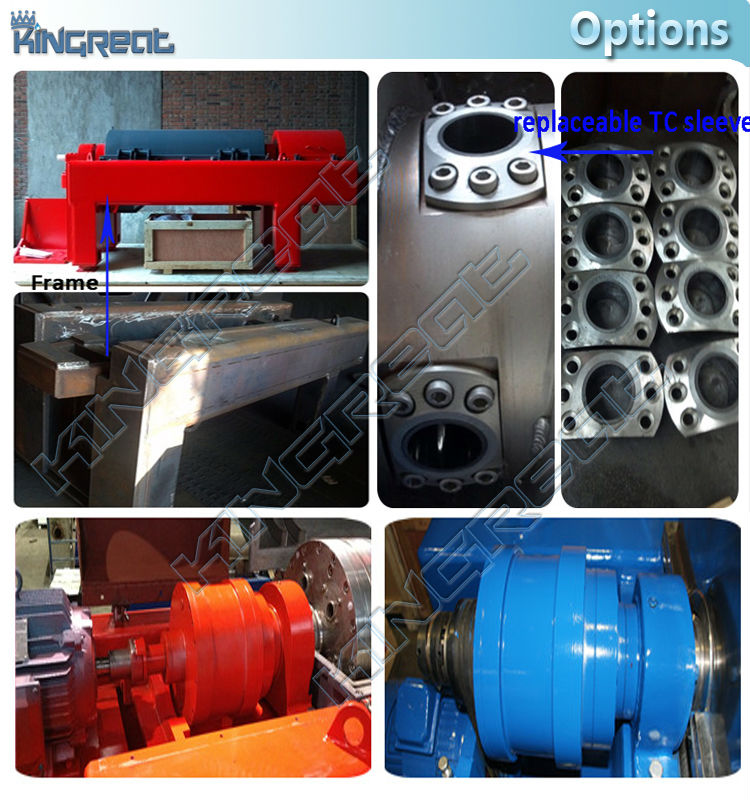

Wear protection: welded hard facing or spray coating, ceramic technology
| Model | Diameter (mm) | Bowl speed (rpm) | G-force | Capacity (m3/h) | Motor power (kw) | Weight (kg) | Overall dimension (L*W*H) (mm) |
| PNX-409 | 250 | 5500 | 3493 | 0.2-2 | 15/4 | 1020 | 2500*650*760 |
| PNX-414 | 355 | 4000 | 3175 | 1-10 | 18.5/7.5 | 2035 | 2765*920*1060 |
| PNX-416 | 355 | 4000 | 3175 | 1-15 | 18.5/7.5 | 2122 | 3065*920*1060 |
| PNX-418 | 355 | 4000 | 3175 | 1-25 | 22/7.5 | 2222 | 3365*920*1060 |
| PDC-1655 | 420 | 3000 | 2113 | 10-30 | 55/15 | 4600 | 4080*1100*1420 |
| PDC-17-4 | 420 | 3600 | 3042 | 3-15 | 30/7.5 | 5165 | 3331*990*1066 |
| PDC-18-4.4 | 450 | 3300 | 2739 | 10-20 | 37/11 | 2739 | 4000*1120*1239 |
| PDC-20 | 500 | 3200 | 2860 | 5-45 | 55/11 | 4400 | 4489*1160*1350 |
| PDC-21 | 540 | 2800 | 2366 | 15-50 | 45/15 | 5290 | 4587*1285*1368 |
| PDC-24 | 620 | 3200 | 3555 | 15-60 | Hydraulic, 90 | 8000 | 4650*2010*1200 |
| PDC-28HH | 720 | 2200 | 1975 | 15-80 | 110/37 | 9393 | 4800*1350*1500 |
PS: the above parameters will be subject to the final technical agreement.
Nanjing Kingreat Machinery Co.,ltd is a subsidiary of China State Shipbuilding Corporation (CSSC Group).which was established in 1958, covering an area of 650000m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers. It has obtained the approvals and certifications of both ISO9001: 2008 quality control system and the military product quality certificate,BV and CE certificates.Some of our machines gained the new technology invent patent.
We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine. Now ,there are over 150series of decanter centrifuges and disc separators used home and abroad.
