Stainless steel top-suspended automatic centrifugal machine

   Manual stainless steel top-suspended automatic centrifugal machine -- 4 Point Bag Lift Top Discharge Centrifuge Feature1) Widely used in the chemical and pharmaceutical industries2) A kind of seal type filtering equipment3) Used to separate sus

Technical Feature

  • New
  • Centrifuge
  • top-suspended automatic centrifugal machine
  • Jiangsu, China (Mainland)
  • Kingreat
  • PPBL-230
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$15~50

PRIMARY PARAMETERS

Condition
New
Type
Centrifuge
Product Type
top-suspended automatic centrifugal machine
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Kingreat
Model Number
PPBL-230
Voltage
380 440 220 110...(optional)
Power(W)
11KW
Weight
2800KG
Dimension(L*W*H)
2030*1300*1200mm
Certification
ISO
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Name
top-suspended automatic centrifugal machine
Application
Chemical, medicine, food, light industry
MOC
SS304,SS316
Discharge
top discharge
Sanitary degree
GMP
Operation table
Flat platform
Control system
Optional
Electrical elements
Famous brand
Level contol
Liquid block plate
Moisture in the cake
less than 3%

DETAIL DESCRIPTION

   Manual stainless steel top-suspended automatic centrifugal machine

-- 4 Point Bag Lift Top Discharge Centrifuge



Feature

1) Widely used in the chemical and pharmaceutical industries
2) A kind of seal type filtering equipment
3) Used to separate suspension of which solid grain is larger than 0.01mm.

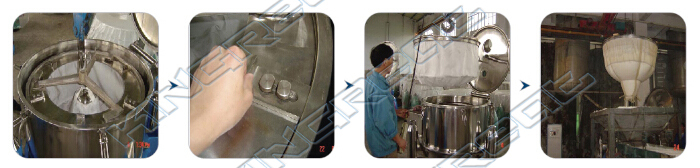

Steps





Technical parameter

Type

Drum

Power

(kw)

Weight

(kg)

Overall size(L*W*H)

(mm)

Diameter

(mm)

Volume

(L)

Capacity

(kg)

Speed

(rpm)

G-force

PPBL-155

800

115

155

1500

1008

7.5

1800

1800x1050x1140

PPBL-230

1000

170

230

1200

806

11

2800

2030x1300x1220

PPBL-340

1200

250

340

800

431

11

3200

2300x1500x1350

PPBL-400

1250

280

400

950

631

18.5

4200

2350x1550x1370

PPBL-400-NA

1250

400

540

950

631

22

5000

2350x1550x1520

PPBL-650

1500

500

650

850

607

30

5200

2900x1900x1575

PPBL-650-NA

1500

600

800

850

607

37

5700

2900x1900x1800

PPBL-800

1800

600

800

700

494

37

7800

3200x2200x1675

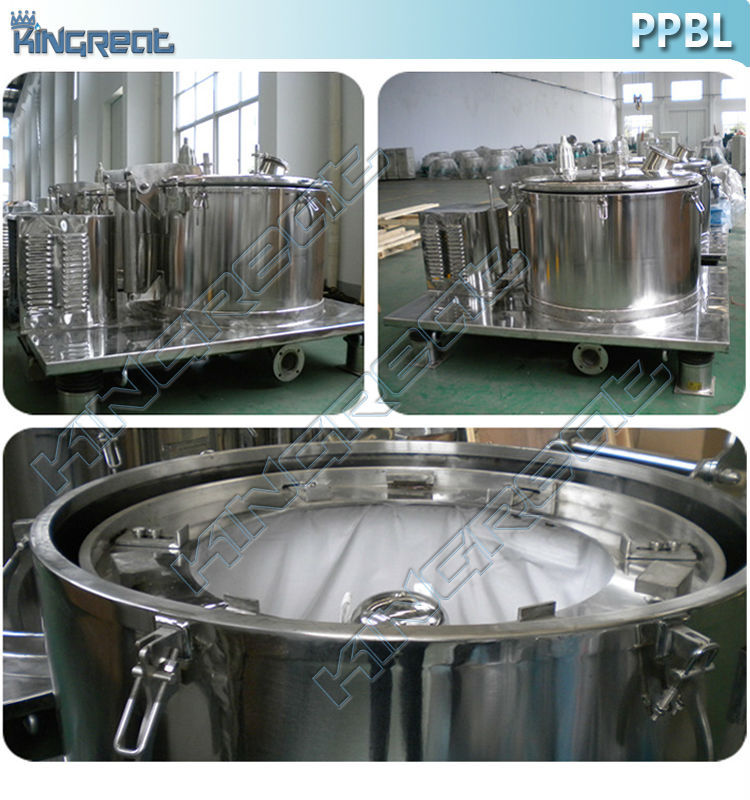

Production picture





Packing picture
