hydrocyclone separator , water treatment cyclone separator for water purification

Under centrifugal force, large particles will move downwards along outer swirling flow and be discharged through apex as underflow while fine particles will move upwards through inner swirling flow and be discharged from apex finder as overflow.

Technical Feature

  • New
  • Hydro-cyclone
  • 98%
  • Jiangxi, China (Mainland)
  • WKD
  • FX-660
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~90

PRIMARY PARAMETERS

Condition
New
Type
Hydro-cyclone
Production Capacity
98%
Place of Origin
Jiangxi, China (Mainland)
Brand Name
WKD
Model Number
FX-660
Voltage
220V/380V
Power(W)
7.5kw
Dimension(L*W*H)
1215*850*2720
Weight
150-800kg
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Inlet Dia.(mm)
187,167
Overflow Dia.(mm)
180,220,220,240
Underflow Dia.(mm)
80,110,150
Max feeding size(mm)
16
Feeding pressure(mpa)
0.03-0.4
Application
Gold Mining
Usage
Mining Separatoion
Material
PU
Name
Desander
Product name
hydrocyclone

DETAIL DESCRIPTION

Product Description

hydrocyclone separator , water treatment cyclone separator for water purification

Hydro cyclone is a separation equipment with high efficiency which utilizes centrifugal field to separate two-phase fluid, and it has been applied in classification, thickening, dewatering, desliming, separation, washing and other processes. Slurry is fed to cyclones through inlet in tangential or involute direction (depending on feeding way of the inlet head). Under centrifugal force, large particles will move downwards along outer swirling flow and be discharged through apex as underflow while fine particles will move upwards through inner swirling flow and be discharged from apex finder as overflow.


The features of hydro cyclone separator
1.low equipment cost
2.easy mounting and dismantling
3.convenient maintenance
4.small floor space required
5.low capital expenditure
6.large processing capacity
7.a large fluctuation of process.

Technical Parameter for hydrocyclone separator , water treatment cyclone separator for water purification

Model
Internal dia.(mm)
Inlet pressure(MPa)
Capacity(m³/h)
Cut size(μm)
FX840
840
0.04-0.15
500-900
74-350
FX710
710
0.04-0.15
400-550
74-250
FX 660
660
0.04-0.15
160-450
74-220
FX610
610
0.04-0.15
200-300
74-200
FX500
500
0.04-0.2
140-240
74-200
FX400
400
0.04-0.2
100-170
74-150
FX350
350
0.04-0.2V
70-160
50-150
FX300
300
0.04-0.2
45-90
50-150
FX250
250
0.04-0.3
40-80
40-100
FX200
200
0.04-0.3
25-40
40-100
FX150
150
0.04-0.3
14-35
20-74
FX125
125
0.04-0.3
8-20
20-50
FX100
100
0.04-0.3
8-20
20-50
FX75
75
0.1-0.4
4-10
10-40
FX50
50
0.1-0.4
2-5
7-40
FX25
25
0.1-0.6
0.3-1
5-20
FX10
10
0.1-0.6
0.05-0.1
1-5

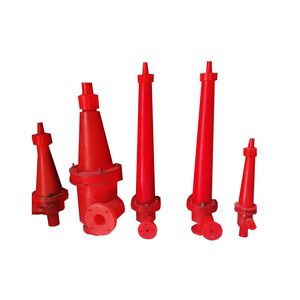

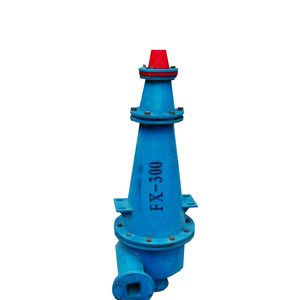

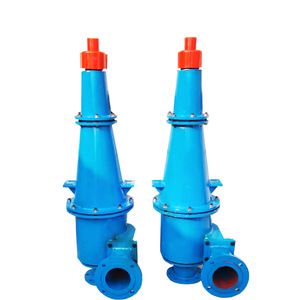

Detailed Images
Packing & Delivery
Packaging
Container
20GP/40GP/40HQ or LCL
Trade Term
FOB/CFR/CIF/else
Load Port
Xiamen, Guangzhou, Shenzhen or your request

Delivery time





15 days lead time after deposit and delivery soon after balance
Company Information

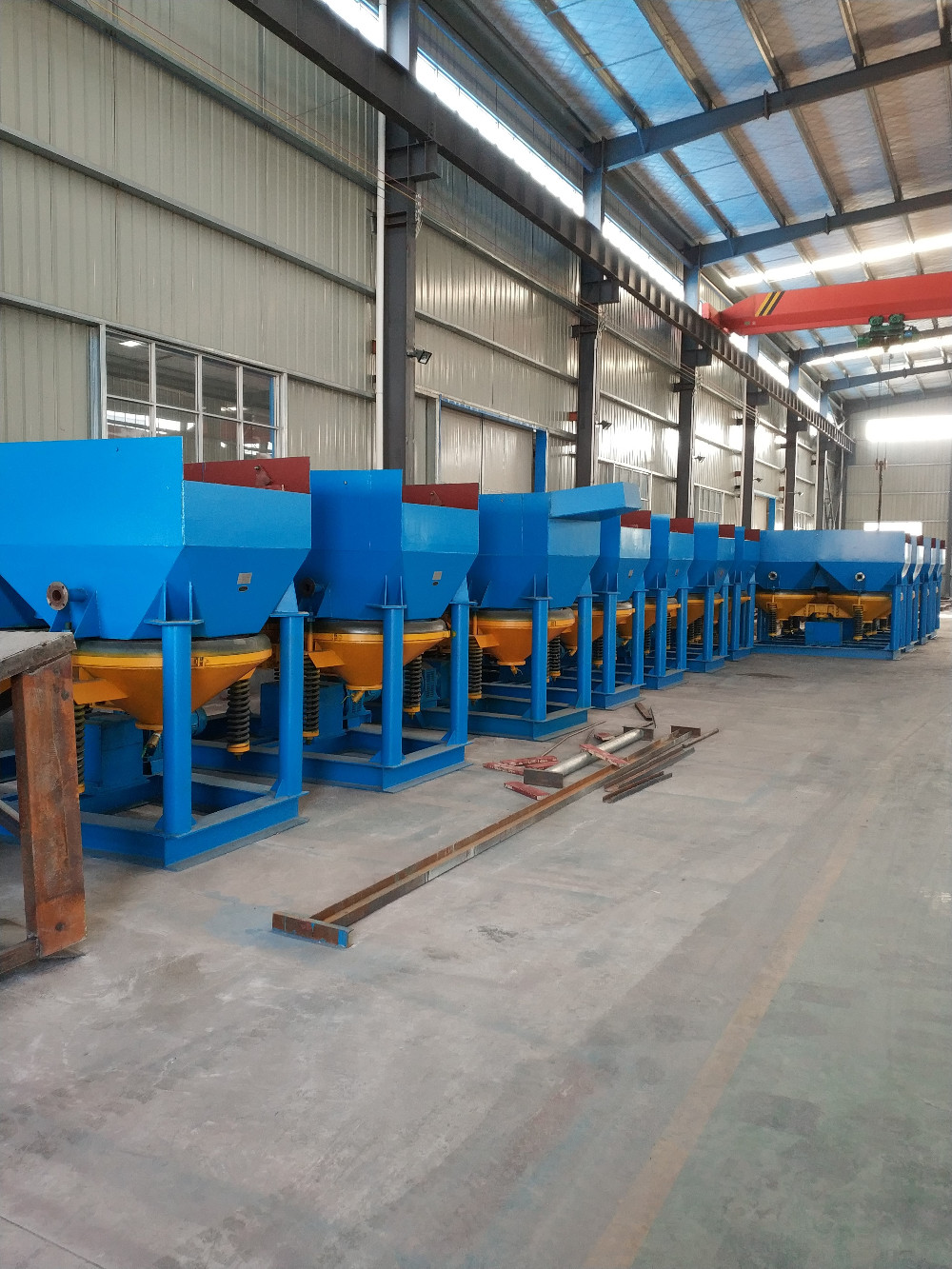

Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installation team.

With 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.

Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..
We are expert especially at mining separating and lab mining plant, main products as below:
Gold trommel wash plant
Shaking table
Spiral chute separator
Centrifugal gold concentrator
Jig separator machines
Waste recycling machine
Grinding and mill crusher
Flotation cell machine
Magnetic separator
Laboratory mining plant
