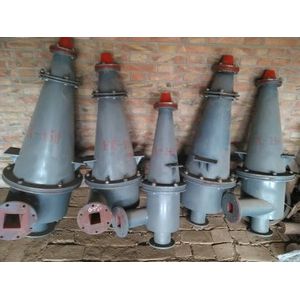

hydro-cyclone made in china

Under centrifugal force, large particles will move downwards along outer swirling flow and be discharged through apex as underflow while fine particles will move upwards through inner swirling flow and be discharged from apex finder as overflow.

Technical Feature

  • New
  • Hydro-cyclone
  • 98%
  • Jiangxi, China (Mainland)
  • WKD
  • FX-660
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~500

PRIMARY PARAMETERS

Condition
New
Type
Hydro-cyclone
Production Capacity
98%
Place of Origin
Jiangxi, China (Mainland)
Brand Name
WKD
Model Number
FX-660
Dimension(L*W*H)
1215*850*2720
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Internal Dia.(mm)
660
Inlet Dia.(mm)
187,167
Overflow Dia.(mm)
180,220,220,240
Underflow Dia.(mm)
80,110,150
Cone angle( .)
20
Max feeding size(mm)
16
Feeding pressure(mpa)
0.03-0.4
capacity(m3/h)
250-360
cut size(um)
74-220

DETAIL DESCRIPTION

Product Description

Elite classify sediment machine hydrocyclone separator with a factory price

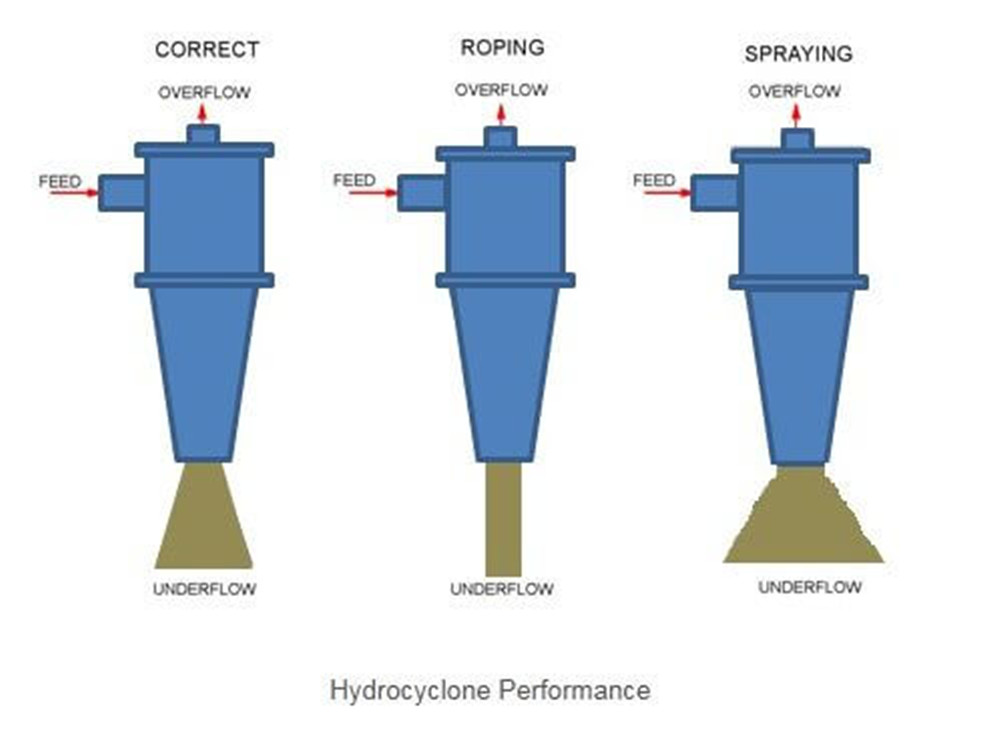

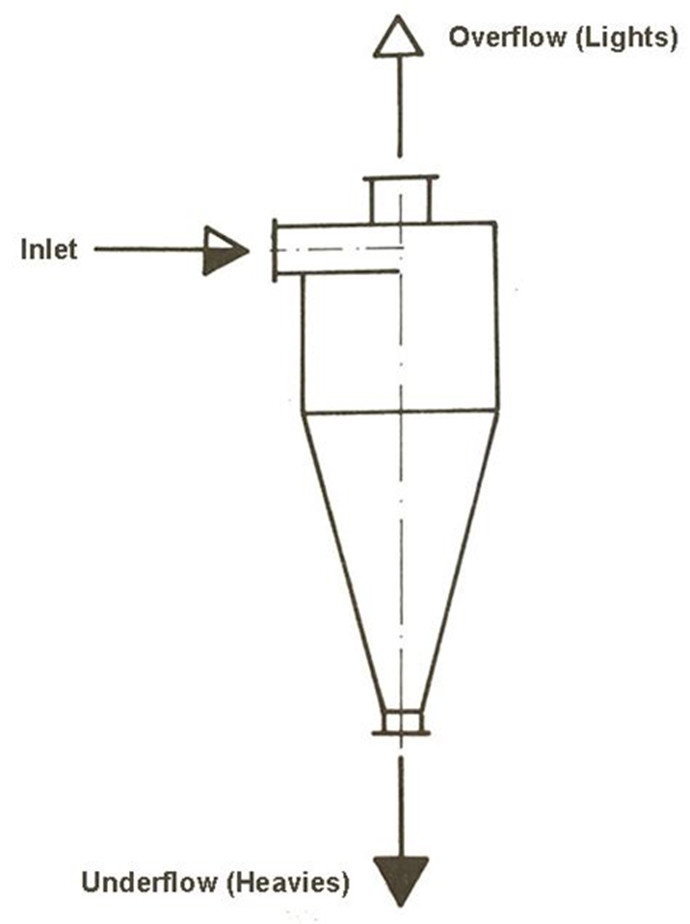

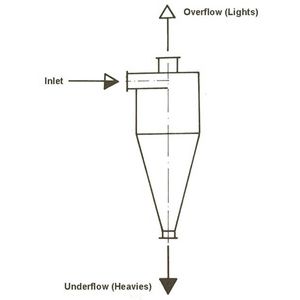

Hydrocyclone is a separation equipment with high efficiency which utilizes centrifugal field to separate two-phase fluid, and it has been applied in classification, thickening, dewatering, desliming, separation, washing and other processes. Slurry is fed to cyclones through inlet in tangential or involute direction (depending on feeding way of the inlet head). Under centrifugal force, large particles will move downwards along outer swirling flow and be discharged through apex as underflow while fine particles will move upwards through inner swirling flow and be discharged from apex finder as overflow.


The features of dewatering hydro cyclone
1.low equipment cost
2.easy mounting and dismantling
3.convenient maintenance
4.small floor space required
5.low capital expenditure
6.large processing capacity
7.a large fluctuation of process.

Model
Internal dia.(mm)
Inlet pressure(MPa)
Capacity(m³/h)
Cut size(μm)
FX840
840
0.04-0.15
500-900
74-350
FX710
710
0.04-0.15
400-550
74-250
FX 660
660
0.04-0.15
160-450
74-220
FX610
610
0.04-0.15
200-300
74-200
FX500
500
0.04-0.2
140-240
74-200
FX400
400
0.04-0.2
100-170
74-150
FX350
350
0.04-0.2V
70-160
50-150
FX300
300
0.04-0.2
45-90
50-150
FX250
250
0.04-0.3
40-80
40-100
FX200
200
0.04-0.3
25-40
40-100
FX150
150
0.04-0.3
14-35
20-74
FX125
125
0.04-0.3
8-20
20-50
FX100
100
0.04-0.3
8-20
20-50
FX75
75
0.1-0.4
4-10
10-40
FX50
50
0.1-0.4
2-5
7-40
FX25
25
0.1-0.6
0.3-1
5-20
FX10
10
0.1-0.6
0.05-0.1
1-5
Detailed Images
About us
Jiangxi Victor International Mining Equipment Co.,Ltd is specialized in researching, manufacturing,selling, installing of various mining processing equipment. Our factory locates in Shicheng, Ganzhou, Jiangxi, where has a long history of producing mining equipment.We are expert especially at mining separating and lab mining plant, main products as below:
Shaking table
Spiral chute separator
Centrifugal gold concentrator
Jig separator machines
Flotation equipment
Magnetic separation
Grinding and mill crusher
Laboratory mining plant
Trommel screen wash plant
Waste Recycling plant equipment
ECO-Friendly equipment
