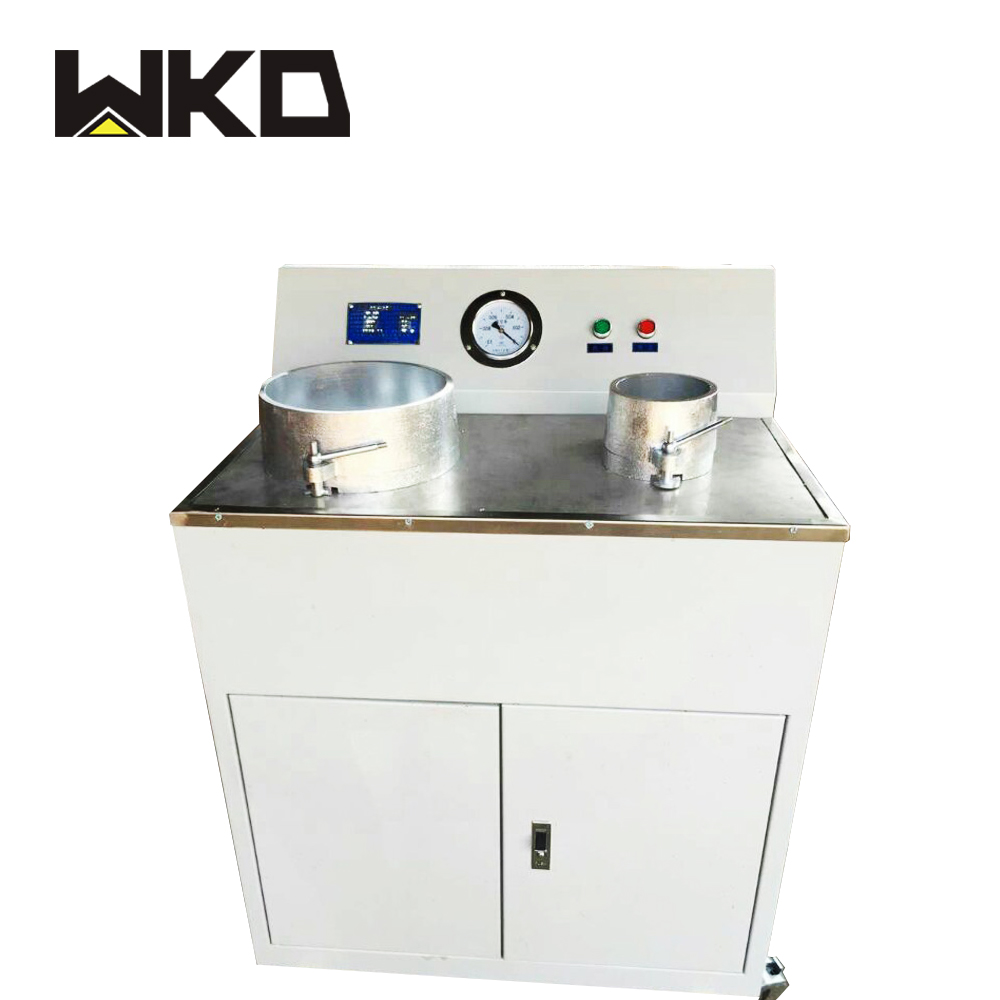

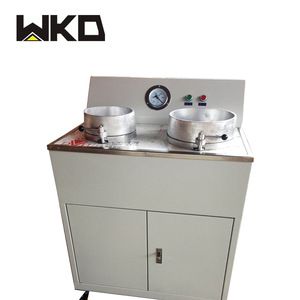

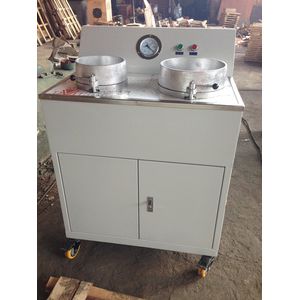

Laboratory Disk Vacuum Filter for Mining testing

Laboratory small dewatering machinery is used in geological, metallurgical, coal, building materials, mines, schools, scientific research and experiments to carry out mineral optional units in the experimental work, as a flotation, re-election, magnetic a

Technical Feature

  • Jiangxi, China (Mainland)
  • JXWKD
  • DL-5C,ZL-260/200
  • New
  • Overseas third-party support available
  • small dewatering machinery for testing
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~500

PRIMARY PARAMETERS

Place of Origin
Jiangxi, China (Mainland)
Brand Name
JXWKD
Model Number
DL-5C,ZL-260/200
Condition
New
After-sales Service Provided
Overseas third-party support available
Name
small dewatering machinery for testing
Disc capacity
Big disk 4.2L, small disk 2.5L.
Disc feeding size
filter feeding size
Application
Mining Equipment
Color
Customer's Request
Product name
Laboratory Disk Vacuum Filter
Usage
Mining testing/experiment
Warranty
12 Months
Certificate
ISO9001
Type
laboratory mining equipment

DETAIL DESCRIPTION

Product Description

Product Application for Laboratory small dewatering machinery for testing

Laboratory small dewatering machinery is used in geological, metallurgical, coal, building materials, mines, schools, scientific research and experiments to carry out mineral optional units in the experimental work, as a flotation, re-election, magnetic and other operations for dehydration, test sample, solid-liquid separation.

Introduction for Laboratory small dewatering machinery

Laboratory small dewatering machinery is a latest lab filter device equipment with both intermittent and continuous working function. It is application to labs involving minerals separation, metallurgy, geology, chemical industry, building materials, oil, paper making grand artificial crystal and to the dehydration and solid-liquid separation.

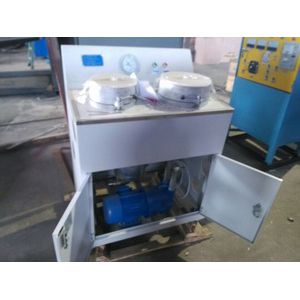

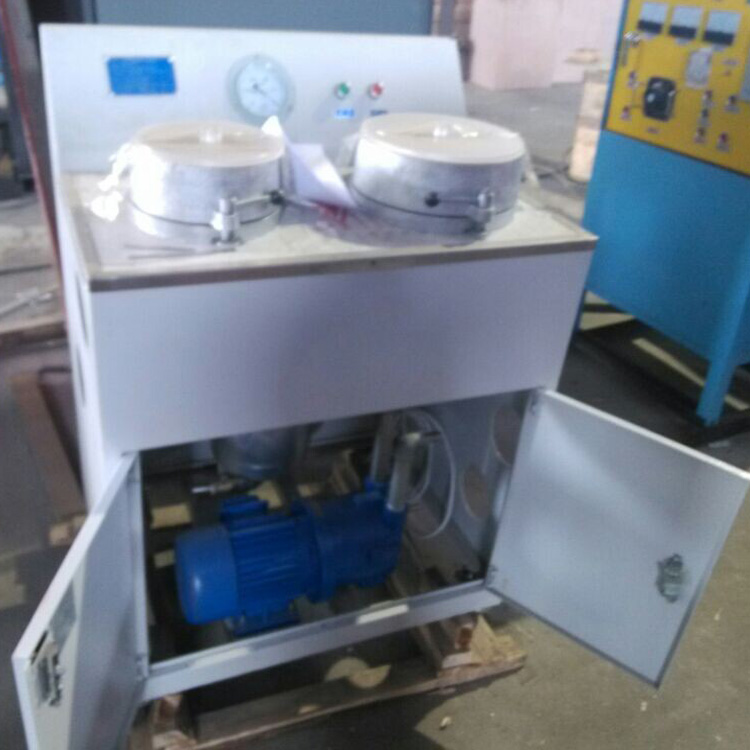

Structure for Laboratory small dewatering machinery

1. filter disk

2. electromagnetic valve

3. hydraulic control assembly

4.vacuum negative pressure jar

5.automatic drain valve

6.water-separating gas filter

7.vacuum pump 8.motor

Working Principle for Laboratory small dewatering machinery

After the vacuum pump is started, make a vacuum capacity with the pressure of not lower than 91.2kpa (684mm mercury column) in the vacuum negative pressure jar. then connect the electromagnetic valves under the action of pressure difference, the liquid in the filter disk permeates into the filter paper very quickly, so that the purpose of the dewatering can be served.

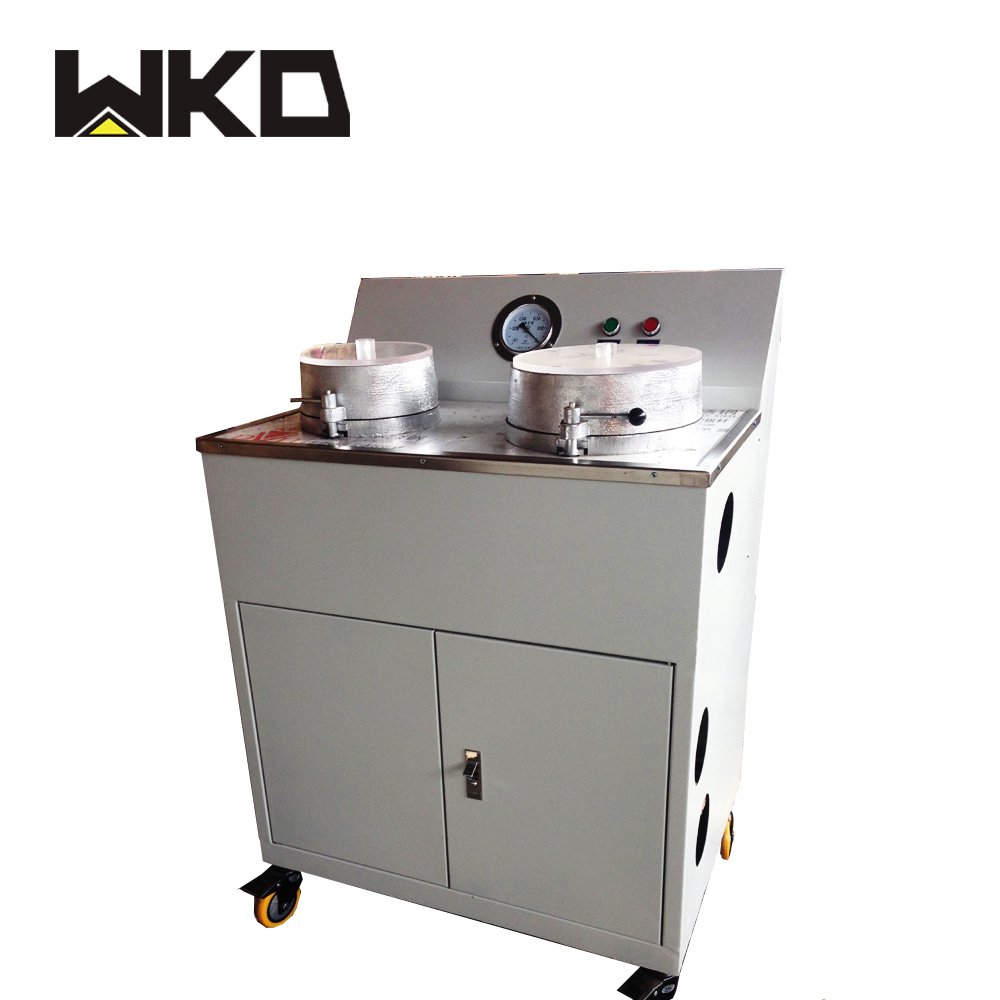

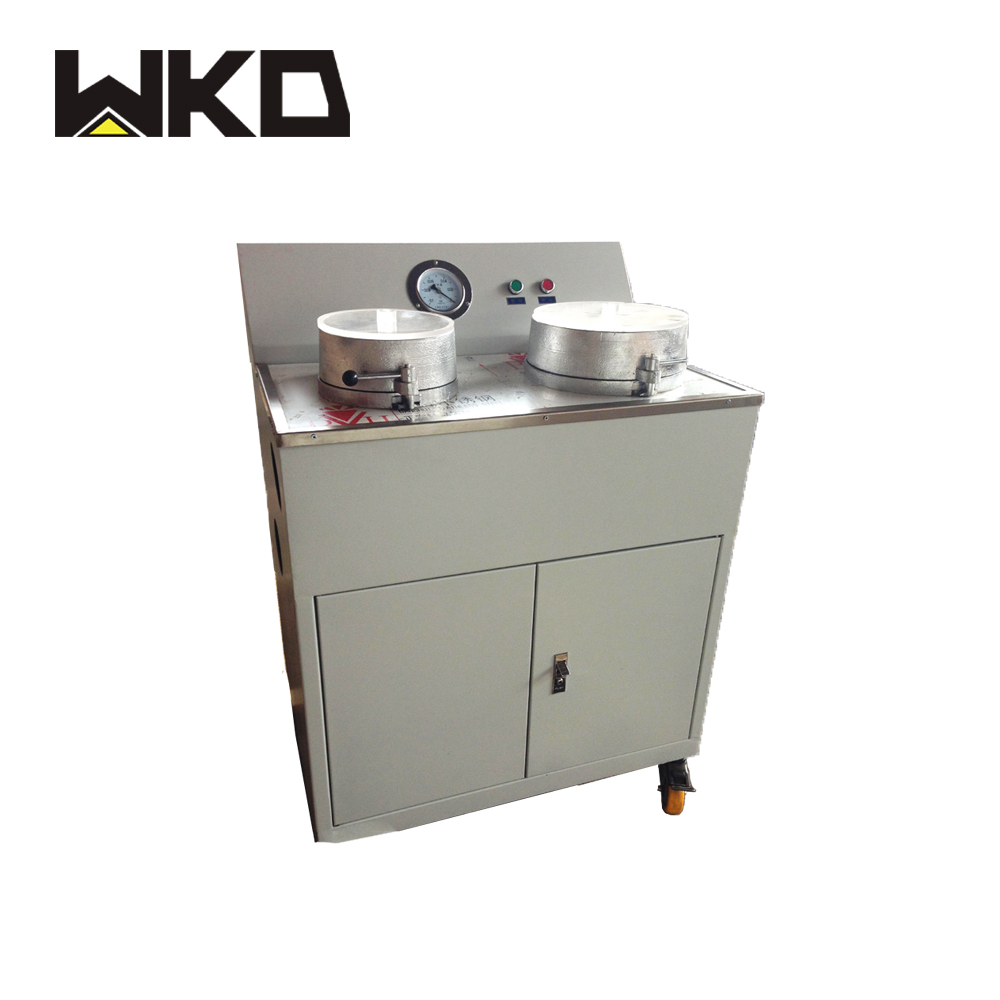

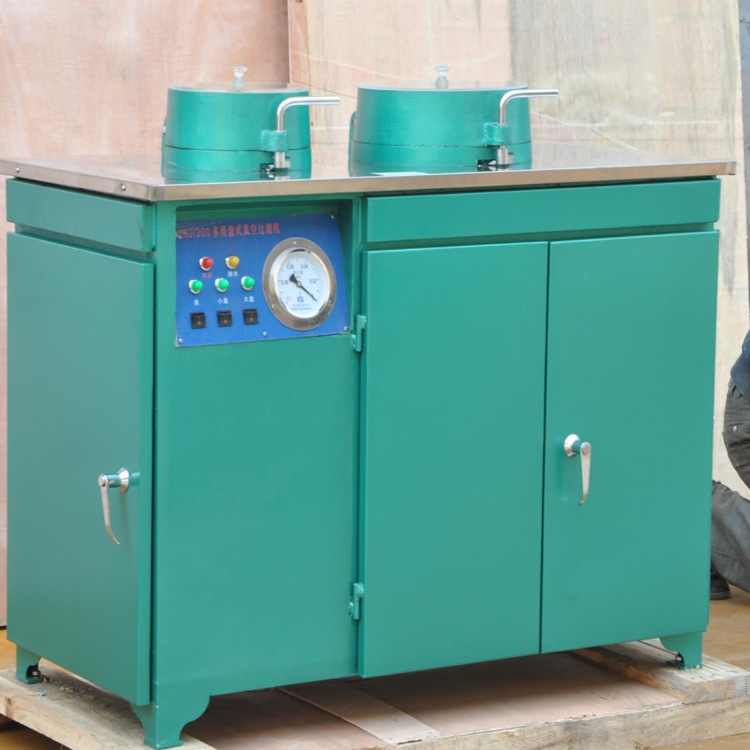

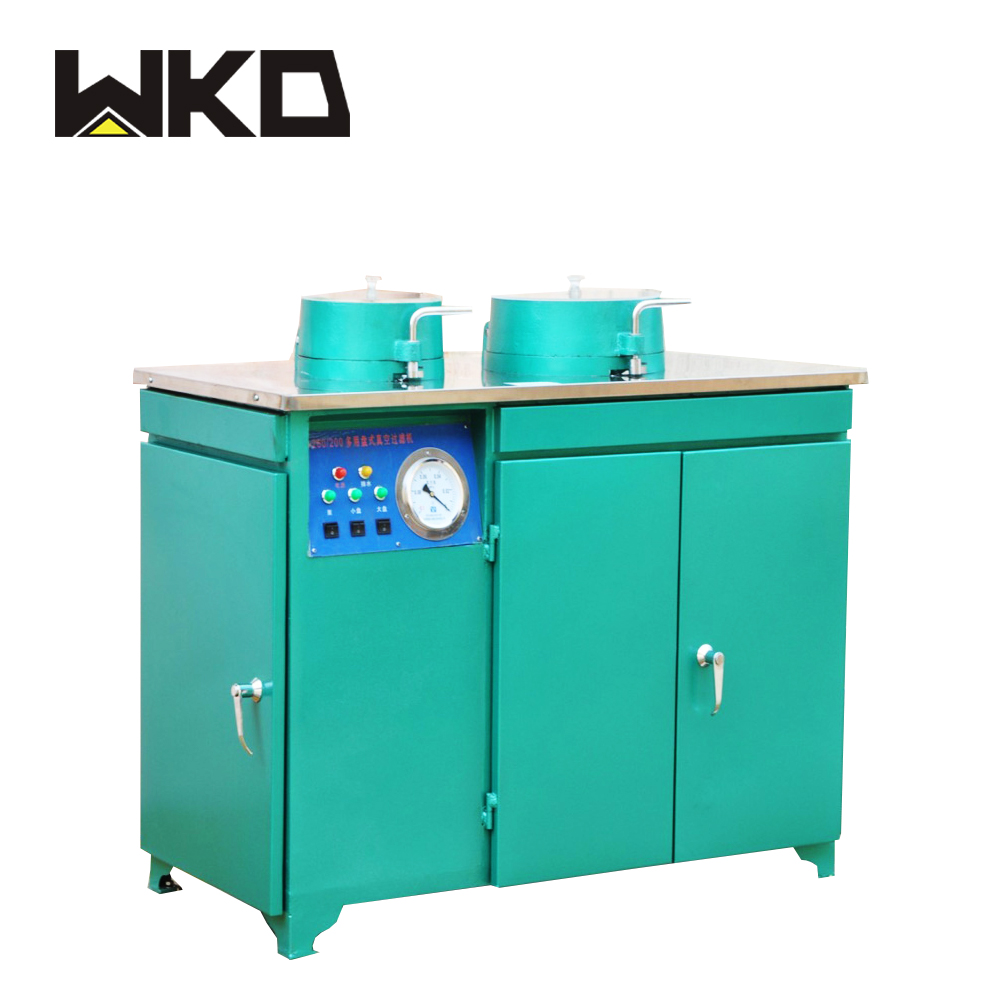

two different filter disk

two different filter disk with different capacities in the disk accumbent filter.

Main Feature for Laboratory small dewatering machinery

1.Simple and compact structure
2.Reliable operation of vacuum system
3.High vacuum degree
4.Automatic operation when liquid is discharged
5.convenient maintenance

Technical Parameter

Technical Parameter for Laboratory small dewatering machinery

Model (PE)
Feed size (mm)
Discharge size (mm)
Capacity (t/h)
Motor (kw)
Weight (t)
Dimension (mm)
PC-400*300
less than 50
less than 20
5-10
11
0.8
900*670*860
PC-600*400
less than 120
less than 30
10-22
22
2.26
1200*1050*1200
PC-800*600
less than 200
less than 35
18-40
55
4.8
1310*1180*1310
PC-1000*800
less than 200
less than 35
25-50
75
5.9
1600*1390*1575
PC-1000*1000
less than 200
less than 35
30-55
90
8
1800*1590*1775
PC-1250*1250
less than 200
less than 35
35-65
132
14
2060*1600*1890
PC-1400*1600
less than 250
less than 35
50-100
280
32
2365*1870*2220
PC-1600*1600
less than 350
less than 35
100-150
480
37.5
3050*2850*2800
Packing & Delivery
Packaging
container
20GP/40GP/40HQ/LCL
Trade Term
EXW/FOB/CFR/CIF/else
Load Port
Xiamen/Guangzhou/Shenzhen/ your request

Delivery time

15 days lead time after deposit and delivery after balance
Company Information

Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installation team.

With 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.

Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..
We are expert especially at mining separating and lab mining plant, main products as below:
Gold trommel wash plant
Shaking table
Spiral chute separator
Centrifugal gold concentrator
Jig separator machines
Waste recycling machine
Grinding and mill crusher
Flotation cell machine
Magnetic separator
Laboratory mining plant
TO VIEW MORE

Our Service

1. One year guarantee.
2. Sample testing.
3. our technician can design your project based on your information such as flow chart.
4. Engineer available for over seas installation and training.
5. after sale service, such providing spared parts.
