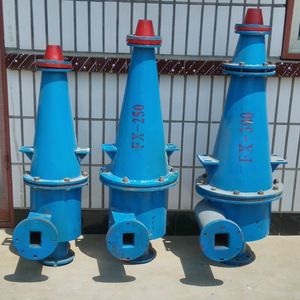

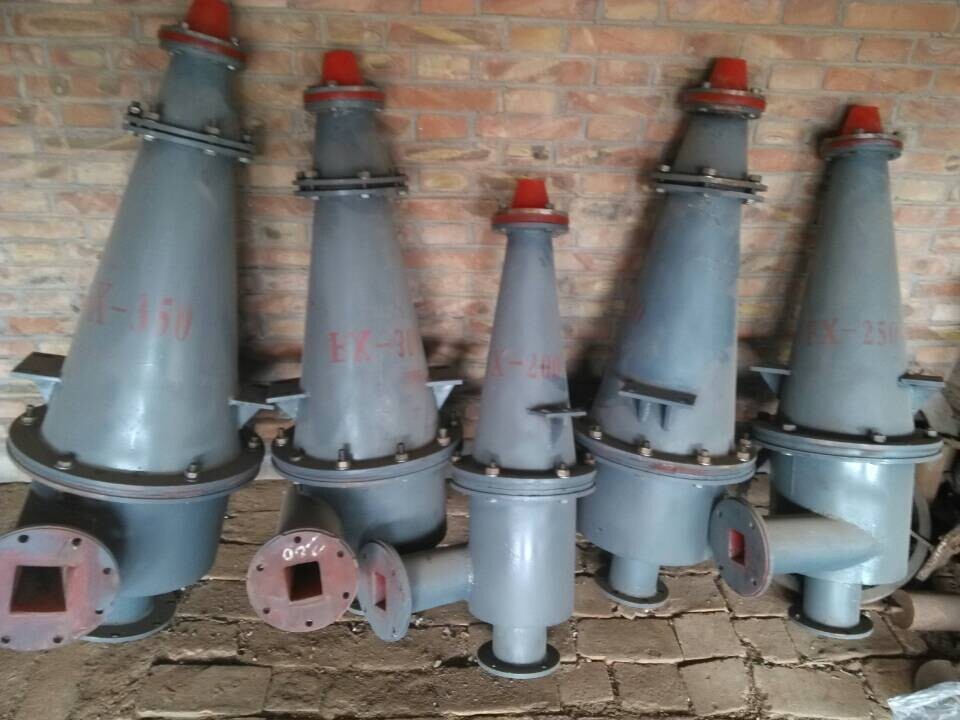

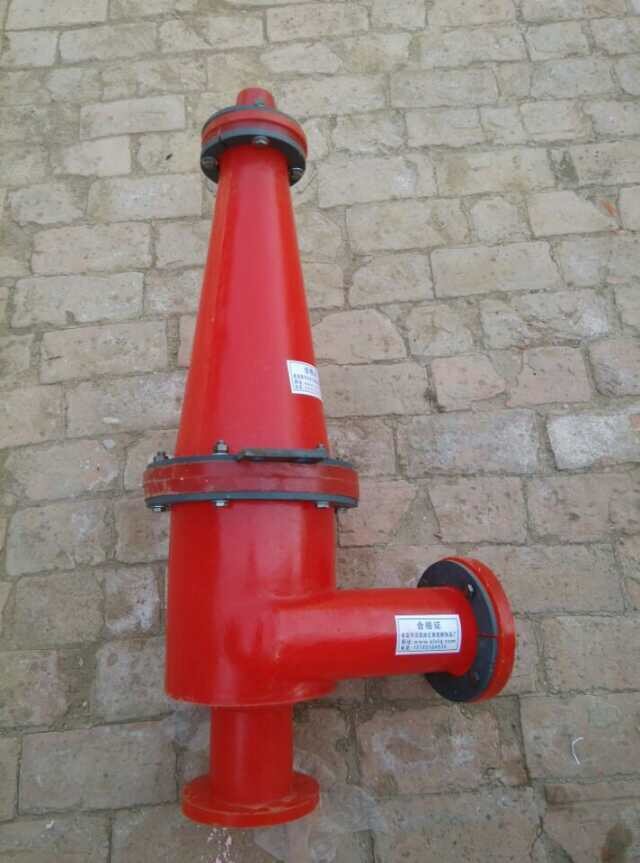

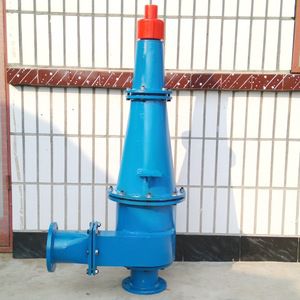

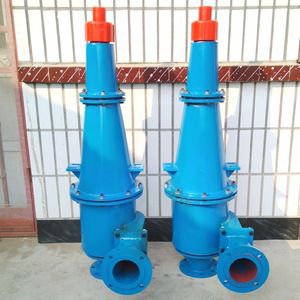

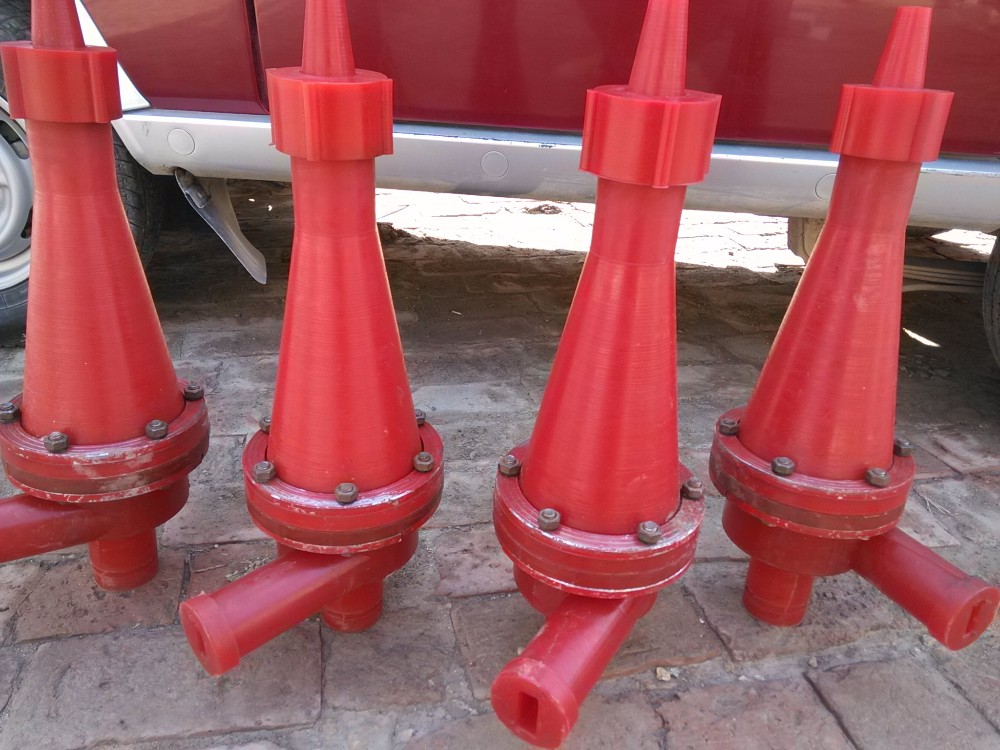

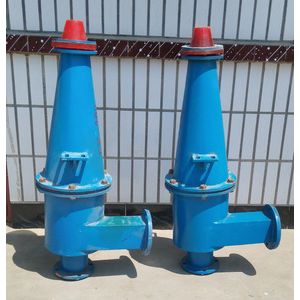

Low price washing Mineral Separator dewatering Hydrocyclone for sale

hydrocyclone with unique structure design adopts the composite structure of multi section type column body.

Technical Feature

  • New
  • Sprial Separator
  • 98%
  • Jiangxi, China (Mainland)
  • JXWKD
  • FX200
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~500

PRIMARY PARAMETERS

Condition
New
Type
Sprial Separator
Production Capacity
98%
Place of Origin
Jiangxi, China (Mainland)
Brand Name
JXWKD
Model Number
FX200
Voltage
220V/380V
Power(W)
1.1kw
Dimension(L*W*H)
435*360*1050
Weight
64kg
Certification
ISO
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Canister Interior Diameter
200mm
Capacity
25-40m^3/h
Bottom Exit Dia
16-32mm
Product name
Hydrocyclone
Keywords
Hydro cyclone
Color
Blue/red/yellow
Usage
Mining Separation
Feeding size
0.1-16
Inlet Dia.(mm)
48mm
overflow Diameter(mm)
40-65mm

DETAIL DESCRIPTION

Product Description



Features

hydrocyclone with unique structure design adopts the composite structure of multi section type column body. It changes the height of column according to the need. If the height increased, overflow fineness increase up to about 10  μ  m diameter. Each diameter has unique cylinder length and cone angle, which can achieve the maximum tangential velocity at the minimum total cyclone length, so as to increase centrifugal force and improve the classification efficiency.







Application

1,Domestic and industrial: river water, ground water, well water grit removal, coal washing water, industrial processing, s-olid-liquid separation;

2,Geothermal air conditioning water system to replace the current use of Ah ,type fan coil before decontamination, the co-mplete elimination of the fan coil clogging dirt deposition and cooling   water systems chiller condenser water decontamination, impurity control suspended solids and other issues;

3,Recycling water reuse: especially for steel, thermal, chemical, petroleum, mining pharmaceutical, textile, electronics, food, paper and other industrial local quality miscellaneous drainage treatment and reuse;

4,Water, sewage treatment: reused water, sewage treatment plant, reduce fine filtration system into operation.







Work Principle

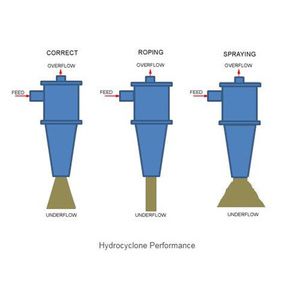

The working principle of Xinhai hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different.  So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.

Working modes of Xinhai hydrocyclone includes classification, condensation, dehydration, desliming, sand removing sand, washing, ultrafine classification etc.





Hydrocyclone Technical Parameters






(mm)

(o)

(mm)

(mm)

(mm)

(Mpa)


(m3/h)

(um)



(Kg)

(mm)

(mm)

(mm)

FX350

350

20

80~120

30~70

6

0.04~0.3

60~100

50~150

775

605

1765

220

15

50~120

775

605

2115

235

FX300

300

20

65~115

20~50

5

0.04~0.3

45~85

50~150

550

480

1415

108

15

40~100

550

480

1670

169

FX250

250

20

60~100

16~45

3

0.06~0.35

40~60

40~100

490

415

1215

79

15

40~100

490

415

1430

84

10

30~100

490

415

1850

92

FX200

200

20

40~65

16~32

2

0.06~0.35

25~40

40~100

400

365

1030

54

15

30~100

400

365

1200

59

10

30~100

400

365

1530

66

FX150

150

20

30~45

8~22

1.5

0.06~0.35

11~20

30~74

310

310

820

32

15

30~74

310

310

920

36

8

30~74

310

310

1400

42

FX125

125

17

25~40

8~18

1

0.06~0.35

8~15

20~100

210

185

620

10

8

20~74

250

240

985

12



Our Services



1. We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.


2. Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.



3. Warranty:
We provide one year warranty to make sure your machine runs well. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
