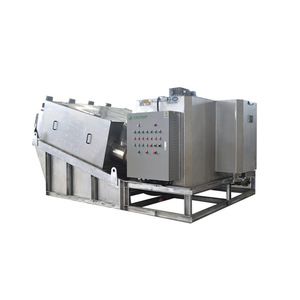

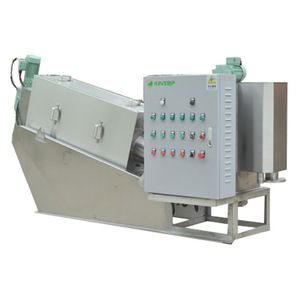

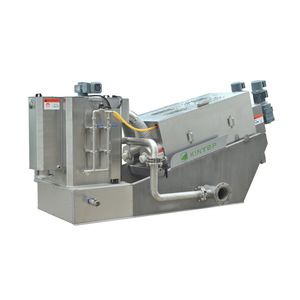

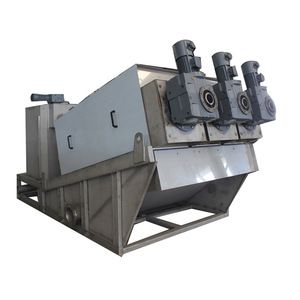

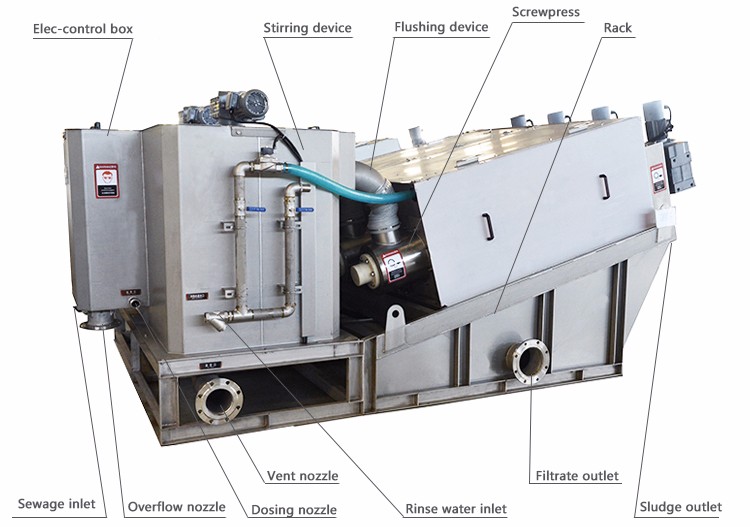

| The screw sludge dewatering machine is integrating with auto-control cabinet, sludge thickening & dewatering body liquid collection tank. Therefore, the high efficiency flocculation, continuous sludge concentration, dewatering and filtrate collection can be autormatically completed all-in-one, the collected liquid will be reflux or emissions finally. |
Application
| ♦Municipal sewage petro-refining | ♦Printing and dyeing paper | ♦Leather making |
| ♦Coalification dressing | ♦Biochemical pharmacy | ♦Food processing |
| ♦Steel pickling | ♦Chemical sugar |
| Model | DS Throughput (kg/h) | Sludge flow (m³/h) | ||||
Low Concentration | High Concentration | 10000mg/l | 20000mg/l | 25000mg/l | 50000mg/l | |
| KTDL131 | 5 | 10 | 0.5 | 0.5 | 0.4 | 0.2 |
| KTDL132 | 10 | 20 | 1 | 1 | 0.8 | 0.4 |
| KTDL133 | 15 | 30 | 1.5 | 1.5 | 1.2 | 0.6 |
| KTDL251 | 15 | 30 | 1.5 | 1.5 | 1.2 | 0.6 |
| KTDL252 | 30 | 60 | 3 | 3 | 2.4 | 1.2 |
| KTDL253 | 45 | 90 | 4.5 | 4.5 | 3.6 | 1.8 |
| KTDL301 | 30 | 60 | 3 | 3 | 2.4 | 1.2 |
| KTDL302 | 60 | 120 | 6 | 6 | 4.8 | 2.4 |
| KTDL303 | 90 | 180 | 9 | 9 | 7.2 | 3.6 |
| KTDL304 | 120 | 240 | 12 | 12 | 9.6 | 4.8 |
| KTDL351 | 50 | 100 | 5 | 5 | 4 | 2 |
| KTDL352 | 100 | 200 | 10 | 10 | 8 | 4 |
| KTDL353 | 150 | 300 | 15 | 15 | 12 | 6 |
| KTDL354 | 200 | 400 | 20 | 20 | 16 | 8 |
| KTDL401 | 80 | 160 | 8 | 8 | 6.4 | 3.2 |
| KTDL402 | 160 | 320 | 16 | 16 | 12.8 | 6.4 |
| KTDL403 | 240 | 480 | 24 | 24 | 19.2 | 9.6 |
| KTDL404 | 320 | 640 | 32 | 32 | 25.6 | 12.8 |
♦Advantages♦ 1.Low operation cost: below 40% of belt press and 20% of centrifuge. |
| 2.Power-saving: less than 5% of centrifuge. |
| 3.Water-saving: less than 0.1% of belt filter press. |
| 4.Saving-drugs saving around 60%. |
| 5.Compact: saving more than 60% of the investment for dehydration room. |
| 6.Non-clogging: processing the fats & oils and fiber sludge perfectly. |
♦Features♦ 1.Simple processing,low investment system,energy-efficient in dewatering. |
| 2.System can be programmed to make the operation more convenient and accurate. |
| 3.Unique flocculating agent make sludge dewatering easier. |
| 4.Uniform and accurate dispensing,saving costs. |
Jiangsu Kintep Environmental-protection Equipment Co.,Ltd. is a professional environmental protection product manufacture with the spirit of low-carbon, environmental friendly, safety and efficient. It covers an area over 35,000 squares, has fixed assets more than 30 million, and configured with advanced oridyctuib equipments, strong technical force. As a good cooperator, Kintep works closely with some professional institutions and owns a number of patents for invention. With the professional level and mature technology in sewage treatment equipment industry, Kintep always be the top in the Chinese environmental protection industry participated in the National Museu’s Exhibition of World Expo, it also estabilshes a “professional and Hi-tech” image in the industry.
Our easy maintenance screw dehydrator, had got Chinese patent since 2010, now it has 9 series to meet various sludge concentration and different customers’ demand. |
