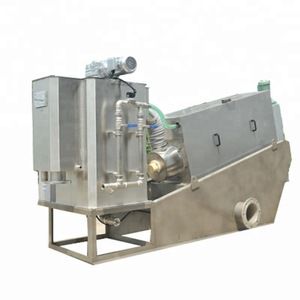

screw press KINTEP volute drum filter

processing the fats & oils and fiber sludge perfectly.

Technical Feature

  • Jiangsu, China (Mainland)
  • KINTEP
  • KTDL
  • Imported from German or Japan
  • Automatic, PLC control
  • low
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$69~7

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
KINTEP
Model Number
KTDL
motor
Imported from German or Japan
operation
Automatic, PLC control
noise
low
energy
saving
water consumption
low
type
volute type
application
Waste Water Treatment from minicipal, drinks, print, dye, oil, etc
usage
flooculant used
certificate
ISO 9001, CE
Material
SS304/SS316

DETAIL DESCRIPTION

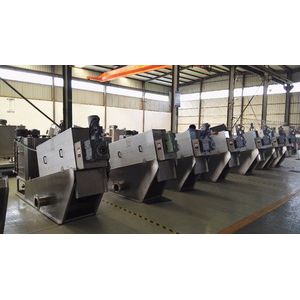

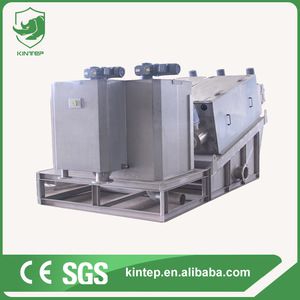

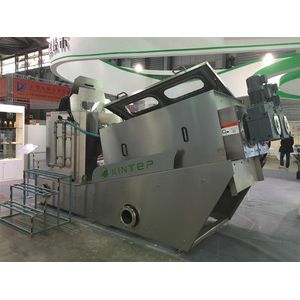

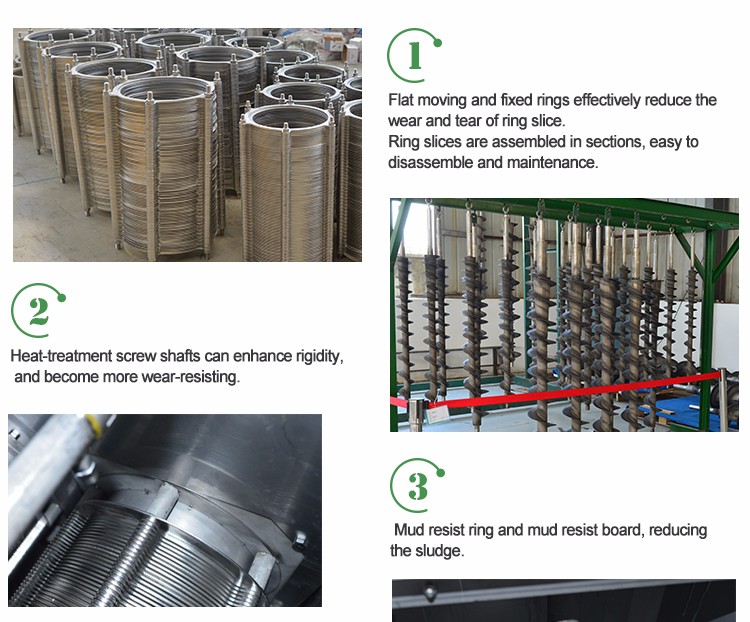

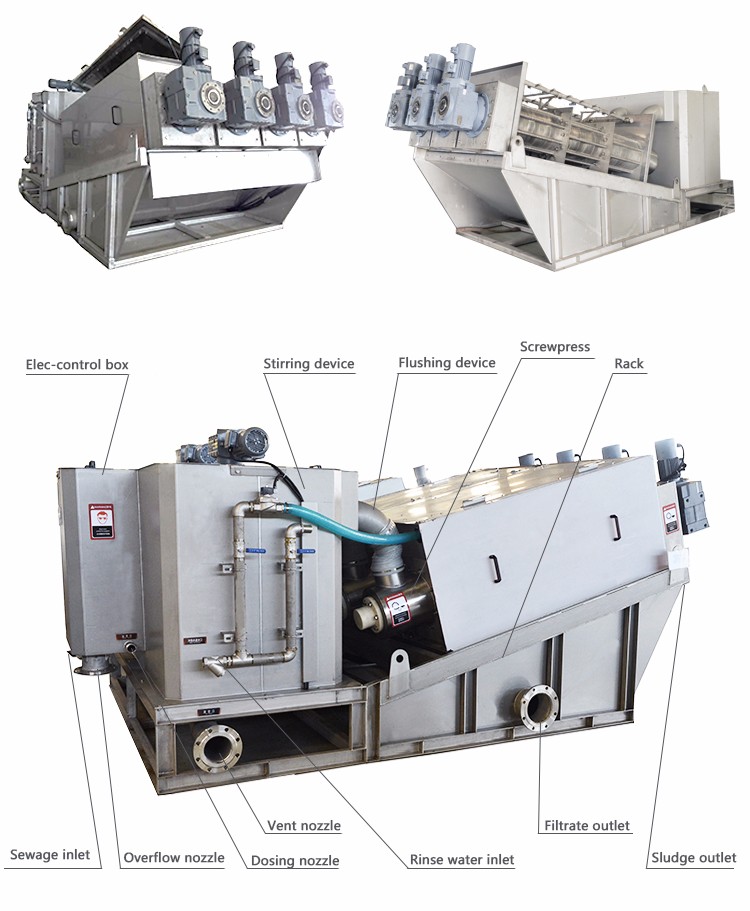

Product Pictures





Product Attribute



ModelDS Throughput (kg/h)Sludge flow (m³/h)
 Low ConcentrationHigh Concentration10000mg/l20000mg/l25000mg/l50000mg/l
KTDL1315100.50.50.40.2
KTDL1321020110.80.4
KTDL13315301.51.51.20.6
KTDL25115301.51.51.20.6
KTDL2523060332.41.2
KTDL25345904.54.53.61.8
KTDL3013060332.41.2
KTDL30260120664.82.4
KTDL30390180997.23.6
KTDL30412024012129.64.8
KTDL351501005542
KTDL352100200101084
KTDL3531503001515126
KTDL3542004002020168
KTDL40180160886.43.2
KTDL402160320161612.86.4
KTDL403240480242419.29.6
KTDL404320640323225.612.8
Product Advantages
1. Low operation cost: below 40% of belt press and 20% of centrifuge.
2. Power-saving: less than 5% of centrifuge.
3. Water-saving: less than 0.1% of belt filter press.
4. Saving-drugs saving around 60%.
5. Compact: saving more than 60% of the investment for dehydration room.
6. Non-clogging: processing the fats & oils and fiber sludge perfectly.

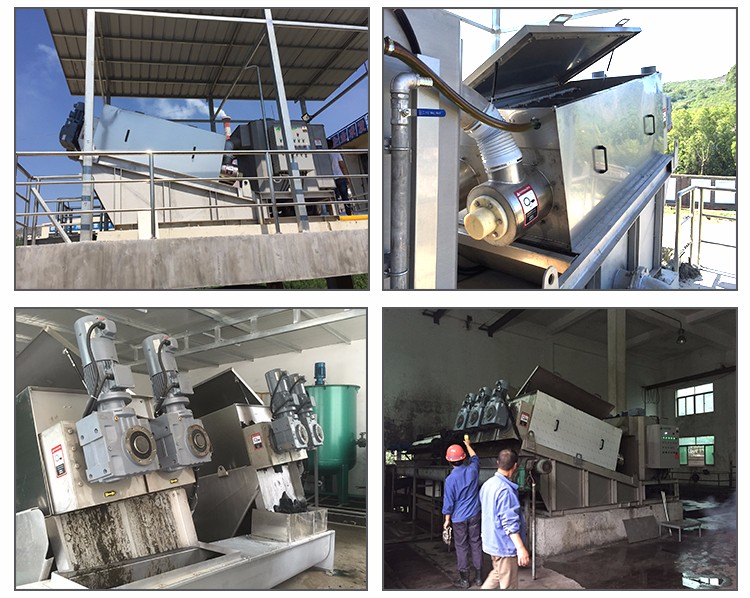

Application

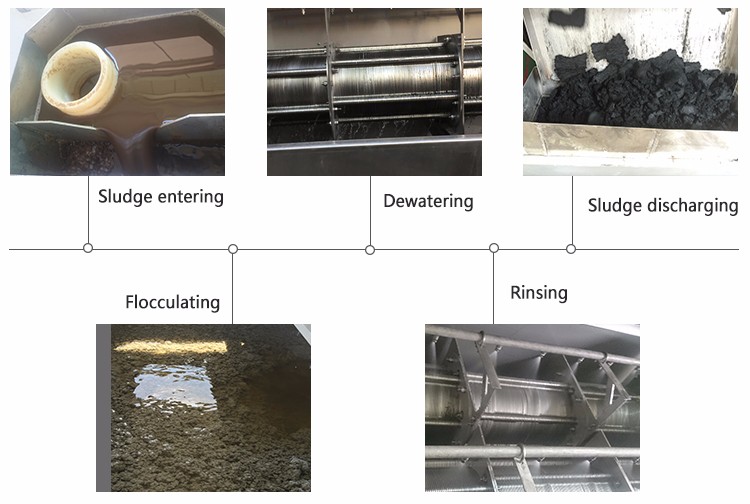

Flow Chart

1. Simple processing,low investment system,energy-efficient in dewatering.
2. System can be programmed to make the operation more convenient and accurate.
3. Unique flocculating agent make sludge dewatering easier.
4. Uniform and accurate dispensing,saving costs.
Service & Support
1. All-around Pre-sale Technical Support
2. Professional In-sale Service
3. Perfect After-sale Service
4. Professional Service Team
5. Quick Response System

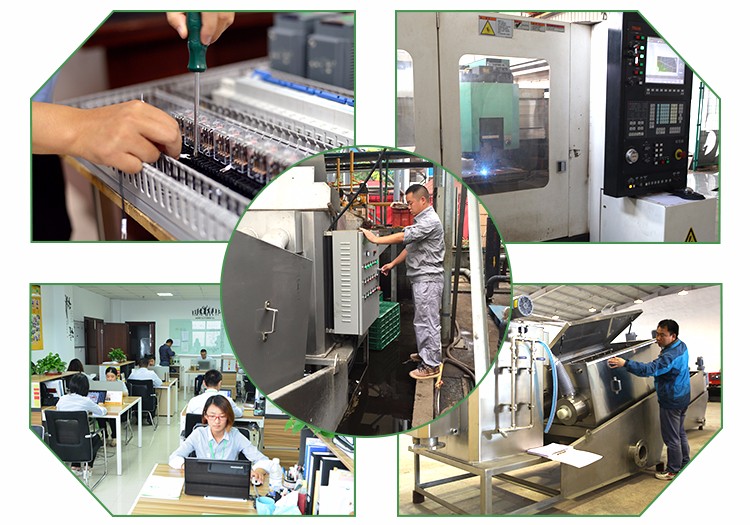

6. Strict manufacturing Quality Control


Foreign Key Performa


Auxiliary Equipment
