Product Attribute
| Model | DS Throughput (kg/h) | Sludge flow (m³/h) | ||||
Low Concentration | High Concentration | 10000mg/l | 20000mg/l | 25000mg/l | 50000mg/l | |
| KTDL131 | 5 | 10 | 0.5 | 0.5 | 0.4 | 0.2 |
| KTDL132 | 10 | 20 | 1 | 1 | 0.8 | 0.4 |
| KTDL133 | 15 | 30 | 1.5 | 1.5 | 1.2 | 0.6 |
| KTDL251 | 15 | 30 | 1.5 | 1.5 | 1.2 | 0.6 |
| KTDL252 | 30 | 60 | 3 | 3 | 2.4 | 1.2 |
| KTDL253 | 45 | 90 | 4.5 | 4.5 | 3.6 | 1.8 |
| KTDL301 | 30 | 60 | 3 | 3 | 2.4 | 1.2 |
| KTDL302 | 60 | 120 | 6 | 6 | 4.8 | 2.4 |
| KTDL303 | 90 | 180 | 9 | 9 | 7.2 | 3.6 |
| KTDL304 | 120 | 240 | 12 | 12 | 9.6 | 4.8 |
| KTDL351 | 50 | 100 | 5 | 5 | 4 | 2 |
| KTDL352 | 100 | 200 | 10 | 10 | 8 | 4 |
| KTDL353 | 150 | 300 | 15 | 15 | 12 | 6 |
| KTDL354 | 200 | 400 | 20 | 20 | 16 | 8 |
| KTDL401 | 80 | 160 | 8 | 8 | 6.4 | 3.2 |
| KTDL402 | 160 | 320 | 16 | 16 | 12.8 | 6.4 |
| KTDL403 | 240 | 480 | 24 | 24 | 19.2 | 9.6 |
| KTDL404 | 320 | 640 | 32 | 32 | 25.6 | 12.8 |
Product Description

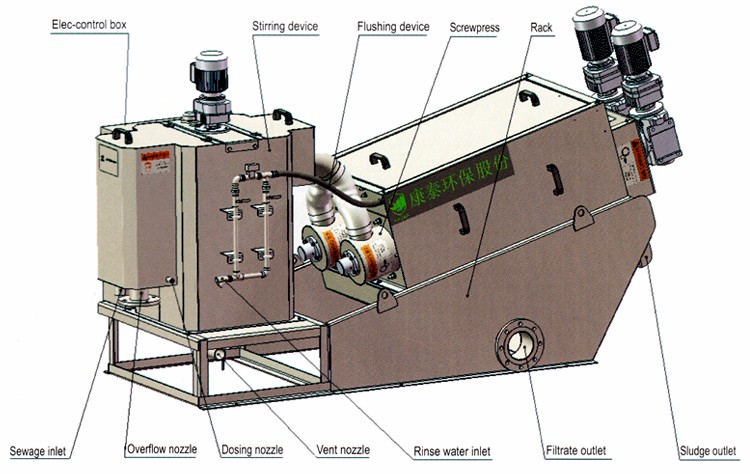

| The screw sludge dewatering machine is integrating with auto-control cabinet, sludge thickening & dewatering body liquid collection tank. Therefore, the high efficiency flocculation, continuous sludge concentration, dewatering and filtrate collection can be autormatically completed all-in-one, the collected liquid will be reflux or emissions finally. |
Application
| ♦Application♦ |
| Municipal sewage petro-refining, Leather making, Printing and dyeing paper, Coalification dressing, Biochemical pharmacy, Steel pickling and chemical sugar, Food processing etc. |
| ♦Advantages♦ |
1.Low operation cost: below 40% of belt press and 20% of centrifuge. 2.Power-saving: less than 5% of centrifuge. 3.Water-saving: less than 0.1% of belt filter press. 4.Saving-drugs saving around 60%. 5.Compact: saving more than 60% of the investment for dehydration room. 6.Non-clogging: processing the fats & oils and fiber sludge perfectly. |
Key Features
1.Simple processing,low investment system,energy-efficient in dewatering.
2.System can be programmed to make the operation more convenient and accurate.
3.Unique flocculating agent make sludge dewatering easier.
4.Uniform and accurate dispensing,saving costs.

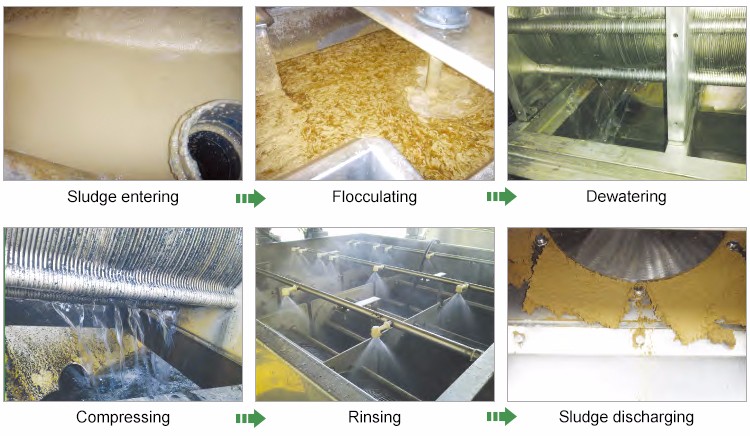

Flow Chart

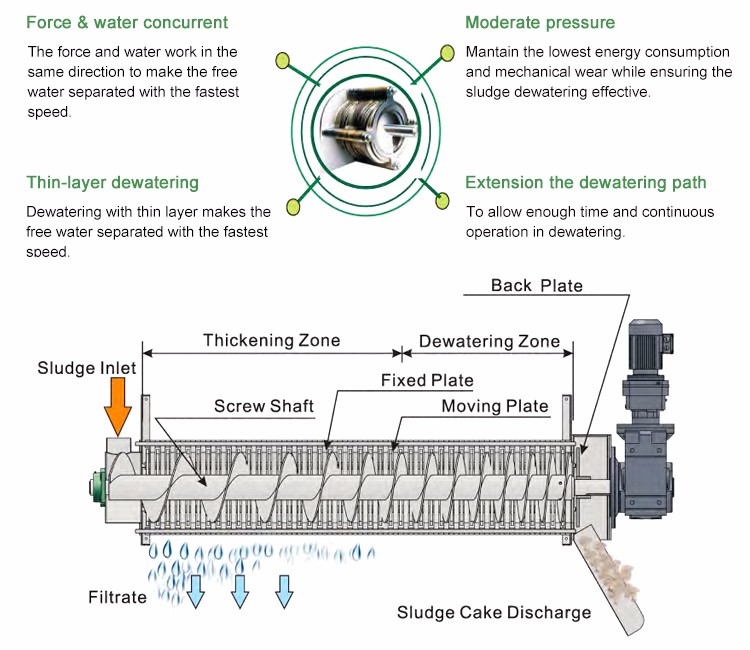

Working Principle
Foreign Key Performa
Service & Support
| ♦All-around Pre-sale Technical Support | ♦Professional In-sale Service |
| ♦Perfect After-sale Service | ♦Professional Service Team |
| ♦Quick Response System | ♦Strict manufacturing Quality Control |
