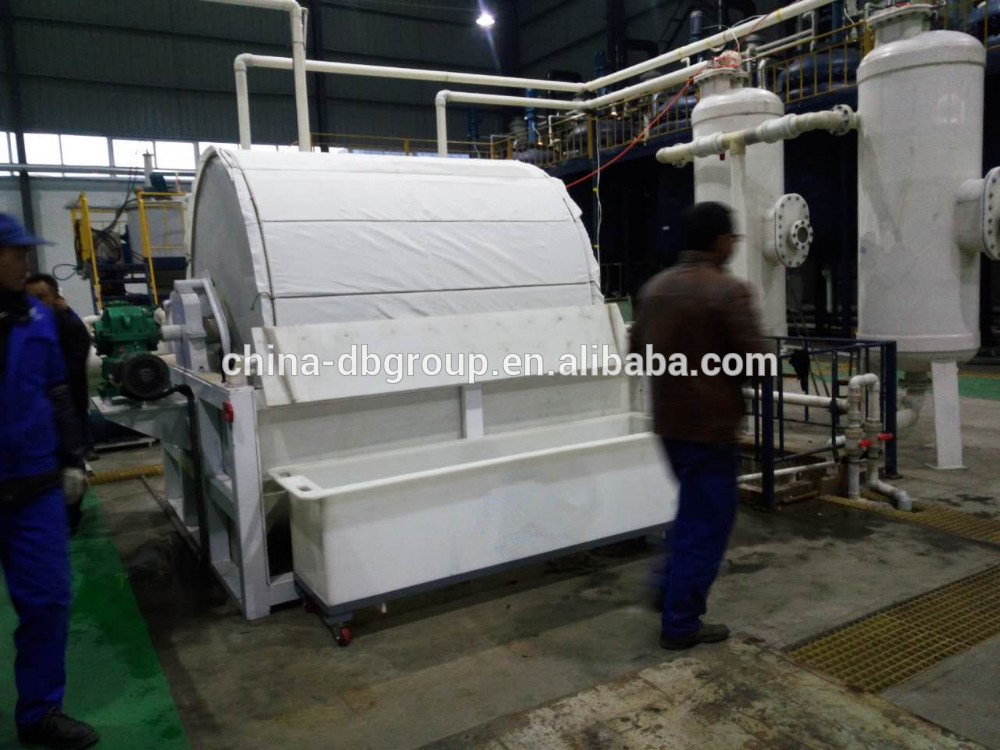

Diatomite Pre-coating Vacuum Rotary Drum Filter

Air chamber type automatic deviation correction device is set to assure stable running of the filter cloth.

Technical Feature

Henan, China (Mainland)

DB Group

DB-10

12 months

ISO9001

0.3-200000T/H

Send Standard Inquiry

Add Inquiry List

$10~35

PRIMARY PARAMETERS

Place of Origin

Henan, China (Mainland)

Brand Name

DB Group

Model Number

DB-10

Warranty

12 months

Certificate

ISO9001

Capacity

0.3-200000T/H

Color

Yellow

DETAIL DESCRIPTION

vacuum rotary drum filter with ISO9001:2000 certificate

1.features of vacuum rotary drum filter:

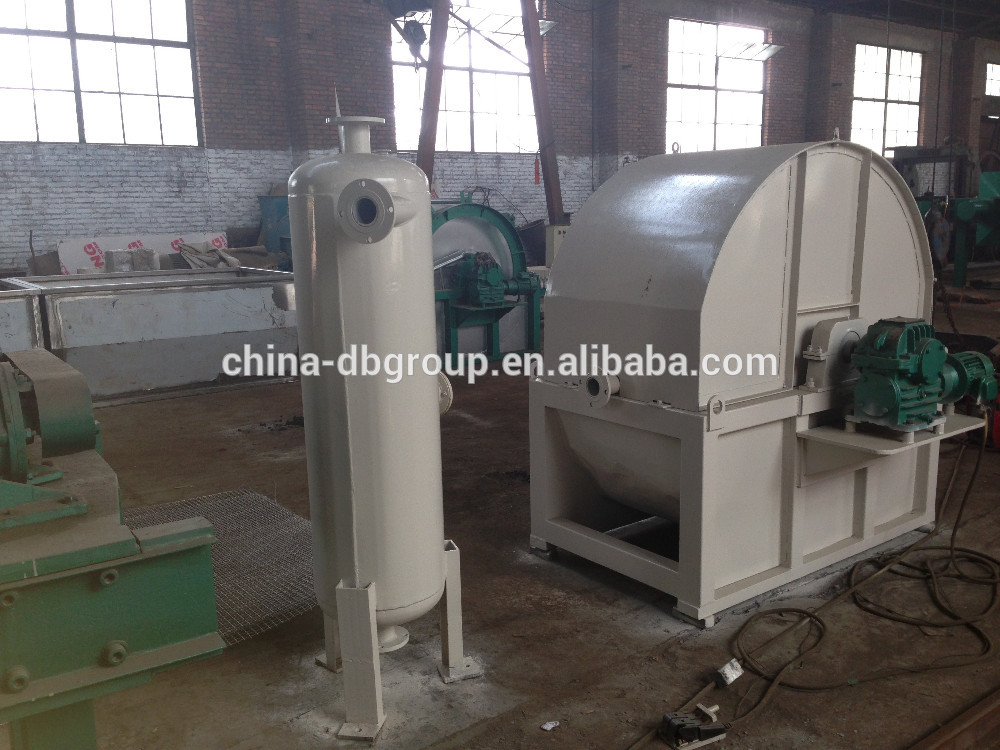

1. Vacuum balance automatic discharging tank or steam-liquid separator is set to carry out zero potential difference automatic discharging or high potential difference discharging to satisfy requirements from different working states

2 .Air chamber type automatic deviation correction device is set to assure stable running of the filter cloth.

3 .The control system uses PLC technology to carry out PID regulation, provide safety guarantee of running

Stainless Steel Type

2. main technical parameters:

Type	Filter area (m²)	Filter plate size (mm)	Filter plate Rotation speed (rpm)	Motor Power(kw)	Mixing Motor Power (kw)	Capacity (Dry) (t/h)	Filter cake moisture %	Dimensions (mm)	Weight(t)
Diameter(mm)	Quantity
PG18-4	18	1800	4	0.13-1.14	1.1	1.1	4.5-5.4	22-26	2833×2340×2295	3.5
PG27-6	27	1800	6	0.13-1.14	1.1	1.1	6.7-8.1	22-26	3820×2355×2295	4.36
PG39-4	39	2700	4	0.13-1.14	1.5	1.5	9.7-11.7	22-26	3820×2355×2295	5.65
PG58-6	58	2700	6	0.15-1.44	2.2	2.2	14-17.4	22-26	3930×3355×3275	8
PG78-8	78	2700	8	0.15-1.44	4	4	19-23.4	22-26	4730×3355×3275	8.98
PG97-10	97	2700	10	0.15-1.98	4	4	24-29.1	22-26	5530×3355×3275	10.9
PG116-12	116	2700	12	0.15-1.98	4	4	29-34.8	22-26	6330×3355×3275

if you are interested in our products ,please inform us and give me a feedback :

my whatsapp:86-15936215008
