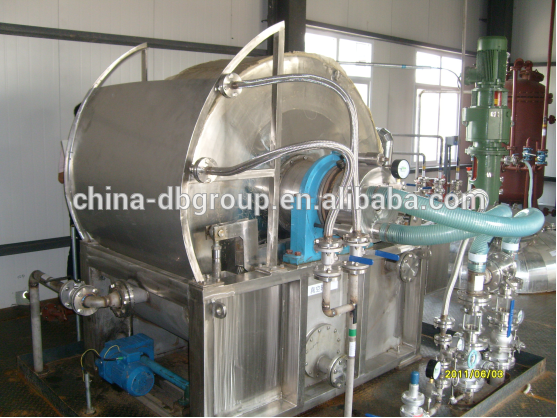

High Quality Automatic Pre-coating Rotary Drum Vacuum Filter
This equipment is based on existing grille jams easily, easy to damage, secondary investment problems such as more specifically developed is one of the best practical technologies for wastewater treatment.
High Quality Automatic Pre-coating Rotary Drum Vacuum Filter
Working principle
Microfiltration machine by the transmission device, the overflow dam water, wash water plant main parts, such as mesh of stainless steel wire mesh. Will waste water from the pipe into the overflow weir cloth mouth water, after brief steady flow, by uniform overflow outlet and distribution in reverse direction of cartridge filter, water filter with the cylinder wall shear relative movement, water efficiency, being trapped solids separation and down inside the cylinder spiral guide plate rolling, the filter tube at the other end discharge; Wastewater under guard on either side of the cartridge diversion from just below the sink drain away.
High Quality Automatic Pre-coating Rotary Drum Vacuum Filter
MPF-10 | MPF-15 | MPF-20 | MPF-25 | MPF-30 | MPF-35 | MPF-40 | MPF-45 | MPF-50 | MPF-60 | |
Filtering area(m2) | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 |
Capacity (m3/h) | 5 | 7.5 | 10 | 12.5 | 15 | 17.5 | 20 | 22.5 | 25 | 30 |
Discharge glucose syrup(DS) | 30-35% | 30-35% | 30-35% | 30-35% | 30-35% | 30-35% | 30-35% | 30-35% | 30-35% | 30-35% |
Vacuum (MPa) | 0.04-0.06 | 0.04-0.06 | 0.04-0.06 | 0.04-0.06 | 0.04-0.06 | 0.04-0.06 | 0.04-0.06 | 0.04-0.06 | 0.04-0.06 | 0.04-0.06 |
Power (kw) | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
Length (mm) | 3410 | 3425 | 4325 | 4775 | 5325 | 5075 | 5580 | 5725 | 6510 | 7570 |
Width (mm) | 300 | 3280 | 3280 | 3280 | 3280 | 3925 | 4175 | 4372 | 4800 | 4800 |
Height (mm) | 2070 | 2750 | 2750 | 2750 | 2750 | 3365 | 3980 | 3642 | 3980 | 3980 |
Weight (kg) | 5200 | 5850 | 6550 | 7130 | 8125 | 9560 | 11050 | 12980 | 14680 | 15780 |
