Wine glucose Vacuum Rotary Drum Filter 1-15m3

VF series vacuum filter, the absorption of Europe's leading design concept, developed and form.

Technical Feature

Henan, China (Mainland)

DB group

DB-3

Engineers available to service machinery overseas

glucosem wine ,industries

DB-3

Send Standard Inquiry

Add Inquiry List

$120~15

PRIMARY PARAMETERS

Place of Origin

Henan, China (Mainland)

Brand Name

DB group

Model Number

DB-3

After-sales Service Provided

Engineers available to service machinery overseas

Application

glucosem wine ,industries

Model

DB-3

DETAIL DESCRIPTION

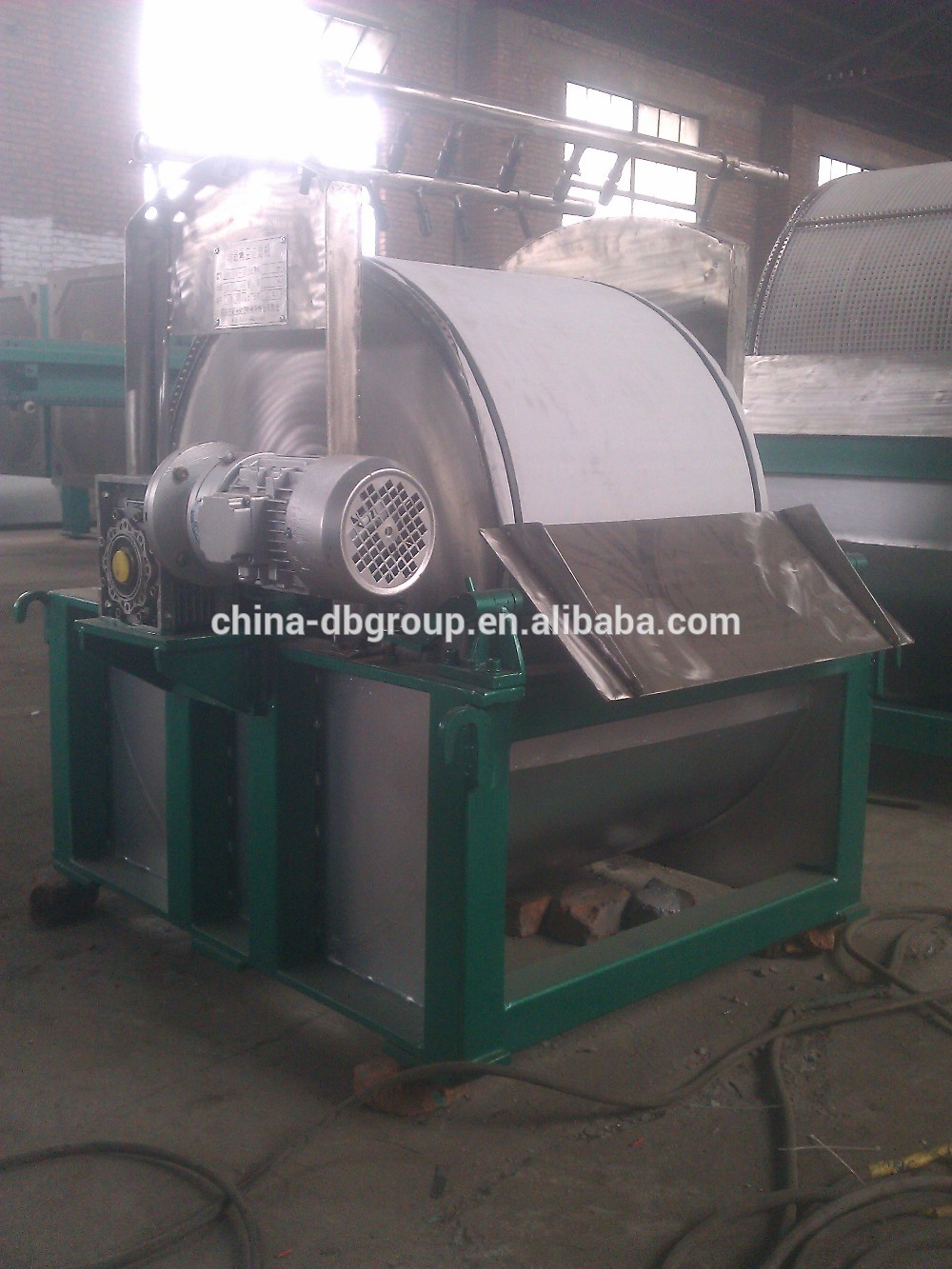

Wine glucose Vacuum Rotary Filter 1-15m3

Introduction :

VF series vacuum filter, the absorption of Europe's leading design concept, developed and form. Working with stability, handling large, high efficiency, operation and maintenance convenience features.

1.Overall structural design, all components are mounted on a stainless steel base, the installation is very convenient;

2.All stainless steel structure, in line with national health standards; Dedicated laser stainless steel sieve films, high separation efficiency, long life and easy cleaning;

3. High-strength alloy scraper, scraping layer uniformity, and stability; The import dedicated vacuum pump, work stability, and low consumption, small size;

4.Automatic mixing, low energy consumption, stirring uniform

Wine glucose Vacuum Rotary Filter 1-15m3

Main Technical Parameters :

	MPF-10	MPF-15	MPF-20	MPF-25	MPF-30	MPF-35	MPF-40	MPF-45	MPF-50	MPF-60
Filtering area(m2)	10	15	20	25	30	35	40	45	50	60
Capacity (m3/h)	5	7.5	10	12.5	15	17.5	20	22.5	25	30
Discharge glucose syrup(DS)	30-35%	30-35%	30-35%	30-35%	30-35%	30-35%	30-35%	30-35%	30-35%	30-35%
Vacuum (MPa)	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06
Power (kw)	1.5	1.5	1.5	1.5	2.2	2.2	2.2	2.2	2.2	2.2
Length (mm)	3410	3425	4325	4775	5325	5075	5580	5725	6510	7570
Width (mm)	300	3280	3280	3280	3280	3925	4175	4372	4800	4800
Height (mm)	2070	2750	2750	2750	2750	3365	3980	3642	3980	3980
Weight (kg)	5200	5850	6550	7130	8125	9560	11050	12980	14680	15780

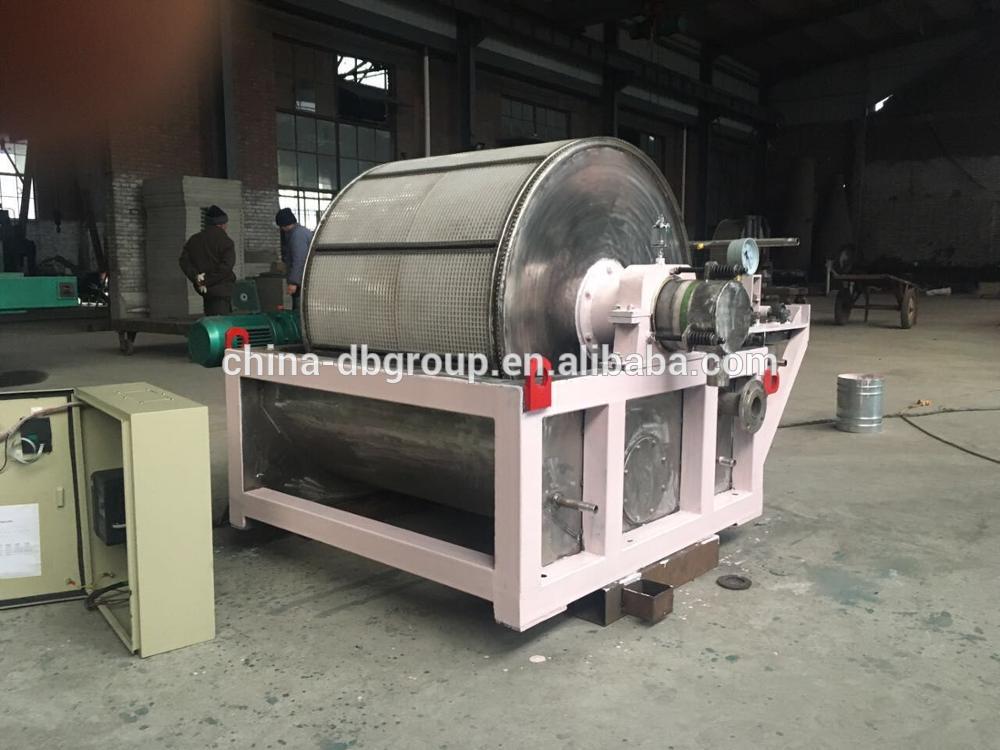

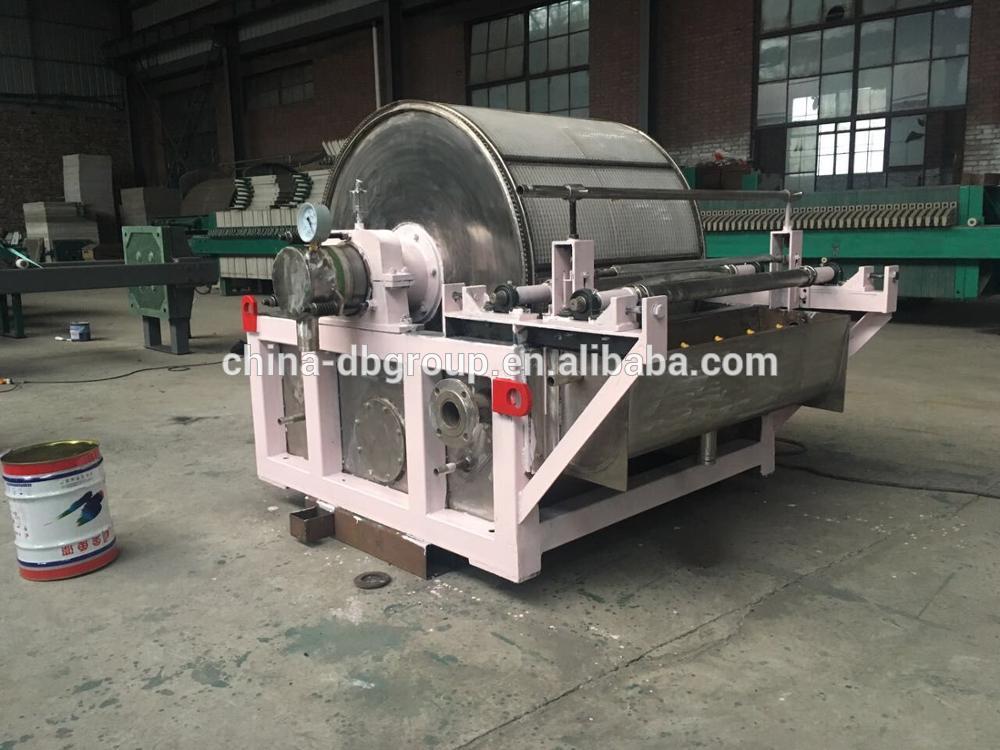

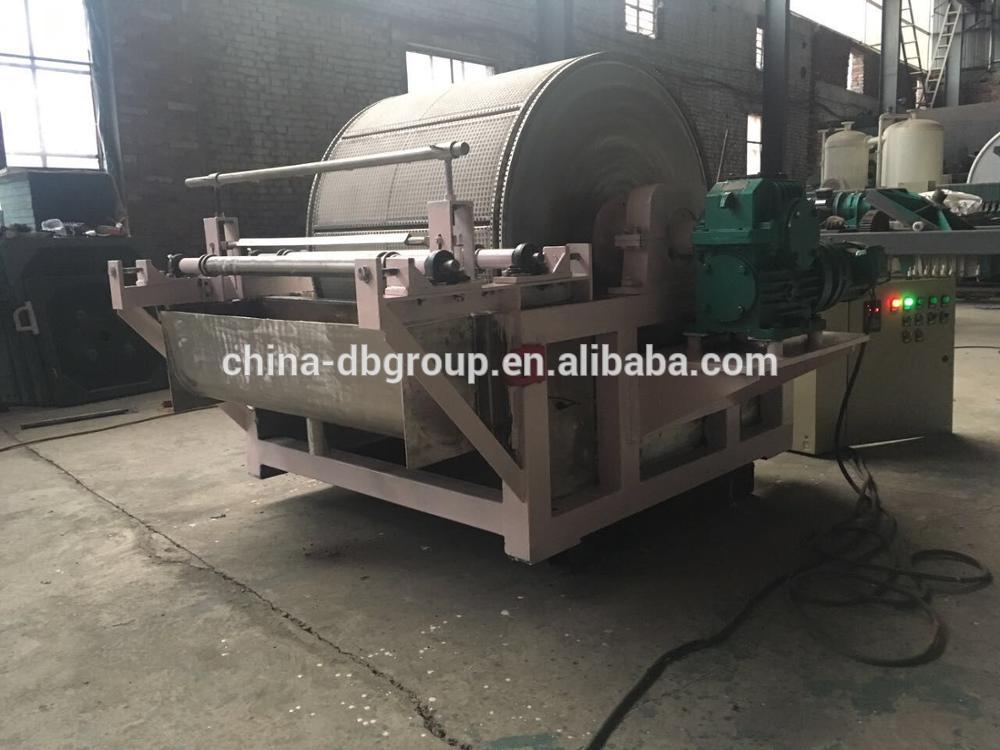

the following picture is the machine which exported to Peru :
