China famous brand automatic glucose wine rotary drum vacuum filter

China famous brand automatic glucose wine rotary drum vacuum filter ItemDBRF10DBRF15DBRF20DBRF25DBRF30DBRF35DBRF40DBRF45DBRF50DBRF60Filtering area(m2)10 152025303540455060Capacity (m3/h)57.51012.51517.52022.52530Di

Technical Feature

New

Automatic

3m2

Henan, China (Mainland)

Double Birds

GF3-N

Send Standard Inquiry

Add Inquiry List

$0~0

PRIMARY PARAMETERS

Condition

New

Automatic Grade

Automatic

Production Capacity

3m2

Place of Origin

Henan, China (Mainland)

Brand Name

Double Birds

Model Number

GF3-N

Voltage

380V/220V/400V

Power(W)

1.1KW

Weight

1080

Dimension(L*W*H)

2000*1750*1550mm

Certification

CE Certificate

Warranty

12 Months

After-sales Service Provided

Engineers available to service machinery overseas

Filter area (m2)

drum diameter

1300mm

drum length

750mm

total power

15KW

DETAIL DESCRIPTION

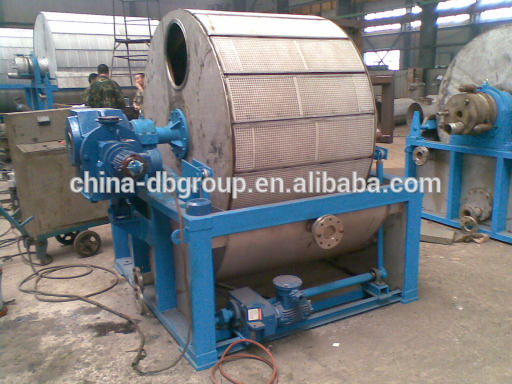

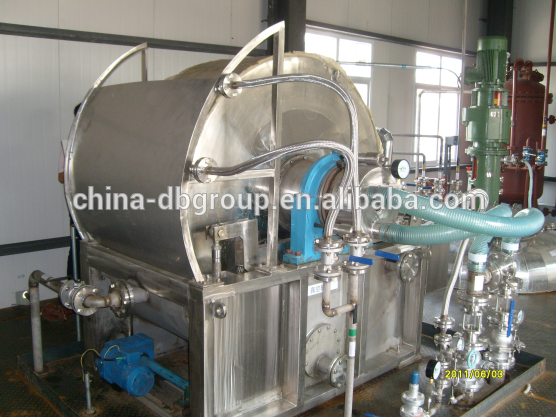

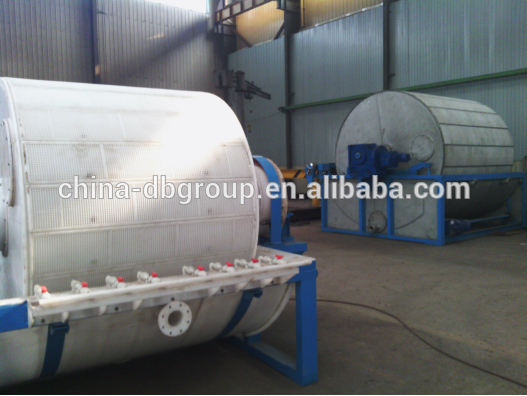

China famous brand automatic glucose wine rotary drum vacuum filter

Item	DBRF10	DBRF15	DBRF20	DBRF25	DBRF30	DBRF35	DBRF40	DBRF45	DBRF50	DBRF60
Filtering area(m2)	10	15	20	25	30	35	40	45	50	60
Capacity (m3/h)	5	7.5	10	12.5	15	17.5	20	22.5	25	30
Discharge glucose syrup(DS)	30-35%	30-35%	30-35%	30-35%	30-35%	30-35%	30-35%	30-35%	30-35%	30-35%
Vacuum (MPa)	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06
Power (kw)	1.5	1.5	1.5	1.5	2.2	2.2	2.2	2.2	2.2	2.2
Length (mm)	3410	3425	4325	4775	5325	5075	5580	5725	6510	7570
Width (mm)	300	3280	3280	3280	3280	3925	4175	4372	4800	4800
Height (mm)	2070	2750	2750	2750	2750	3365	3980	3642	3980	3980
Weight (kg)	5200	5850	6550	7130	8125	9560	11050	12980	14680	15780

Advantage

1, It is designed based on customers' different requests.

2, Structure is advanced and reasonable while appearance is neat and beautiful.

3, Processing devices are in series while installation is simple.

4,Due to applying advanced precoating technology, filtrate is with high clarity, low solid content and can be easily re-used.

5, It employs automatic peeler discharge, which is of high efficiency.
