Widely used vertical type electrical SS liquid filter machine

is a high-efficient, energy-saving and hermetically operated fine filter equipment.

Technical Feature

  • Jiangsu, China (Mainland)
  • Kingreat
  • NYB
  • Engineers available to service machinery overseas
  • SS liquid filter machine
  • Fully automatic
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~50

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
Kingreat
Model Number
NYB
After-sales Service Provided
Engineers available to service machinery overseas
Description
SS liquid filter machine
Operation
Fully automatic
MOC
SS304, SS316
Vessel material
Carbon steel, matt, fine polished SS
Application
syrup, oil, water, etc.

DETAIL DESCRIPTION

Widely used vertical type electrical SS liquid filter machine

Product Description

NYB SS liquid filter machine is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.



Since this equipment has many advantages such unique structure, compact volume, high filter efficiency, fineness of filtered liquor, no material wastage, quantity of filter aid. It can be conveniently maintained, cleaned and operated at very low cost.

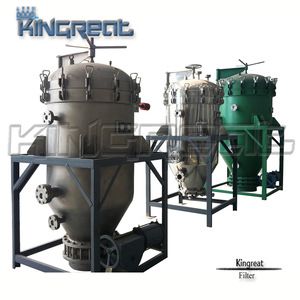

Detailed Images

Parameters

Model

Filtering  area

(m²)

Filters cake

volume

(L)

Capacity(T/h)

Working pressure

(MPa)

Working

temperature

(℃)

Volume of

filtering jar

(L)

Weight

(Kg)

Oil

Resin

Beverage

Rated

Max

PNYB-2

2

30

0.4-0.6

1-1.5

1-3

0.1-0.4

0.5

≤150

120

300

PNYB-4

4

60

0.5-1.2

2-3

2-5

250

400

PNYB-7

7

105

1-1.8

3-6

4-7

420

600

PNYB-10

10

150

1.6-3

5-8

6-9

800

900

PNYB-12

12

240

2-4

6-9

8-11

1000

1100

PNYB-15

15

300

3-5

7-12

10-13

1300

1300

PNYB-20

20

400

4-6

9-15

12-17

1680

1700

PNYB-25

25

500

5-7

12-19

16-21

1900

2000

PNYB-30

32

600

6-8

14-23

19-25

2300

2500

PNYB-36

36

720

7-9

16-27

13-31

2650

3000

PNYB-40

40

800

8-11

21-34

30-38

2900

3200

PNYB-45

45

900

9-13

24-39

36-44

3200

3500

PNYB-52

52

1040

10-15

27-45

42-51

3800

4000

PNYB-60

60

1200

11-17

30-52

48-60

4500

4500

PNYB-70

70

1400

12-19

36-60

56-68

5800

5500

PNYB-80

80

1600

13-21

40-68

64-78

7200

6000

PNYB-90

90

1800

14-23

43-72

68-82

7700

6500



Note: filtering capacity: when oil is treated, it means the filtered volume of oils containing 2-5% of whitish soil. When resin is treated, it means the average filtered volume of alkyd resins fineness of 5-15μm. Filtering capability is in relation to the impurity content of the medium to be filtered.



Factory Overview
Nanjing Kingreat Machinery Co., Ltd , covering an area of 650000m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers. It has obtained the approvals and certifications of both ISO9001:2008 quality control system and the military product quality certificate, BV and CE certificates. Some of our machines gained the new technology invent patent.

We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine. Now there are over 150 series of decanter centrifuges and disc separators used both home and abroad.

Packaging





Partner & Service





1. 12 months guarantee period from machine arriving date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflection would be treated in priority.

9. Marketing team will visit you during our visit in your country if you require.

FAQ

1.  How can we visit your factory?

     If you come from abroad, air to Shanghai airport, then take bullet train, about 1 hour from Shanghai to Nanjing South Station; if you come from our domestic city, air or train directly to Nanjing, we will pick you up both in the airport and railway station.



2.  Can we visit your end user or contact them?

     Yes, users are in domestic and abroad, we can provide you the name list, you can go there or contact for more info.



3.  How do you protect the quality?

     Our factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission & electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.



4.  Will you dispatch technicians for installation and commissioning?

     Yes, we can, we do lots of service, please refer to our after sales part.



5.  What is your advantages compared with your competitors?

     Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world famous brands.



6.  Is your price competitive?

     Our price is not the lowest in China as for high quality, but we promise, for the same quality and collocation, our price is the most favourite, for the same price, our quality is definately superior to other brand.



7.  Do you have OEM serive? Do you supply the parts?

     Yes, we do, as long as you provide us your drawing and detailed requirements.



8.  Do you supply second hand centrifuge?

     No, we only provide brand new machine.



9.  Do you have agent or service center in my country?

     We have some partnership in several countries as Indonesia, Brazil, USA, etc. Your are warmly welcomed to work as our agent. At this moment, we have no service center abroad, but we can provide overseas spot and online technical service in time.



10. How can we easily find out the most fit centrifuges?

      We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.



11. What payment mode you accept?

      TT and LC at sight.
