Vacuum Rotary Drum Filter for Mine Sludge Dewatering

It has been widely used in concentrates, tailings, coal water copper, iron, gold, silver, tin, aluminum, lead, zinc, nickel, palladium, cobalt, molybdenum, aluminum, phosphorus, coal, sulfur, silicon, quartz, mica, rare earth Zinc Oxide, chemical industry

Technical Feature

  • Henan, China (Mainland)
  • XKJ
  • PG
  • New
  • Engineers available to service machinery overseas
  • Vacuum Filter
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~5

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
XKJ
Model Number
PG
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Name
Vacuum Filter
Product name
Rotary Drum Filter
Keywords
Vacuum Rotary Drum Filter
Application
Mining Equipment
Type
Dewatering
Usage
Mine Sludge Dewatering
Warranty
1 Year
Color
Customer's Request
Filtration Area
1.7-40
Power
1.1-3

DETAIL DESCRIPTION

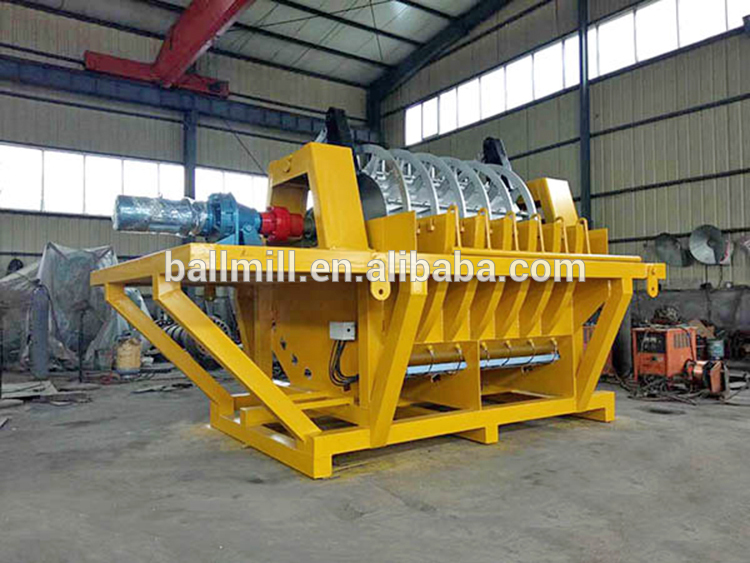

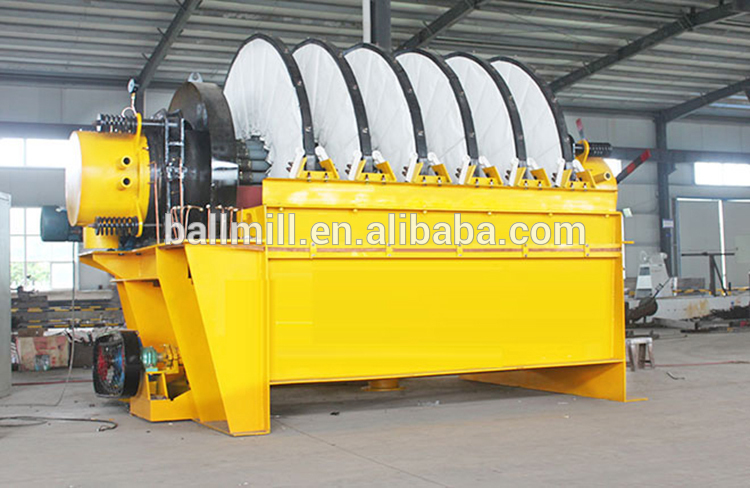

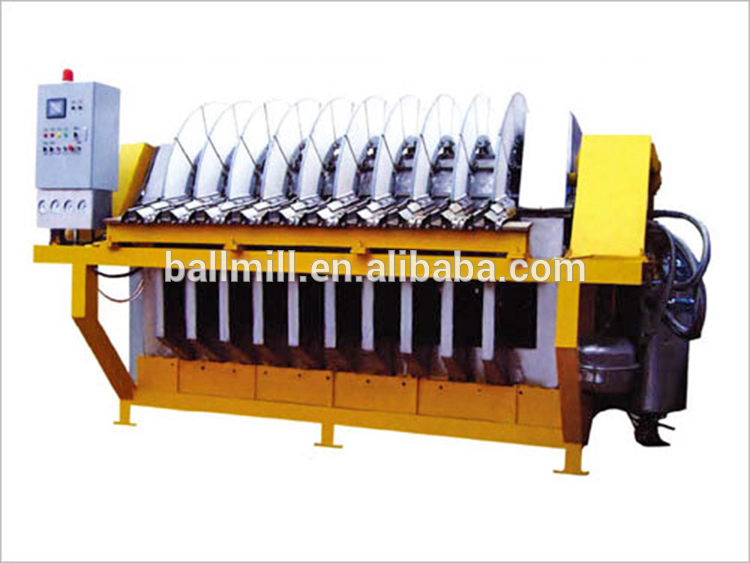

Vacuum Rotary Drum Filter for Mine Sludge Dewatering

Product Description

Vacuum Rotary Drum Filter

It has been widely used in concentrates, tailings, coal water copper, iron, gold, silver, tin, aluminum, lead, zinc, nickel, palladium, cobalt, molybdenum, aluminum, phosphorus, coal, sulfur, silicon, quartz, mica, rare earth Zinc Oxide, chemical industry lead oxide, zinc sulfide, electro slag, leaching slag, slag cement dehydration and environmental pollution as well as waste acid treatment. The fineness of materials is from -200 to -450 and avariety of superfine materials.
Vacuum Rotary Drum Filter Working Principle
Filtering is a process of separating solid particles suspended in a gas or liquid.The basic principle is :under the action of the pressure difference,the suspension liquid(or gas) passes through a permeable medium(media),the solid particles are intercepted by medium,so as to realize the separation of liquid and solid.

Slurry suction zone: when working, the filter plate submerged in the slurry forms a layer of filter cake on its surface under vacuum pressure in the role of the capillary action. The filtrate goes through filter plate into the distribution valve and the drain pipe

Washing zone: When the cake rolls out the slurry, the filter cake is spray washed.
Drying zone: the filter cake continues to dehydrate under the action of high vacuum force.

Discharge zone: Scraper automatically unloads under the condition of no vacuum,

Backwashing zone: Industrial water or filtrate goes through the distribution valve into the ceramic plate from the inside out for cleaning and washes the clogged pores. After a cycle use of the ceramics plate, it is cleaned by mixing ultrasonic wave with low concentration acid to keep its efficient use.

Vacuum Rotary Drum Filter Technical Parameter

Specification Filter area(m2)Disc Quantity(pcs)Filter plate diameter(m)Main size (LxWxH) mWeight(t)Power(kw)Operating power(kw)Volume of tank
BY-1111.521.7x1.5x1.51.45.283.080.2
BY-2221.521.9x1.5x1.52.15.43.20.3
BY-4421.522.5x2.5x2.52.663.80.9
BY-6621.522.8x2.9x2.52.97.35.11.4
BY-9931.523.1x2.9x2.53.512.368.361.9
BY-121241.522.96x2.9x2.54.513.089.082.4
BY-151551.923.56x2.9x2.54.913.89.82.9
BY-181861.923.86x2.9x2.55.314.5210.523.4
BY-212171.924.16x2.9x2.55.715.2411.243.9





Related Products

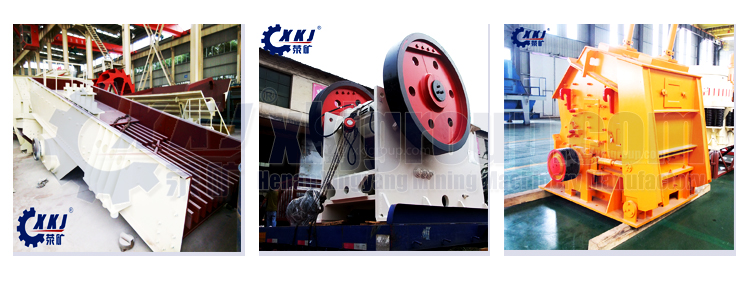

                    Vibrating Feeder                       Jaw Crusher                       Impact Crusher
