Solid-liquid separation equipment rotary disc vacuum filter for coal washing, nonmetallic ore and environmental protection

5mm beneficiated ore, and dewatering clean coal, waste coal and other fine materials, it also can be used for solid-liquid separation in metallurgy, chemical industry, petroleum and sewage treatment.

Technical Feature

  • Henan, China (Mainland)
  • XKJ
  • verious
  • New
  • Engineers available to service machinery overseas
  • 4
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$200~25

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
XKJ
Model Number
verious
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Disc number
4
Color
Capacity
0.7-16t/h*m2
Installation
Engineer's Guide

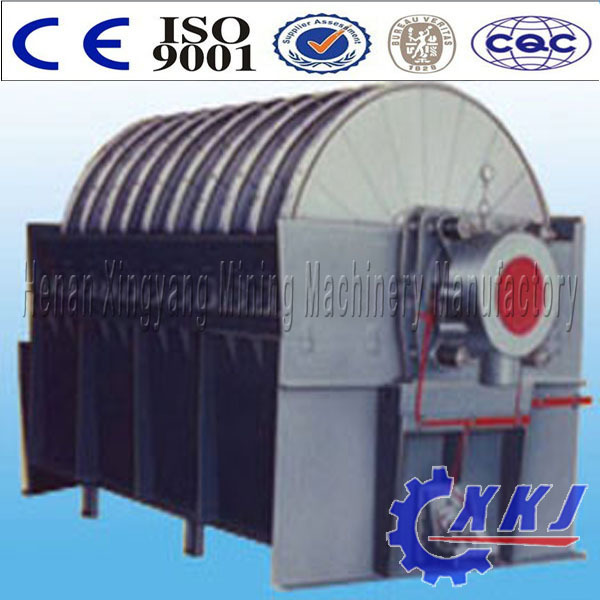

disk vacuum filter certificate
ISO 9001, CE

DETAIL DESCRIPTION







Product Description

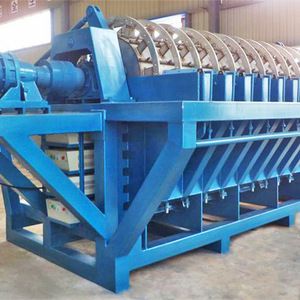

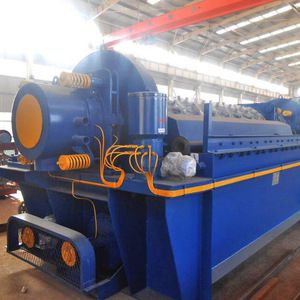

rotary disc vacuum filter



Disk Vacuum Filter Introduction:



This machine is mainly used for floating 0-0.5mm beneficiated ore, and dewatering clean coal, waste coal and other fine materials, it also can be used for solid-liquid separation in metallurgy, chemical industry, petroleum and sewage treatment. The acid-proof filter is used for solid-liquid separation of corrosiveness materials, with using stainless steel materials.

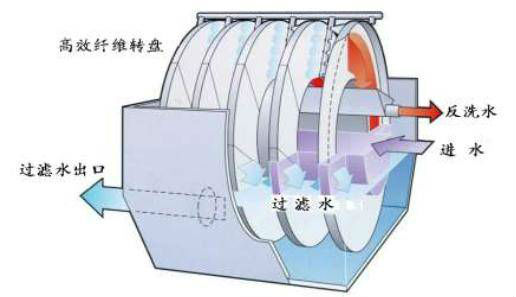

Working principle of rotary disc vacuum filter:

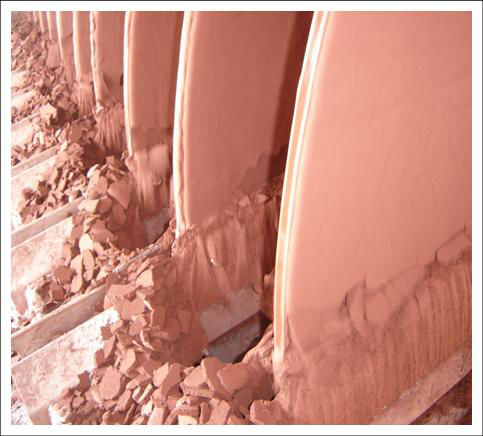

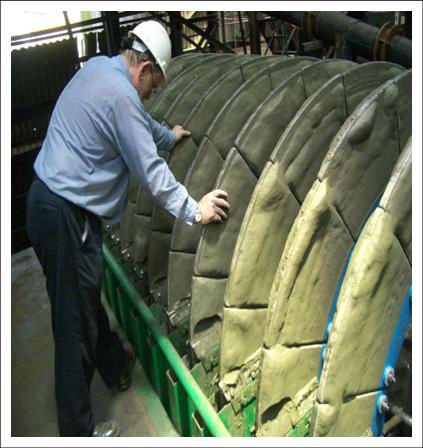

When working, the filter disc circles in the slurry tank. With the help of pressure difference generated by vacuum pump, the particle is absorbed on the cloth of the disc and forming a filter cake with a certain thickness. Filtrate will discharge from the central shaft through the filter cake and cloth, and the filter cake will fall down under the pressure of the scraper and blower, and then drop into the discharging filter cake tank.





Features and Benefits of rotary disc vacuum filter:



l         High vacuum degree, low concentration of filtrate and high filter efficiency

l         Small occupied area, low power consumption.

l         Can be recycled to use., reduce the emission

l         Highly automatic, reduce labor cost

l         Easy installation and maintenance

l         Reliable structure and long lifespan.

Disc vacuum filter — Technology parameter

model

Filtering area
(m2)

Number of filtering discs

Diameter of filtering discs
(mm)

Rotating of filtering discs
(r.p.m)

power of the main drive motor
(kw)

Power of the motor for agitating
(kw)

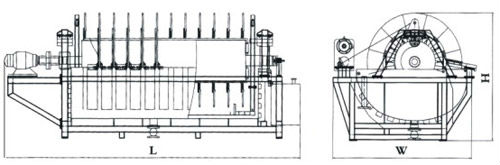

External dimensions
(L×W×H)
(mm)

weight
(kg)

PG9-2

9

2

1800

0.08~1.89

1.1

1.1

2290×2510×2100

2510

PG18-4

18

4

0.254~1.14

1.5

2833×2340×2295

3980

PG27-6

27

6

0.254~1.14

3820×2300×2320

4620

PG39-4

39

4

2700

0.074~0.72

1.5

3015×3275×3275

5650

PG58-6

58

6

0.254~1.14

2.2

2.2

3930×3355×3275

10980

PG78-8

78

8

0.254~1.14

4700×3400×3300

1360

PG116-12

116

12

0.285~1.285

4

4

6330×3355×3275

1500

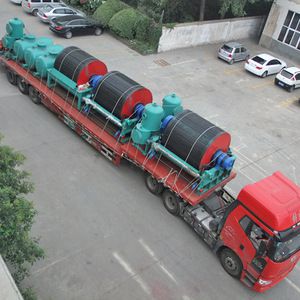

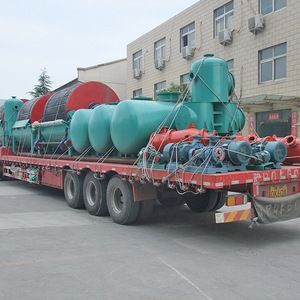

Packaging & Shipping
