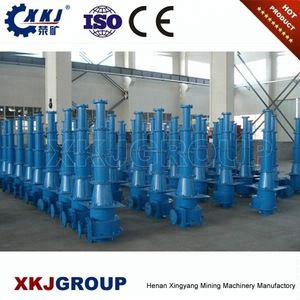

Hydro cyclone price for mineral processing classifying

cyclone action is that particles within the flow pattern are subjected to two opposing forces- an outward centrifugal force and an inwardly acting drag.

Technical Feature

  • New
  • Sprial Separator
  • above 90%
  • Henan, China (Mainland)
  • XKJ
  • FX
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$300~5

PRIMARY PARAMETERS

Condition
New
Type
Sprial Separator
Production Capacity
above 90%
Place of Origin
Henan, China (Mainland)
Brand Name
XKJ
Model Number
FX
Voltage
as per your country conditon
Dimension(L*W*H)
Reference the technical parameters
Weight
2.5-995 kg
Certification
ISO9001
Warranty
one year except worn parts
After-sales Service Provided
Engineers available to service machinery overseas
Material
caststeel, stainless steel, Q235
Color
up to you
manufacture standard
as per industrial standard
consumption
low
Quality check
the third party
After sale service
the whole using life
Spare parts
long term supply
operation
easy ans simple
price
reasonable and competitive
delivery
timely

DETAIL DESCRIPTION

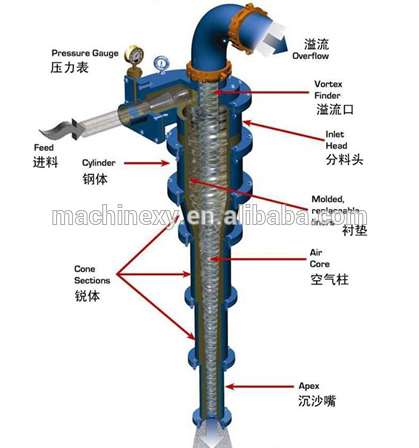

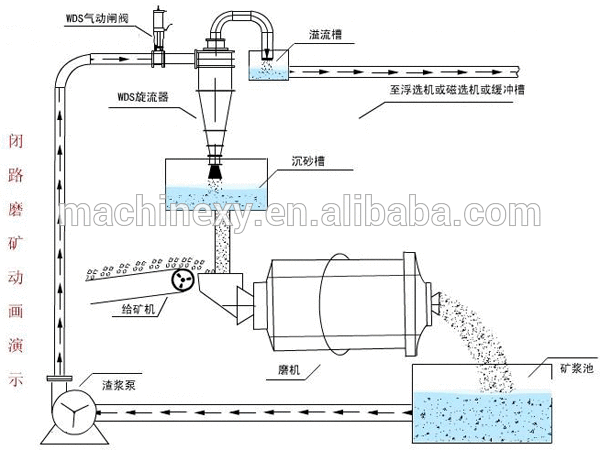

The working principle of hydro cyclone:



The theory of hydro cyclone action is that particles within the flow pattern are subjected to two opposing forces- an outward centrifugal force and an inwardly acting drag. The centrifugal force developed accelerates the settling rate of the particles thereby separating particles according to size, shape, and specific gravity. Faster settling particles move to the wall of the cyclone, where the velocity is lowest, and migrate to the apex opening. Due to the action of the drag force, the slower-settling particles move towards the zone of low pressure along the axis and are carried upward through the vortex-finder to the overflow.





The hydro cylcone festures:

1 The 3-dimension snail-shaped feeding structure makes it possible to feed minerals in circumferential and axial directions. This design can tremendously improve classification efficiency in three ways------first of all, after entering the hydraulic cyclone, minerals avert from being disturbed by turbulent flows occurring near overflow pipes; secondly, the speed of coarse ore cyclone is accelerated towards underflow outlet; thirdly, minerals avoid swift rotating.





2 The square pipe-type feeding model enables ores to get closer to the inner wall of hydraulic cyclone, which contributes to the lightest abrasion of feeding ores and the strongest divergent forces of ores. Consequently, abrasion of feeding box is reduced to the lowest level.



3 The unique adjustment device of wedge-shaped feeding opening can quickly adjust the feeding size, so classification efficiency is hugely raised.



4 The wedge-shaped adjusting valve constitutes a replaceable part for the inlet pipe, so there is no need to change the whole liner of hydraulic cyclone.



5 The premium abrasion performance of liner made from Xingyang Mining machinery abrasion-resistant rubber can considerably reduce using cost, and maintain the inner dimension and shape of hydraulic cyclone, so the stable classification efficiency is achievable.



6 Our company can also provide molding abrasion-resistant rubber liner and cold bonding abrasion-resistant rubber liner, the service life of which is extraordinarily long.





7 The appropriative software helps to choose the right mode accurately and quickly.

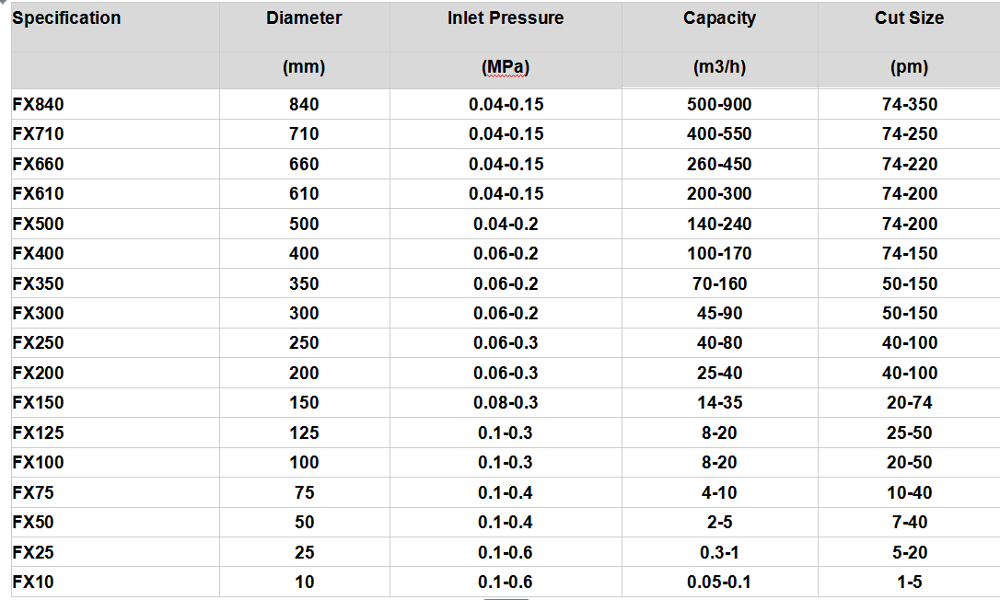

Technical parameters:

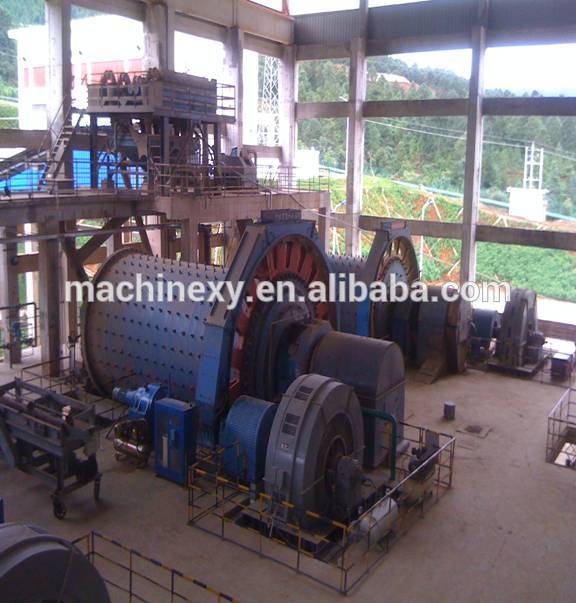

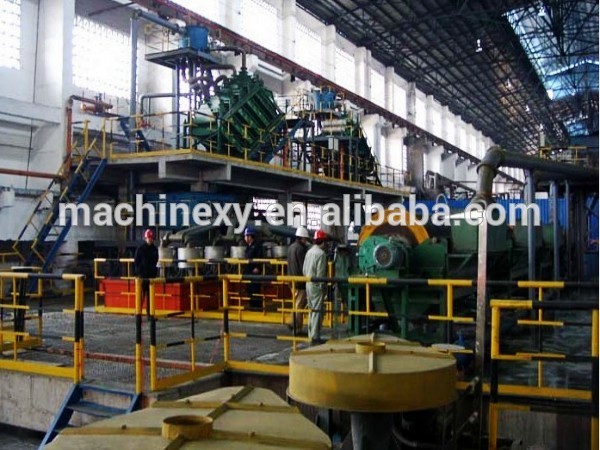

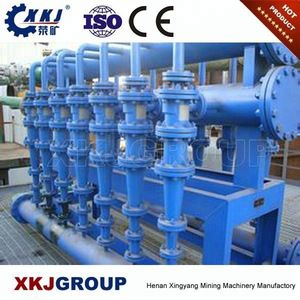

Hydro cyclone working site:



Our Services



Pre-sales service:
1.Enough details about the ores or slags shall be learned, sometimes the test is needed for some ores.
2. Equipment of right model is selected for customers.
3. Customized products and processing flow sheet can be designed and developed to meet

customer's special demands.
4. Engineer could be sent to observe customer's working site to come up with an optimized solution

accordingly.



After-sales service:
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised.
3. Service engineers will not leave until ensuring the whole line running well after the installation & adjustment

is finished.
4.If any failure or question about the machines or the processing line, contact us and we are available

at any time.



Company Information

Henan Xingyang Mining Machinery Manufactory is an enterprise of research and development,manufacturing, international trade as a whole, has Strong technical force, advanced production technology,perfect after sales services
Mainly produce: Jaw crusher,cone crusher,impact crusher,hammer crusher,roller crusher,VSI impact crusher,mobile crusher station,ball mill, spiral classifier, mixing tank, shaking table,rotary dryer, rotary kiln,ceramic

filter,concentrator and so on .The products of our company  have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and regions.







FAQ





Please fill in your need products and your message and do not forget mail and/or phone if you like to be contacted.

we are the professional machine manufacturer in China.

I need to ask you some details for sending you the more suitable quotation,



1.what is the raw material do you want to process?

2.what is the capacity per hour do you need?

3.what is the raw material input size?

4.what is the output size of your product?




I hope you can tell me these details,i will give you the best quotation ASAP ,thanks.
