Dewatering Hydrocyclone for Sand Recovery System from Henan

which used to separate sand and silt from the drilling fluid.

Technical Feature

  • New
  • Mineral Separator
  • 98%
  • Henan, China (Mainland)
  • XKJ
  • FX
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$150~5

PRIMARY PARAMETERS

Condition
New
Type
Mineral Separator
Production Capacity
98%
Place of Origin
Henan, China (Mainland)
Brand Name
XKJ
Model Number
FX
Voltage
380V
Power(W)
Customer Request
Dimension(L*W*H)
Customer Request
Weight
150-800kg
Certification
ISO9001
Warranty
1 Year Excluding Spare Parts
After-sales Service Provided
Engineers available to service machinery overseas
Name
Dewatering Hydrocyclone
Product name
Sand Hydrocyclone
Keywords
Hydrocyclone for Sand Recovery System
Application
Mining
Installation
Engineer Guide
Material
Steel
Capacity
5-360m3/h
Feeding size
1-19mm
Diameter
100-660mm
Color
Customers' Requirements

DETAIL DESCRIPTION

Dewatering Hydrocyclone for Sand Recovery System from Henan

Product Description

Hydroclone Description

Hydrocyclone is also called cyclone separator.Hydrocyclones include hydrocyclone desander(10 in. cone) and hydrocyclone desilter(4 in. cone),which used to separate sand and silt from the drilling fluid.



Hydrocyclone has two exits on the axis: the smaller on the bottom (underflow or reject) and larger at the top (overflow or accept). The underflow is generally the denser or thicker fraction, while the overflow is the lighter or more fluid fraction. Centrifugal pump is used to pump the drilling fluids from mud tank into the set of hydrocyclones.

Hydroclone Has 4 Features

1. Polyurethane lining, corrosion resistance and friction resistance.

2. The equipment structure design is reasonable, efficient multi - vertebral body assemble, the processing capacity is large.

3. The new type of energy saving overflow cap is used for grading.

4.Water and materials are sorted by gravity,Energy saving and environmental

Hydroclone Working Principle

Slurry is fed to cyclones through inlet in tangential or involute direction (depending on feeding way of the inlet head). Under centrifugal force, large particles will move downwards along outer swirling flow and be discharged through apex as underflow while fine particles will move upwards through inner swirling flow and be discharged from apex finder as overflow.
Applicable Materials

Hydrocyclone is mainly used for grading, sorting, thickening and desliming in the mineral separation industry.

Hydroclone Technical Parameter

ModelDiameter(mm)Cone angle(°)Overflow granularity(μm)Capacity(m3/h)Overflow pipe diameter(mm)Feeding area (cm2)Sand dump diameter
(mm)

Overall dimension(mm)

Weight
(kg)
FX-1001002020-503.1-6.114,18,25,3525x1015,25260x320x64657
FX-1251252035-757.5-1520,40,32,2522x2232,24,16570x426x1123128
FX-1501502040-10010-3926,34,50,6950x2020,25,35852x516x1273205
FX-2502502045-10537-4365,7547x6035,40852x525x1940287
FX-3503502050-11074-90115,105,9580x6580,70,60955x680x2299430
FX-5005002060-120170-220180,160,140110x120110,90,701080x811x2835718



For more information, please contact us.

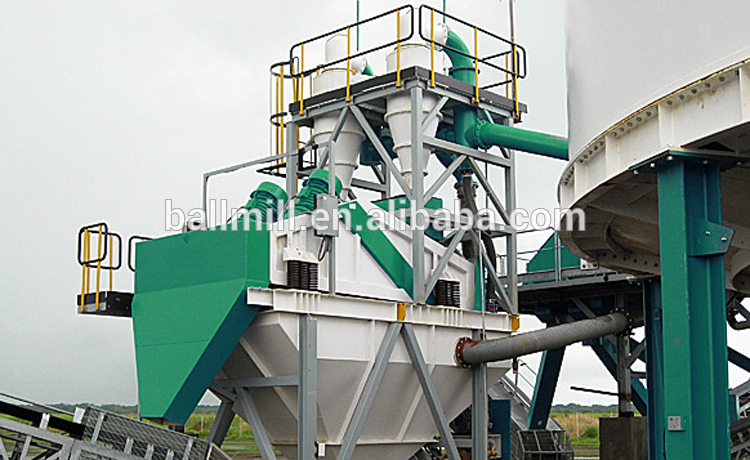

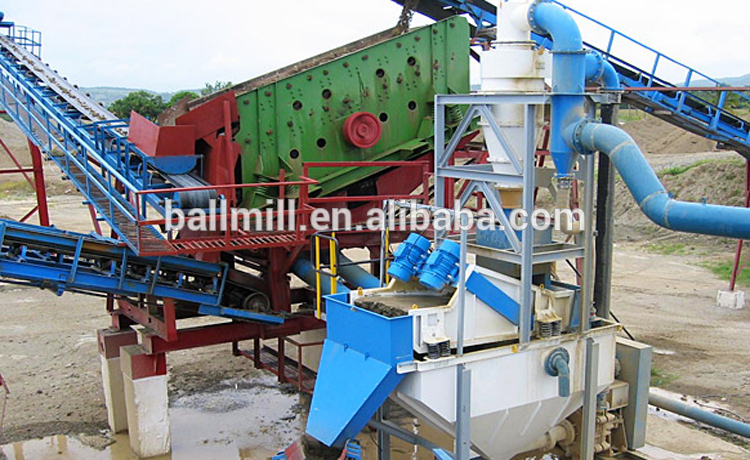

Hydrocyclone Plants( used for wash and classify sands and other fine materials)

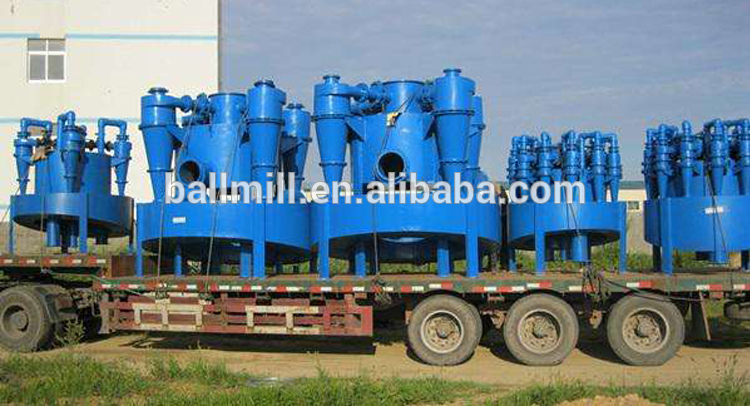

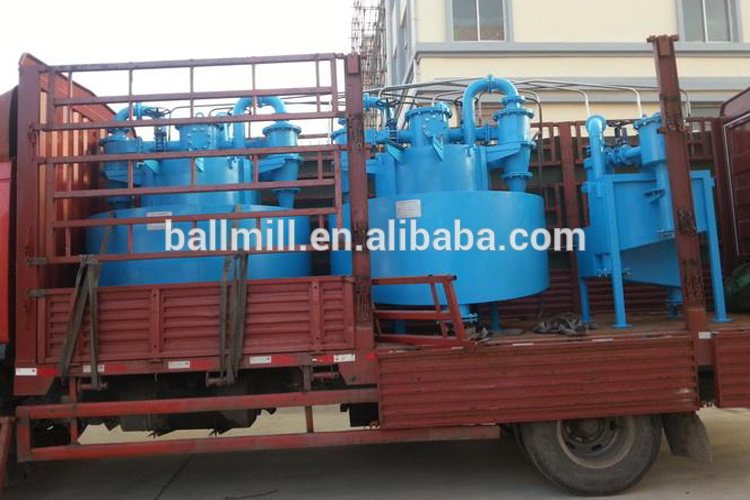

Packaging & Shipping

Packaging Detail: 1. small parts are wooden box package.
                             2. main engine nude packing, container, or upon customers requirement.
Delivery Detail:   within 20 days
Ports: Qingdao, Shanghai, Tianjin and other ports.

Our Services



  • 24 hours online customer service, detailed and professional solution.
  • Skilled engineers, scene investigation, free customized program solution.
  • The purchase contract has a certain reputation guarantee, provide you the perfect product to your hands.
  • After-sales service support, Expert technical training and operating instructions, site installation and commissioning, adhere to test equipment and visit our customers regularly.
  • We offer all kinds of models, high-quality crushing and screening equipment parts.
FAQ

1. How long is the delivery time of your machine?

The delivery time is within 20-30 working days. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be extened.



2.What are the payment terms?

The payment terms are L/C, T/T, D/A, D/P and other.



3.What is the minimum order quantity of your machine?

1 set. Our service will be to satisfy the needs of every client.



4.How long is the warranty period about machine?

Our machine warranty period is 1 year. Wearing parts and problem coursed by worker's wrong operation are not included.



5.What is the after sale service of your company?

We will provide foundation drawing to the clients for installation. Besides, we can provide installation service, workers training service, etc.



6.Can you provide wearing parts?

We have four casting factories that specialize in producing wearing parts for our clients. If your machine are not manufactured by our company, please provide us the wearing parts drawing.



7.Can you provide me a solution and quotation?

Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.

Why choose us
  • We have a professional engineering group after-sales team.
  • We have the large factory and good production capacity.
  • We have a professional sales and service team.

Our products include:
Crushing machinery: Jaw Crusher, Hammer Crusher, Impact Crusher, Roller Crusher, Cone crusher,
Grinding machinery: Ball mill, Rod mill, Hammer mill, Tyre ball mill
Ore beneficiation machinery: Flotation machine, Spiral classifier, Agitation tank, Thickener. Rotary kiln, Rotary dryer.
Auxiliary products: Vibrating feeder, Vibrating screen, Belt Conveyor, Sand Washing Machine.

Contact us if you need more details.



↓↓↓
