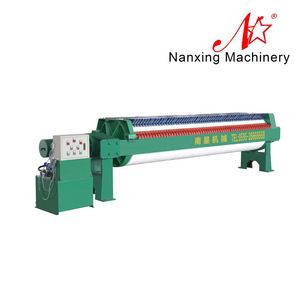

Hydraulic Chamber Horizontal Filter Press:
Filter Press Parameters:
Model | Filter Area (m2) | Inner Size (mm) | Plate Thickness (mm) | Motor Power (kw) | Plate Number (Pcs) | Filter Capacity (L) | Working Pressure In Chamber (Mpa) | External Size (mm) L*W*H | Weight (kg) |
WYB-650 | 27 | Φ650 | 50 | 3 | 40 | 367 | ≤2.0 | 3950*1150*1170 4800*1150*1170 5800*1150*1170 | 2500 |
40 | 60 | 546 | 2700 | ||||||
54 | 80 | 725 | 3000 | ||||||
WYB-800 | 37 | Φ750 | 55 | 3 | 40 | 489 | ≤2.0 | 4100*1150*1400 5200*1150*1400 6300*1150*1400 | 2900 |
54 | 60 | 727 | 3200 | ||||||
72 | 80 | 967 | 3800 | ||||||
WYB-1000 | 54 | Φ920 | 60 | 5.5 | 40 | 800 | ≤2.0 | 5000*1350*1350 6200*1350*1350 7400*1350*1350 8600*1350*1350 | 4460 |
80 | 60 | 1200 | 5140 | ||||||
106 | 80 | 1600 | 5820 | ||||||
132 | 100 | 2000 | 6500 | ||||||
Plates quantity could be added or reduced according to customers' requirements. |
Filter Press Usages:
Ceramics class: kaolin, superfine glass powder, fire-proof material, silica sand, spray soil grain, mud, abrasive resistance and meters brick materials, artificial black lead, hydrated lime, mica, aluminum oxide, calcium carbonate.

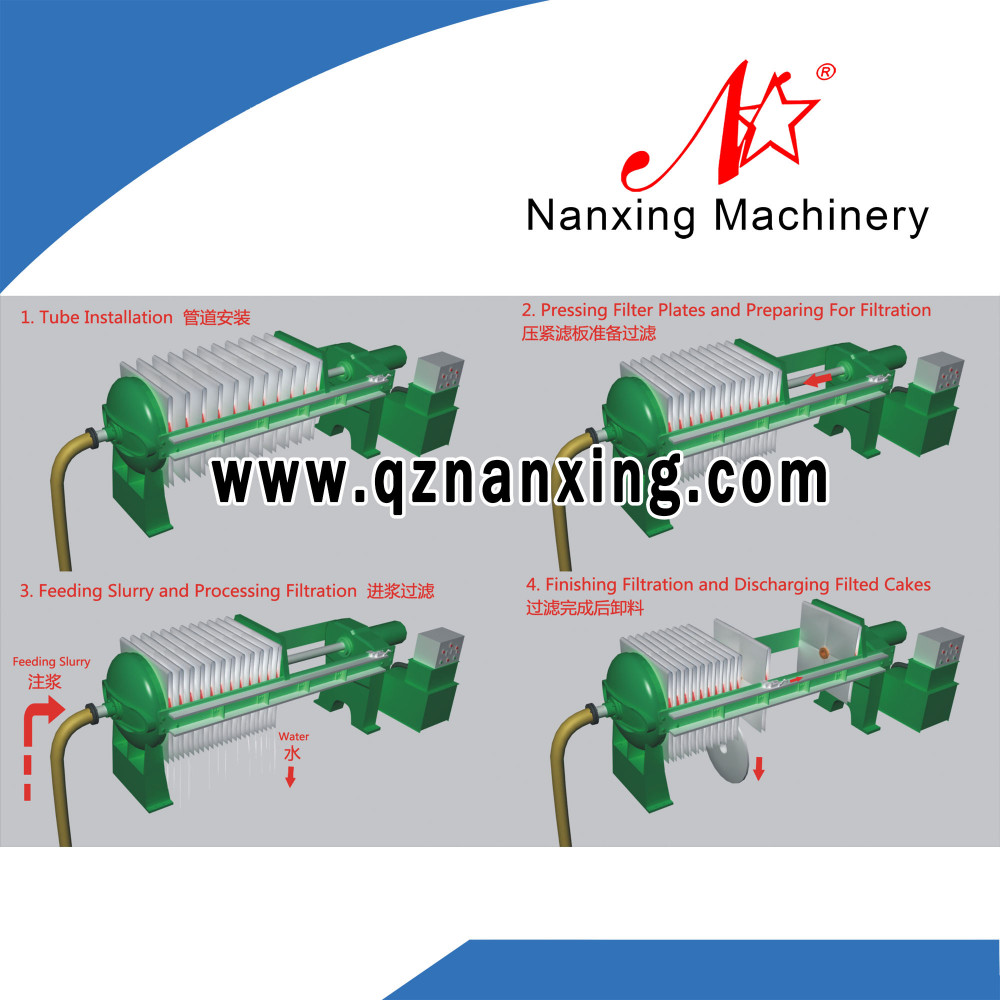

Main Function and Working Process:
1). The piston pump transport the kaolin slurry to the filter press,the slurry through the pressure filtration and dehydration by the filter press to achieve the solid-liquid separation and then make the slurry into mud cake.
2).The water ratio of mud cakes significantly reduce,keep in 20% to 30%.
3).The separated water can be recycled,recycling of the resource,reduce production costs,improve efficiency and reduce environmental pollution.
Main Characteristics:
²Hydraulic drive, dual-cylinder dual-action, large flow volume.
²Simple construction, convenient operation, steady working system and wide adjustable range.
²Low noise, small vibrate.
²Can be used in the field of high abrasive resistance and acid corrosion resistance.
²Low power consumption, as well as reliable and better cost effectiveness
²Easy to repair and saving half expense for repairing,long service life.
Q1: What is the Warranty for the machines?
A1: 12 months for free.
Q2: When can I get the price?
A2: Within 24 hours, if urgent, please directly call us.
Q3: Whether the machine price can be more discount?
A3: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.
Q4: How to ask quotation?
A4: Please directly tell us which item you are interested in, or note us what tpye of materials, and how many tons of materials you want to treat per day or per hour, then we will send you quotation as soon as we can.
Q5: How long will it take to receive my products?
A5: As a general rule, it will take one 15-30 days for us to produce.
