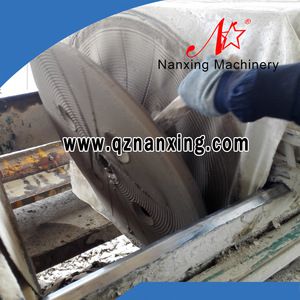

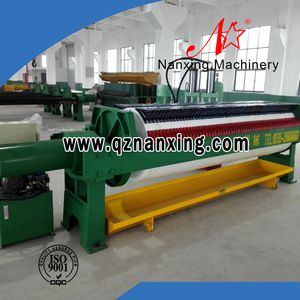

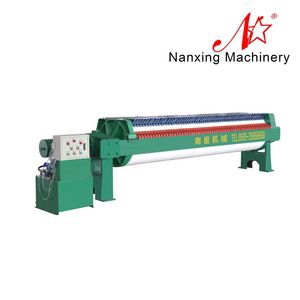

Round Filter Plate Chamber Filter Press

Plates quantity could be added or reduced according to customers' requirements.

Technical Feature

  • New
  • Semi-Automatic
  • 0-3.5tons per one cycle
  • Fujian, China (Mainland)
  • Nanxing
  • NX Series
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~8

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Semi-Automatic
Production Capacity
0-3.5tons per one cycle
Place of Origin
Fujian, China (Mainland)
Brand Name
Nanxing
Model Number
NX Series
Voltage
380V, 50Hz
Power(W)
0-5500
Weight
According to the plate size and plate quantity
Dimension(L*W*H)
According to the plate size and plate quantity
Certification
SGS
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Filter Press Type
Chamber Filter Press
Business Type
Manufacturer
Type
Solid-Liquid Separation
Main Material
PP and Cast steel and cast iron
Transportation
By Sea
Function
Round Filter Plate Chamber Filter Press
Feeding Hole
Center
Driven Way
Hydraulic Driven
Colour
As your choice
Speciality
Mountain and Valley sealing design

DETAIL DESCRIPTION

High Pressure Circular Chamber Filter Press :



Parameter:

Model

Filter

Area

(m2)

Inner

Size

(mm)

Plate

Thickness

(mm)

Motor

Power

(kw)

Plate

Number

(Pcs)

Filter

Capacity

(L)

Working

Pressure

In

Chamber

(Mpa)

External Size

(mm)

L*W*H

Weight

(kg)

WYB-650

27

Φ650

50

3

40

367

≤2.0

3950*1150*1170

4800*1150*1170

5800*1150*1170

2500

40

60

546

2700

54

80

725

3000

WYB-800

37

Φ750

55

3

40

489

≤2.0

4100*1150*1400

5200*1150*1400

6300*1150*1400

2900

54

60

727

3200

72

80

967

3800

WYB-1000

54

Φ920

60

5.5

40

800

≤2.0

5000*1350*1350

6200*1350*1350

7400*1350*1350

8600*1350*1350

4460

80

60

1200

5140

106

80

1600

5820

132

100

2000

6500

Plates quantity could be added or reduced according to customers' requirements.







Filter Press Details:

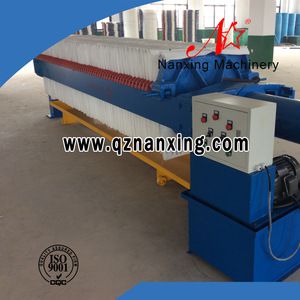

1. Hydraulic Control Station Of Hydraulic Filter Press:

The electrical contract pressure gauge is available to automatically maintain pressure.





2. Filter Cloth :

The slurry is sent to every sealed filter chamber by the feeding pump with pressure, going into filter plates and filter cloths. The clean water will be filtered out from the filter plate water outlet by the filter cloth, but the solid is kept in the chambers, to separate solid and liquid.



3. Filtered Cakes Discharge Way: It is customized, could be manual or be of automatic shifting

4. Working Partner: This filter press will require a high pressure piston pump to help it to pump the slurry

Filter Press Usages:



Pollution treatment: Stone wastewater, dyeing wastewater,leather wastewater, printing
Ceramics class: kaolin, superfine glass powder, fire-proof material, silica sand, spray soil grain, mud, abrasive resistance and meters brick materials, artificial black lead, hydrated lime, mica, aluminum oxide, calcium carbonate.

Food: sugar, salt, alkali, monosodium glutamate, soya-bean milk, yeast, glucose powder, wheat starch, wheat flour, rice flour, skimmed milk powder, fruit juice, dehydrated vegetables, coarse sugar, pineapple juice, corn starch.
Metallurgical mining: Coal Washinglead powder, zinc powder oxygen, the diamond powder, aluminum and iron powder.










Filter Press Working Principle:

1. Working by oil tank. the piston rod will push the movable seat, pressing filter plates to form sealed chambers. It could prevent the slurry from spurting and leakage when sending the slurry with pressure.



2. The slurry is sent to every sealed filter chamber by the feeding pump with pressure, going into filter plates and filter cloths. The clean water will be filtered out from the filter plate water outlet by the filter cloth, but the solid is kept in the chambers, to separate solid and liquid.



Product Description

Company Information



FAQ



Q1: What is the Warranty for the machines?

A1: 12 months for free.



Q2: When can I get the price?

A2: Within 24 hours, if urgent, please directly call us.



Q3: Whether the machine price can be more discount?

A3: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.



Q4: How to ask quotation?

A4: Please directly tell us which item you are interested in, or note us what tpye of materials, and how many tons of materials you want to treat per day or per hour, then we will send you quotation as soon as we can.



Q5: How long will it take to receive my products?

A5: As a general rule, it will take one 15-30 days for us to produce.
