Coal Press Filter

Plates quantity could be added or reduced according to customers' requirements.

Technical Feature

  • New
  • Semi-Automatic
  • according to the plate size and plate quantity
  • Fujian, China (Mainland)
  • Nanxing
  • Hydraulic Filter Press with automatic plate shifter
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~8

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Semi-Automatic
Production Capacity
according to the plate size and plate quantity
Place of Origin
Fujian, China (Mainland)
Brand Name
Nanxing
Model Number
Hydraulic Filter Press with automatic plate shifter
Voltage
380V
Power(W)
3kw
Weight
3.5tons
Dimension(L*W*H)
according to the plate size and plate quantity
Certification
SGS
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Function
Coal Press Filter
Packing
in wooden case
Plate Size
800*800*60 mm
Filtered Cake Thickness
30mm
Shipping Port
Xiamen Port
Type
Hydraulic Filter Press with automatic plate shifter
OEM
YES
Material
Welded Steel, Welded Iron
Plate Thickness
60 mm

DETAIL DESCRIPTION

Coal Press Filter:

Model

Filter Area (m2)

External Size

 (mm)

Plate Thickness (mm)

Motor Power (kw)

Chambers Number (Pieces)

Filter Capacity (L)

Working

 Pressure

 In

Chamber

(Mpa)

External Size: L*W*H (mm)

 Weight

  (kg)

NX-800

30

800*800

60

1.5

   30

450

≤1.0

3574*1246*1325

2490

40

1.5

40

600

4184*1246*1325

2822

50

1.5

50

750

4794*1246*1325

3140

60

1.5

60

900

5404*1246*1325

3470

70

1.5

70

1050

6014*1246*1325

3950

NX-1000

60

1000*1000

3.0

36

900

4350*1500*1555

4800

80

3.0

48

1200

5082*1500*1555

5440

100

3.0

60

1500

5814*1500*1555

6000

120

3.0

72

1800

6546*1500*1555

6580

NX-1250

100

1250*1250

3.0

38

1500

4901*1790*2070

8590

125

3.0

48

1875

5511*1790*2070

9540

140

3.0

54

2100

5877*1790*2070

10110

160

3.0

62

2400

6365*1790*2070

10870

Plates quantity could be added or reduced according to customers' requirements.




 Filter Press Details:


1. The electrical contract pressure gauge is available to automatically maintain pressure.

2. Operation panel is easy and safe because of being equipped with figuration of PLC auto-control, relay control and safe device, which ensures safety to operators.



Filter Press working principle:

1. Working by oil tank. the piston rod will push the movable seat, pressing filter plates to form sealed chambers. It could prevent the slurry from spurting and leakage when sending the slurry with pressure.



2. The slurry is sent to every sealed filter chamber by the feeding pump with pressure, going into filter plates and filter cloths. The clean water will be filtered out from the filter plate water outlet by the filter cloth, but the solid is kept in the chambers, to separate solid and liquid.

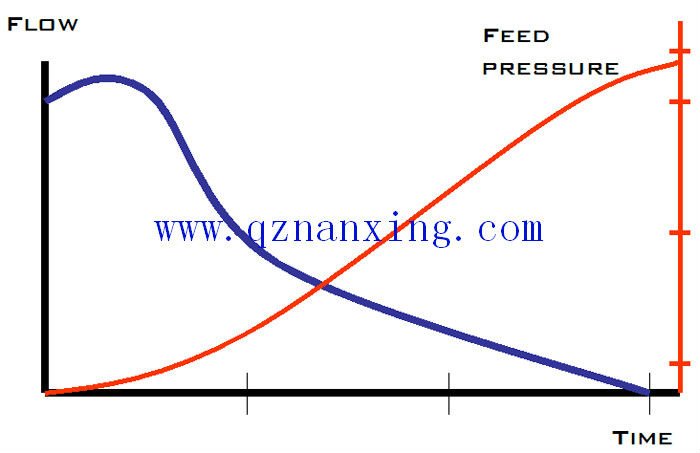

During the filtration, Relationship Between the flow rate of feeding pump and its feeding pressure:



Usages:

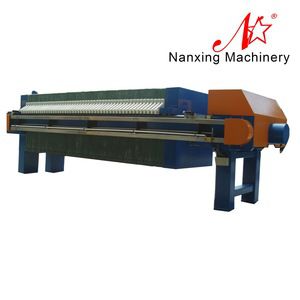

Recessed Plate Chamber Dyeing Filter Press

Product Description

Company Information



FAQ



Q1: What is the Warranty for the machines?

A1: 12 months for free.



Q2: When can I get the price?

A2: Within 24 hours, if urgent, please directly call us.



Q3: Whether the machine price can be more discount?

A3: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.



Q4: How to ask quotation?

A4: Please directly tell us which item you are interested in, or note us what tpye of materials, and how many tons of materials you want to treat per day or per hour, then we will send you quotation as soon as we can.



Q5: How long will it take to receive my products?

A5: As a general rule, it will take one 15-30 days for us to produce.
