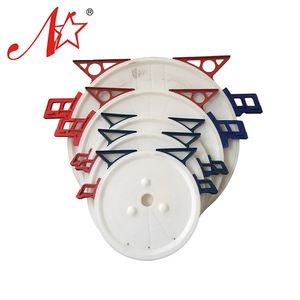

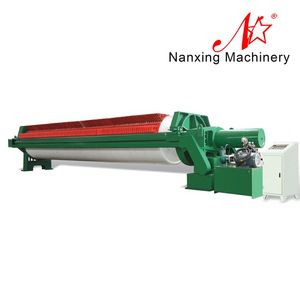

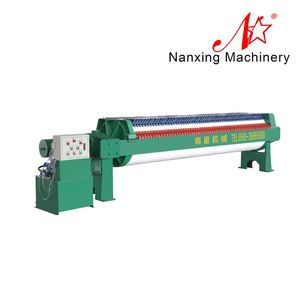

Circular Plate Filter Press:
Filter Press Parameters:
Model | Filter Area (m2) | Inner Size (mm) | Plate Thickness (mm) | Motor Power (kw) | Plate Number (Pcs) | Filter Capacity (L) | Working Pressure In Chamber (Mpa) | External Size (mm) L*W*H | Weight (kg) |
WYB-650 | 27 | Φ650 | 50 | 3 | 40 | 367 | ≤2.0 | 3950*1150*1170 4800*1150*1170 5800*1150*1170 | 2500 |
40 | 60 | 546 | 2700 | ||||||
54 | 80 | 725 | 3000 | ||||||
WYB-800 | 37 | Φ750 | 55 | 3 | 40 | 489 | ≤2.0 | 4100*1150*1400 5200*1150*1400 6300*1150*1400 | 2900 |
54 | 60 | 727 | 3200 | ||||||
72 | 80 | 967 | 3800 | ||||||
WYB-1000 | 54 | Φ920 | 60 | 5.5 | 40 | 800 | ≤2.0 | 5000*1350*1350 6200*1350*1350 7400*1350*1350 8600*1350*1350 | 4460 |
80 | 60 | 1200 | 5140 | ||||||
106 | 80 | 1600 | 5820 | ||||||
132 | 100 | 2000 | 6500 | ||||||
Plates quantity could be added or reduced according to customers' requirements. |
Filter Press Usages:
Pollution treatment: Stone wastewater, dyeing wastewater, leather wastewater, printing
Ceramics class: kaolin, superfine glass powder, fire-proof material, silica sand, spray soil grain, mud, abrasive resistance and meters brick materials, artificial black lead, hydrated lime, mica, aluminum oxide, calcium carbonate.
Food: sugar, salt, alkali, monosodium glutamate, soya-bean milk, yeast, glucose powder, wheat starch, wheat flour, rice flour, skimmed milk powder, fruit juice, dehydrated vegetables, coarse sugar, pineapple juice, corn starch.
Metallurgical mining: Coal Washing, lead powder, zinc powder oxygen, the diamond powder, aluminum and iron powder.
Filter Press working principle:
1. Working by oil tank. the piston rod will push the movable seat, pressing filter plates to form sealed chambers. It could prevent the slurry from spurting and leakage when sending the slurry with pressure.
2. The slurry is sent to every sealed filter chamber by the feeding pump with pressure, going into filter plates and filter cloths. The clean water will be filtered out from the filter plate water outlet by the filter cloth, but the solid is kept in the chambers, to separate solid and liquid.
Q1: What is the Warranty for the machines?
A1: 12 months for free.
Q2: When can I get the price?
A2: Within 24 hours, if urgent, please directly call us.
Q3: Whether the machine price can be more discount?
A3: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.
Q4: How to ask quotation?
A4: Please directly tell us which item you are interested in, or note us what tpye of materials, and how many tons of materials you want to treat per day or per hour, then we will send you quotation as soon as we can.
Q5: How long will it take to receive my products?
A5: As a general rule, it will take one 15-30 days for us to produce.
