Small Manual Stainless Steel Frame Filter Press For Coconut Oil

The suspended solution is pumped into filter chamber, under the feeding pressure, the filtrate passs through the filter media and then discharged from the outlet.

Technical Feature

  • New
  • Manual
  • 4t/h
  • Henan, China (Mainland)
  • GAODETEC
  • 380V 50Hz, 3 phase
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~100

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Manual
Production Capacity
4t/h
Place of Origin
Henan, China (Mainland)
Brand Name
GAODETEC
Voltage
380V 50Hz, 3 phase
Power(W)
0.75kw
Weight
50 kg
Dimension(L*W*H)
650*380*650mm
Certification
ISO9001&CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Product name
Manual filter press
Layer No.
10
Filter Area
0.7m2
Plate Size
300mm (Diameter)
Filter Precision
0.22-100u03bcm
Filter Pressure
0.3 Mpa
Dimension
700*500*800mm

DETAIL DESCRIPTION

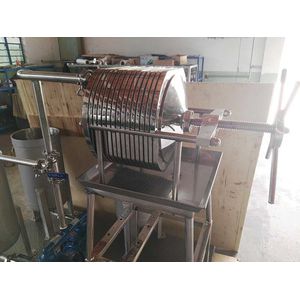

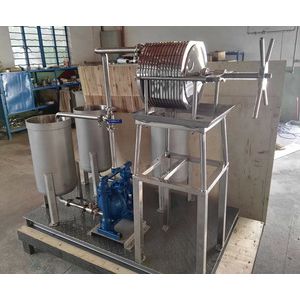

Small Manual Stainless Steel Frame Filter Press For Laboratory





Product Description


Manual filter press operation principle:

The suspended solution is pumped into filter chamber, under the feeding pressure, the filtrate passs through the filter media and then discharged from the outlet. The solid will becomes to filter cakes. Thus realize solid liquid separation.

Manual filter press features:

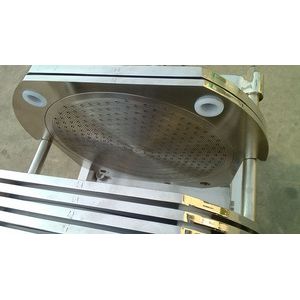

The filter is made of S.S.304 or S.S.316L, which are features of corrosion-resistant and long life-span. The filter plates use screw thread structure. It can change filtering media(if uses filter membrane, it can even remove the bacteria.) according to yout material and your technical requirements ( primary filtration/medial fine filtration/fine filtration). The layers can be added or decreased to your actual capacity. The filter works under pressure with leakage and the filtrate is very clean. It can be used as multievel filtering devices: the first level uses rough filtering media; the second level can use fine medias, so that it can improve the filtering effect and efficiency. All seals are made of silica rubber, which can endure high temperature and no toxicity, no leakage. The automatic flow returning device also can be customized according to your needs. When pump stops, open the return valve, all sediment will be discharged automatically ( beside have the air discharging function), and at the same time, it will be backwashed by clean water via the return pipe. It's very easy for operation.

Manual filter press technical data:

Manual filter press structure:

Note :

1. Large flow can be customized ;

2. Pressure pump to be explosion-proof motor and Grundfos pumps up the difference .

Applications

Manual filter press application:



S.S. Multilayer Filter is for fine filtering. It's surface is polished, has seals, and normally used together with S.S. feeding pump, it's normally uesd for following industries: laboratory, fine chemicals, medicine, food, chemical etc..
