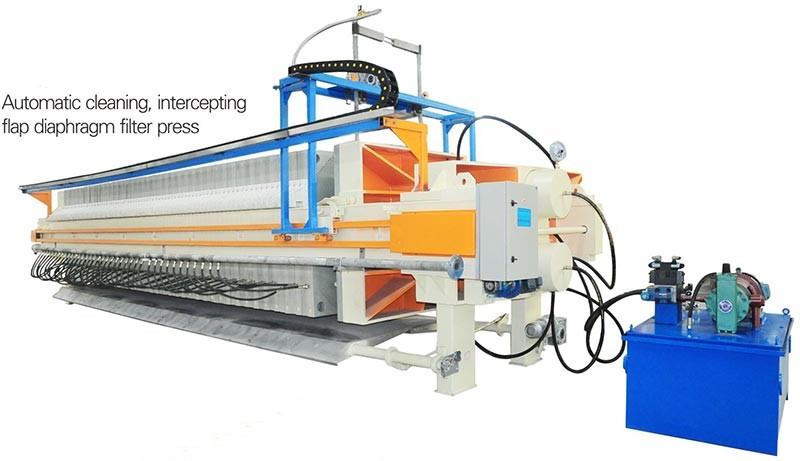

China Factory Supply Automatic Membrane Filter Press Price

GEC High Pressure Membrane Filter Press adopts international advanced TPE membrane technology, so that ensure stable performance and long life-span, and widely used for various industries.

Technical Feature

  • New
  • Automatic
  • 80ton
  • Henan, China (Mainland)
  • GAODETEC
  • XA/MG40/870-U
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$15~5

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
80ton
Place of Origin
Henan, China (Mainland)
Brand Name
GAODETEC
Model Number
XA/MG40/870-U
Voltage
380V/Customized
Power(W)
2.2KW
Weight
3593KG
Dimension(L*W*H)
4270*1250*1300 mm
Certification
ISO9001&CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Type
membrane filter press price
Compact way
hydraulic
Cake thickness
u226435mm
Filter Area
40m2
Plate size
870*870mm
Filter chamber volume
623L
Plate No.
29pcs
Filtration pressure
u22650.8Mpa

DETAIL DESCRIPTION

China Factory Supply Automatic Membrane Filter Press Price

Product Description




Membrane Filter Press Price Design Feature:

GEC High Pressure Membrane Filter Press adopts international advanced TPE membrane technology, so that ensure stable performance and long life-span, and widely used for various industries.

Cake from membrane filter press can be secondarily squeezed under max 1.6 Mpa by water to realize the lowest cake residual moisture. In some wastewater treatment industries, the final cake can be used for landfill or burning directly.

The membrane filter press can realize fully automatic operation with flexible device, such as: belt conveyor, drip tray, cloth washing system etc.

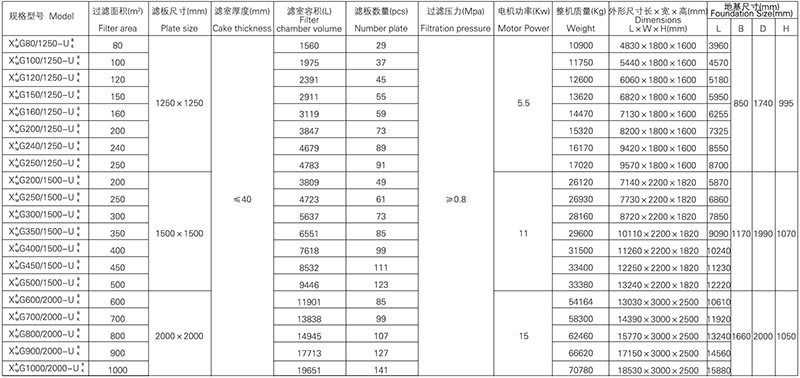

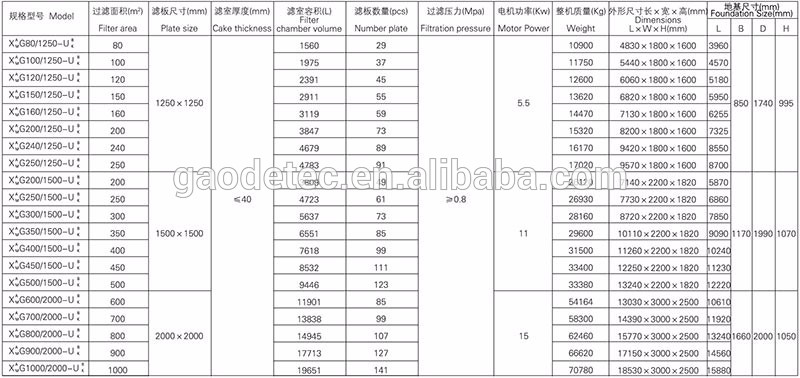

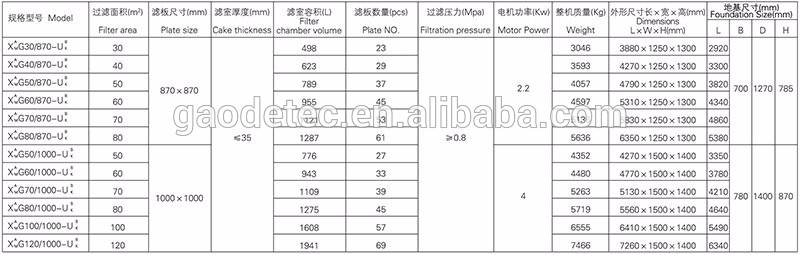

Membrane Filter Press Price Technical Data:

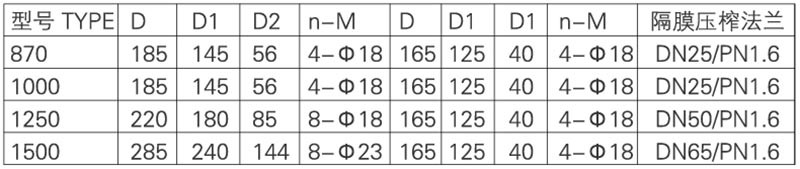

Membrane Filter Press Price Flange Dimension:

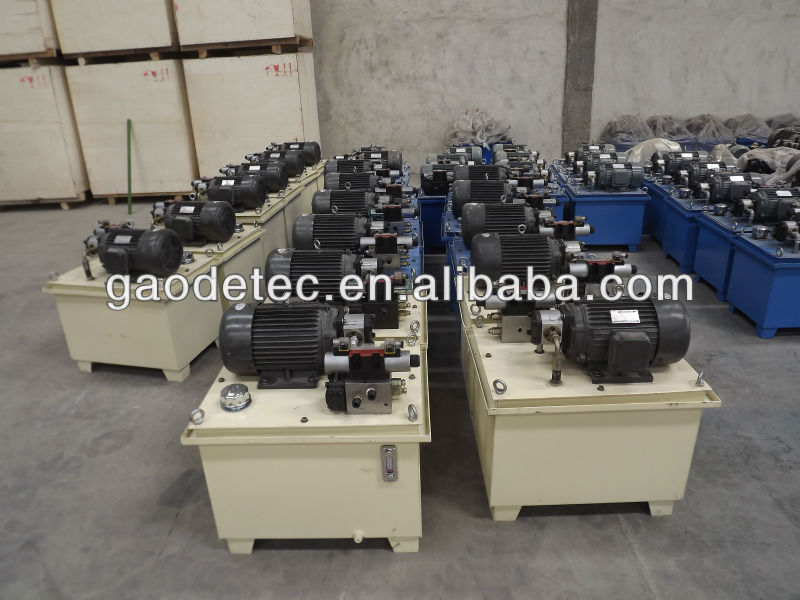

Hydraulic Station Used in Membrane Filter Press Price:

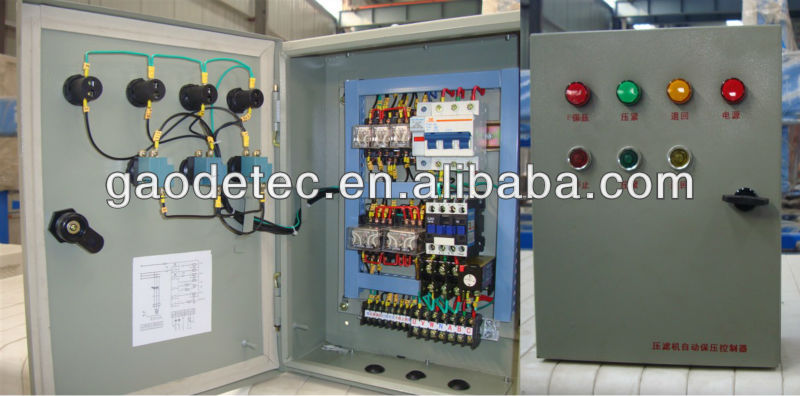

Electric Control Box in Membrane Filter Press Price:

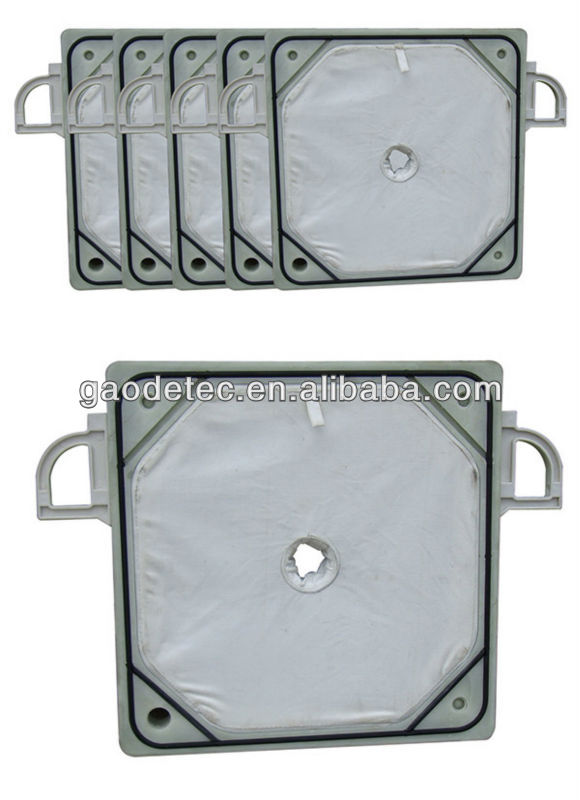

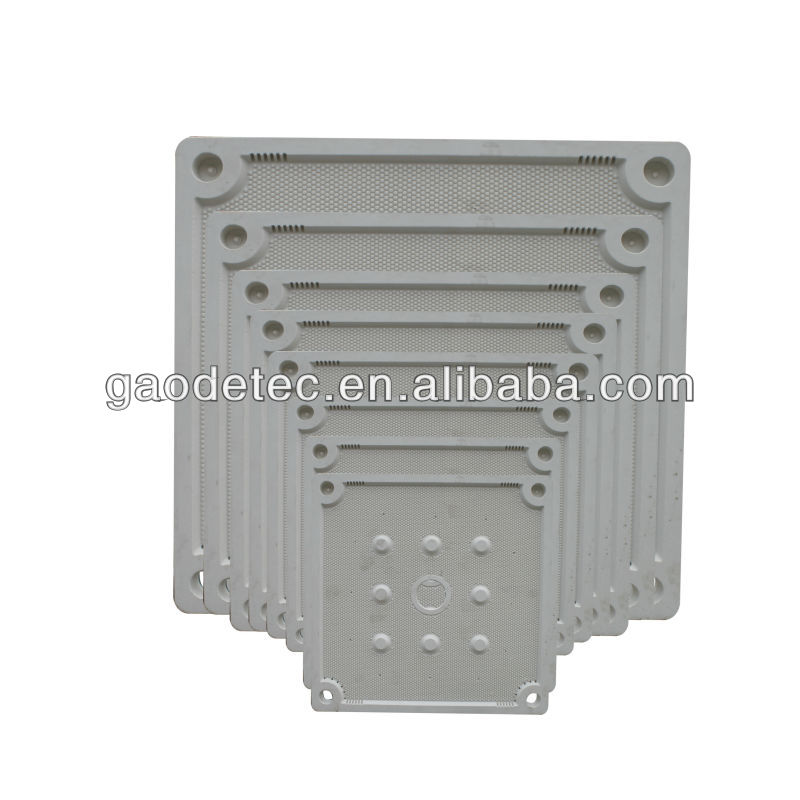

Filter Plate of Membrane Filter Press Price:

Membrane Filter Press Pressure Detection:

Applications


Worksite:



ur workshop of Membrane Filter Press:

Certifications


Our Cetification:



Company Information
