Portable Food Grade Olive Oil Plate and Frame Filter Press Machine

Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.

Technical Feature

  • New
  • Manual
  • 2m2/h
  • Henan, China (Mainland)
  • GAODETEC
  • BAQ1/320-30U
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~8

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Manual
Production Capacity
2m2/h
Place of Origin
Henan, China (Mainland)
Brand Name
GAODETEC
Model Number
BAQ1/320-30U
Voltage
No power
Power(W)
No
Weight
500kg
Dimension(L*W*H)
1180*570*660
Certification
ISO CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product name
Plate and frame filter press machine
Plate size
380*380mm
Cake thickness
30mm
Filter chamber volume
15L
Plate NO.
4pcs
Number frame
5pcs
Filtration pressure
u22640.5Mpa

DETAIL DESCRIPTION

Portable Food Grade Olive Oil Plate and Frame Filter Press Machine





Product Description



Plate and frame filter press machine tructure and operating principle

  1. Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet .
  2. Frame consists of base , push plate and girder and supports the pressing device and filter plates .
  3. Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.
  4. In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced through the washing port .
  5. Plate and frame type filter-Press is the same as recessed plate filter press in structure ,except the filtering part that consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
  6. Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port

Plate and frame filter press machine design feature:

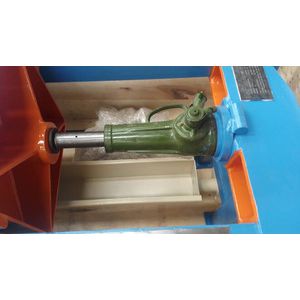

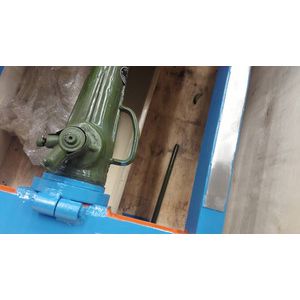

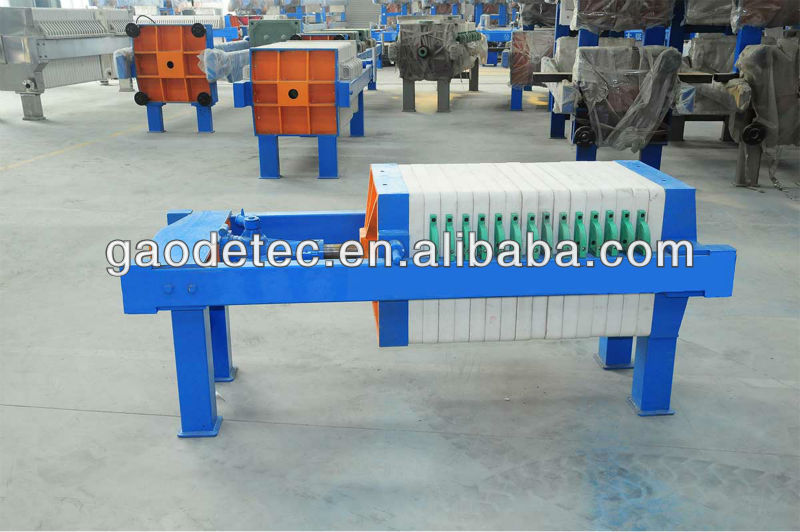

Screw iack press adopts screw jack s closing system. It has feature of simple structure, easy operation, no power consumption, cost saving. It is generally used in filter press with 1-40m2 filter area.

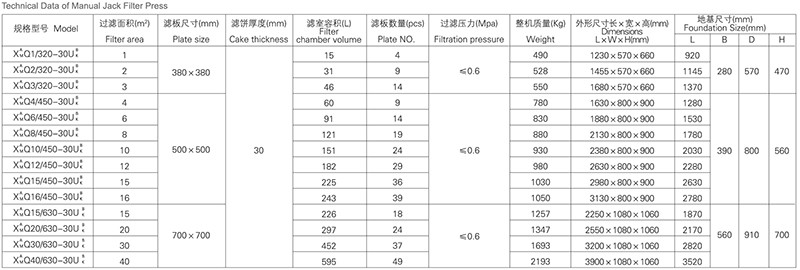

Plate and frame filter press machine technical data (chamber type):



Plate and frame filter press machine flange dimension:



Plate and frame filter press machine technical data (Plate and Frame type)

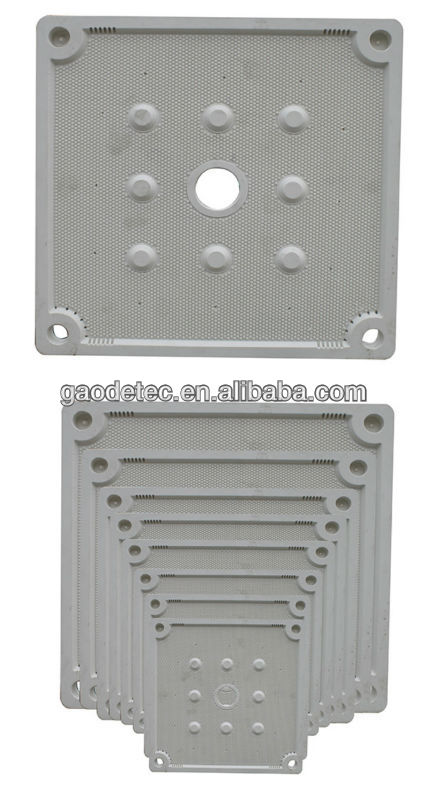

Filter plate:







Plate and frame filter plate pressure detection:









Plate and frame filter press industrial art specification:







Company Information

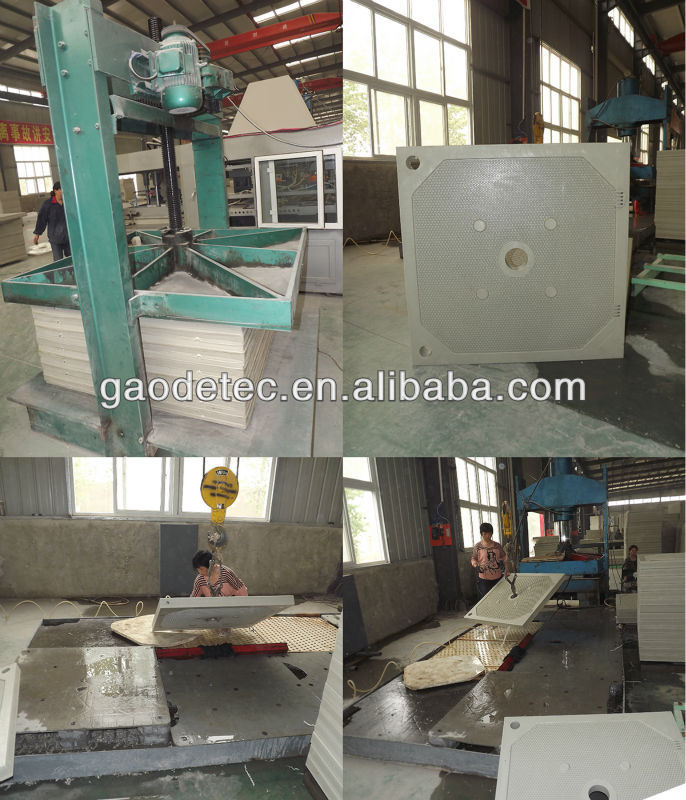

Plate and frame filter press machine workshop:
