18.9 l pneumatic diaphragm dosing vacuum pump

The pneumatic diaphragm pump is designed with simplicity and high reliability.

Technical Feature

  • Henan, China (Mainland)
  • gaodetec
  • QBY3-10 diaphragm dosing pump
  • diaphragm dosing pump
  • Diaphragm Pump
  • Sewage, waste water treatment ,oil and chemistry transfer...
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$200~480

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
gaodetec
Model Number
QBY3-10 diaphragm dosing pump
Theory
diaphragm dosing pump
Structure
Diaphragm Pump
Usage
Sewage, waste water treatment ,oil and chemistry transfer...
Power
Pneumatic
Standard or Nonstandard
Standard
Fuel
Air operated
Pressure
Low Pressure
Application
Chemical, Food , Coating, Maritime and so on
Type
diaphragm dosing pump
Max. Flow
18.9 L/min
Max. Working Pressure
7 bar (100 psi)
Fluid Inlet Size
3/8 in. npt (f)
Air Inlet Size
1/4 in. npt (f)
Max. Suction Height
2.5 - 3 m (8 - 10 ft. )
Max. Permitted Grain
1.5 mm (0.06 in.)
Certificate
CE and ISO Certificate
Feature
Pneumatic diaphragm dosing pump
Name
18.9 l pneumatic diaphragm dosing vacuum pump

DETAIL DESCRIPTION

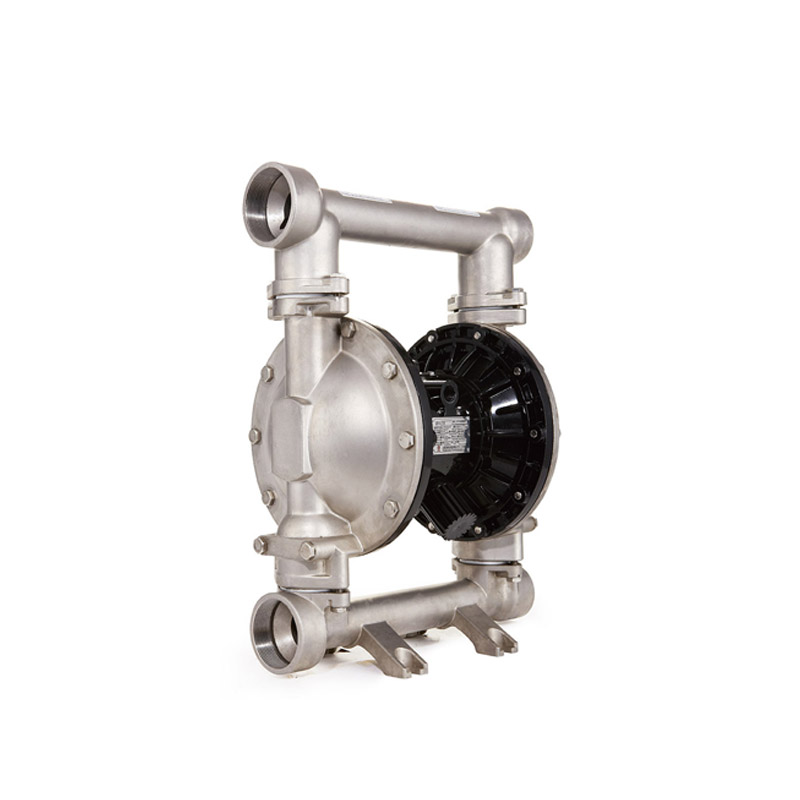

18.9 l  pneumatic diaphragm dosing vacuum pump






Product Description



1.The pneumatic diaphragm pump is designed with simplicity and high reliability.

2. Its reversing valve is a three-dimensional pilot valve that ensures “no sticky” in a true sense.

3. All parts can be replaced without opening the fluid cavity.

4. Aluminum parts are treated with anodic oxidation and epoxy coating which can resist corrosion from unclear air.

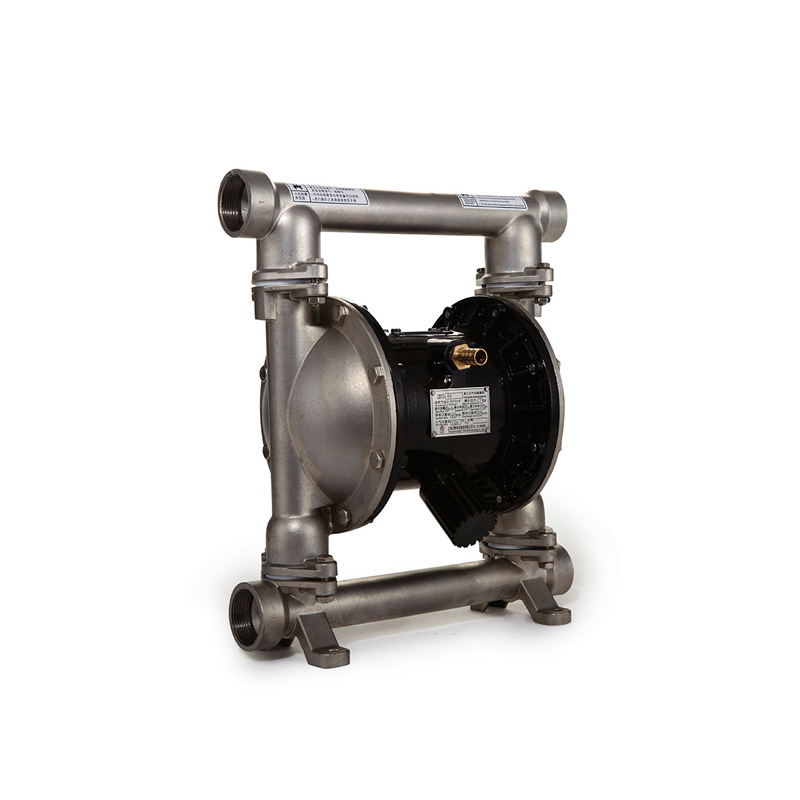

 diaphragm dosing pump

diaphragm dosing pump



Features of diaphragm dosing pump

1. Robust and compact slider with Derlin material in reversing valve makes sure it could be used in the situation of bad air source.

2. Smooth air course and the sizes of air inlet range from 1/2” to 3” with absolutely no obstacle, which guarantees to change directions easily.

3. 100% external maintained reversing valve.

4. Less moving parts.

5. No need to lubricate reversing valve.

6. Long mechanical life of Pilot-type reversing valve guarantees its stable running.

7. One reversing valve is suitable for various pumps.

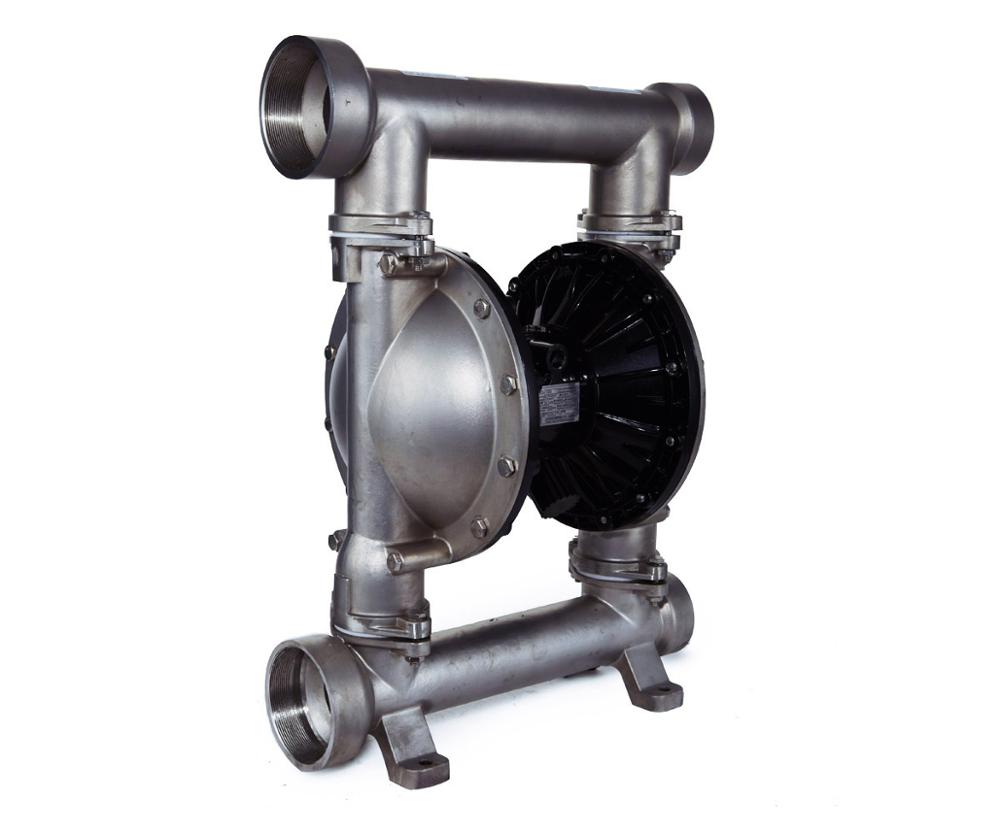

 diaphragm dosing pump

diaphragm dosing pump

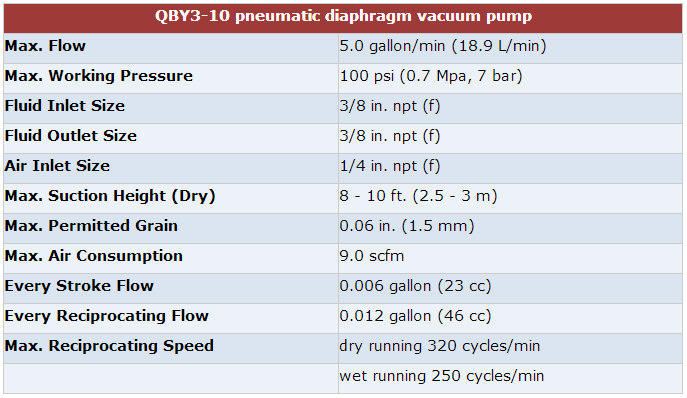

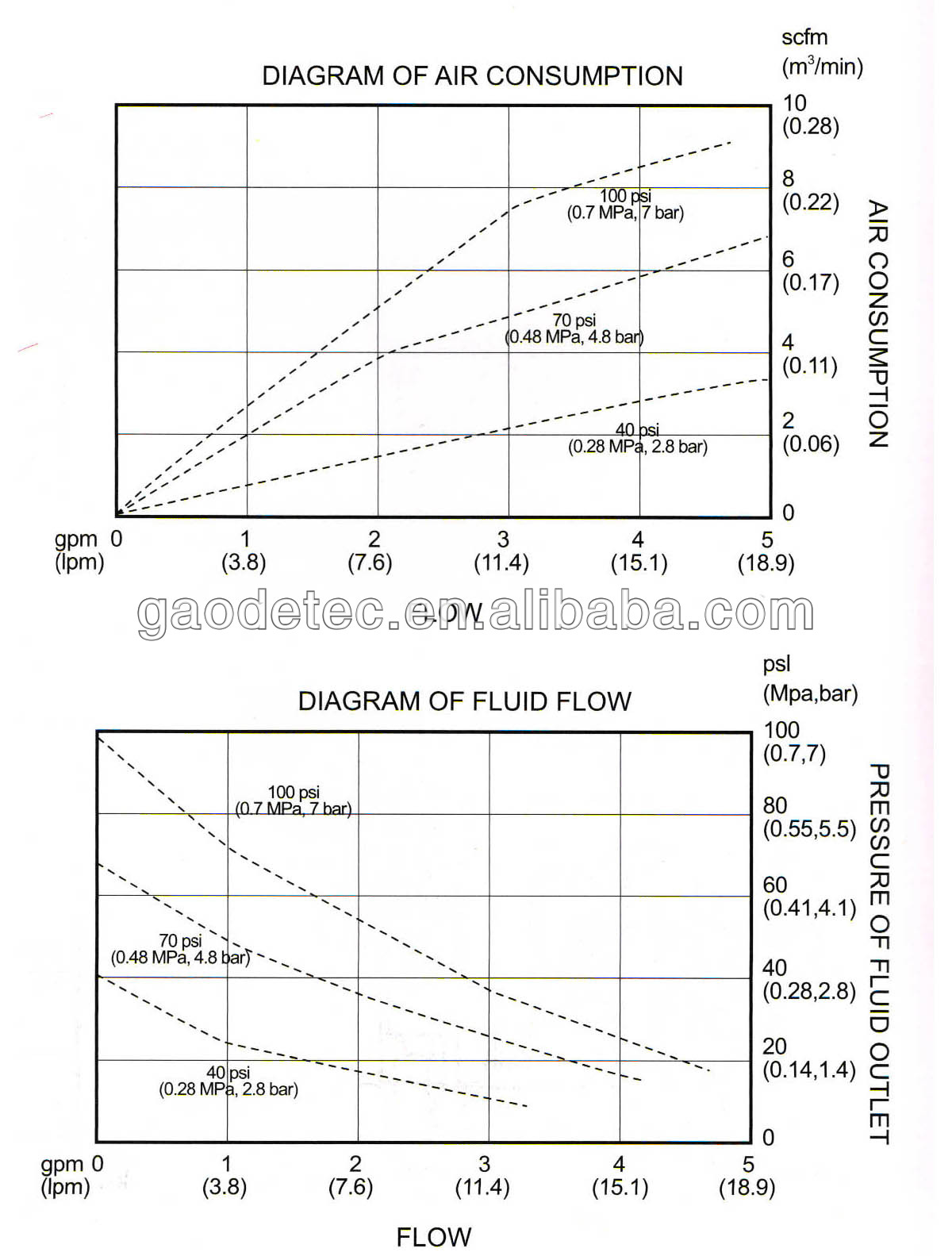

Techonology Parameters of diaphragm dosing pump

diaphragm dosing pump



diaphragm dosing pump











diaphragm dosing pump

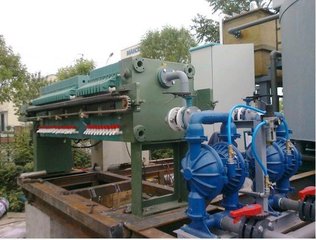

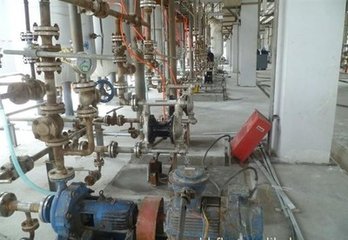

Application



1.Sewage treatment works;

2. Electroplating, circuit boards;

3.Power plant water treatment;

4. Paper,swimming pool and other industry;



diaphragm dosing pumpdiaphragm dosing pump

Packaging & Shipping



diaphragm dosing pumpdiaphragm dosing pump

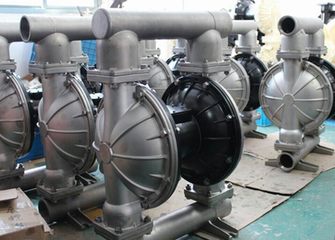

Company Information

 diaphragm dosing pump

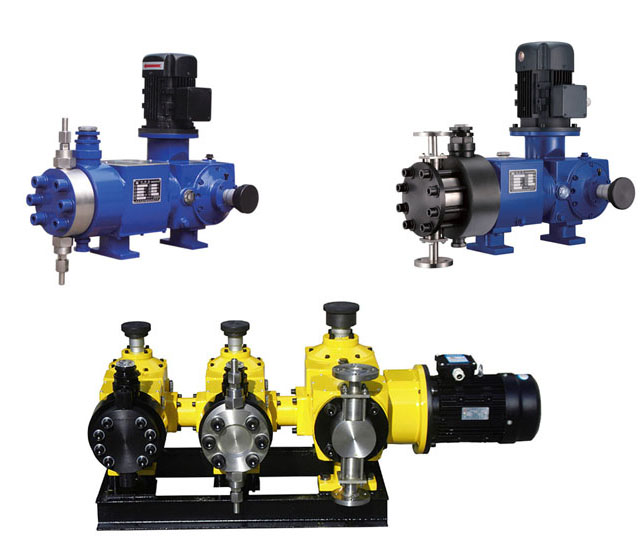

Related Products





diaphragm dosing pump





 diaphragm dosing pump

FAQ



Q1.How long is your delivery time?

A1.Generally it will be 5 to 15 days according to quantity and type of the products.



Q2.What is your terms of payment?

A2.We accept T/T, L/C, D/P and D/A. For T/T payment, we accept 30% prepayment

  in advance and the balance payable against the copy of B/L.



Q3.Do you accept small trial order?

A3.Yes, for our long cooperation, we can accept small order.



Q4.What certification do you have?

A4.ISO9001, CE certificate, if you need any other certificate, just let us know.



Q5.How can you assure your products quality?

A5.We have strict quality control system, advanced equipment and high technology talents, each production process will be strictly checked.

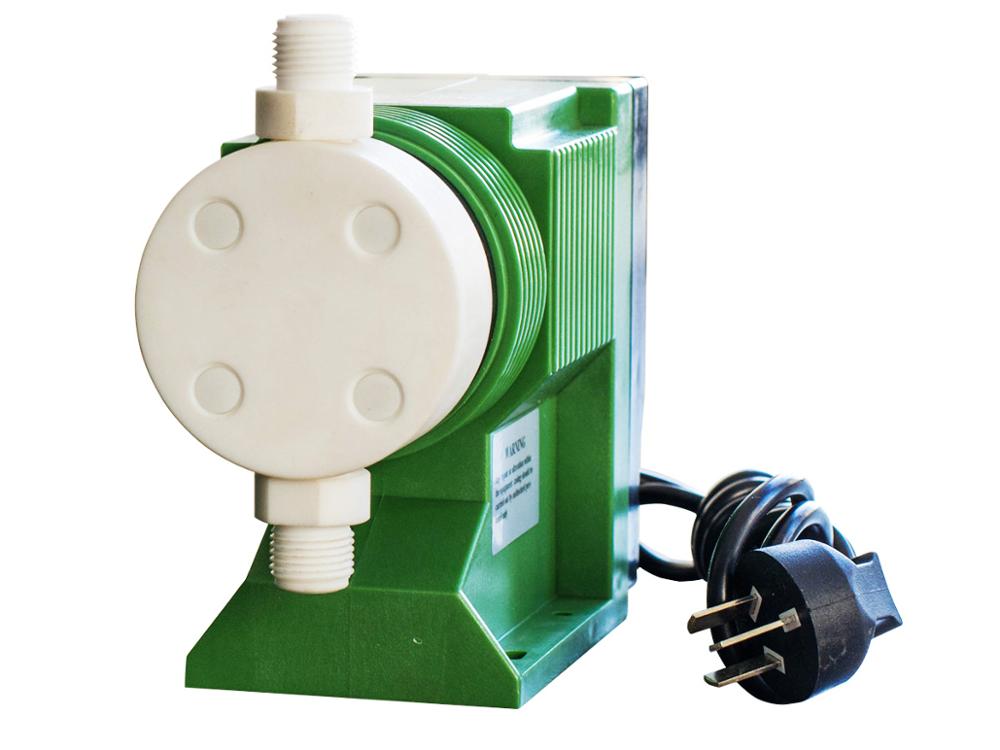

solenoid prominent dosing pump
