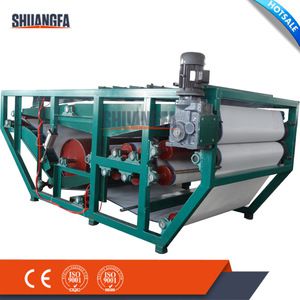

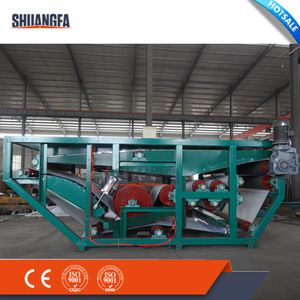

Belt Filter Press Machine For Copper Mineral Mud Dewatering Machine

Belt filter press machine can continuously treat a large amount of sludge, which is made of high strength material.

Technical Feature

  • New
  • Automatic
  • 10set/day
  • Henan, China (Mainland)
  • SHUANGFA
  • DY1000
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~45

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
10set/day
Place of Origin
Henan, China (Mainland)
Brand Name
SHUANGFA
Model Number
DY1000
Voltage
380V, 220V, 400V, 415V, 440V etc
Power(W)
1.1 Kw, filter press
Weight
5500kg
Dimension(L*W*H)
5250*1950*2630mm
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
belt filter press machine
Filter Belt Width
1000mm, filter press
Advantage
Large Processing Capacity
Filter Belt Tension
0-8KN/m
Application
Sludge dewatering, solid liquid separation
Filter Belt Washing Pressure
0.3-0.5Mpa
Tension Adjustment Pressure
0.2Mpa, filter press
Running Speed of Filter Belt
1-9m/min, filter press
Working time
24 hours continuous working
Product price
Competitive, filter press

DETAIL DESCRIPTION

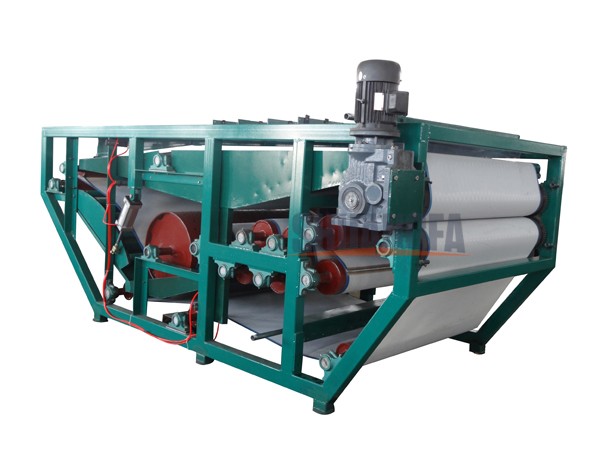

Belt Filter Press Machine For Copper Mineral Mud Dewatering Machine



DESCRIPTION OF BELT FILTER PRESS MACHINE:

Belt filter press machine can continuously treat a large amount of sludge, which is made of high strength material. Belt filter press machine has big capacity, high efficiency dehydration, long service life and other characteristics, widely used in various industries.



ADVANTAGE OF BELT FILTER PRESS MACHINE:

1, Fully automatic, large processing capacity, it can 24 hours working continuously.

2, Wide application, it can process various sludge dewatering.



FEATURES OF BELT FILTER PRESS MACHINE :

1Larger standard filtration areas for greater process throughput and higher cake consistency, with 24 hours continuous working.
2Automatically operate from the discharging to slagging mud cake,it can be command by the computer through the PLC interface.
3Scientific and orderly rolls arrangement, gravity dewatering zone,wedge-shaped dehydration area,press dehydration were distributed without disturbing each other.
4An easily adjustable, variable wedge compression zone that maximizes process rate and performance.
5Pneumatic automatic correction device ensures the normal and safe operation of belt filter press.
6Safety protecting device and full range of emergency stop device ensuring it's safe and reliable in operation.
7High quality structural frame materials and components for trouble-free, long lasting operation, China famous brand.
8Good washing effect, flexible operation, low containing moisture in cake and low maintain expense.
9The filter belts has the anti-flushing devices which ensures the better dewatering effect.
Using different structural belts according to various materials to improve filtering accuracy.

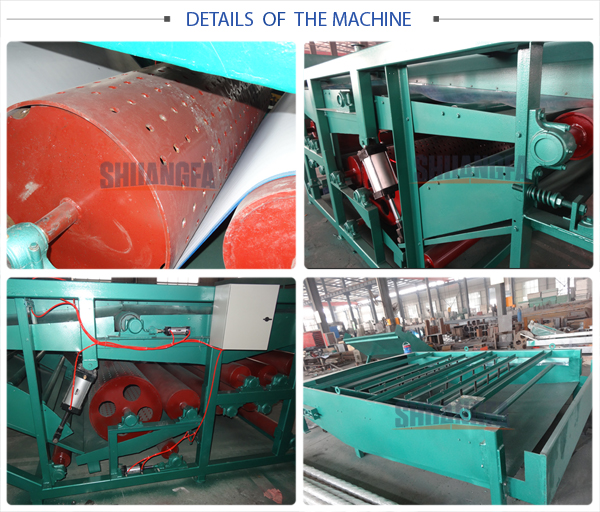

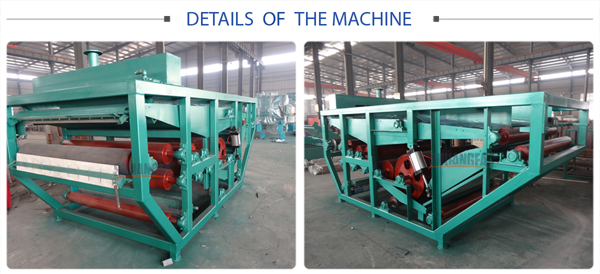

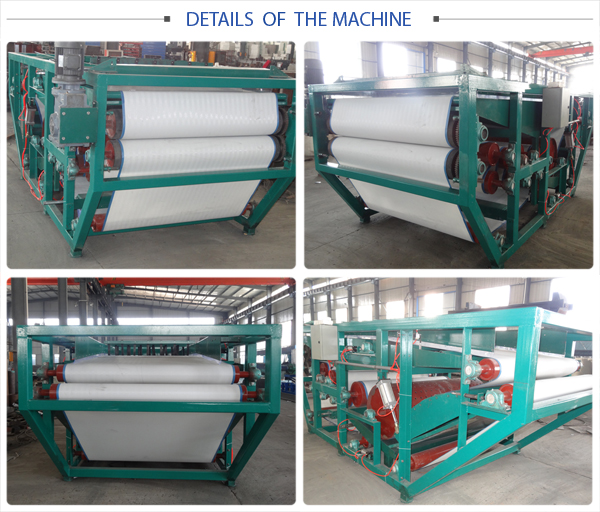

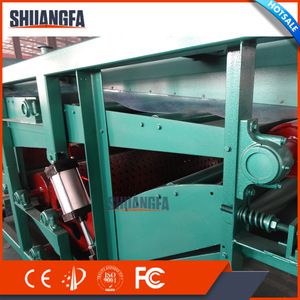

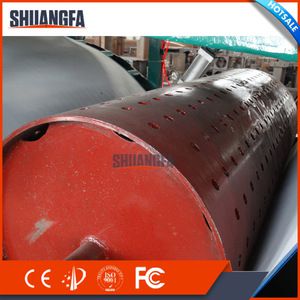

DETAILS OF BELT FILTER PRESS MACHINE:



APPLICATION OF BELT FILTER PRESS MACHINE:

Belt filter press machine is not only applied to wastewater treatment,but also widely used on various other projects which need solid-liquid separation,Solid-liquid separation in chemical,metallurgy,pharmaceutical,light industry,coal mining,foodstuff,textile,environmental protection,energy source and other industries.

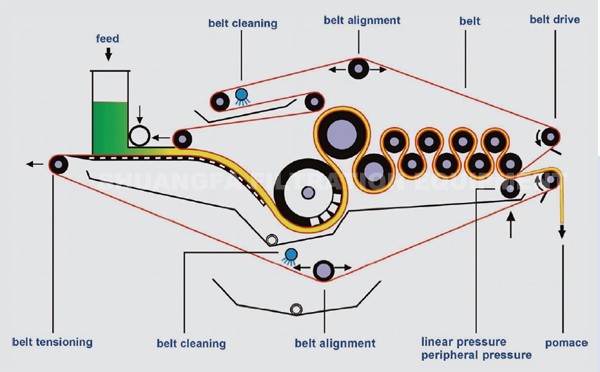

WORKING PRINCIPLE OF BELT FILTER PRESS MACHINE:

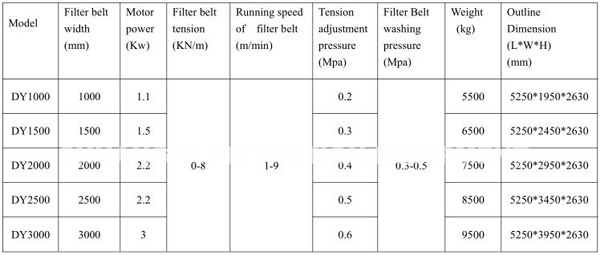

TECHNICAL PARAMETER OF BELT FILTER PRESS MACHINE:



PACKING & DELIVERY:



OUR SERVICE:

1, Pre-sale services:

We will happily assist you in getting the information you need to make a decision on which products best fit your needs.We want you to feel good about your purchase.

We can design and manufacture products as per your special requirements.If required, we can train your technical personnel for you.

2, Services during the sale:

We strictly adhere to the principle of "the customer first".Your needs and concerns will be addressed to your complete satisfaction.

We can help clients to draft solutions to their specific situations.

3, After-sale services:

Our products are all guaranteed for a full year. During this period, if there is any quality problem, we repair it free of charge.

If there is any problem, we will take measures to solve it immediately,on-site.technical exchanging is also provided for you.



FAQ:
1, What kind of filter press can you produce?
Chamber filter press, membrane filter press, plate and frame filter press, belt filter press,vacuum belt filter, round filter press, cast iron filter press, stainless steel filter machine, filter plate and filter cloth etc.
2, What's your MOQ?
We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.
3, What is the payment terms?
TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.
4, Do you accept OEM?
Yes, we can manufacture according to your requirement.
5, What is the machine warranty?
All the machines from my factory have 1 year warranty.
6, Is on site installation & commissioning available?
Yes.
7, Can I visit you?
Sure, of course, welcome to visit our factory at any time!
