Automatic Sludge Dewatering Filter Press With Continuous Working

Sludge dewatering filter press can continuously treat a large amount of sludge, which is made of high strength material.

Technical Feature

  • New
  • Automatic
  • 10set/day
  • Henan, China (Mainland)
  • SHUANGFA
  • DY1000
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~60

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
10set/day
Place of Origin
Henan, China (Mainland)
Brand Name
SHUANGFA
Model Number
DY1000
Voltage
440V, 415V, 380V, 240V
Power(W)
1.1 Kw
Weight
5500kg
Dimension(L*W*H)
5250*1950*2630mm
Certification
ISO9001, CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
Filter press
Filter Belt Width
1000mm
Advantage
Large processing capacity, full automatic
Filter Belt Tension
0-8KN/m
Application
Sludge dewatering, filter press
Filter Belt Washing Pressure
0.3-0.5Mpa
Tension Adjustment Pressure
0.2Mpa
Running Speed of Filter Belt
1-9m/min
Working time
24 hours continuous working
Belt filter press price
Competitive

DETAIL DESCRIPTION

Automatic Sludge Dewatering Filter Press With Continuous Working



Description of Sludge Dewatering Filter Press:

Sludge dewatering filter press can continuously treat a large amount of sludge, which is made of high strength material.

Filter press has big capacity, high efficiency dehydration, long service life and other characteristics, widely used in various industries.



Features of Sludge Dewatering Filter Press:

1, Larger standard filtration areas for greater process throughput and higher cake consistency, with 24 hours continuous working.
2, Automatically operate from the discharging to slagging mud cake, it can be command by the computer through the PLC interface.
3, Scientific and orderly rolls arrangement, gravity dewatering zone, wedge-shaped dehydration area,press dehydration were distributed without disturbing each other.


4, An easily adjustable, variable wedge compression zone of filter press maximizes process rate and performance.
5, Pneumatic automatic correction device ensures the normal and safe operation of belt filter press.
6, Safety protecting device and full range of emergency stop device ensuring it's safe and reliable in operation.
7, The filter belts of filter press has the anti-flushing devices which ensures the better dewatering effect.
Using different structural belts according to various materials to improve filtering accuracy.

8, High quality structural frame materials and components for trouble-free, long lasting operation, China famous brand.
9, Good washing effect, flexible operation, low containing moisture in cake and low maintain expense.

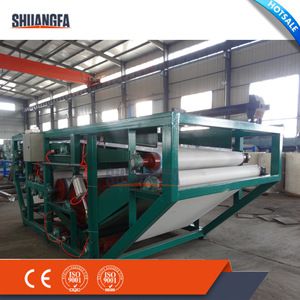

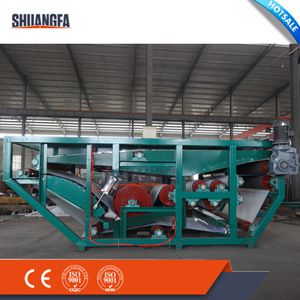

Details of Sludge Dewatering Filter Press:



Application case of Sludge Dewatering Filter Press:



Working principle of Sludge Dewatering Filter Press:





Technical Parameter of Sludge Dewatering Filter Press:



Packing & Delivery goods timely:



Our service:

1, Pre-sale services:

We will happily assist you in getting the information you need to make a decision on which products best fit your needs.

We can design and manufacture products as per your special requirements.If required, we can train your technical personnel for you.

2, Services during the sale:

We strictly adhere to the principle of "the customer first".

We can help clients to draft solutions to their specific situations.

3, After-sale services:

Our products are all guaranteed for a full year.

During this period, if there is any quality problem, we repair it free of charge.

If there is any problem, we will take measures to solve it immediately,on-site.technical exchanging is also provided for you.



FAQ:
1, What products can you provide?
Chamber filter press, membrane filter press, plate and frame filter press, belt filter press,vacuum belt filter, round filter press, cast iron filter press, stainless steel filter machine, filter plate and filter cloth etc.
2, What's your MOQ?
We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.
3, What is the payment terms?
TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.
4, Do you accept OEM?
Yes, we can manufacture according to your requirement.
5, What is the machine warranty?
All the machines from my factory have 1 year warranty.
6, Is on site installation & commissioning available?
Yes.
7, Can I visit you?
Sure, of course, welcome to visit our factory at any time!
