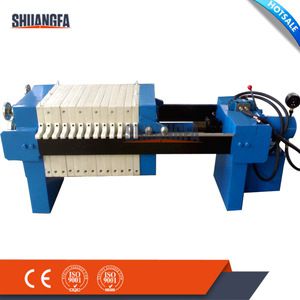

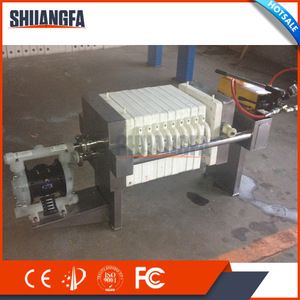

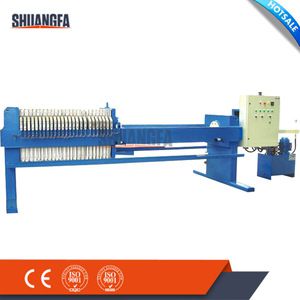

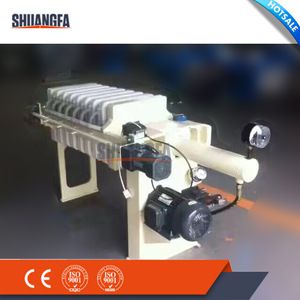

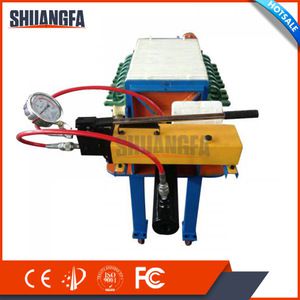

2017 Full Newly Small Hydraulic Filter Press Machine For Solid Liquid Separation

is widely applied to many industries,such as municipal wastewater treatment, metallurgy, leather sludge etc.

Technical Feature

  • New
  • Semi-Automatic
  • 10set/day, filter press
  • Henan, China (Mainland)
  • SHUANGFA, filter press
  • XMY/450-U 4m2
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~35

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Semi-Automatic
Production Capacity
10set/day, filter press
Place of Origin
Henan, China (Mainland)
Brand Name
SHUANGFA, filter press
Model Number
XMY/450-U 4m2
Voltage
380V 50HZ, filter press
Power(W)
2.2kw, filter press
Weight
700kg
Dimension(L*W*H)
1865*900*850mm
Certification
CE ISO
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
Full Newly Small Hydraulic Filter Press Machine
Application
Solid liquid separation, lab test
Feature
Small type, convenient to use
Size of filter plate
450mm
Thickness of filter cake
30mm
Filter chamber volume
50L
Quantity of chamber filter plate
9pcs
Material of frame
Carbon steel Q235, filter press
Material of plate
PP, durable
Color
Blue or as required

DETAIL DESCRIPTION

2017 Full Newly Small Hydraulic Filter Press Machine For Solid Liquid Separation



Description of Full Newly Small Hydraulic Filter Press Machine:
This hydraulic filter press machine is an ideal equipment for solid-liquid separation with small capacity, hydraulic filter press machine is widely applied to many industries,such as municipal wastewater treatment, metallurgy, leather sludge etc.



Features of Full Newly Small Hydraulic Filter Press Machine:

1, This model hydraulic filter press machine has manual pressure keeping, manual plate shifting, energy saving, low operation cost.
2, The main material of hydraulic filter press machine frame is carbon steel, special frame deformation, strong and durable.
3, Filter plates of hydraulic filter press machine is made of pure PP, do not contain other filler. not recycled material, high strength, light weight, corrosion resistance, acid and alkali, non-toxic and tasteless.

4, Various kinds of filter cloth of hydraulic filter press machine which suit for different kinds of material, improving the filtering accuracy.

5, Special faucet of hydraulic filter press machine with polypropylene materials, quick opening type die forming, strong and durable, high temperature resistance, strong acid and alkaline.

6, hydraulic filter press machine has the features of compact structure, simple and easy to operate, high efficiency, saving time and labor cost, durable with long service life.



Details of Full Newly Small Hydraulic Filter Press Machine:

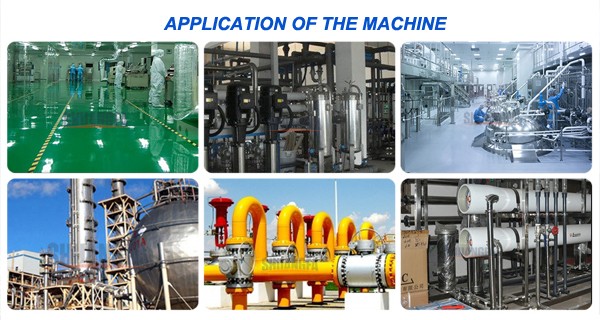

Application of Full Newly Small Hydraulic Filter Press Machine:

1, Chemical industry:
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor) etc.

2, Food industry:
Vegetable oil, starch sugar, plant sweet, maltose, starch, maize, seaweed, kara glue, oral liquid, beer yeast, rice wine, white wine, fruit juice, beverage, plant protein etc.
3, Pharmacy industry:
Phytic acid, calcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate etc.
4, Other solid liquid separation industries

.





Working principle of Full Newly Small Hydraulic Filter Press Machine:







Technical parameter of Full Newly Small Hydraulic Filter Press Machine:



pls note: these above model is only a part of all models we have, pls contact us for more details!



Packing and delivery of filter press machine:



Our service:

1, Pre-sale services:

We will happily assist you in getting the information you need to make a decision on which products best fit your needs.We want you to feel good about your purchase.

We can design and manufacture products as per your special requirements.If required, we can train your technical personnel for you.

2, Services during the sale:

We strictly adhere to the principle of "the customer first".Your needs and concerns will be addressed to your complete satisfaction.

We can help clients to draft solutions to their specific situations.

3, After-sale services:

Our products are all guaranteed for a full year. During this period, if there is any quality problem, we repair it free of charge.

If there is any problem, we will take measures to solve it immediately,on-site.technical exchanging is also provided for you.



FAQ:
1, What products can you produce?
Laboratory filter press machine, small filter press, chamber filter press, membrane filter press, plate and frame filter press, belt filter press,vacuum belt filter, round filter press, cast iron filter press, stainless steel filter machine, filter plate and filter cloth etc.

2, What's your MOQ?
We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.

3, What is the payment terms?
TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.

4, Do you accept OEM?
Yes, we can manufacture according to your requirement.

5, What is the machine warranty?
All the machines from my factory have 1 year warranty.

6, Is on site installation & commissioning available?
Yes.

7, Can I visit you?
Sure, of course, welcome to visit our factory at any time!
