Automatic pull plate filter press for fumed silica

PRIMARY PARAMETERS

Condition

New

Automatic Grade

Automatic

Production Capacity

99.9%

Place of Origin

Henan, China (Mainland)

Brand Name

Remont

Model Number

MT series

Voltage

380V or as customer requirement

Power(W)

2.2KW-7.5KW

Weight

3-65 tons

Dimension(L*W*H)

According to models

Certification

ISO

Warranty

12 months

After-sales Service Provided

Engineers available to service machinery overseas

Name

Automatic pull plate filter press for fumed silica

Color

As requested

Filer plate materials

Polypropylene

Working pressure

0.6Mpa

Design temperature

u226480u2103

Filter plate size

800-2000mm

Cake thickness

30mm

Filter area

10-1000 square meters

Service

12 month after sale service and online guiding

Package

Wooden cases

DETAIL DESCRIPTION

Automatic pull plate filter press for fumed silica

Product Description

♣ Features of Automatic pull plate filter press for fumed silica

1. Labour saving: All the operation could be worked by the machine, one worker can supervise several machine’s working.

2. Efficiency: Fully automatic operation, with a short working cycle at each process, helping you increase the production capacity.

3. Long lifetime: The beam is made by best carbon steel and not easy to out of shape, filter plate is made by good PP material and can bear high pressure.

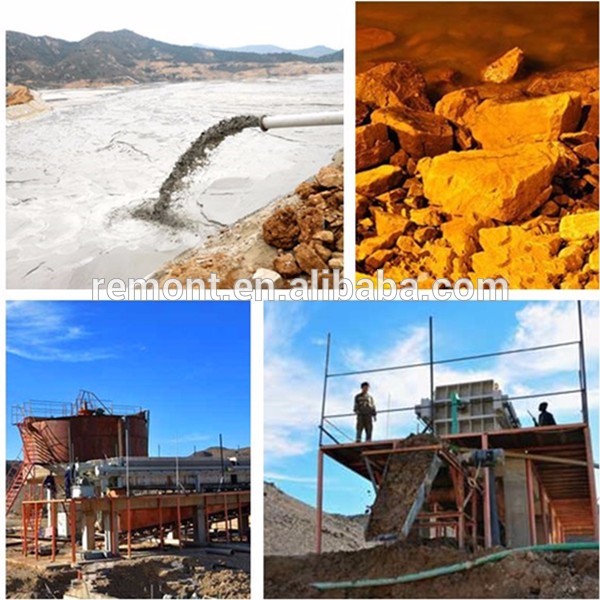

Application

♣ Applications of Automatic pull plate filter press for fumed silica

The filter press is widely used in mining, food, pharmaceutical, oil, solid-liquid separation industries. Detailed as: ceramic, gelatin, edible oil, waste engine lube oil, chemicals, food processing, pharmaceuticals, leather tanneries, sewage treatment plants, sugar, fertilizers,petro chemicals, Zn, Ag and Pb-Ag concentrates. Many oil plants, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc. Medium and small oil refinery, oil mill and private oil squeezing workshop.

Technical Data

♣ Technical Parameters of Automatic pull plate filter press for fumed silica

Model	Filter Area (m2)	Plate Size (mm)	Cake Thickness (mm)	Filter Chamber Volume (l)	Plate No. (pcs)	Filteration Press(Mpa)	Motor Power (kw)
XAZ30/870-30U	30	870×870/ 800×800	30	460	23	≥0.6	2.2
XAZ40/870-30U	40	595	30
XAZ50/870-30U	50	748	38
XAZ60/870-30U	60	902	46
XAZ70/870-30U	70	1056	54
XAZ80/870-30U	80	1210	62
XAZ50/1000-30U	50	1000×1000	736	28	4.0
XAZ60/1000-30U	60	889	34
XAZ70/1000-30U	70	1041	40
XAZ80/1000-30U	80	1193	46
XAZ100/1000-30U	100	1475	57
XAZ120/1000-30U	120	1777	69
XAZ100/1250-30U	100	1250×1250	1468	36
XAZ120/1250-30U	120	1746	43
XAZ140/1250-30U	140	2063	51
XAZ160/1250-30U	160	2341	58
XAZ180/1250-30U	180	2619	65
XAZ200/1250-30U	200	2896	72
XAZ220/1250-30U	220	3214	80
XAZ250/1250-30U	250	3650	91
XAZ200/1500-35U	200	1500×1500	35	2998	49	7.5
XAZ250/1500-35U	250	3594	61
XAZ300/1500-35U	300	4347	74
XAZ350/1500-35U	350	5043	86
XAZ400/1500-35U	400	5796	99
XAZ450/1500-35U	450	6492	111
XAZ500/1500-35U	500	7187	123
XAZ600/2000-40U	600	2000×2000	40	8926	85	15
XAZ700/2000-40U	700	10380	99
XAZ800/2000-40U	800	11210	107
XAZ900/2000-40U	900	13290	127
XAZ1000/2000-40U	1000	14740	141

Production Flow

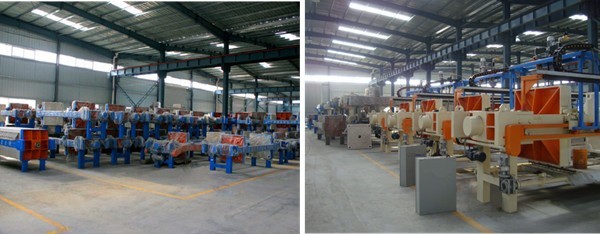

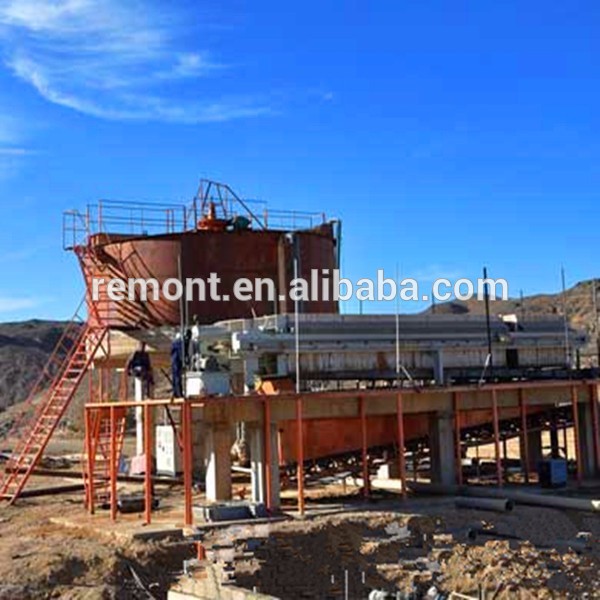

♣ Production Site of Automatic pull plate filter press for fumed silica

Our Services

♣ After-sales Service & Technical Supports of Automatic pull plate filter press for fumed silica

1. Filter press installation,Debugging.

Provide filter press installation files, technical data and related soft copies or videos etc

2. Filter press warranty

The provider guarantee the filter press could meet production technical standard and performance requirements indicated in the agreement.

Warranty: 12 months for the machine after delivery.

3. Filter press technical support

Our company will make occasional call to find problems and solve them in time.

Provide technical support timely.

4. 24 hours website hot line service.

For big leaf filters order or project,to dispatch technician is negotiable. Aftersales Guarantee

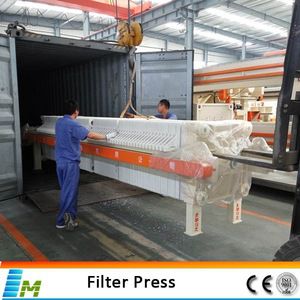

♣ Packing & Shipping of Automatic pull plate filter press for fumed silica

♣ Company Profile

Xinxiang Remont Machinery Co., Ltd is professionally engaged in production of filtering equipment for more than 20 years. Our machines has exported to USA. Vietnam, Ausralia, Indonesia, Sri Lanka, South Africa and other countries. Also we supply equipments to the famous big companies in China.

Ø Continous years " China National Quality Trustable products ".

Ø " National Customer Satification Enterprise In Quality and Service"
Ø Our products have been awarded "National Top Ten Famous Brand".
Ø We have attained ISO9001:2000 quality system certification.

FAQ

♣ Q & A of Automatic pull plate filter press for fumed silica

1. Q: Are you manufactuer or trading company?
A: Yes. We have been sold the filter press for more than 20 years. We have our own professional R&D team and QC team.
2. Q: What kind of filter press can you produce?

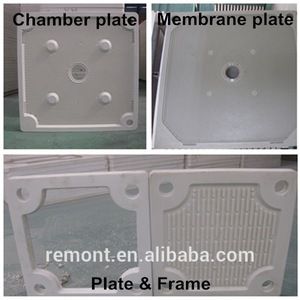

A: Chamber, membrane, diaphragm,plate and frame, belt filter press, filter plate and filter cloth, etc.
3. Q: What should I do if I am interested in your product?
A: If we are on line, you can contact us directly by trademanager. If not, please email us from the following information. We will reply you as soon as possible.
Filteration area:_____m²
Raw material: _____
Capacity:_____
Voltage: _____
