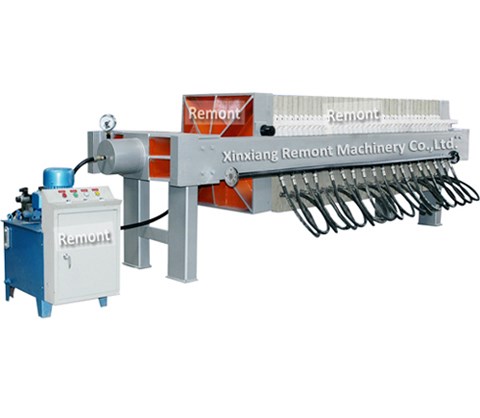

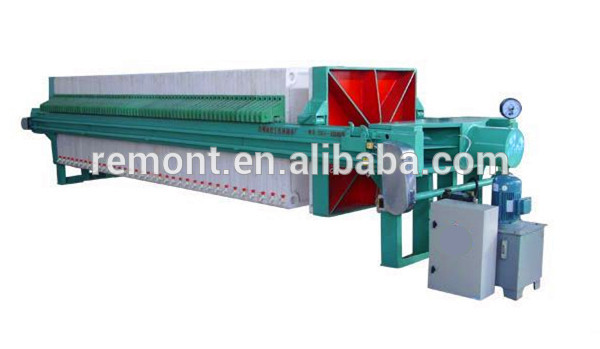

Product Description
| Item Name | Waste Cooking Oil Filter Press Machine Price | Filter cloth material | cotton, dacron, nylon, polyester fibers, etc |
| Plate Type | Chamber, plate frame, membrane, etc | Operation | Manual, semi-automatic, fully automatic |
| Plate Material | PP, cast iron, rubber | Plate Size | 320, 450,630,800,1000, 1250, 2000 |
| Frame Material | Q235 carbon steel | Max. Filter Area | 2000㎡ |
| Model | Filter Area(㎡) | Plate Size(mm) | Filter Chamber Volume(l) | Plate No.(pcs) |
| XAG30/870-U | 30 | 870×870 | 498 | 23 |
| XAG50/1000-U | 50 | 1000×1000 | 776 | 27 |
| XAG80/1250-U | 80 | 1250×1250 | 1560 | 29 |
| XAG200/1500-U | 200 | 1500×1500 | 3809 | 49 |
| XAG600/2000-U | 600 | 2000×2000 | 11901 | 85 |
| XAZ30/870-30U | 30 | 870×870 | 460 | 23 |
| XAZ50/1000-30U | 50 | 1000×1000 | 736 | 28 |
| XAZ100/1250-30U | 100 | 1250×1250 | 1468 | 36 |
| XAZ200/1500-35U | 200 | 1500×1500 | 2998 | 49 |
| XAZ600/2000-40U | 600 | 2000×2000 | 8926 | 85 |
| BAY4/450-30U | 4 | 500×500 | 60 | 9 |
| BAY15/630-30U | 15 | 630×630 | 226 | 18 |
| BAY30/890-35U | 30 | 890×890 | 524 | 23 |

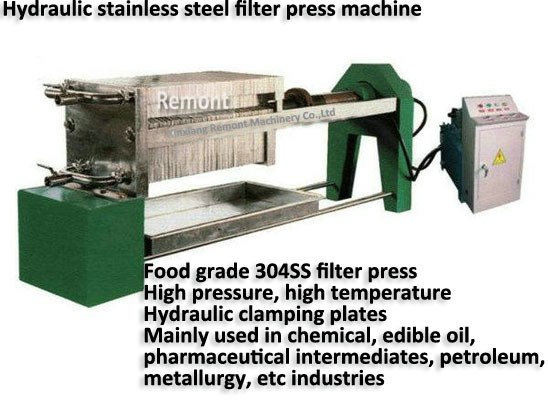

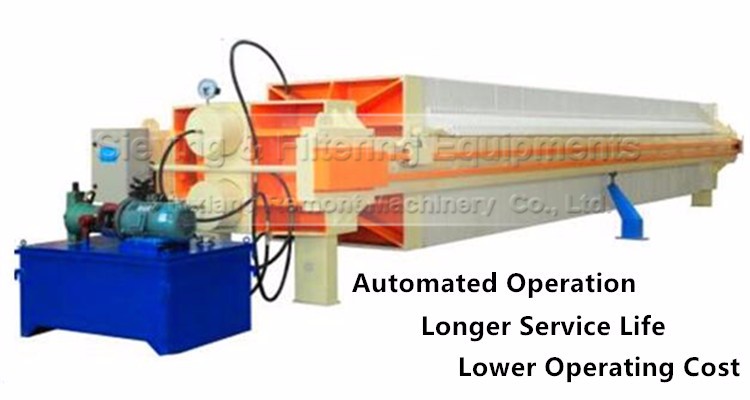

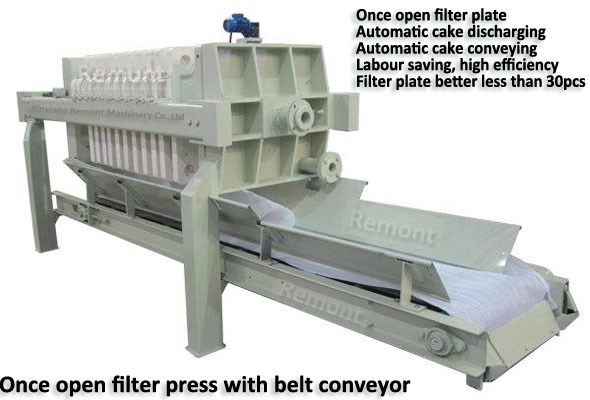

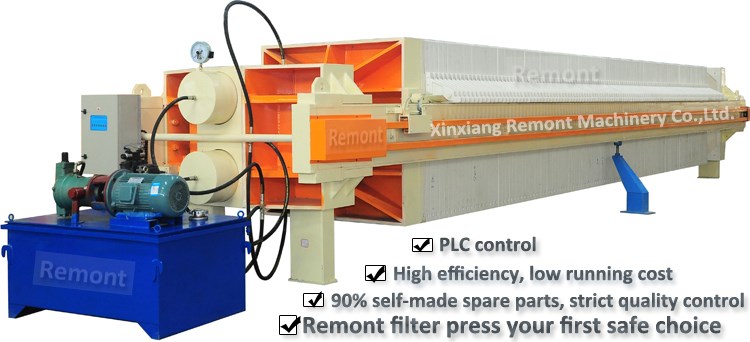

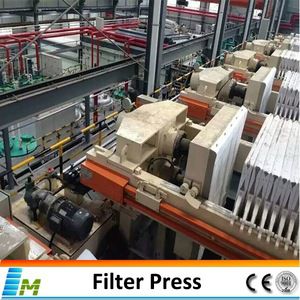

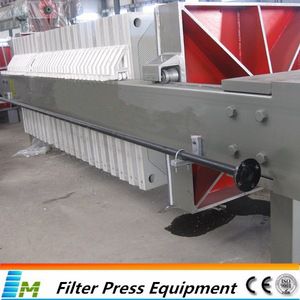

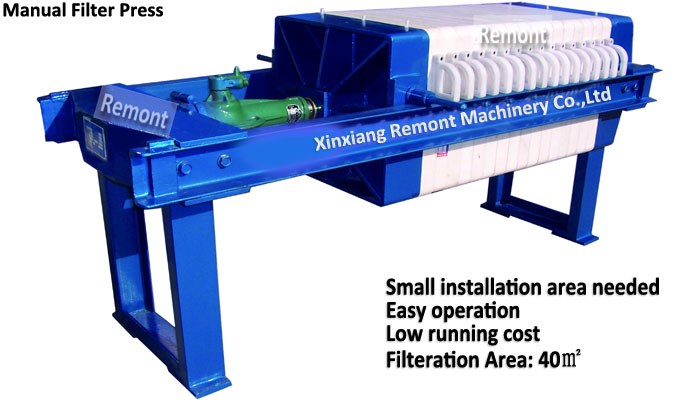

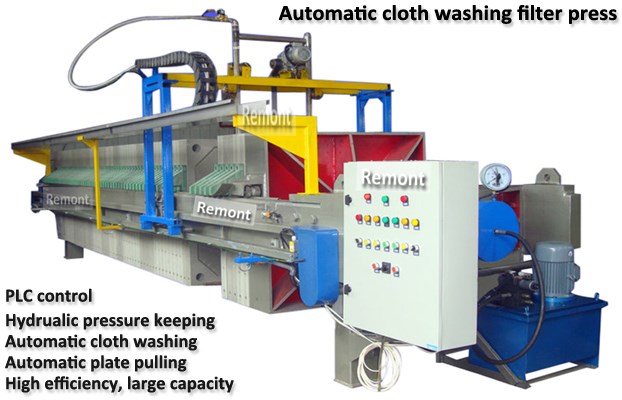

Detailed Images
Application
| The filter press is widely used in mining, food, pharmaceutical, petroleum, textile, printing and dyeing, paper making, sewage treatment, etc solid-liquid separation industries. Detailed as: ceramic, glaze waste water, gelatin, paraffin, edible oil, vinegar, chemicals, sugar cane, sludgy effluent, food processing, pharmaceuticals, leather tanneries, sewage treatment plants, sugar, fertilizers,petrol chemicals. Many oil plants, such as rapeseed, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc. Medium and small oil refinery, oil mill and private oil squeezing workshop. Any needs about solid liquid separation, contact Apple freely. |

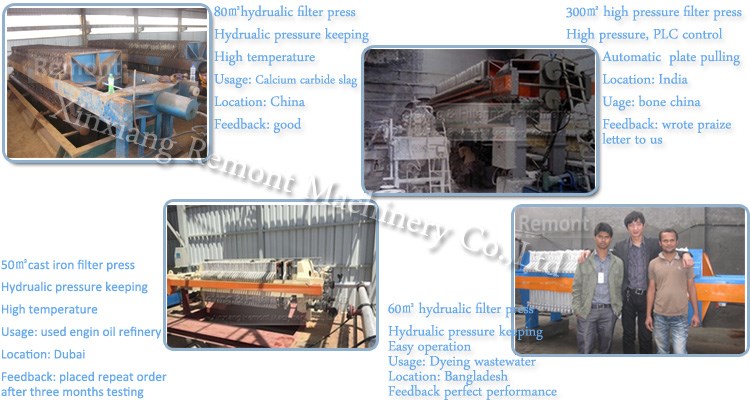

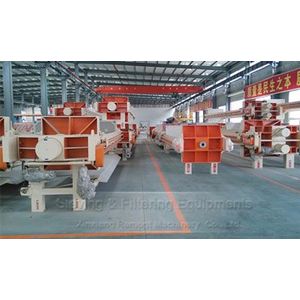

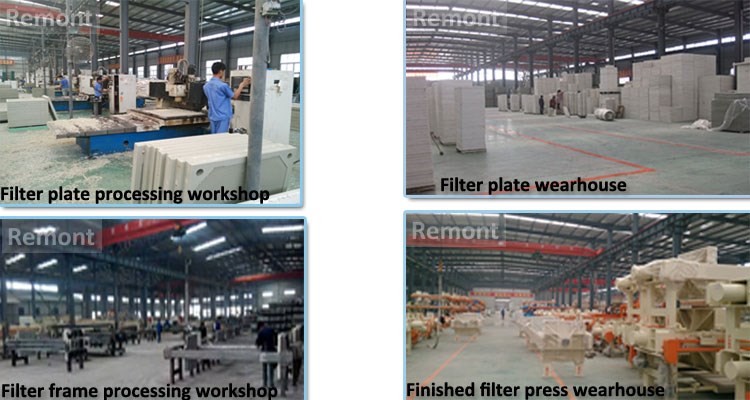

Workshop
Our Service
FAQ
Related Products
| Chamber filter press | Membrane filter press |
