Hot sale automatic honey filter press

PRIMARY PARAMETERS

Condition

New

Automatic Grade

Automatic

Production Capacity

99.9%

Place of Origin

Henan, China (Mainland)

Brand Name

Remont

Model Number

MT series

Voltage

380V or as customer requirement

Power(W)

2.2KW-7.5KW

Weight

3-65 tons

Dimension(L*W*H)

According to models

Certification

ISO

Warranty

12 months

After-sales Service Provided

Engineers available to service machinery overseas

Name

automatic honey filter press

Color

As requested

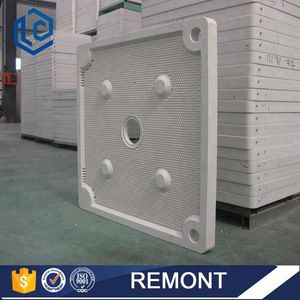

Filer plate materials

Polypropylene

Working pressure

0.6Mpa

Design temperature

u226480u2103

Filter plate size

800-2000mm

Cake thickness

30mm

Filter area

10-1000 square meters

Service

12 month after sale service and online guiding

Package

Wooden cases

DETAIL DESCRIPTION

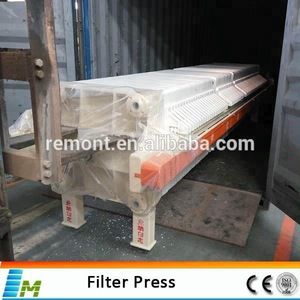

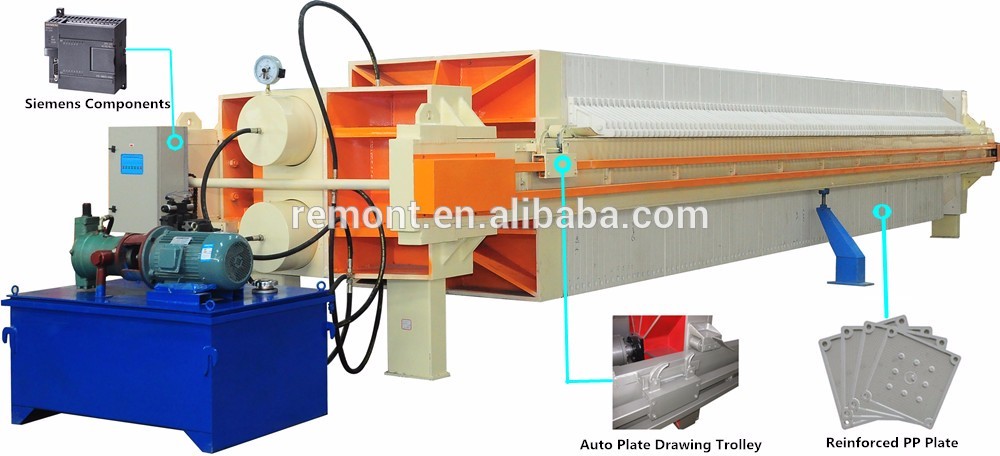

Automatic honey filter press

Introduction of filter press

The slurry materials are sent to filter chamber by the pressure of feeding pump. Then filtrating media(filter cloth) separates solid and liquid in slurry material. When solid in slurry becomes cake shape, air is sent to diaphragm to fully squeeze the solid to reduce moisture content. If users have high requirements about filtration of sticky material and moisture content ratio, this machine has its own special characteristics to meet the needs.

It is available in manual, semi-automatic, and fully automatic units incorporating PLC control and automatic cake slagging system. You can easy to use our machine.

Advantage of filter press

♦ Automatic press
♦ Automatic feeding(double feeding) and filtrating
♦ Automatic squeezing
♦ Automatic cake washing
♦ Automatic air blowing
♦ Automatic open

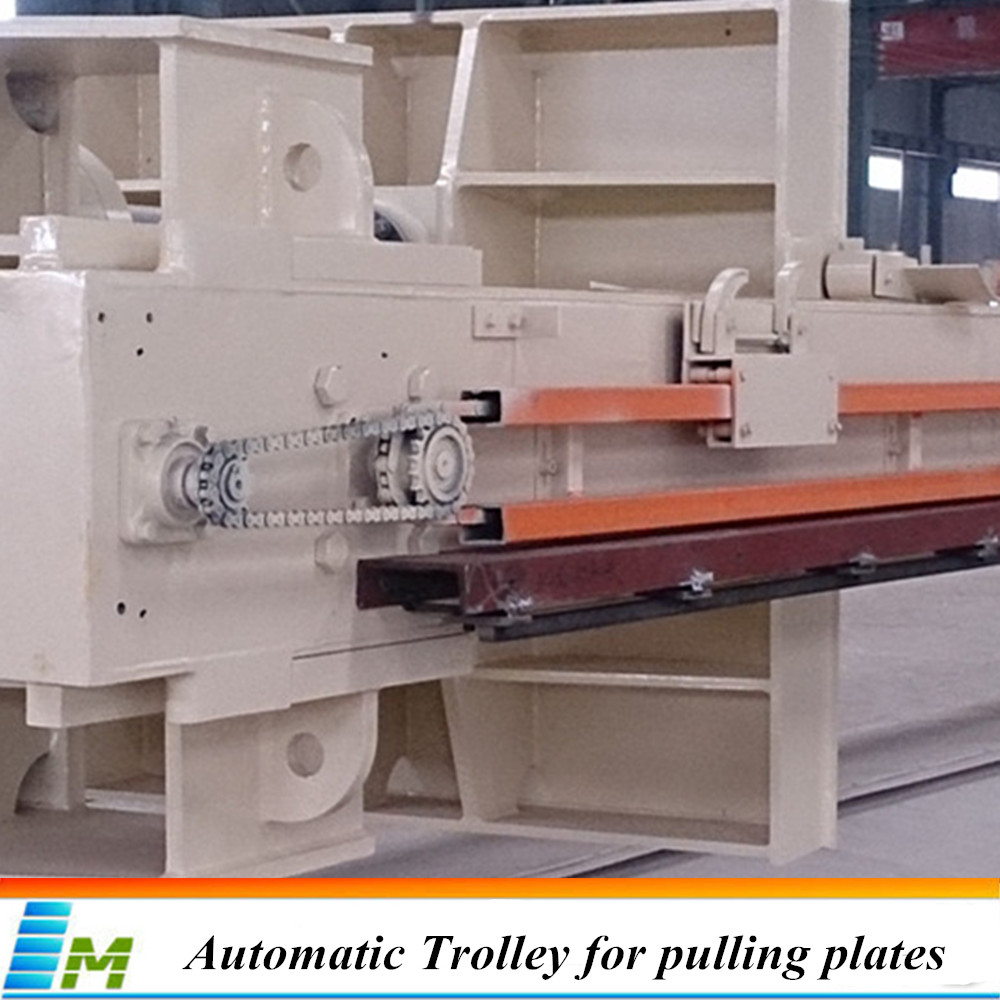

♦ Automatic plate shifting (by groups) and auto cake discharging
♦ Automatic cloth washing--- The washing cycles can be set according to requirements(can be regulated on site)
♦ Automatic drip tray close when cloth washing and filtrating, automatic open when cake discharging.

Technique data for filter press

Model	Filter area	Plate size(mm)	Cake thickness	Number plate	Pressure	Motor power	Size(m)	Weight
MT30/870	30m²	870*870	30mm	23	0.6MPa	2.2KW	3.181.21.3	3046Kg
MT40/870	40m²	870*870	30mm	30	0.6MPa	2.2KW	3.571.21.3	3593Kg
MT50/870	50m²	870*870	30mm	38	0.6MPa	2.2KW	4.111.21.3	4057Kg
MT60/870	60m²	870*870	30mm	46	0.6MPa	2.2KW	4.551.21.3	4597Kg
MT70/870	70m²	870*870	30mm	54	0.6MPa	2.2KW	4.991.21.3	5136Kg
MT80/870	80m²	870*870	30mm	62	0.6MPa	2.2KW	5.431.21.3	5636Kg
MT80/1000	80m²	1000*1000	30mm	46	0.6MPa	4.0KW	5.121.51.4	5651Kg
MT100/1000	100m²	1000*1000	30mm	57	0.6MPa	4.0KW	5.781.51.4	6628Kg
MT120/1000	120m²	1000*1000	30mm	69	0.6MPa	4.0KW	6.51.51.4	7644Kg

Applications of filter press machine

♦ Commodity and Specialty Chemicals

♦ Pharmaceutical Raw Materials and Intermediates
♦ Food Products and Ingredients

♦ Clay and Ceramic Powders

♦ Dyes and Pigment

♦ Industrial Waste Dewatering and Recycling

♦ Oil industry

FAQ

1. Q: Are you manufactuer or trading company?
A: Yes. We have been sold the filter press for more than 20 years. We have our own professional R&D team and QC team.
2. Q: What kind of filter press can you produce?
A: Chamber, membrane, diaphragm,plate and frame, belt filter press, filter plate and filter cloth, etc.
3. Q: What should I do if I am interested in your product?
A: If we are on line, you can contact us directly by trademanager. If not, please email us from the following information. We will reply you as soon as possible.

Filteration area:_____m²
Raw material: _____

Solid-liquid ratio:
Capacity:_____
Voltage: _____

Weclome to visit our factory and inquiry me ^_^
