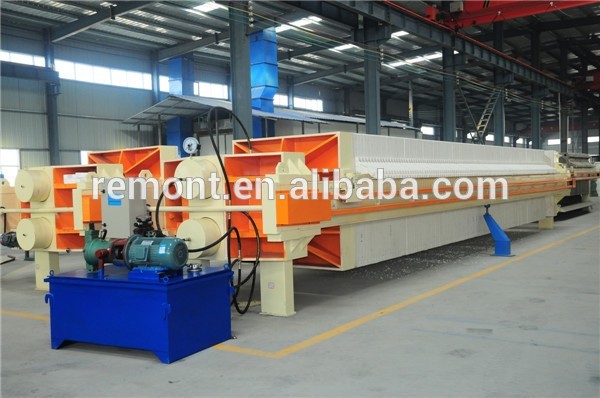

Full automatic sugar beet filter press for sugar refinery

PRIMARY PARAMETERS

Condition

New

Automatic Grade

Automatic

Production Capacity

99.9%

Place of Origin

Henan, China (Mainland)

Brand Name

Remont

Model Number

MT series

Voltage

380V or as customer requirement

Power(W)

2.2KW-7.5KW

Weight

3-65 tons

Dimension(L*W*H)

According to models

Certification

ISO

Warranty

12 months

After-sales Service Provided

Engineers available to service machinery overseas

Name

Full automatic sugar beet filter press for sugar refinery

Color

As requested

Filer plate materials

Polypropylene

Working pressure

0.6Mpa

Design temperature

u226480u2103

Filter plate size

800-2000mm

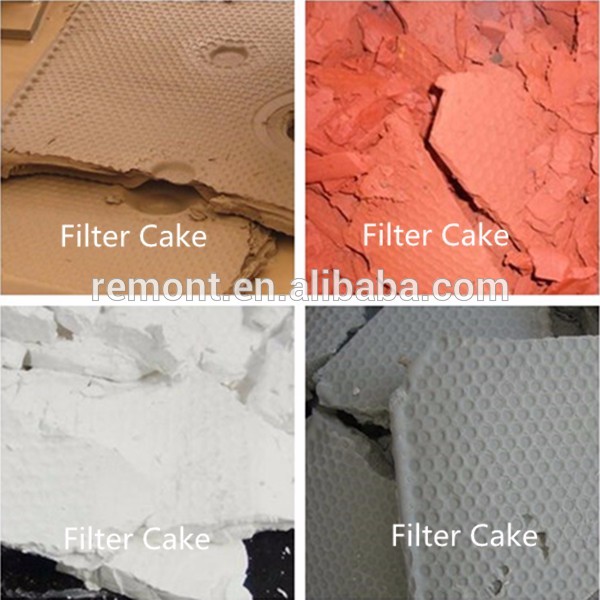

Cake thickness

30mm

Filter area

10-1000 square meters

Service

12 month after sale service and online guiding

Package

Wooden cases

DETAIL DESCRIPTION

Full automatic sugar beet filter press for sugar refinery

Product Description

♣ Advantages of Full automatic sugar beet filter press for sugar refinery

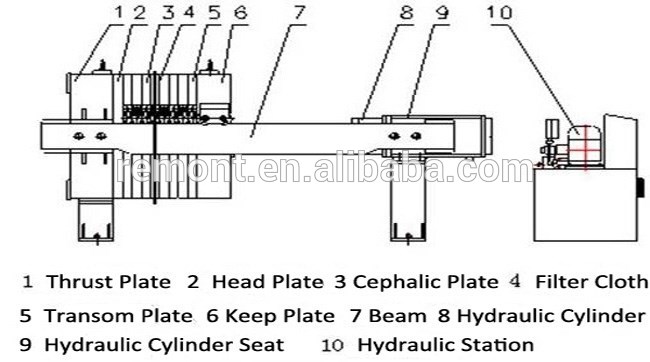

Main Features of the filter press

1. Labour saving: All the operation could be worked by the machine, one worker can supervise several machine’s working.

2. Efficiency: Fully automatic operation, with a short working cycle at each process, helping you increase the production capacity.

3. Long lifetime: The beam is made by best carbon steel and not easy to out of shape, filter plate is made by good PP material and can bear high pressure.

Application

♣ Applications of Full automatic sugar beet filter press for sugar refinery

The filter press is widely used in mining, food, pharmaceutical, oil, solid-liquid separation industries. Detailed as: ceramic, gelatin, edible oil, chemicals, food processing, pharmaceuticals, leather tanneries, sewage treatment plants, sugar, fertilizers,petro chemicals. Many oil plants, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc. Medium and small oil refinery, oil mill and private oil squeezing workshop.

Technical Data

♣ Technical Parameters of Full automatic sugar beet filter press for sugar refinery

Model	Filter area	Plate size(mm)	Cake thickness	Number plate	Pressure	Motor power	Size(m)	Weight
MT30/870	30m²	870*870	30mm	23	0.6MPa	2.2KW	3.181.21.3	3046Kg
MT40/870	40m²	870*870	30mm	30	0.6MPa	2.2KW	3.571.21.3	3593Kg
MT50/870	50m²	870*870	30mm	38	0.6MPa	2.2KW	4.111.21.3	4057Kg
MT60/870	60m²	870*870	30mm	46	0.6MPa	2.2KW	4.551.21.3	4597Kg
MT70/870	70m²	870*870	30mm	54	0.6MPa	2.2KW	4.991.21.3	5136Kg
MT80/870	80m²	870*870	30mm	62	0.6MPa	2.2KW	5.431.21.3	5636Kg
MT80/1000	80m²	1000*1000	30mm	46	0.6MPa	4.0KW	5.121.51.4	5651Kg
MT100/1000	100m²	1000*1000	30mm	57	0.6MPa	4.0KW	5.781.51.4	6628Kg
MT120/1000	120m²	1000*1000	30mm	69	0.6MPa	4.0KW	6.51.51.4	7644Kg

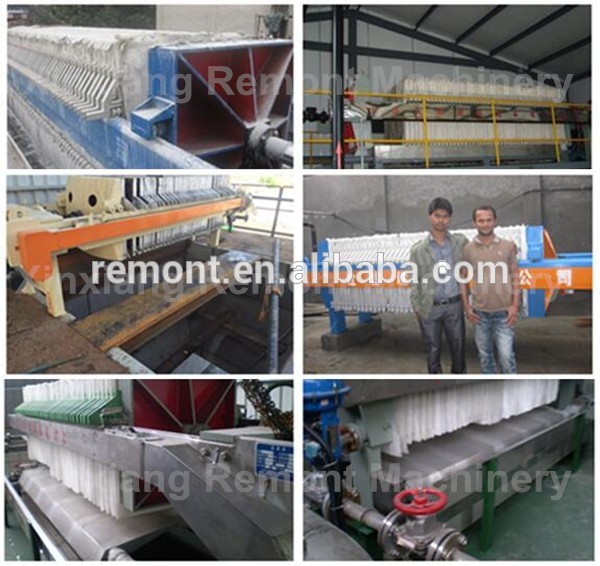

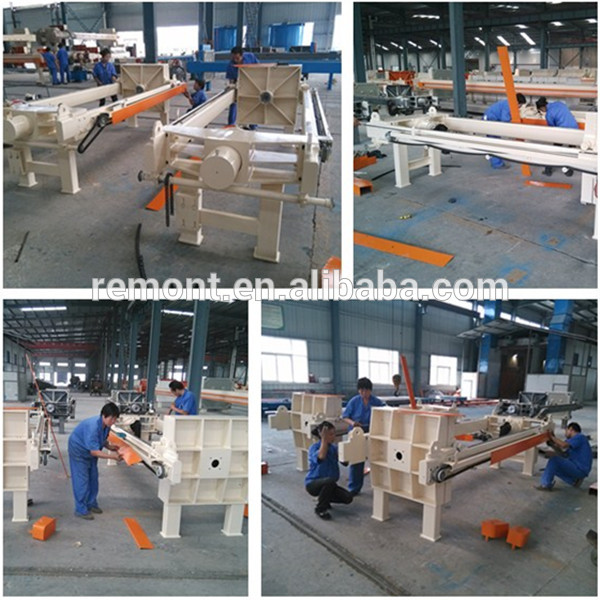

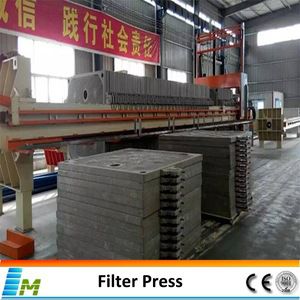

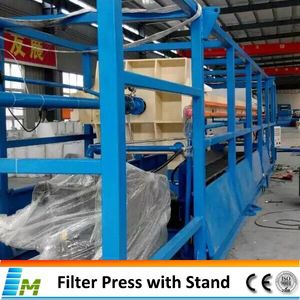

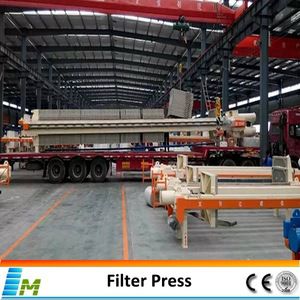

♣ Production site ofSlurry dewatering PP filter press

Our Services

♣ After-sales Service & Technical Supports of Full automatic sugar beet filter press for sugar refinery

1. Filter press installation,Debugging.

information

Provide filter press installation files, technical data and related soft copies or videos etc

2. Filter press warranty

The provider guarantee the filter press could meet production technical standard and performance requirements indicated in the agreement.

Warranty: 12 months for the machine after delivery.

3. Filter press technical support

Our company will make occasional call to find problems and solve them in time.

Provide technical support timely.

4. 24 hours website hot line service.

For big leaf filters order or project,to dispatch technician is negotiable. Aftersales Guarantee

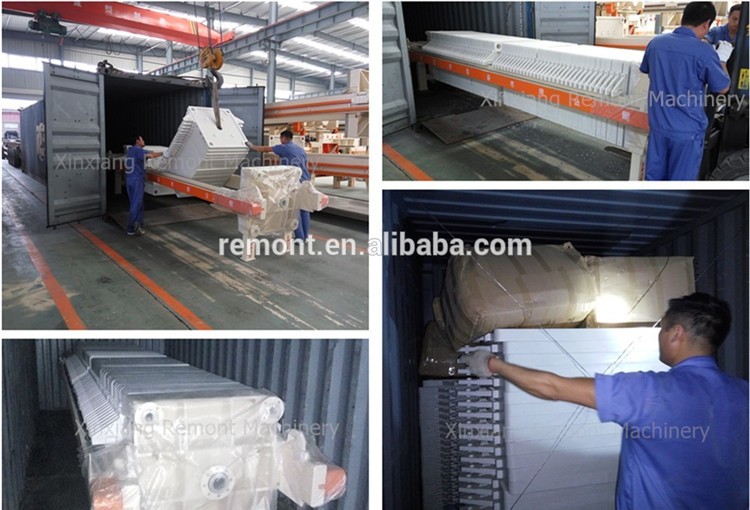

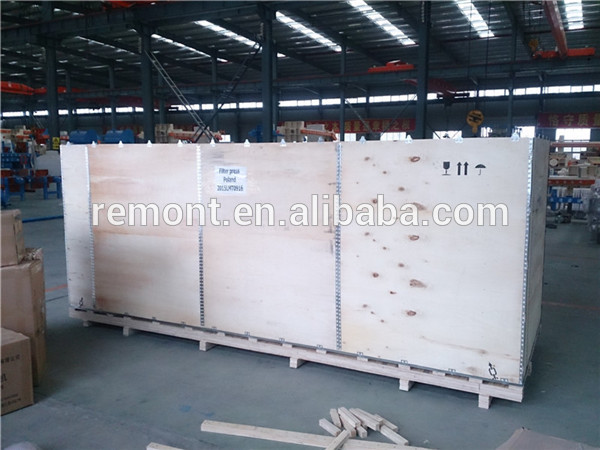

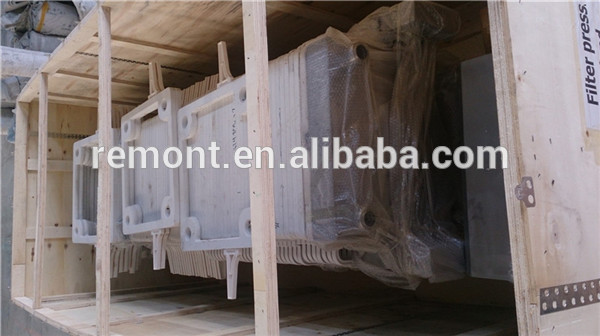

♣ Packing & Shipping of Full automatic sugar beet filter press for sugar refinery

♣ Company Profile

Xinxiang Remont Machinery Co., Ltd is professionally engaged in production of filtering equipment for more than 20 years. Our machines has exported to USA. Vietnam, Ausralia, Indonesia, Sri Lanka, South Africa and other countries. Also we supply equipments to the famous big companies in China.

Ø Continous years " China National Quality Trustable products ".

Ø " National Customer Satification Enterprise In Quality and Service"
Ø Our products have been awarded "National Top Ten Famous Brand".
Ø We have attained ISO9001:2000 quality system certification.

FAQ

♣ Q & A of Full automatic sugar beet filter press for sugar refinery

1. Q: Are you manufactuer or trading company?
A: Yes. We have been sold the filter press for more than 20 years. We have our own professional R&D team and QC team.
2. Q: What kind of filter press can you produce?

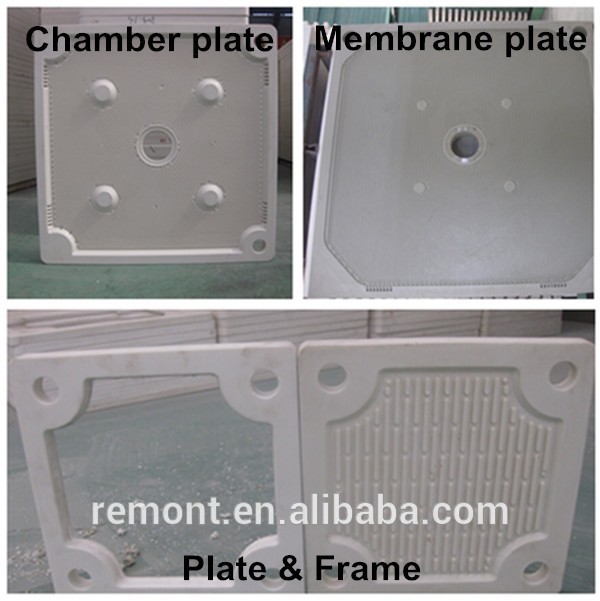

A: Chamber, membrane, diaphragm,plate and frame, belt filter press, filter plate and filter cloth, etc.
3. Q: What should I do if I am interested in your product?
A: If we are on line, you can contact us directly by trademanager. If not, please email us from the following information. We will reply you as soon as possible.
Filteration area:_____m²
Raw material: _____
Capacity:_____
Voltage: _____
