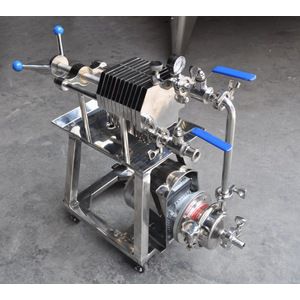

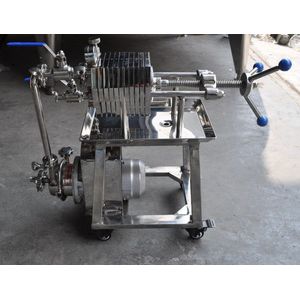

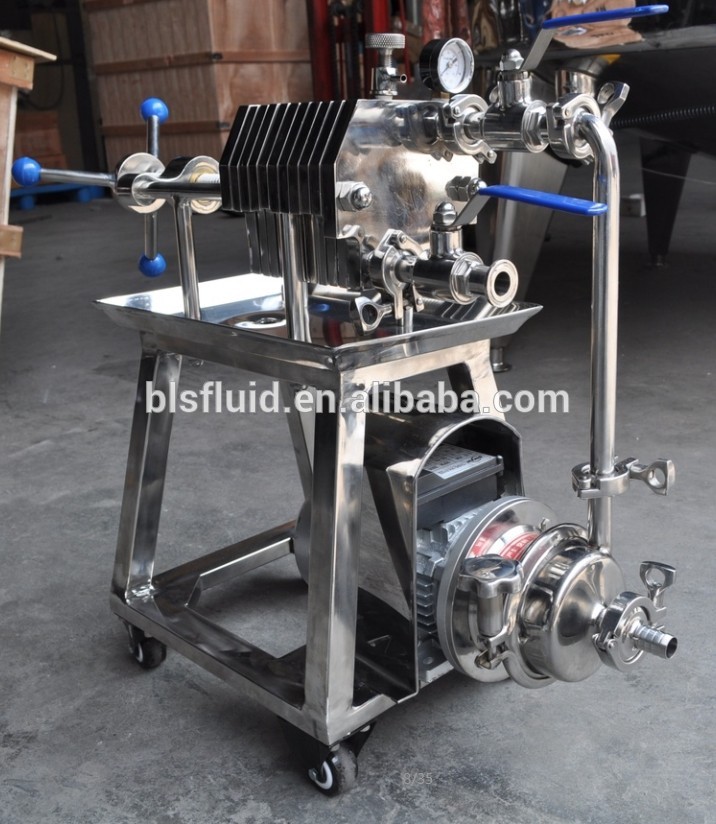

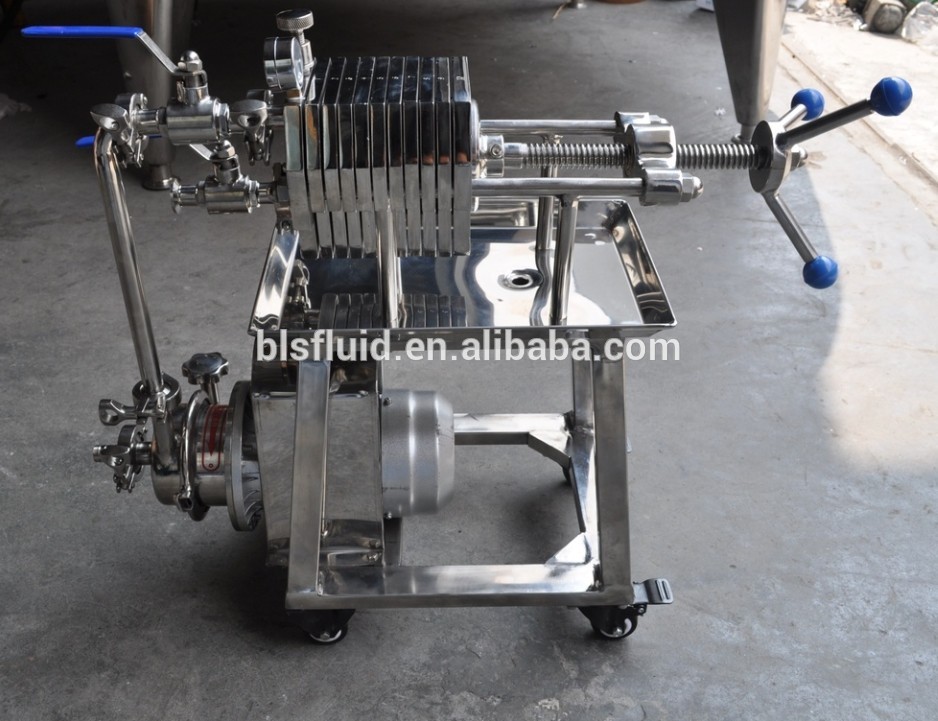

Zhejiang L&B highly effective medicine syrup glucose wine filter press
According to the different filtering medium and filtering processes (spurt, half precision filtration, precision filtration) requirements, choose different filter material, directly using microporous membrane filter can achieve the goal of aseptic.
Users can also according to the size of the filtering quantity, reduce or increase the layers, the corresponding flow along with technological requirements, the machine working pressure seal filter, liquid basic lossless, filtrate clarity.
Sealing adopt silicon rubber sealing ring, high temperature resistant, non-toxic, no leakage, sealed performance is good.
Usage-- Stainless steel plate and frame filter the machine is stainless steel multilayer frame filter press is suitable for low concentration below 50% viscosity, less fluid slag content for airtight filtering to achieve purification, sterilization, clarify and other fine filtration, activated carbon, in addition to the particle, and the requirement of precision filtration, microporous membrane filter for use directly, without microporous membrane filter achieve aseptic filtration.
Material:stainless steel SS304 SS316 polished inside outside

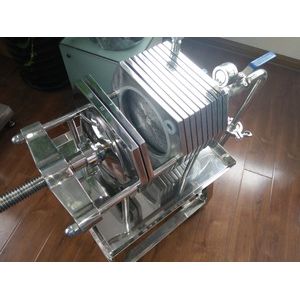

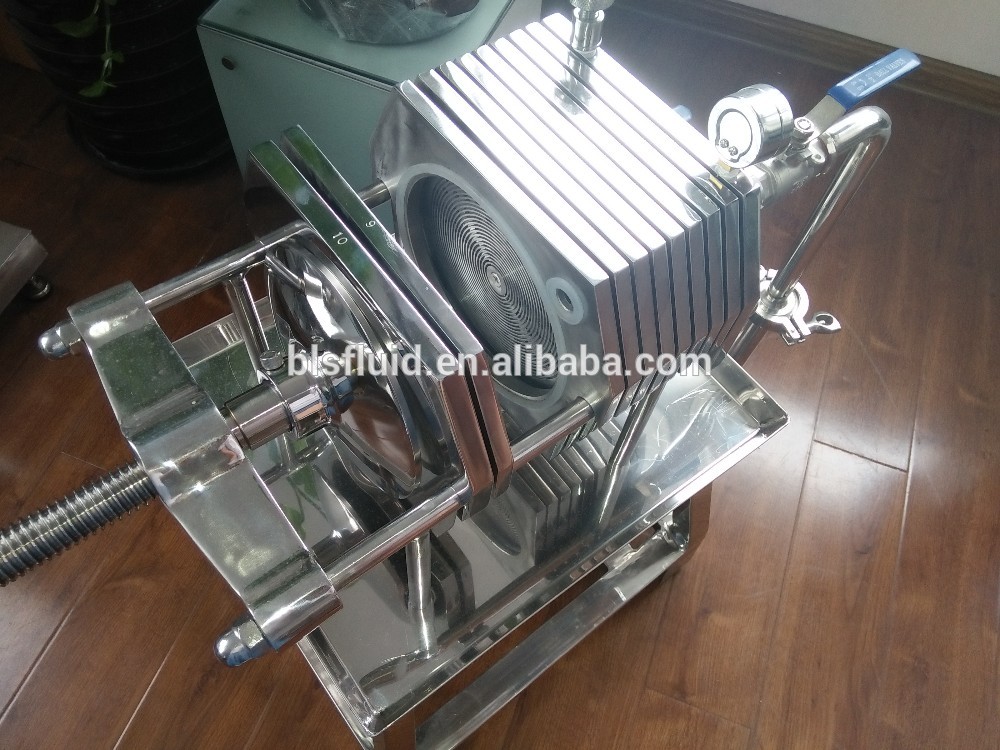

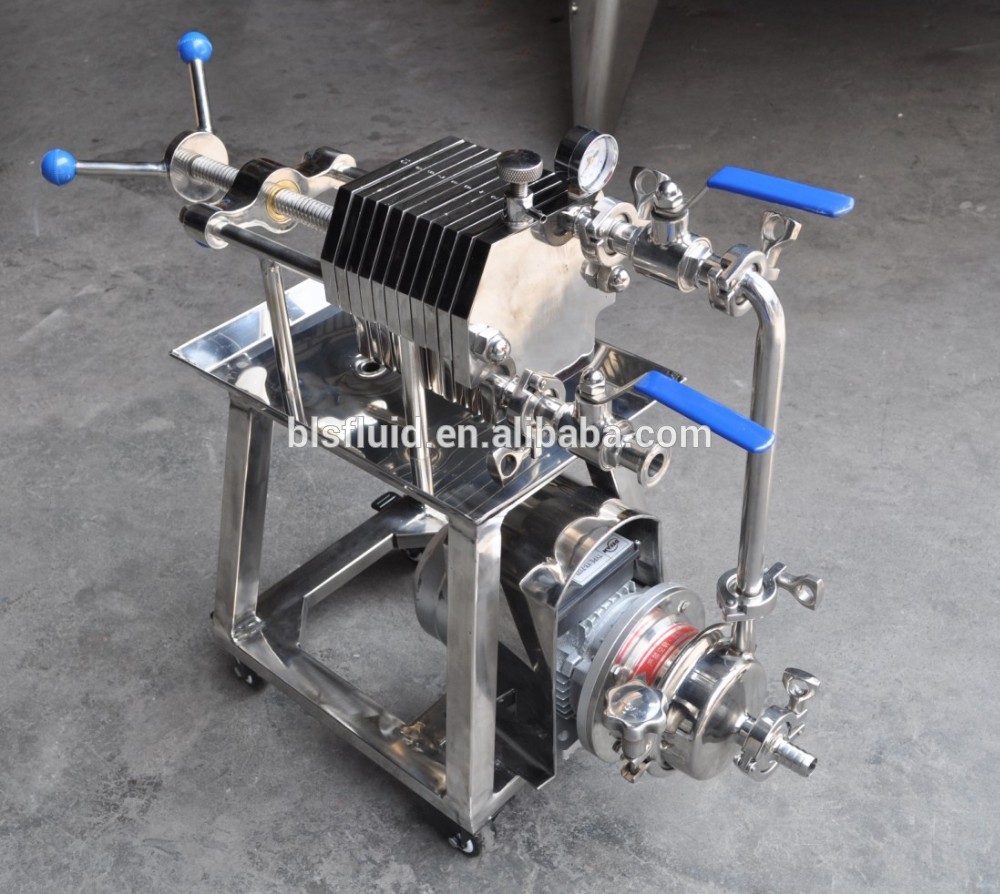

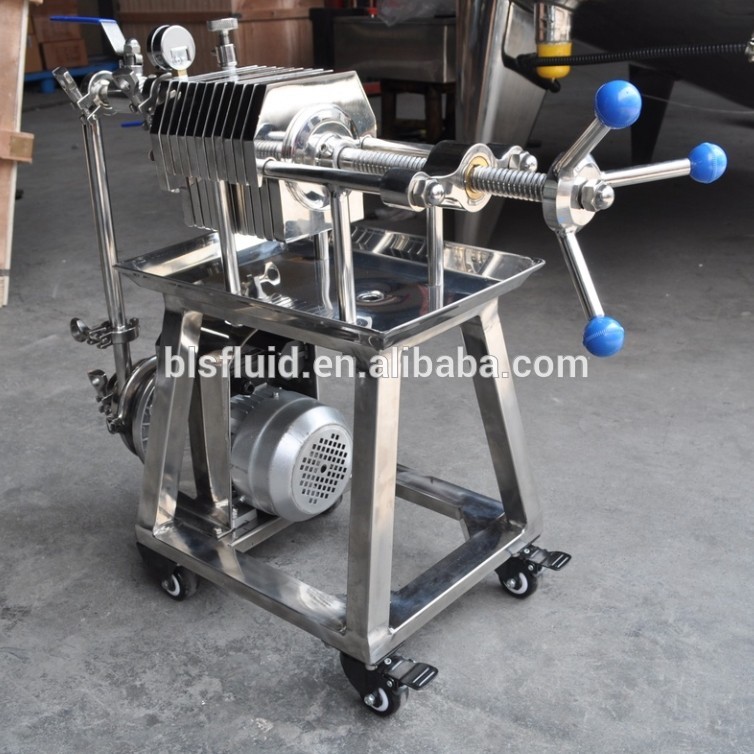

Product: plate and frame filter press
Specification:DN100-DN600
Application:Dairy,Beverage,Food,Beer,Pharmacy,Biotechnology,Cosmetic etc
Standard:DIN,3A,SMS,BS,AS,BPE etc
Connection:Welded,Clamped,Threaded
Packaging :Carton/Wooden Case
| Model | Specification | Flow T/H | Layer | Filter membrane | Power(KW) | Size mm3 | In/outlet(mm) |
| WBG10-100 | Φ100 | 1 | 10 | 0.8UM | 0.37 | 680*310*580 | 19/19 |
| WBG14-100 | Φ100 | 1.5-2 | 14 | 0.8UM | 1.1 | 780*350*700 | 27/22 |
| WBG10-150 | Φ150 | 3 | 10 | 0.8UM | 0.75 | 820*380*760 | 27/22 |
| WBG10-200 | Φ200 | 3 | 10 | 0.8UM | 1.1 | 900*400*820 | 27/22 |
| WBG10-300 | Φ300 | 5 | 10 | 0.8UM | 1.5 | 950*520*950 | 27/27 |
| WBG14-300 | Φ300 | 5 | 14 | 0.8UM | 1.5 | 950*520*950 | 27/27 |
| WBG10-400 | Φ400 | 8 | 10 | 0.8UM | 1.5 | 1260*600*1120 | 50/32 |
| WBG16-400 | Φ400 | 8 | 16 | 0.8UM | 2.2 | … | |
| WBG30-600 | Φ600 | 12 | 30 | 0.8UM | 3 | … |
| Please contact our After-sales service department in time within 30days after you received the cargo. | |
| Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time) | |
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confrimation: | |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| b | Have a negotiation of the compensation and sign agreements |
| c | Our After-Sales Department will perform the duties as the agreements |
