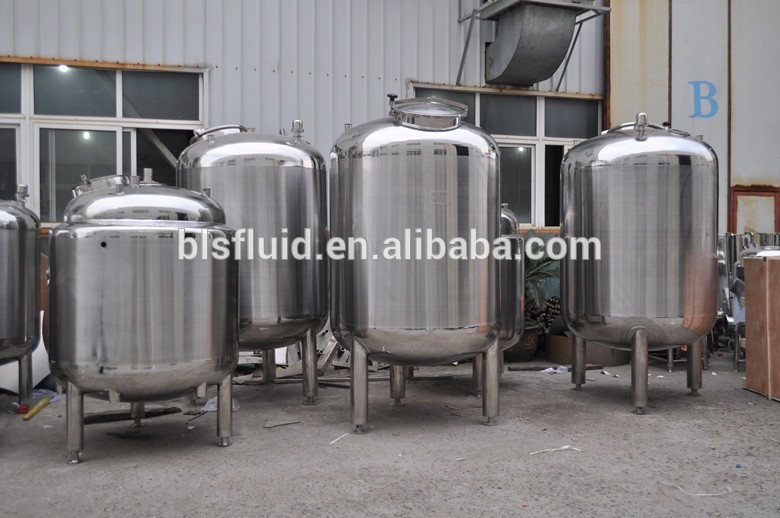

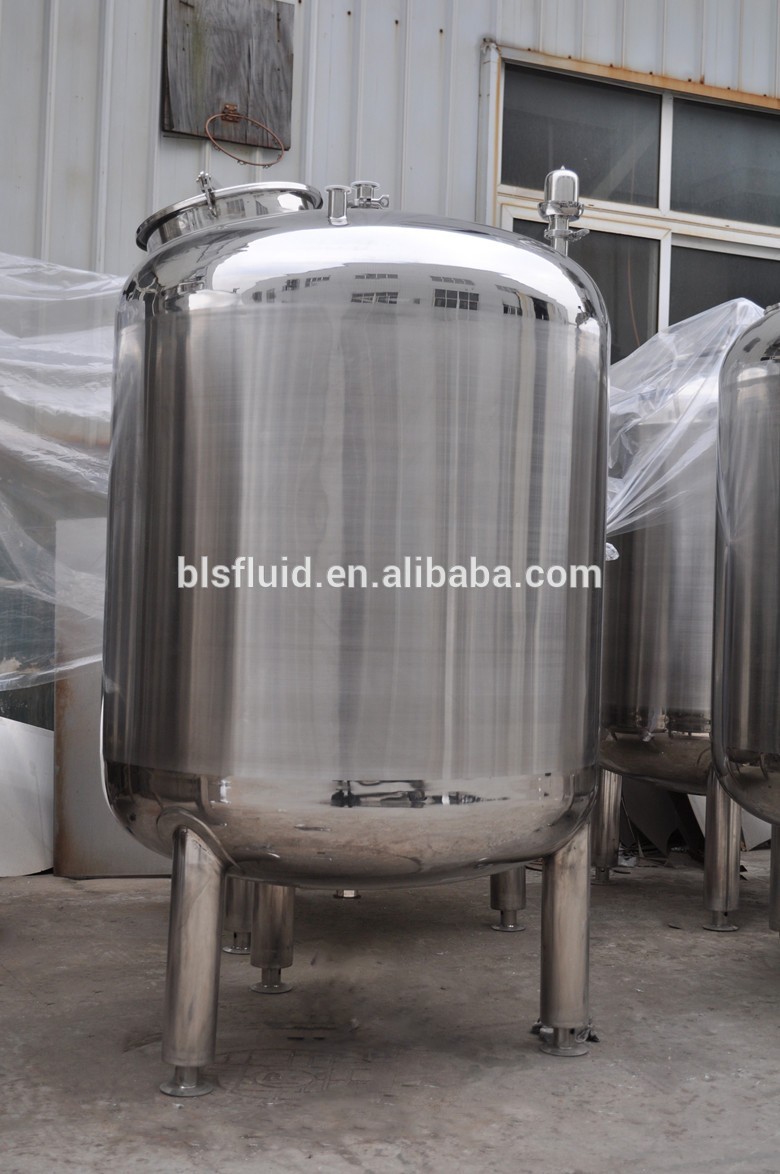

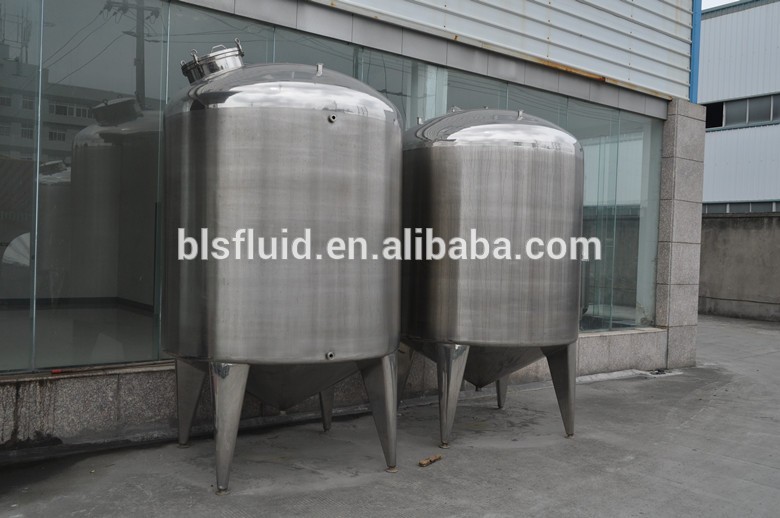

stainless steel olive oil storage tank
Name: olive oil storage tank
Brand name:L&B
Material:stainless steel ss304 ss316
Technical advantage:20 years manufacture experience
Products advantage:10 years export experience
Delivery date:25 workdays
We provide you with high quality and favorable price
Structure features:
- Made of single-layer,double layer or three layer stainless steel structure.
- Materials are all sanitary stainless steel,304 OR 316
- Humanized structure design and easy to operate.
- Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
| water storage tank 5000 liter | |||
| (D*H) | (H) | ||
| Effective volume | Dimension of tank | Total height | Diameter of inlet&outlet |
| (L) | (mm) | (mm) | (mm) |
| 500 | 840*1000 | 2250 | 38 |
| 600 | 920*1000 | 2300 | 38 |
| 800 | 950*1220 | 2500 | 38 |
| 900 | 1010*1220 | 2500 | 38 |
| 1000 | 1060*1500 | 2850 | 51 |
| 1500 | 1160*1500 | 2850 | 51 |
| 2000 | 1340*1500 | 2900 | 51 |
| 3000 | 1410*2000 | 3400 | 51 |
| 4000 | 1620*2000 | 3450 | 51 |
| 5000 | 1810*2000 | 3500 | 51 |
| 6000 | 1980*2000 | 3550 | 51 |
| 7000 | 1930*2440 | 4000 | 51 |
| 8000 | 2060*2440 | 4000 | 51 |
| 9000 | 2180*2440 | 4050 | 51 |
| 10000 | 2300*2440 | 4050 | 51 |
| 12000 | 2270*3000 | 4600 | 51 |
| 15000 | 2530*3000 | 4700 | 51 |
| 20000 | 2640*3660 | 5400 | 51 |

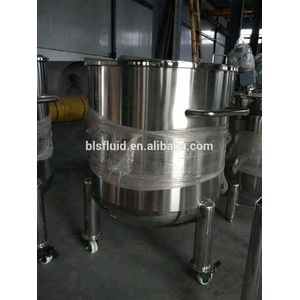

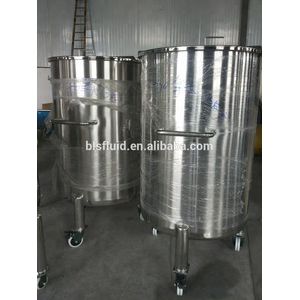

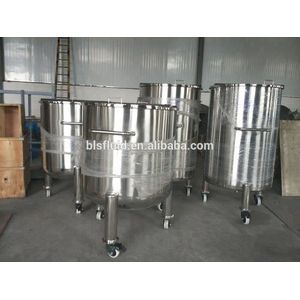

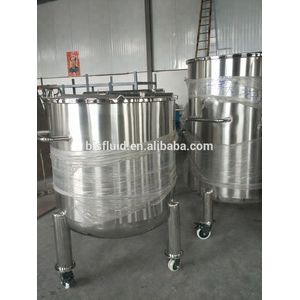

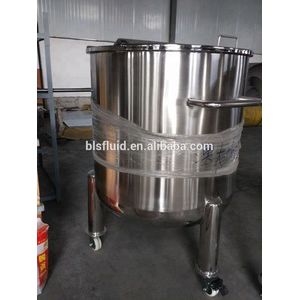

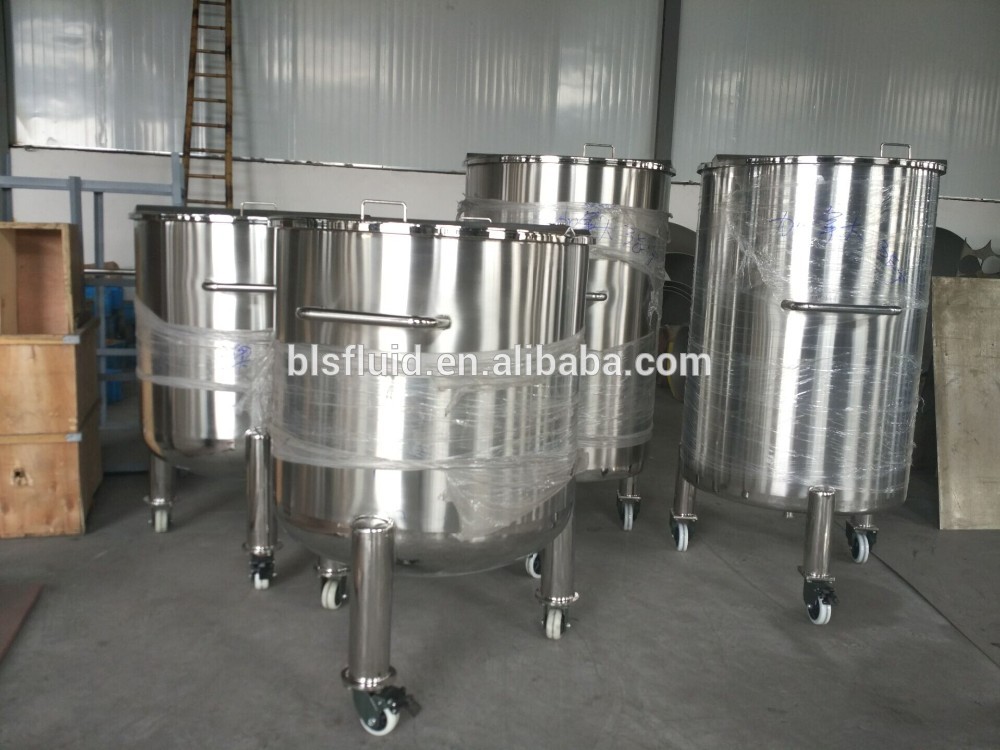

flat cover moveable storage tank
Zhejiang L & B Light Industry Machinery Co.,Ltd established in 1995,Located in BinHai Industrial Zone. Wenzhou City.

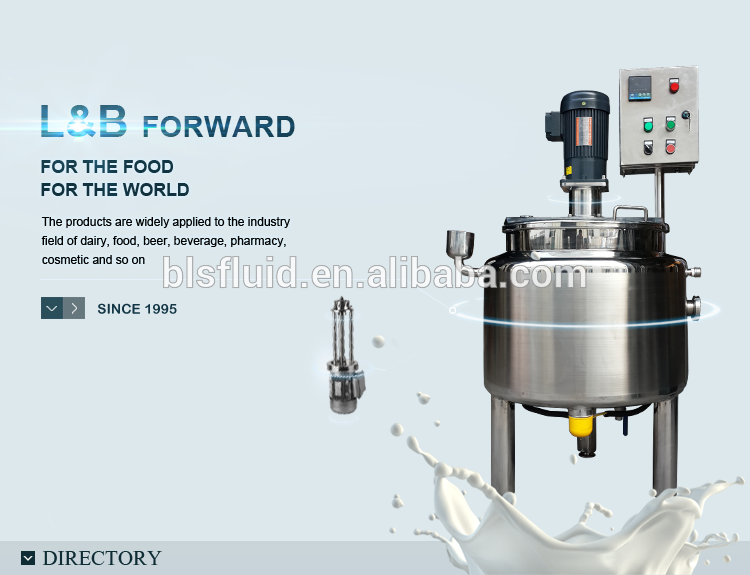

Our main products including stainless steel storage tank made of stainless steel,Stainless Steel Tank, high shear mixer, beer fermenterand Sanitary pumps
etc.
Meanwhile we also accept customized stainless steel parts and components for all industries.
BLS products could applied in food, beverage, pharmacy, chemical, cosmetics industries etc
We now exports our goods to United States, Australia, Newzealand and Japan etc.
1. Q: How do I pay for my purchase order?
A: T/T, L/C
2. Q: What's the MOQ of olive oil storage tank?
A: Our MOQ of olive oil storage tank is 1 unit.
3. Q:What's the delivery time?
A: It will take about 15-35days to finish an order, but the exact time is according to actual situation.
4. Q: Can I have my own customized product?
A: Of course, you products can be customed for example color, logo, design, mark, etc.
5. Q: Do you have quality control of olive oil storage tank?
A: Yes, we attach great importance to quality control for olive oil storage tank.
6. Q: How about the warranty control?
A: One year warranty for the machineries since sold. If quality problem occurs, please feel free to contact us.
