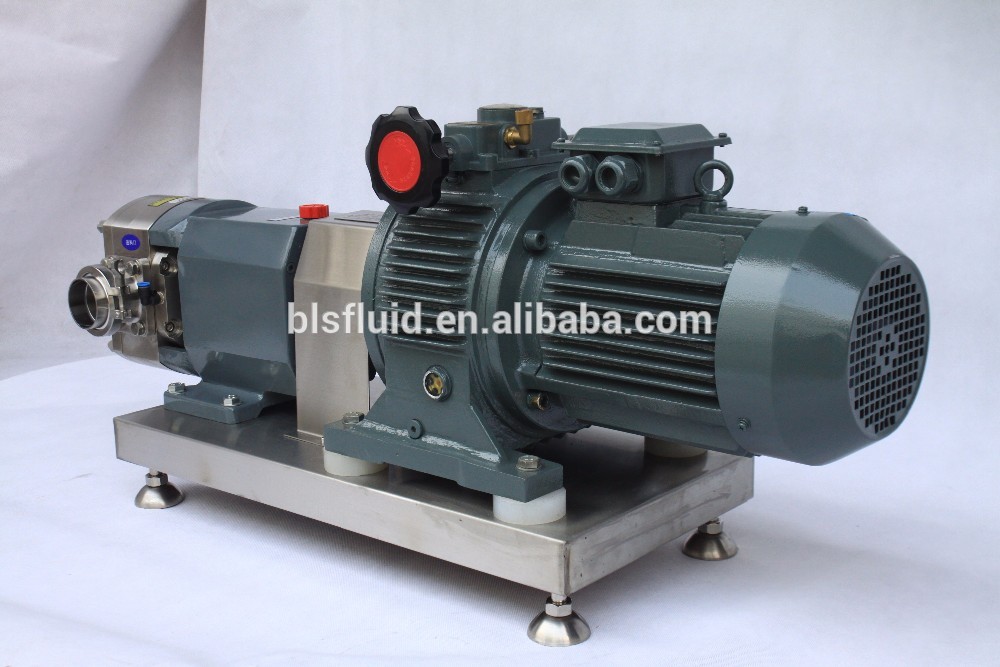

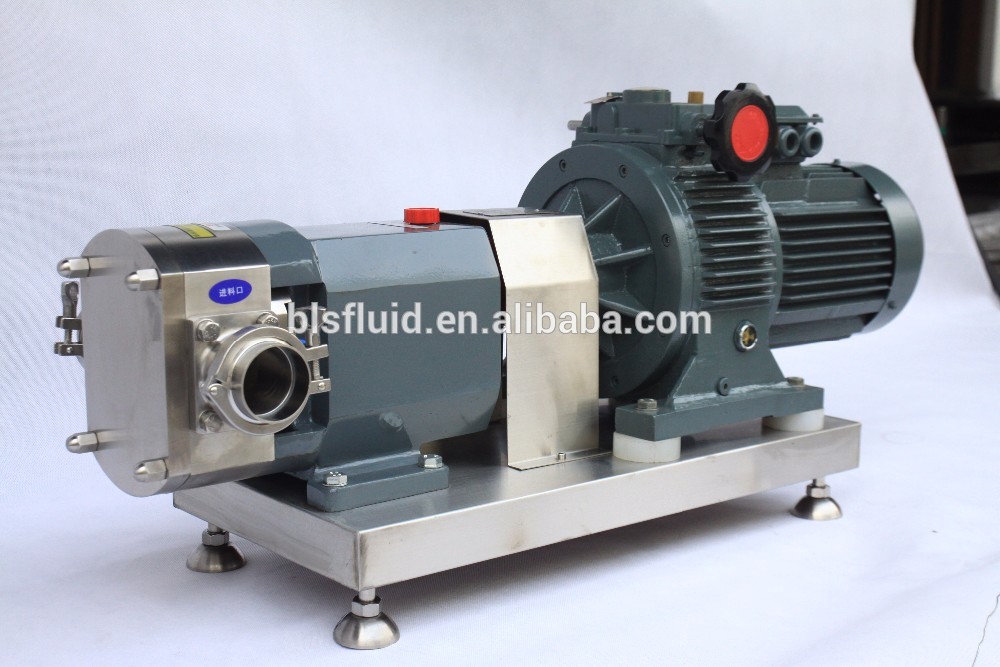

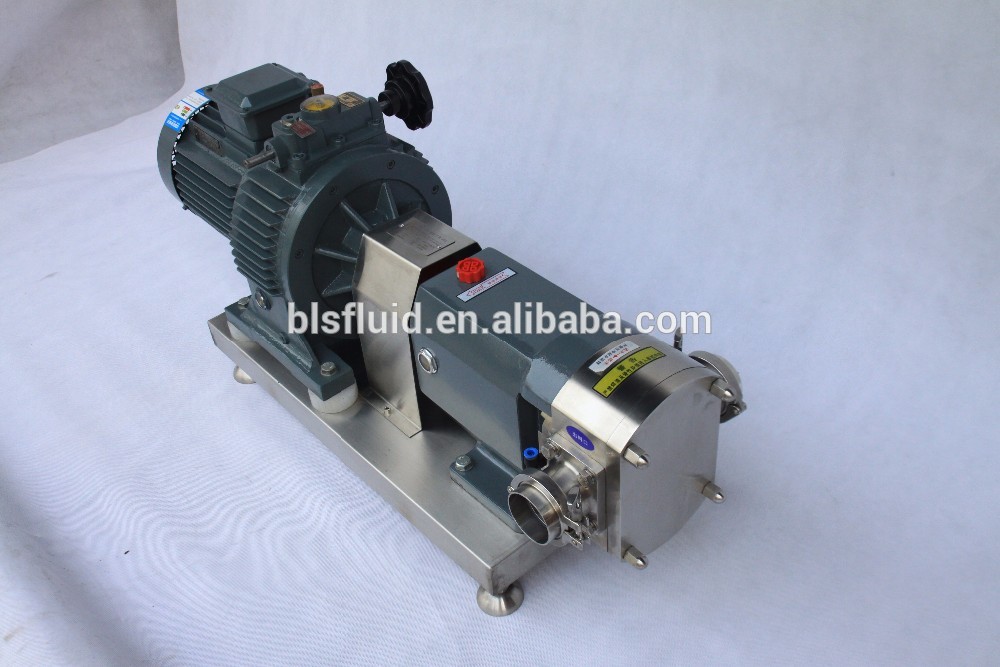

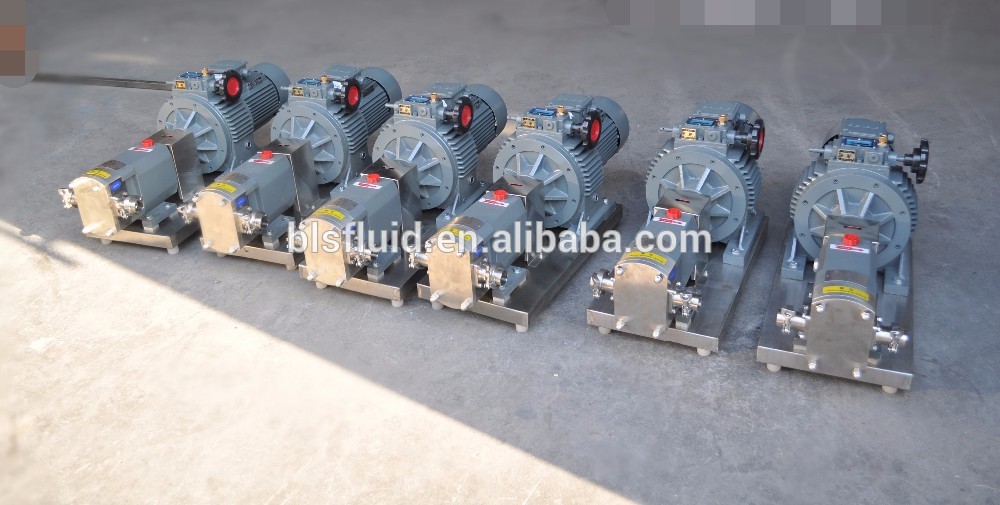

High Pressure Corn Oil Stainless Steel Gear Pump for sale
(Colloid pumps rotor pumps threeleaf pumps)
Abstract
Stainless steel lobe pumps are widely used on beer, food, dairy, beverage, chemical and medical industry and so on. For the special shape of the rotor and the high precision, we make rotor curve program composition by C Language and then input in machining centre to process, which confirms the high precision of the key parts and the strict requirement.
Characteristic
Lobe pump belongs to positive displacement pump, flow can be controlled accurately and can change to variable pump conveniently.
The rotation speed of lobe pump is very low, normally between 100rpm and 500rpm, the material is sent out smoothly and the component is not changed.
Lobe pump can transfer high viscosity material, so it also called colloid pump. Lobe pump can be made as rather high output pressure conveniently, suitable to long distance or high resistance dosing transfer.

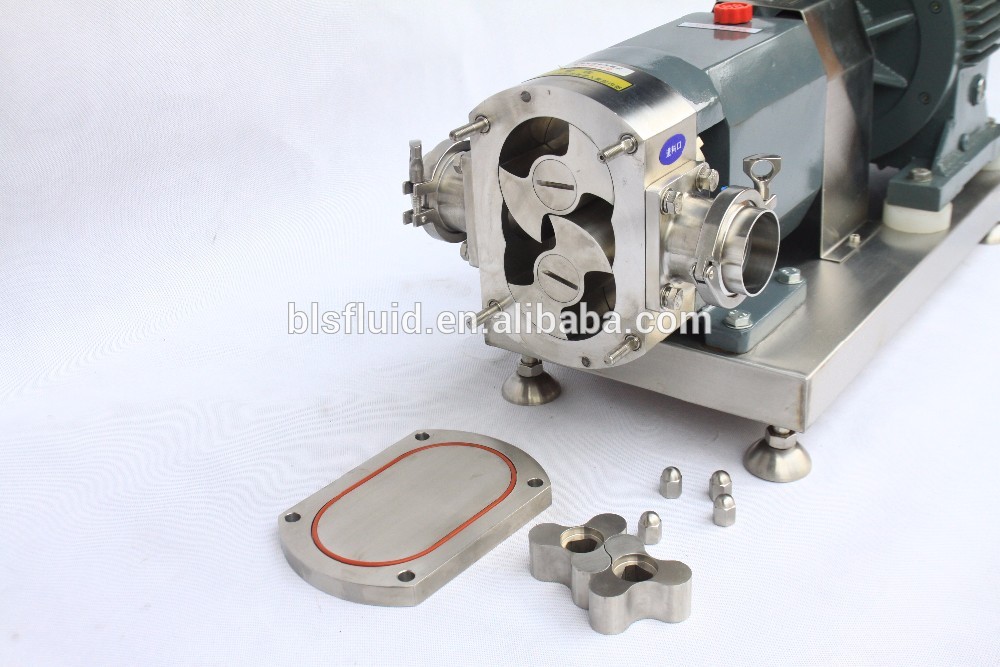

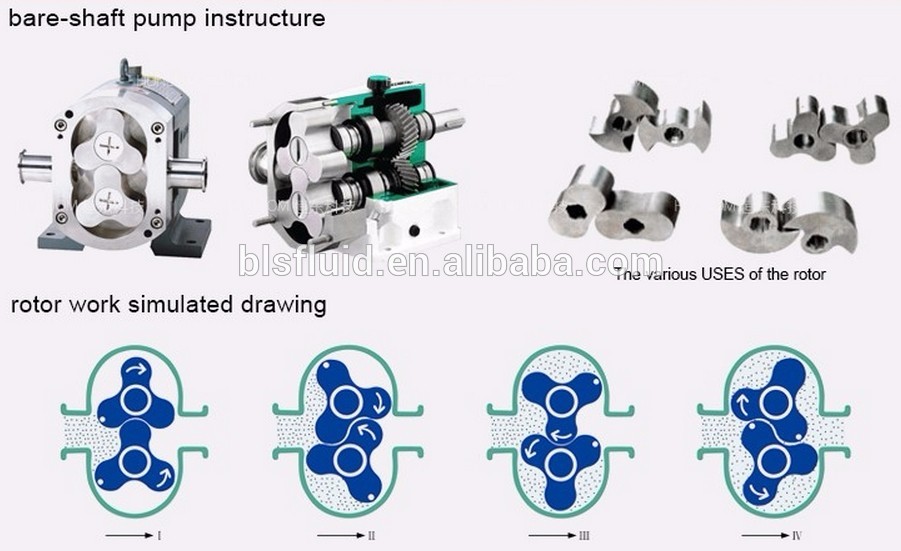

Rotors
1) Single impeller: transfer medium with a little large grains, not serious to damage grains
2) Double impeller: transfer medium with middle or small grains, low damage rate, low impulse, the capacity is smaller than tri-impeller
3) Tri-impeller: common type, capacity and performance is better than other rotors
Application
1). Food and beverage: dairy, chocolate, syrup, cream, cereal mash, beer and latex.
2). Fruit concentration: tomato paste, pudding, juice, jam and jelly.
3). Paste products: fats, grease and etc..
4). Cosmetic: face cosmetic, abluent, fixature, spice and so on.
5). Medicine: extract, emulsion and pill plasm.
6). Chemical industry: dyes, grease, dissolvant, resin and polymer.
Model | L/100R | Speed range | Flow rate | Power |
(L) | (rpm) | (L/H) | (kw) | |
BLS-3 | 3L | 200-500 | 300-800 | 0.55 |
BLS-6 | 6L | 200-500 | 650-1600 | 0.75 |
BLS-8 | 8L | 200-500 | 850-2160 | 1.5 |
BLS-12 | 12L | 200-500 | 1300-3200 | 2.2 |
BLS-20 | 20L | 200-500 | 2100-5400 | 3 |
BLS-30 | 30L | 200-400 | 3200-6400 | 4 |
BLS-36 | 36L | 200-400 | 3800-7600 | 4 |
BLS-52 | 52L | 200-400 | 5400-11000 | 5.5 |
BLS-66 | 66L | 200-400 | 7100-14000 | 7.5 |
BLS-78 | 78L | 200-400 | 9000-18000 | 7.5 |
BLS-100 | 100L | 200-400 | 11000-22000 | 11 |
BLS-135 | 125L | 200-400 | 15000-30000 | 15 |
BLS-160 | 160L | 200-400 | 17000-34000 | 18.45 |
BLS-200 | 200L | 200-400 | 21600-43000 | 22 |
Quality stainless steel
Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

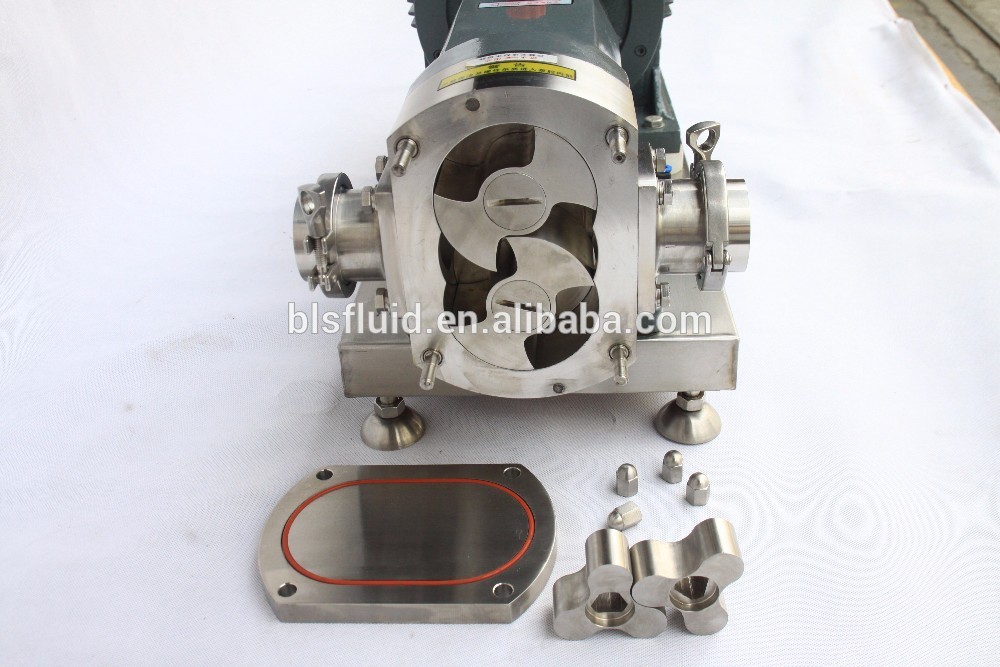

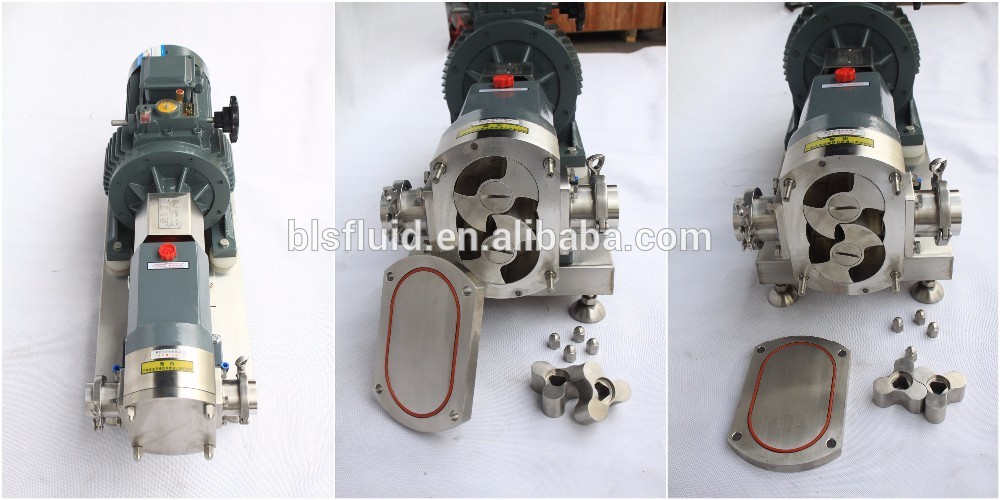

Various Rotor Type
2-leaves(butterfly shape), 3-leaves, single butterfly

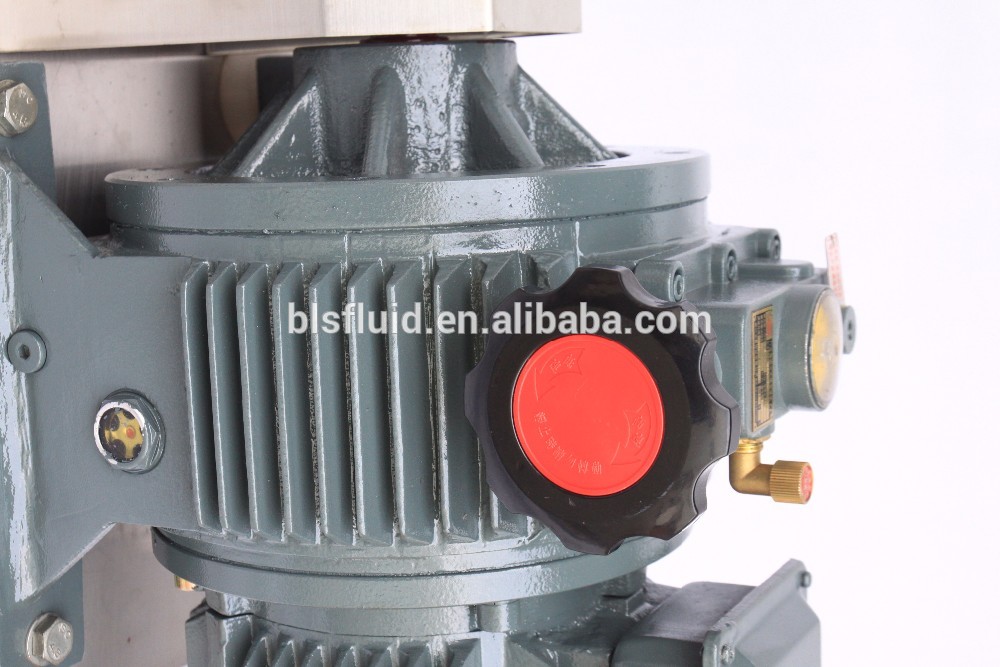

Speed adjustment
stepless and frequency control, constant speed
Sealing option
Sanitary single mechanical seal/Double mechanical seal with cooling system

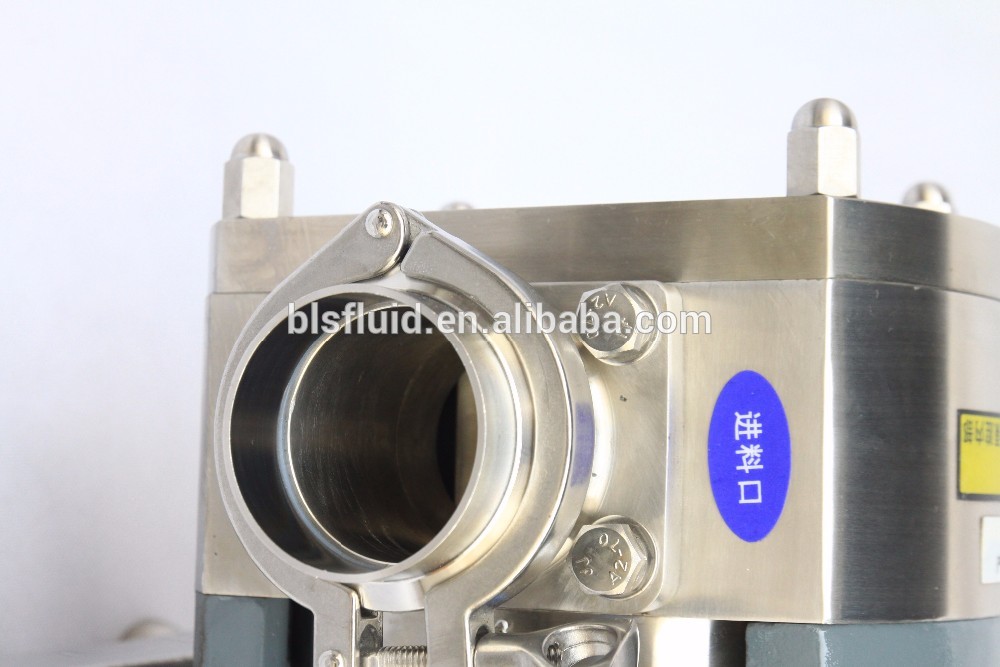

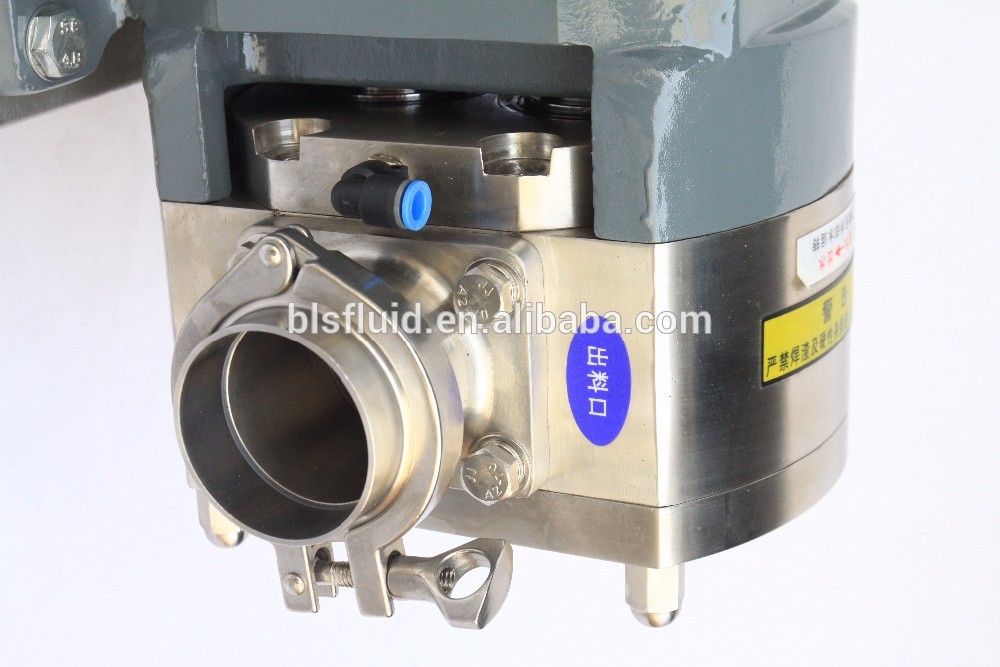

Available inlet and outlet connection
Clamp, Union, Flange etc.
Surface treatment
Inner polished and Sandblast outside
Zhejiang L&B Fluid Equipment co., Ltd
a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.
We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).
We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
