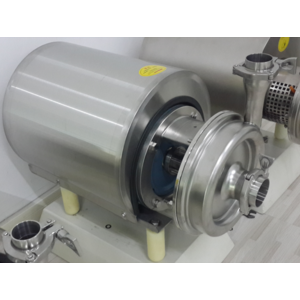

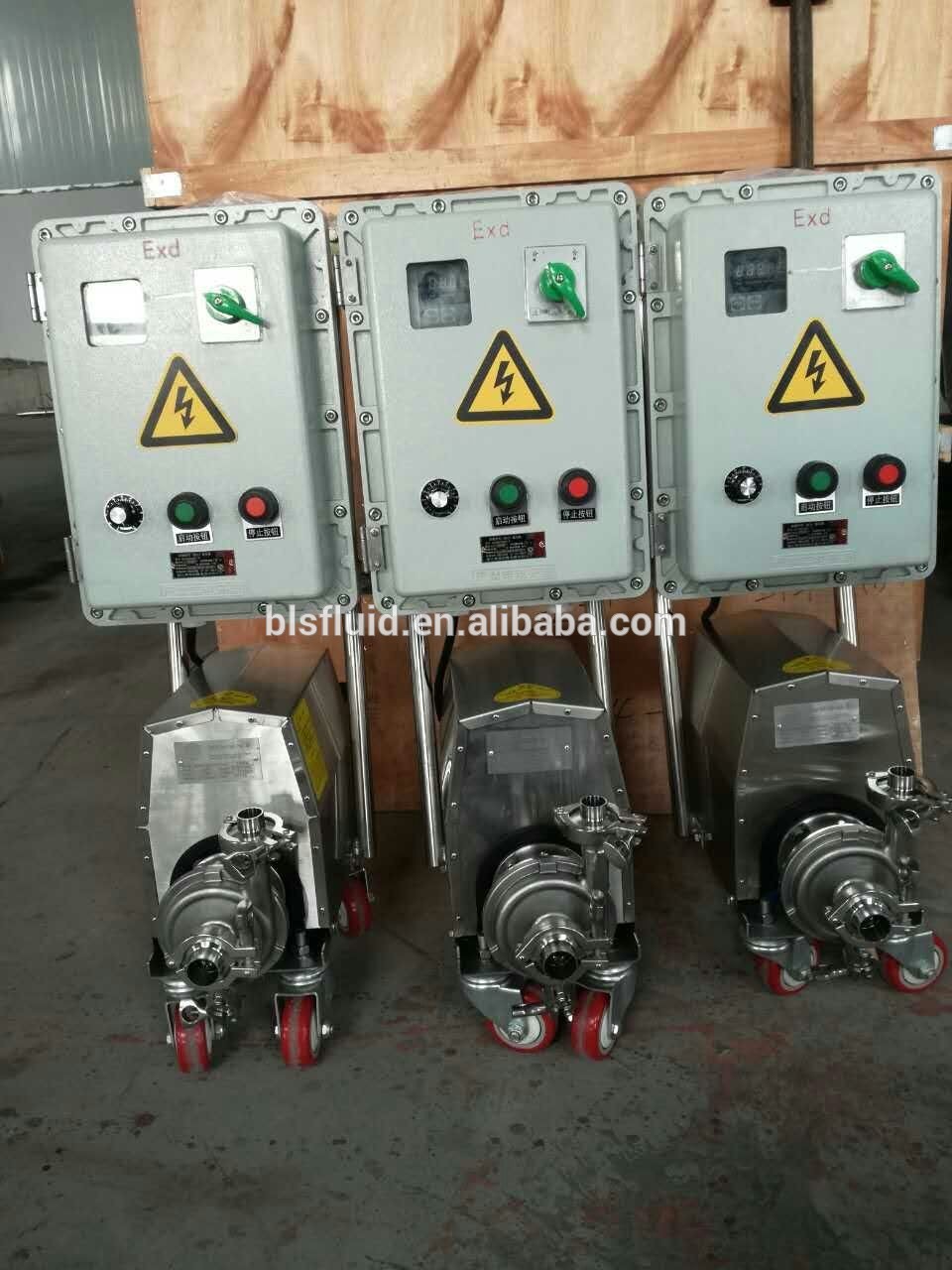

Made-in-China high flow rate centrifugal water pump with drain outlet

pump body and impeller integral casting, all  accessories surface polishing.

Technical Feature

  • Zhejiang, China (Mainland)
  • BLS
  • BLS
  • Centrifugal Pump
  • centrifugal pump
  • Water
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~500

PRIMARY PARAMETERS

Place of Origin
Zhejiang, China (Mainland)
Brand Name
BLS
Model Number
BLS
Theory
Centrifugal Pump
Structure
centrifugal pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Electricy
Pressure
6.5Mpa
Application
water transfer pump, Dairy,Beverage,Food,Pharmacy,Biotechnology,Cosmetic etc.
Max pump Head
65mm
Inlet Diameter
35-105mm
Standard
DIN,3A,SMS,BS,AS,BPE etc
Max pressure
6.5 Mpa
Material
stainless steel 304 /316
Type
centrifugal water pump
Voltage
110-480V 50/60Hz
Motor
ABB
Max flow
150m3/h

DETAIL DESCRIPTION



Made-in-China high flow rate centrifugal water pump



Centrifugal Pump, Centrifugal Pump Price, Stainless Steel Food Grade Centrifugal Pump

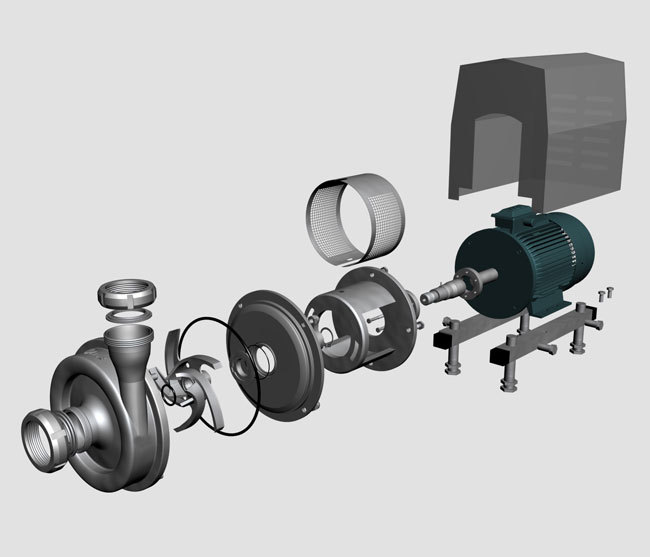

Construction

pump body, pump deck, motor etc.

material

SS304/SS316L

Seal Material: C/Si C/EPDM

Gasket Material: EPDM(FDA)

Mechanical Seal Type

single mechanical seal(standard, 120 degree)/double mechanical seal(higher than 120 degree)

vulnerable parts

Mechanical Seal

Surface treatment

Inner surface: polished

Outer surface: Sandblast

Max. Flow

150 m3/h

Max. Pump Head

65m

Max. Working Pressure

6.5Mpa

Temperature

120 °C

Motor power

0.75kw, 1.1kw, 1.5kw, 2.2kw, ...37kw

Speed

2800rpm

Voltage

110-480V

Motor

ABB/domestic/SIEMENS

Motor Frequency

50HZ, 60HZ

Available connection

Tri-Clamp, Thread, Flange

Available standard

DIN, SMS, 3A, RJT, ISO/IDF

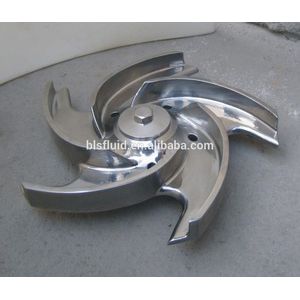

Impeller

Open impeller

Operated

Electric

Low discharge option

Low discharge/diaphragm valve/ball valve/butterfly valve

Application scope

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details

Plywood case or as per the request of customers

Delivery details

Usually within 20 days after receiving T/T down payment

Applications

Milk, beverage, wine etc low viscosity liquid(can contain 3-6mm solid)






Technical parameters of sanitary electric centrifugal water pumps:

Model

Flow (m3/h)

Pump head (m)

Power (kw)

Inlet dim (mm)

Outlet dim (mm)

Remark

(Motor)

BLS03-15-0.75

3



15

0.75

38

32

ABB

BLS03-20-1.1

3

20

1.1

38

32

ABB

 BLS05-24-1.5

5

24

1.5

51

38

ABB

BLS05-32-2.2

5

32

2.2

51

38

ABB

BLS10-24-2.2

10

24

2.2

51

38

ABB

BLS10-32-3

10

32

3

51

38

ABB

BLS15-24-3

15

24

3

51

51

ABB

BLS20-24-4

20

24

4

51

51

ABB

BLS20-35-5.5

20

35

5.5

63.5

51

ABB

BLS30-24-5.5

30

24

5.5

63.5

51

ABB

BLS30-35-7.5

30

35

7.5

63.5

51

ABB

BLS40-24-7.5

40

24

7.5

76

63.5

ABB

BLS50-24-7.5

50

24

7.5

76

63.5

ABB

BLS50-35-11

50

35

11

76

63.5

ABB

BLS80-30-15

80

30

15

89

76

ABB

BLS80-40-18.5

80

40

18.5

102

89

ABB





Contact supplier!       Add to my favorites!       Chat now!





Hot sale:

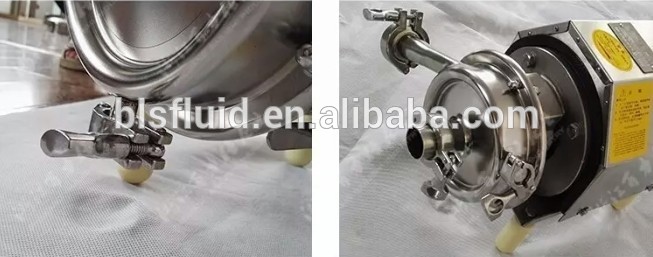

1. drain outlet under pump head

2. discharge hole direction can be changed as you like

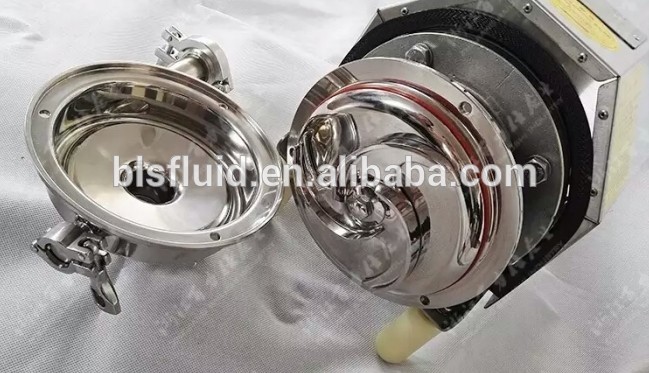

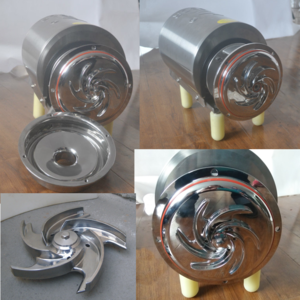

3. pump body and impeller integral casting, all  accessories surface polishing.







Company Introduction


After-Sales Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem: Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
aWe will dispatch our Quality and Problems Appraisers to make a confirmation.
bHave a negotiation of the compensation and sign agreements
cOur After-Sales Department will perform the duties as the agreements
