Hydraulic Membrane Press Filter For Solid Liquid Separation

is the cost-effective solution for solid-liquid separation, producing solids filter cake with extremely high clarity in the liquid effluent.

Technical Feature

  • New
  • Automatic
  • 10set/day
  • Henan, China (Mainland)
  • SHAUNGFA
  • XMYG630-U
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~12

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
10set/day
Place of Origin
Henan, China (Mainland)
Brand Name
SHAUNGFA
Model Number
XMYG630-U
Voltage
380V /Customized
Power(W)
2.2KW
Weight
1500KGS, press filter
Dimension(L*W*H)
2450*900*960mm
Certification
CE, ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
Press filter
Application
Solid-liquid Separation
Filter area
10m2, press filter
Quantity of chamber plate
7pcs
Quantity of membrane plate
8pcs
Filter chamber volume
150L
Thickness of filter cake
30mm
Material of chamber filter plate
Pure PP, durable
Advantage
Secondary Pressing, drier filter cake
Color
Customers' Required

DETAIL DESCRIPTION

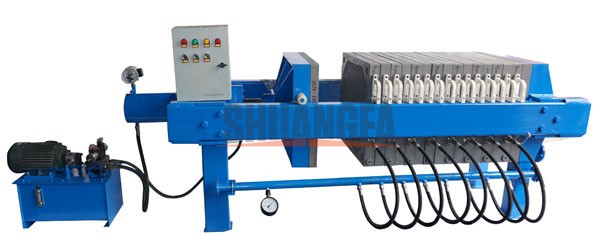

Hydraulic Membrane Press Filter For Solid Liquid Separation









Description of Press Filter:

Press filter is the cost-effective solution for solid-liquid separation, producing solids filter cake with extremely high clarity in the liquid effluent.

Press filter has the feature of simple structure, good separating effect, convenient operation, wide range of application.

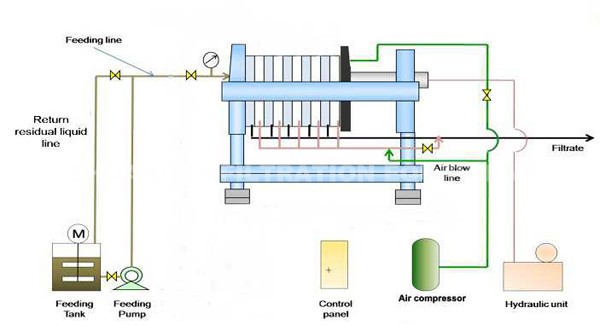

Working Principle of Press Filter:



Features of Press Filter:

1, Automatic functions of press filter includes automatic compress the plates, automatic pressure keeping.

2, Secondary pressing of press filter, the squeezing pressure can be 0.8Mpa, have a 5% -10% drier filter cake than chamber filter press.

3, In the late stages of press filter filtration, using diaphragm squeezing function to do secondary pressing directly, leading to complete this cycle in a short time, save the power consumption, and can greatly shorten the cycle of the whole filtration process.

4, The moisture content of filter cake can be reduced greatly, save drying cost and improve the yield.

5, The main material of frame is carbon steel:Q235, beams with rectangular tube seamless welding, special frame deformation, strong and durable.

6, Filter plates of press filter do not contain other filler. not recycled material, high strength, light weight, corrosion resistance, acid and alkali, non-toxic and tasteless.

7, Various kinds of filter cloth which suit for different kinds of material, improving the filtering accuracy.

8, Special faucet of press filter is made of polypropylene materials, quick opening type die forming, strong and durable, high temperature resistance, strong acid and alkaline.

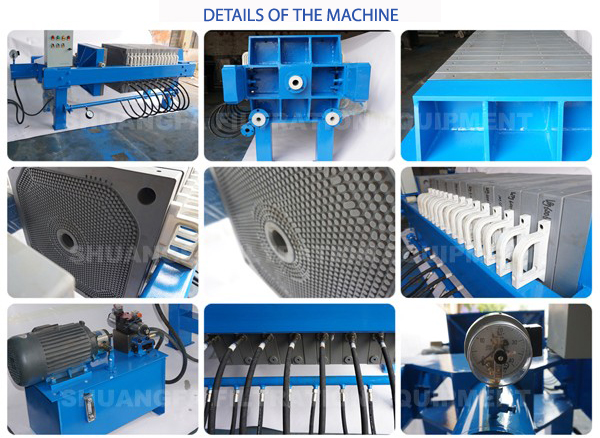

Details of Press Filter:



Application of Press Filter:

1, Chemical industry:

Coating, paint, silica, caustic soda, soda ash, alkali, salt mud (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor) etc.

2, Food industry:

Vegetable oil, starch sugar, plant sweet, maltose, starch, maize, seaweed, kara glue, oral liquid, beer yeast, rice wine, white wine, fruit juice, beverage, plant protein etc.

3, Sewage treatment

Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment etc.

4, Pharmacy industry:

Phytic acid, calcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate etc.

6, Metallurgy, coal industry:

Gold, silver, copper, zinc ore mineral powder, etc

7, Other solid liquid separation industries.

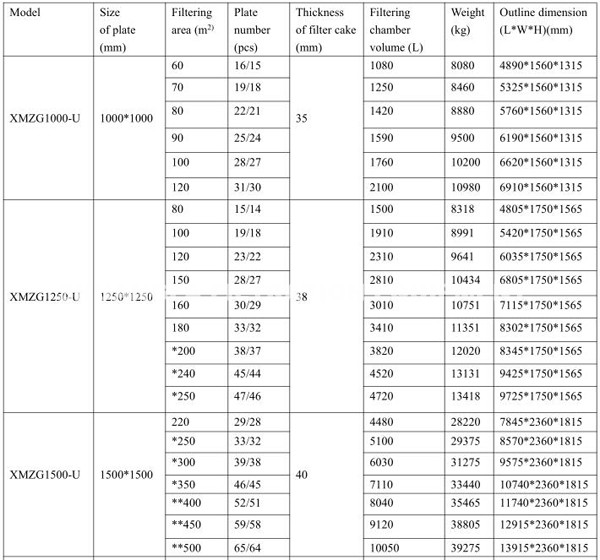

Technical Parameter of Press Filter:



PACKING & DELIVERY:



OUR SERVICE:

1, Pre-sale services:

We will happily assist you in getting the information you need to make a decision on which products best fit your needs.We want you to feel good about your purchase.

We can design and manufacture products as per your special requirements.If required, we can train your technical personnel for you.

2, Services during the sale:

We strictly adhere to the principle of "the customer first".Your needs and concerns will be addressed to your complete satisfaction.

We can help clients to draft solutions to their specific situations.

3, After-sale services:

Our products are all guaranteed for a full year. During this period, if there is any quality problem, we repair it free of charge.

If there is any problem, we will take measures to solve it immediately,on-site.technical exchanging is also provided for you.







Send Message or Chat Now to Get Details !!!



Tips: please tell me your material and capacity to become our quality clients which will have 2%-10% discount.



Please tell me your demand information, so we can send you accurate quotation:



1, What's the raw materials you want to process?



2, What's the total processing capacity you want tons per hour?



3, What's the solid content in the raw material(%)?



4, Your email address or phone number



5, Other requirements.
