Vacumm Belt Dryer For Powder & Particle

Ambient-Temperature Sterilizer

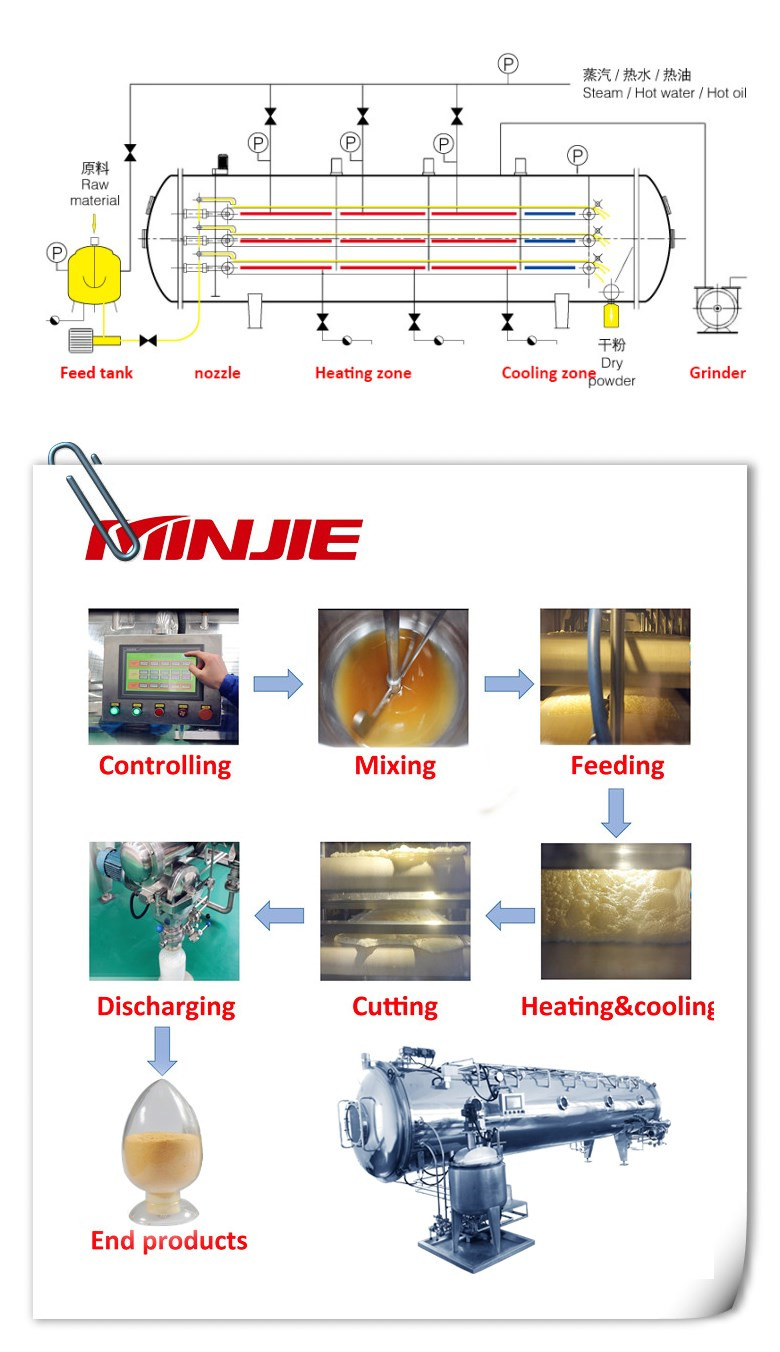

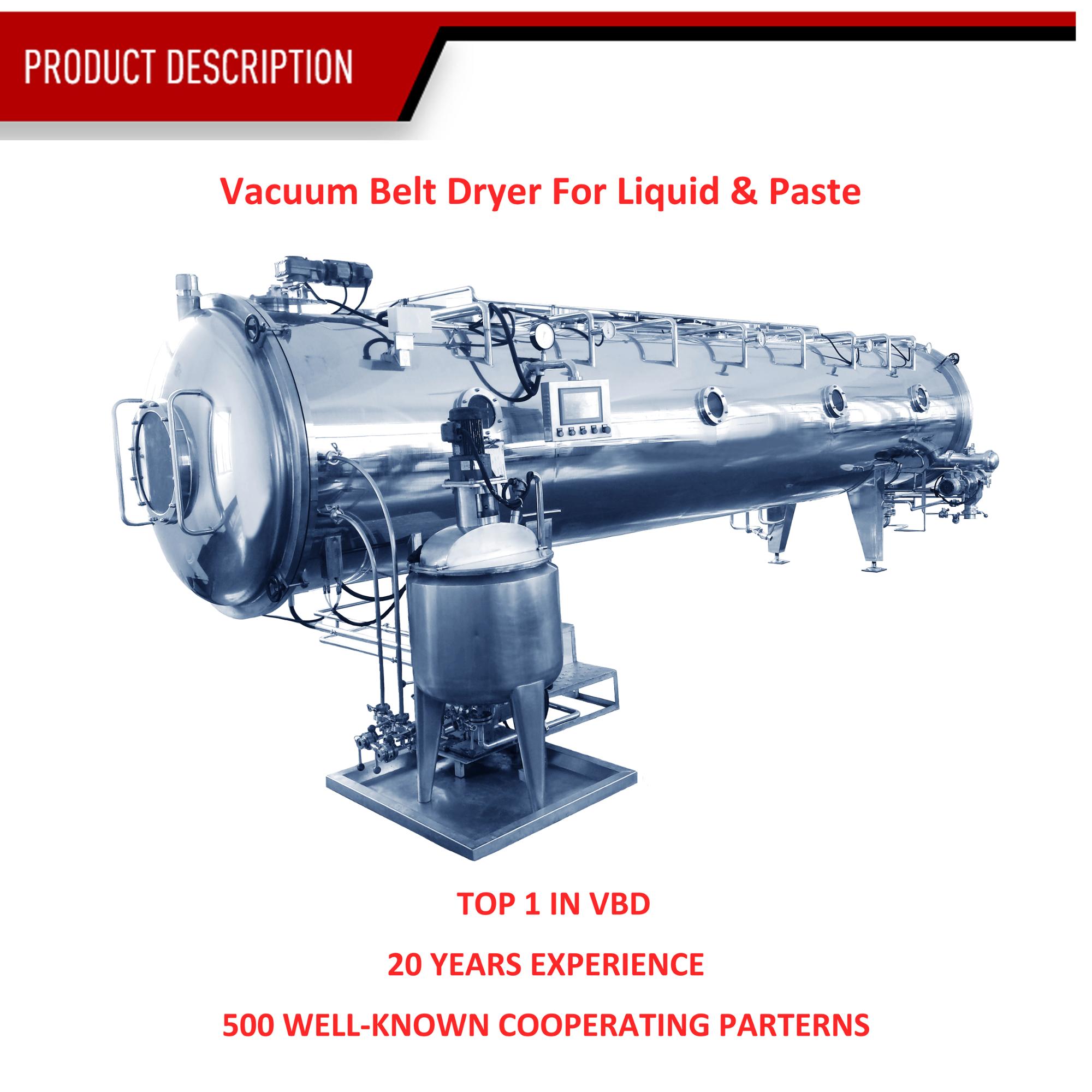

Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated. Belts move on the heating plates evenly. Steam, hot water, hot oil can be used as heating media. With the moving of the belts, the product goes through from the beginning evaporating, drying, cooling to discharging in the end. The temperature decreases through this process, and can be adjusted for different products. Special vacuum crusher is equipped at the discharge end to produce different size end product. The dry powder or granule product can be automatically packed or continue with subsequent process.

1.Less labor cost and energy consumption

2.Little loss of product and solvent recycling possible

3. PLC automatic control system & CIP cleaning system

4. GMP standards

5. Good solubility & excellent quality of the products

6. Continuous feed-in, dry, granulate, discharge in vacuum state

7. Completely closed system and no contamination

8. Adjustable drying temperature (30~150℃)& drying time (30~60min)

1. Food industry (malt extract, carbohydrate, instant beverage, tea powder, cocoa powder,  corn paste etc)

2. Pharmaceutical industry (chinese medicine extract, plant extract, egg embryo,  PVPK series, fermenting liquid etc)

3. Chemical Industry (lithium battery, emamectin benzoate etc)

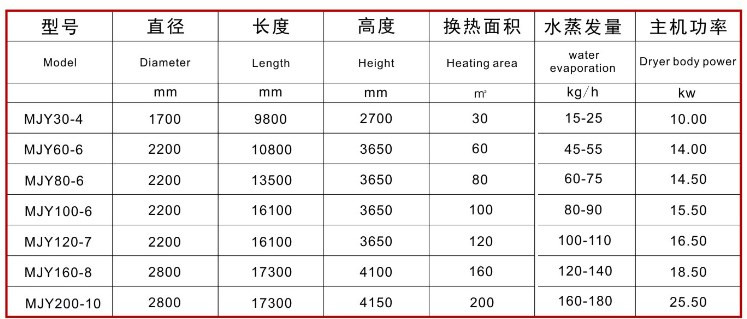

Product name:

Continuous vacuum belt dryer

Type

MJY60-6

Size

D*L*H

2200*10800*3650

Heating area

m2

60

Evaporation

kg/h

45-55

Power

kw

14
